12v 100ah LiFepo4 Battery

12V 100ah lithium lifepo4 battery pack for solar system, solar/wind energy storage, ups, electric wheelchairs and scootersetc.

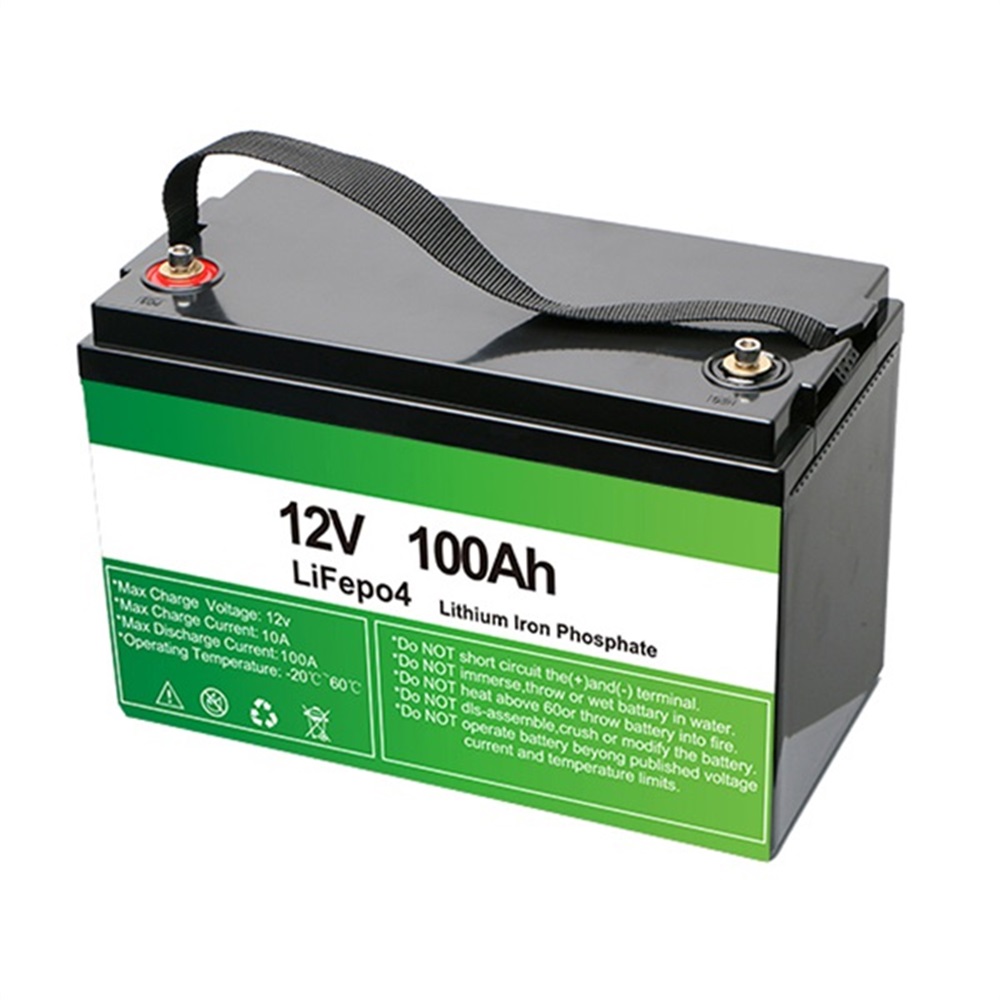

Lithium iron phosphate lifepo4 battery 12V 100ah

Lithium iron phosphate lifepo4 battery 12V 100ah



Key Features of LiFePO4 Battery 12V 100Ah :


1) Longer Cycle Life:

Longer cycle life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

2) Lighter Weight:

About 50% of the weight of a comparable lead acid battery.

3) Higher Power:

Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.

4) Safety:

Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

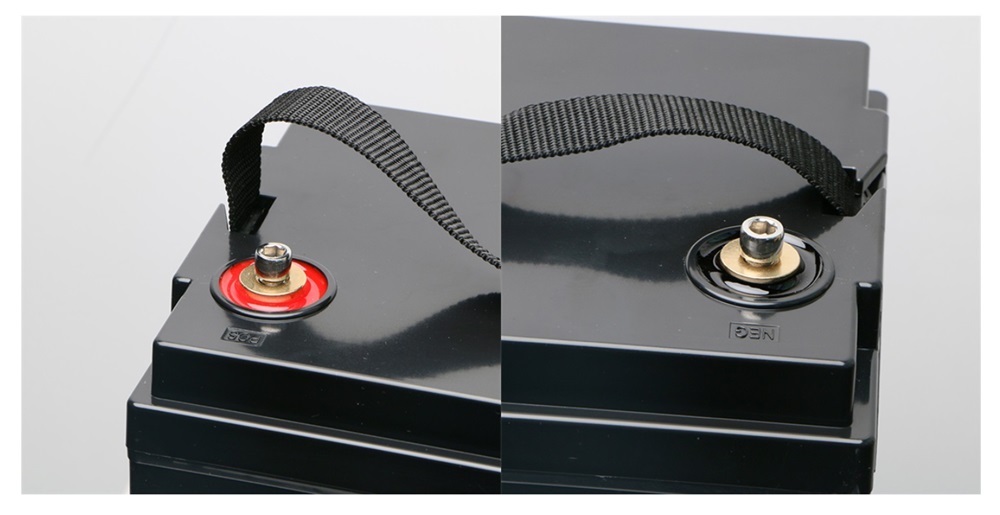

details

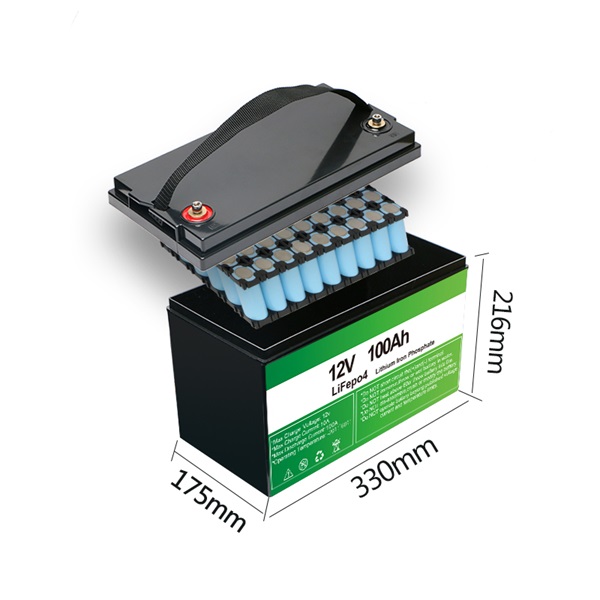

dimension

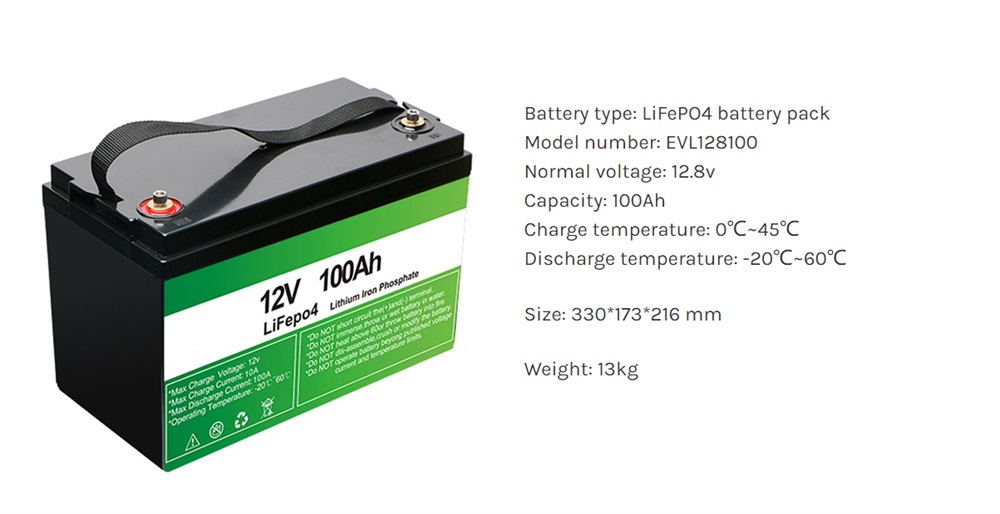

Specifications:


Item

Parameters

Nominal Voltage

12.8V

Nominal Capacity

100Ah

Cycle Life

≥2000 cycles @ 1C   100% DOD

Charge Voltage

14.6±0.2V

Max. Charge Current

50A (can be customized)

Max. discharge Current

100A (can be customized)

Discharge Cut-off Voltage

10V

Charge Temperature

0℃ to 45℃

Discharge Temperature

-20℃ to 60℃

Approx. Dimensions

330*173*216mm

Approx. Weight

13kg


Applications:

This 12V 100Ah lifepo4 battery pack can be widely used in Wheelchairs and scooters, Solar/wind energy storage, Back-up power for small UPS, Golf trolleys & buggies, Kid electric cars, etc. applications.
