12v/12.8V 10ah LiFePO4 Battery Pack

Lithium iron phosphate 12V/12.8v 10Ah LiFePO4 Battery Pack

Lithium iron phosphate 12V/12.8v 10Ah LiFePO4 Battery Pack


12v/12.8V 10ah LiFePO4 Battery Pack



Battery type: LiFePO4 battery pack
Model number: EVL12810
Normal voltage: 12.8v
Capacity: 10Ah
Charge temperature: 0℃~45℃
Discharge temperature: -20℃~60℃

Size: 151*95*99mm

Weight: 1.5kg





Key Features of LiFePO4 Battery 12V 10Ah


1) Longer Cycle Life:

Longer cycle life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

2) Lighter Weight:

About 50% of the weight of a comparable lead acid battery.

3) Higher Power:

Delivers twice the power of a lead acid battery, even high discharge rate, while maintaining high energy capacity.

4) Safety:

Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high-impact overcharging or short circuit situation

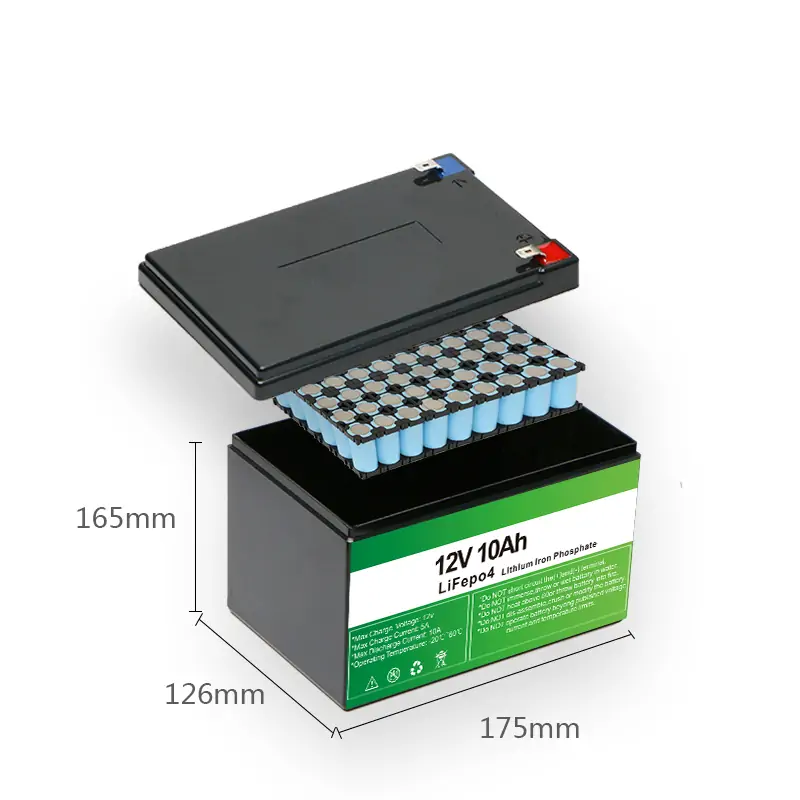

dimensiondetails


Specifications


Item

Parameters

Nominal Voltage

12.8V

Nominal Capacity

10Ah

Cycle Life

≥2000 cycles @ 1C   100% DOD

Charge Voltage

14.6±0.2V

Max. Charge Current

6A (can be customized)

Max. discharge Current

10A (can be customized)

Discharge Cut-off Voltage

10V

Charge Temperature

0℃ to 50℃

Discharge Temperature

-20℃ to 55℃

Approx. Dimensions

151mm*95mm*99mm

Approx. Weight

1.5kg




Applications


This 12V 10Ah lifepo4 battery pack can be widely used in Wheelchairs and scooters, Solar/wind energy storage, Back-up power for small UPS, Golf trolleys & buggies, Kid electric cars, etc. applications.
