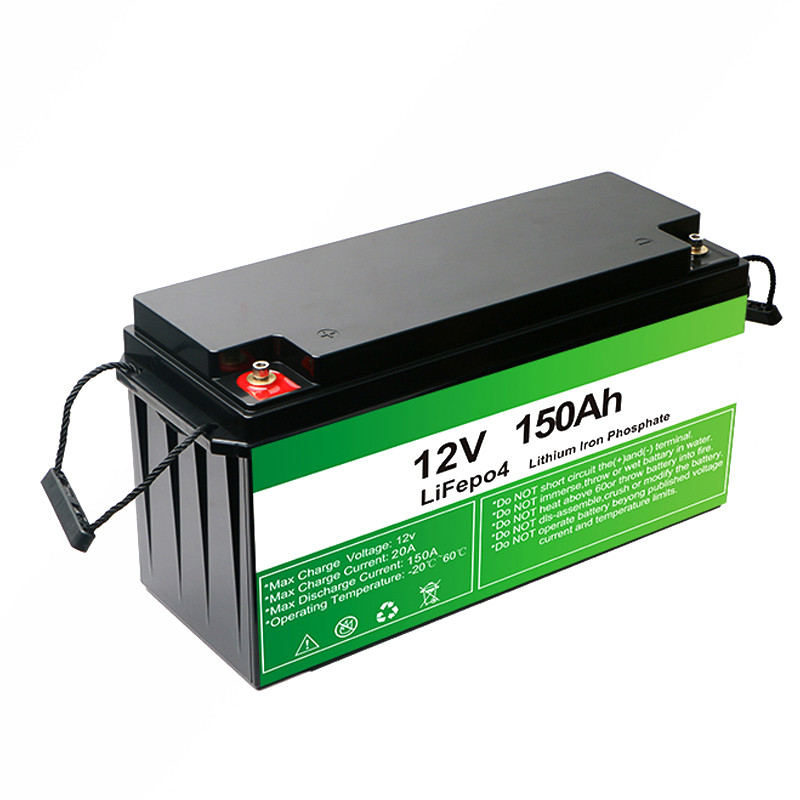

12V 150Ah lifepo4 battery pack with features of marine, RV, UPS systems, solar energy storage.
1) Longer Cycle Life:
Longer cycle life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
2) Lighter Weight:
About 50% of the weight of a comparable lead acid battery.
3) Higher Power:
Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
4) Safety:
Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Item | Parameters |
Nominal Voltage | 12.8V |
Nominal Capacity | 150Ah |
Cycle Life | ≥2000 cycles @ 1C 100% DOD |
Charge Voltage | 14.6±0.2V |
Max. Charge Current | 50A (can be customized) |
Max. discharge Current | 150A (can be customized) |
Discharge Cut-off Voltage | 10V |
Charge Temperature | 0℃ to 45℃ |
Discharge Temperature | -20℃ to 60℃ |

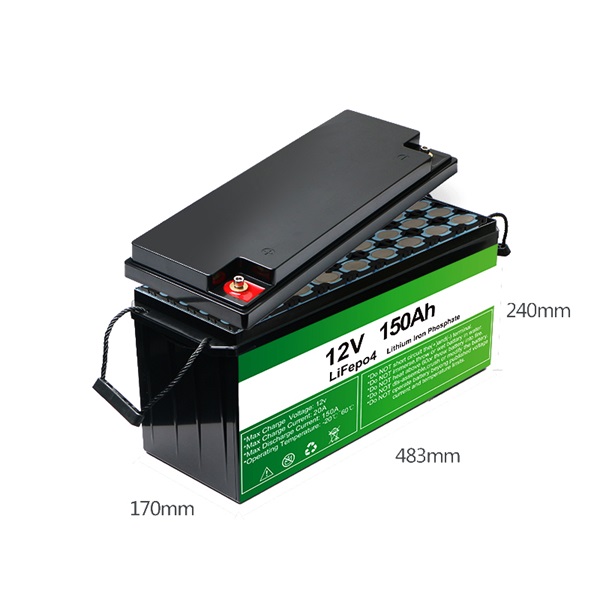

Approx. Dimensions | 483*170*240mm |
Approx. Weight | 18kg |
This 12V 150Ah lifepo4 battery pack can be widely used in Wheelchairs and scooters, Solar/wind energy storage, Backup power for small UPS, Golf trolleys & buggies, Kid electric cars, etc. applications.
