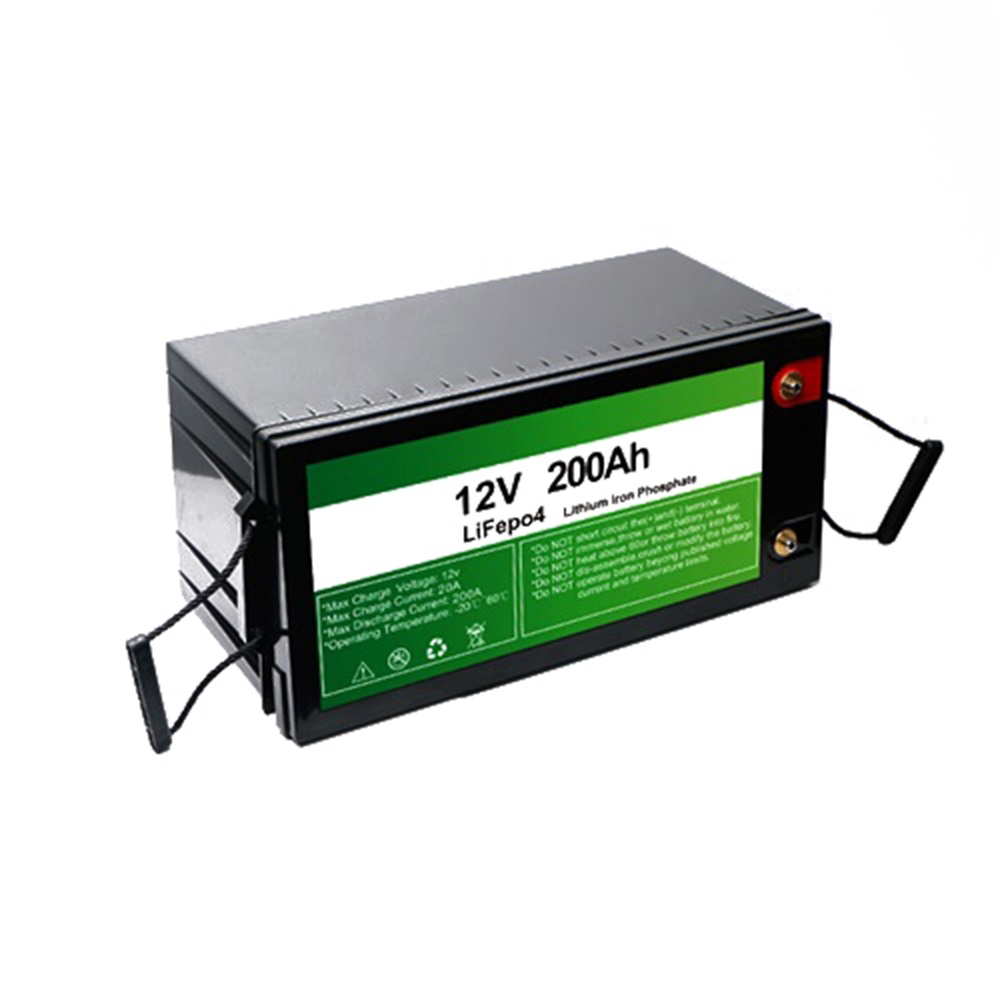

Lithium iron phosphate lifepo4 battery 12V 200ah
12V200Ah lifepo4 battery pack with features of long cycle life, light weight, high power, and high safety.
- Category: Lithium LiFePO4 Battery 12V/24V
- Tag: 12v battery lifepo4 battery
Key Features of LiFePO4 Battery 12V 200Ah :
1) Longer Cycle Life:
Longer cycle life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
2) Lighter Weight:
About 50% of the weight of a comparable lead acid battery.
3) Higher Power:
Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
4) Safety:
Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Specifications:
Item | Parameters |
Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah |
Cycle Life | ≥2000 cycles @ 1C 100% DOD |
Charge Voltage | 14.6±0.2V |
Max. Charge Current | 50A (can be customized) |
Max. discharge Current | 200A (can be customized） |
Discharge Cut-off Voltage | 10V |
Charge Temperature | 0℃ to 45℃ |
Discharge Temperature | -20℃ to 60℃ |

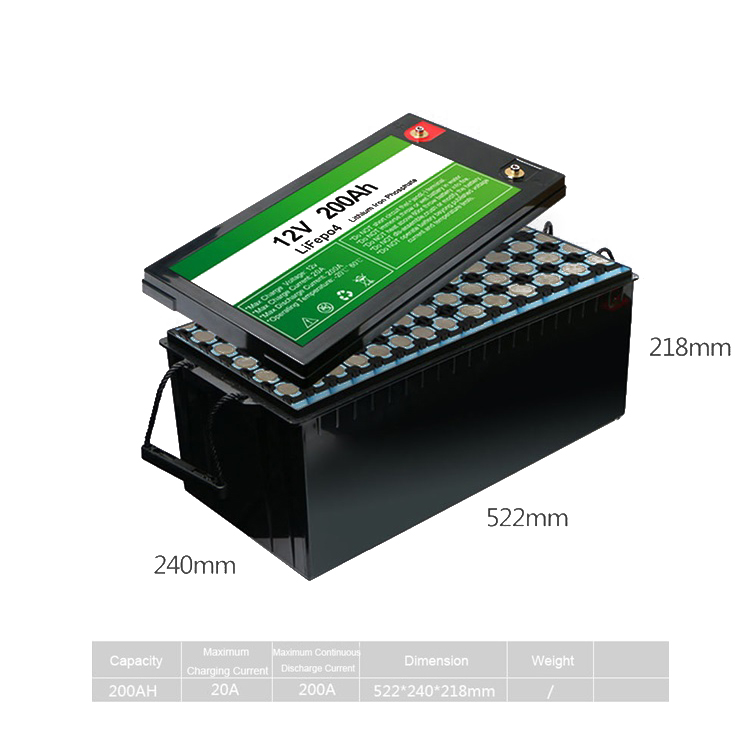

Approx. Dimensions | 522mm*240mm*218mm |
Approx. Weight | 24kg |
Applications
This 12V 200Ah lifepo4 battery pack can be widely used in Wheelchairs and scooters, Solar/wind energy storage, Backup power for small UPS, Golf trolleys & buggies, Kid electric cars, etc. applications.
