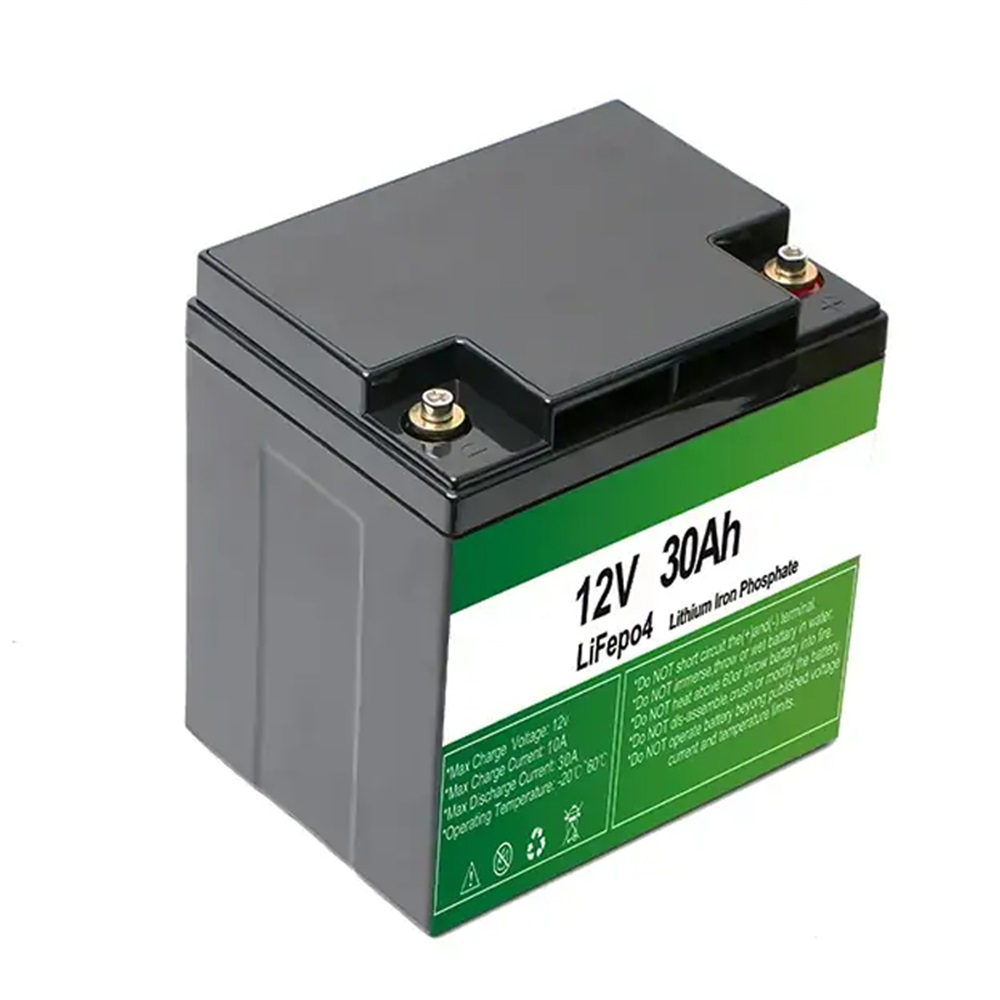

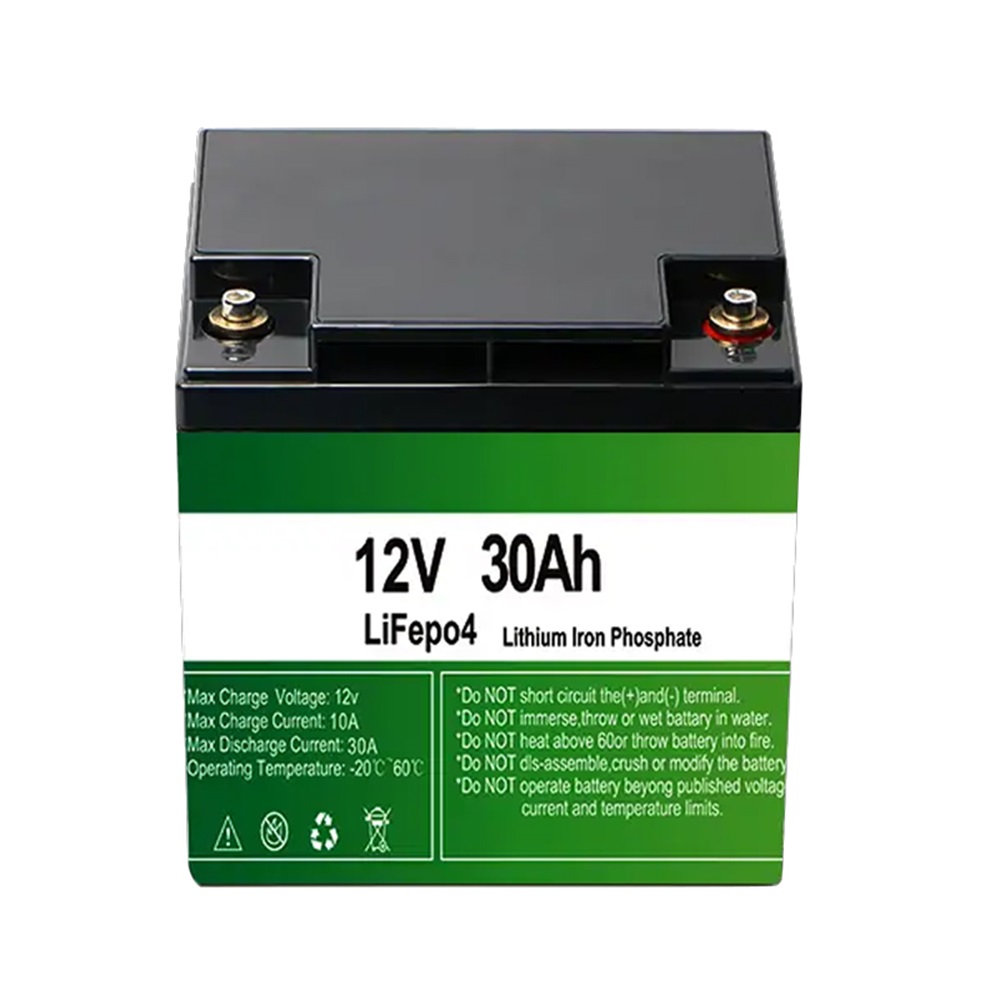

12V 30ah lithium iron phosphate lifepo4 battery pack
1) Longer Cycle Life:
Longer cycle life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
2) Lighter Weight:
About 50% of the weight of a comparable lead acid battery.
3) Higher Power:
Delivers twice the power of a lead acid battery, even high discharge rate, while maintaining high energy capacity.
4) Safety:
Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high-impact overcharging or short circuit situation

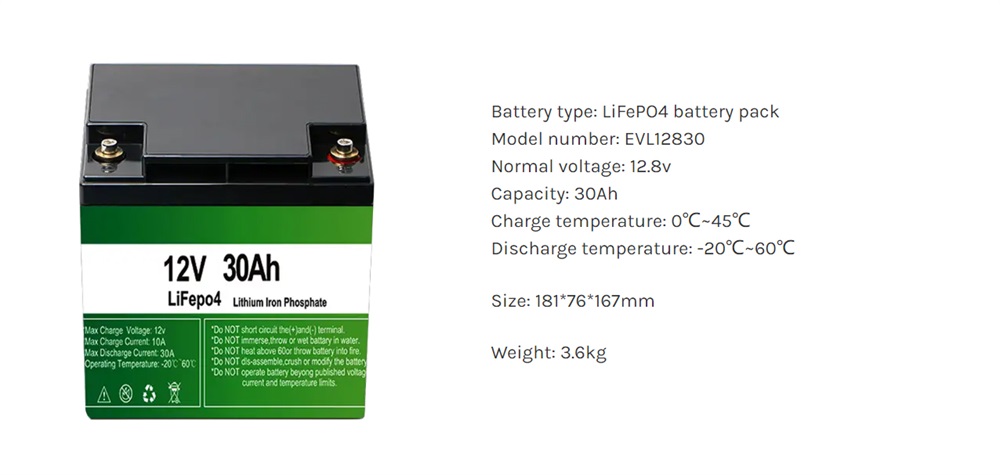

Item | Parameters |
Nominal Voltage | 12.8V |
Nominal Capacity | 30Ah |
Cycle Life | ≥3000 cycles @ 1C 100% DOD |
Charge Voltage | 14.6±0.2V |
Max. Charge Current | 30A (can be customized) |
Max. discharge Current | 30A (can be customized) |
Discharge Cut-off Voltage | 10V |
Charge Temperature | 0℃ to 50℃ |
Discharge Temperature | -20℃ to 55℃ |
Approx. Dimensions | 181mm*76mm*167mm |
Approx. Weight | 3.6kg |
This 12V 30Ah lifepo4 battery pack can be widely used in Wheelchairs and scooters, Solar/wind energy storage, Back-up power for small UPS, Golf trolleys & buggies, Kid electric cars, etc. applications.
