Lithium Iron Phosphate Battery 12 Volt 50 Ah

lithium iron phosphate battery 12 volt 50 ah pack for solar system, solar/wind energy storage, ups, electric wheelchairs, and scooters, etc.

Lithium iron phosphate lifepo4 battery 12V 50 ah

lifepo4 battery 12v 50ah


Key Features of LiFePO4 Battery 12V 50Ah


1) Longer Cycle Life:

Longer cycle life than a lead acid battery, helping to minimize replacement costs and reduce the total cost of ownership.

2) Lighter Weight:

About 50% of the weight of a comparable lead acid battery.

3) Higher Power:

Delivers twice the power of a lead acid battery, even high discharge rate, while maintaining high energy capacity.

4) Safety:

Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high-impact overcharging or short circuit situation

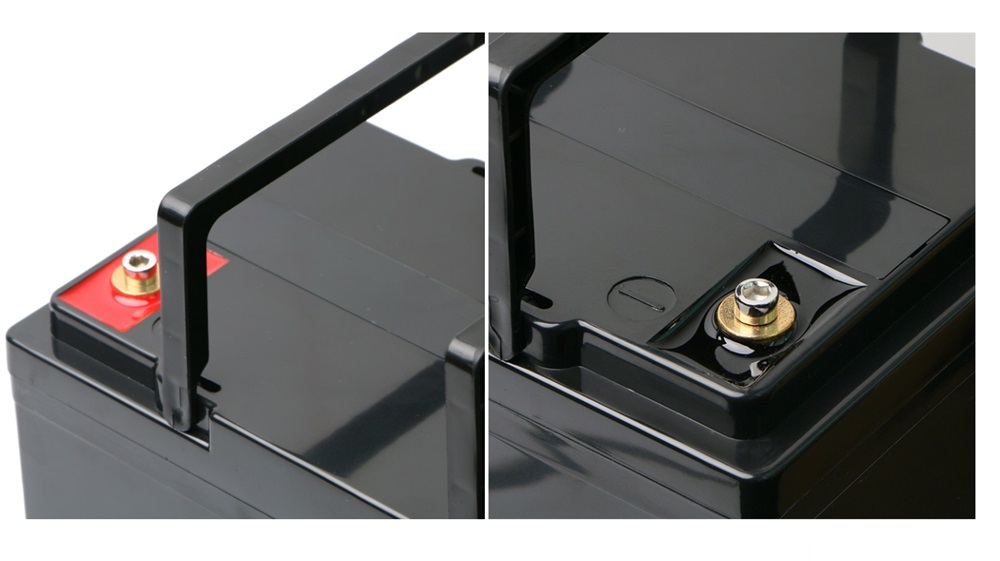

detail

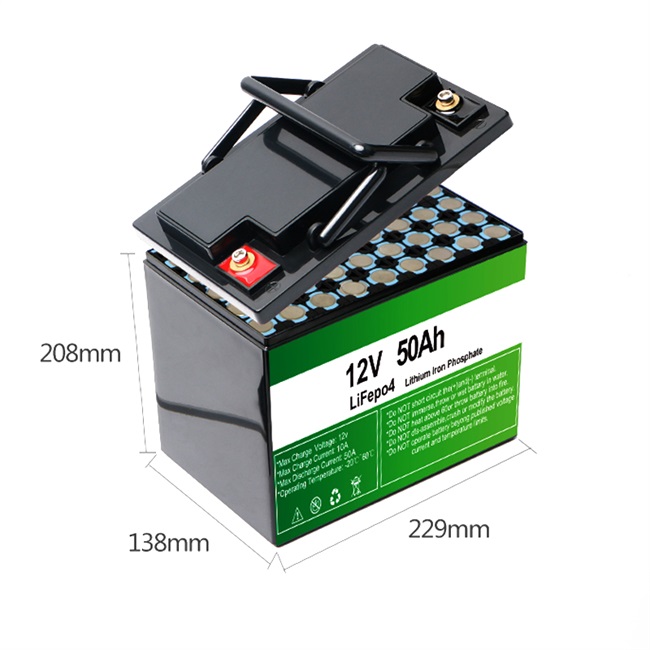

dimension

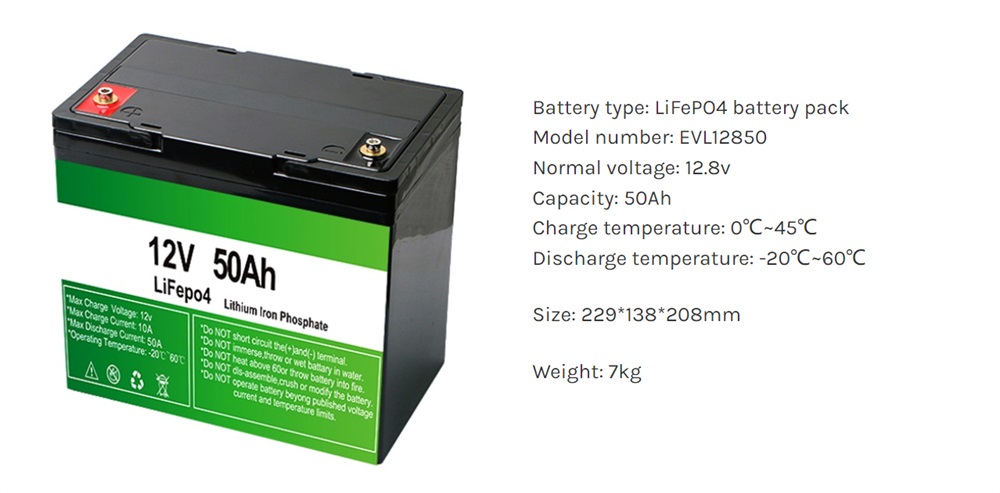

Specifications:



Item

Parameters

Nominal Voltage

12.8V

Nominal Capacity

50Ah

Cycle Life

≥2000 cycles @ 1C   100% DOD

Charge Voltage

14.6±0.2V

Max. Charge Current

25A (can be customized)

Max. discharge Current

50A (can be customized)

Discharge Cut-off Voltage

10V

Charge Temperature

0℃ to 45℃

Discharge Temperature

-20℃ to 60℃

Approx. Dimensions

229mm*138mm*208mm

Approx. Weight

7kg




Applications:

This 12V 50Ah lifepo4 battery pack can be widely used in Wheelchairs and scooters, Solar/wind energy storage, Backup power for small UPS, Golf trolleys & buggies, Kid electric cars, etc. applications.
