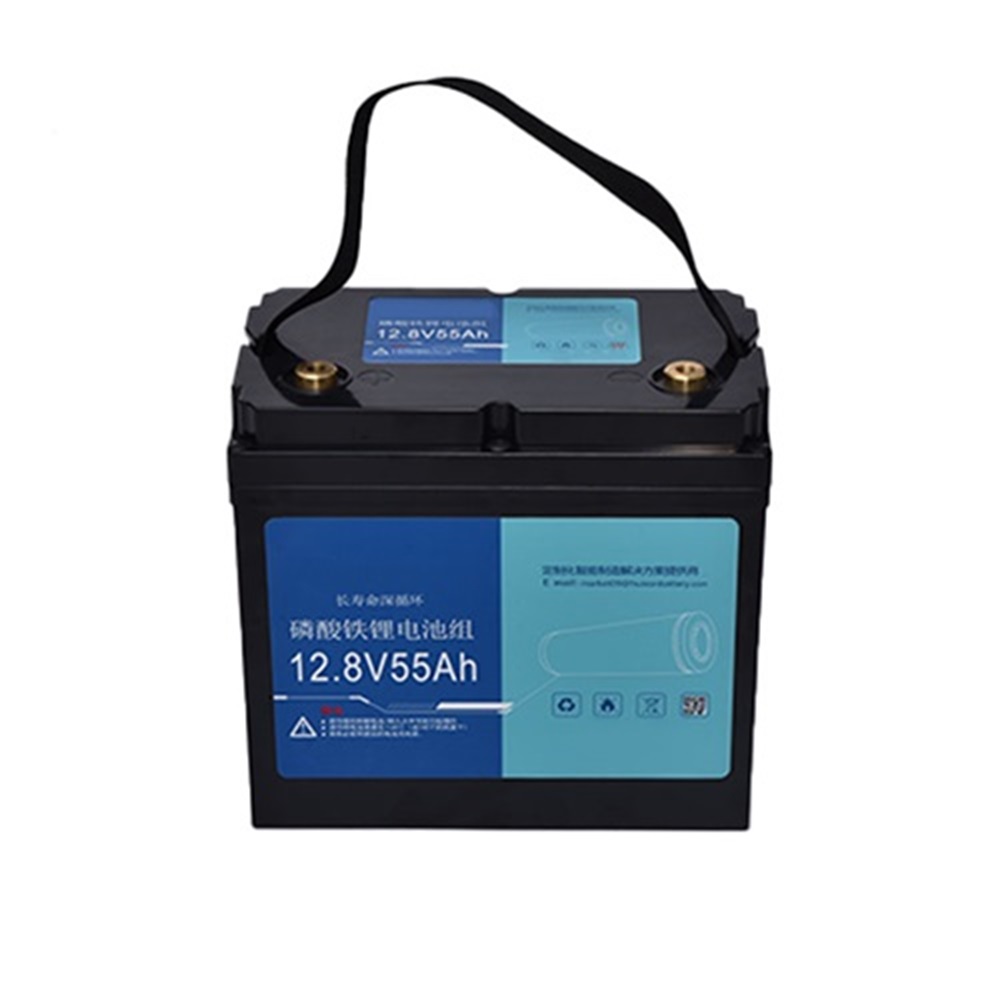

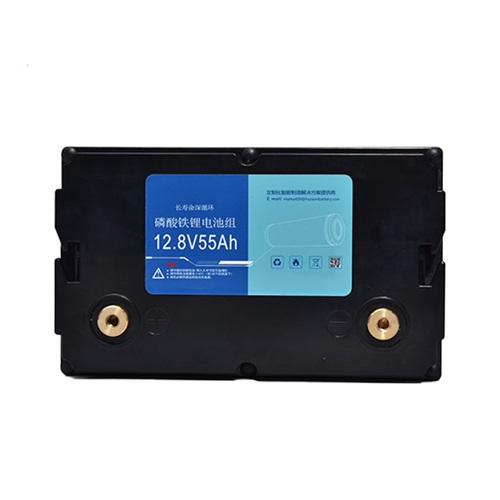

12V 60ah lithium lifepo4 deep cycle Battery Pack

we supply 12V 60ah lithium lifepo4 deep cycle Battery Pack.

12V 60ah lithium lifepo4 deep cycle Battery Pack

12V 60ah Lithium iron phosphate deep cycle Battery Pack

12V 60Ah Battery Pack Parameters



Items

Parameter

Product Model

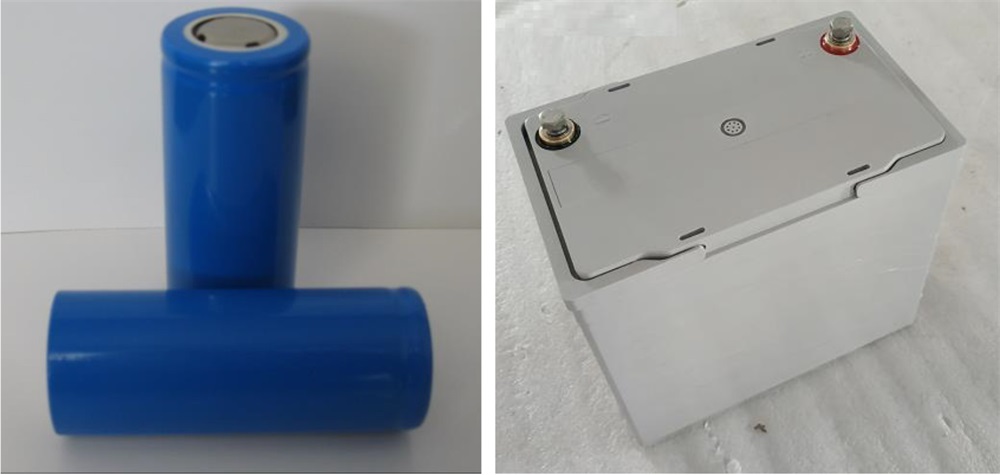

4IFR12.8-60-Y ( 26650-3.2V-4S18P )

Normal Voltage

12.8V

Rated Capacity

60±2Ah ( At 0.2C discharge rate)

Min Capacity

57Ah

Energy

About 768Wh

Internal Resistance

≤ 40mΩ

Size

(228±2) mm * (138±2) mm * (208±2) mm

Weight

7.8±0.3kg

Charge Voltage

14.4±0.15V

Standard Cutoff Voltage

About10.0V

Charge Current

≤ 20A

Charging cut-off current

1A~2A

Max. Continuous Discharge Current

≤ 60A

Passive Protection

Over charge protection, Over discharge protection,

 Temperature protection, Balanced function

Positive

M8 hole

Negative

M8 hole

Charge Retention

After charging according to standard 3.2,

 place the battery for 28 days under

the standard test conditions,

then discharge it under standard 3.3,

 and the charge retention rate is ≥80%.

Cycle

Standard charge at 0.2C (A), rest 0.5~1h,

discharge at 0.2C to cut offvoltage, rest 0.5h~1h,

repeat the above steps until




Characteristics Curve Of The 12V 100Ah LiFePO4 Battery Pack


Characteristics Curve Of The 12V 100Ah LiFePO4 Battery Pack



details



Battery Usages

Charge

Charging terminal of battery is connected to charger appropriate with it, and then charge. Charging voltage is14.4±0.15V. Do not reverse.

Discharge

Note that the positive and negative (poles are not reversed as indicated by the battery case logo), then connect to the matching load.

Battery Test

Single cell and Protection board specification are only results of standard test, this is for reference.

Standard Test Requirements

Battery tested must be done within 1 month after production. If the battery is not tested on time due to transportation or other reasons, the battery can be recharged and discharged for testing. All tests in this specification should be done in standard atmospheric conditions. (Temperature: 25± 2℃; relative humidity: 65± 20%).

Standard charge voltage is 14.4±0.15V, standard discharge cutoff voltage is about10.0V; standard current is I5 (when I5 > the normal work current, test according to the normal current).

Standard Charge

Charge the battery with Lithium ion battery special test cabinet, with standard charging voltage, standard current, constant current and constant voltage charging to the current dropping to 0.05 I5·

Standard Discharge

Discharge the battery with Lithium ion battery special test cabinet, discharge to standard discharge cutoff voltage with standard current, constant discharging or until the battery stops.
