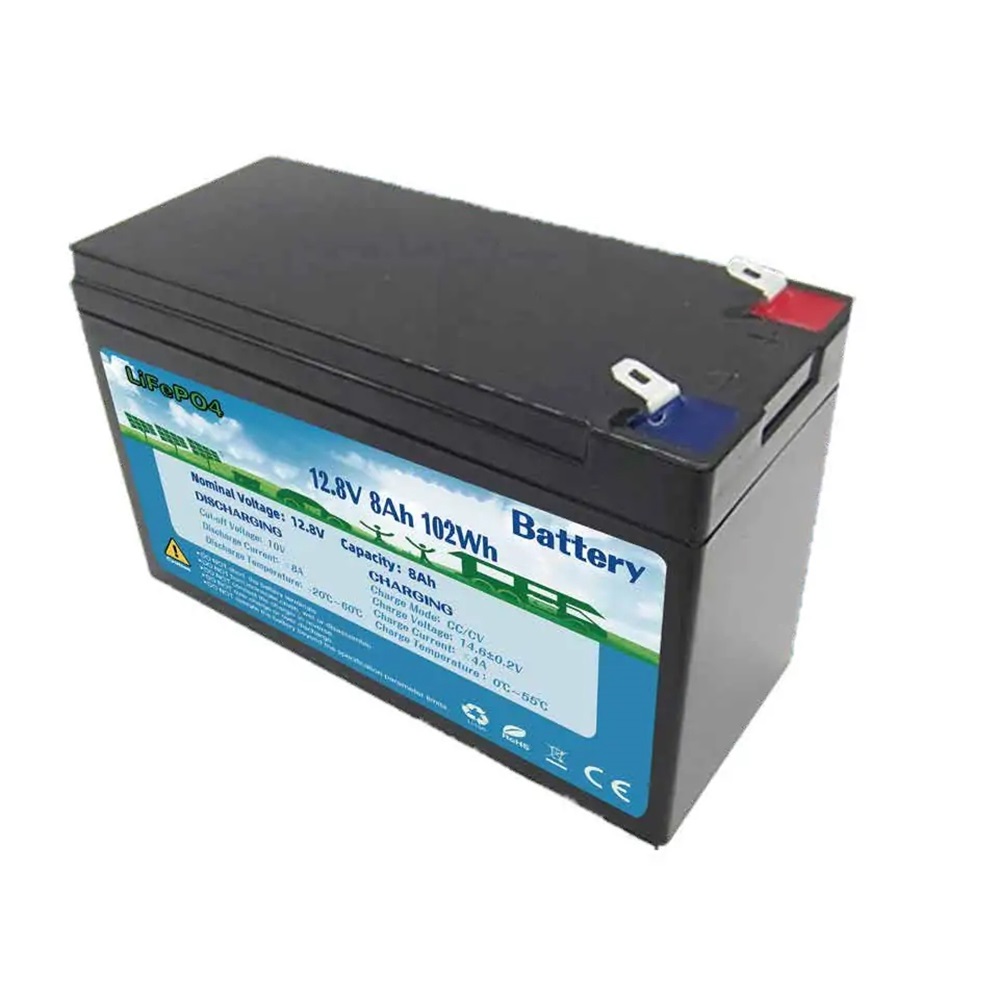

NPFC12-8 12V 8ah Lithium LiFePO4 Battery Pack

12V 8Ah lithium iron phosphate LiFePO4 Battery Pack with the performance of Longer Life, Lighter Weight, and Super Safety for Solar Light, Toy, and Energy

NPFC12-8 12V 8ah Lithium iron phosphate LiFePO4 Battery Pack

NPFC12-8 12V 8ah


Extended Lifespan

With over 2000 cycles in lab tests, this battery boasts an extended service life, benefiting vendors by prolonging product usability and helping users cut down on battery replacement expenses.


Reduced Weight

Weighing only 40% as much as a lead-acid battery, its lighter build offers ease of handling, transportation, and placement.


Unmatched Safety

The unique olivine structure of the lithium iron phosphate material eliminates the risk of explosions or combustion from high-temperature impacts, overcharging, or short circuits. Additionally, the Battery Management System (BMS) ensures safe and efficient operation.


Specifications

Items

Parameters

Nominal Voltage

12.8V

Nominal Capacity

8Ah

Min Capacity

7.6Ah

Energy

102Wh

Internal Resistance(AC)

≤50mΩ

Self-discharge Rate

≤3%/Month

Cycle Life(100%DOD)

≥2,000cycles

Charge Voltage

14.6±0.2V

Charge Mode

CC/CV

Charge Current

2A

Max.Charge Current

4A

Continues Discharge Current

8A

Max.Pulse Current

25A(≤50mS)

Discharge Cut-off Voltage

10V

Charge Temperature

0℃-55℃

Discharge Temperature

-20℃-60℃

Storage Temperature

-20℃-45℃

IP Class

IP65

Cell

2670-4Ah-3.2V

Configuration

4S2P

Dimension(L*W*H)

151*65*94mm

Material of case

ABS plastic

Weight

About1.0Kg

Color

Black or other

Terminal

T1 or other


Details

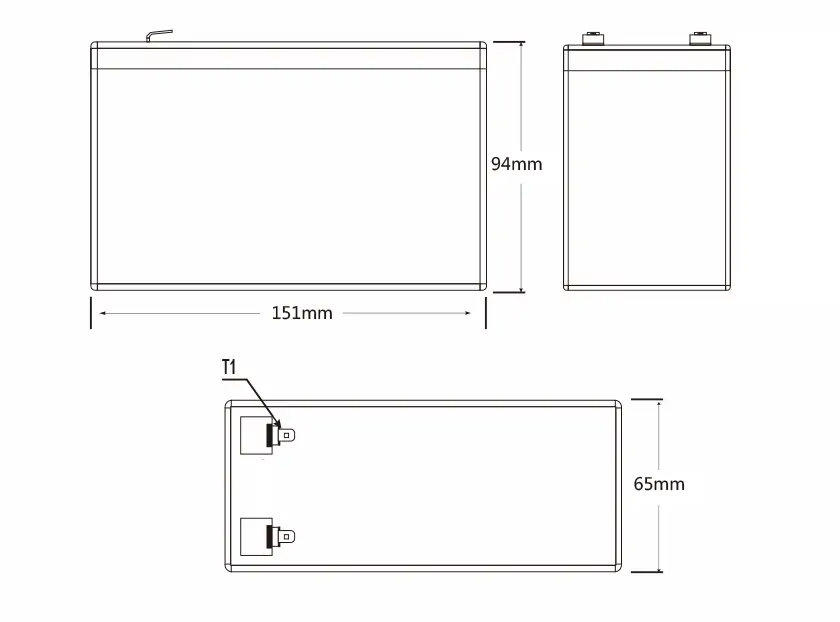

dimension

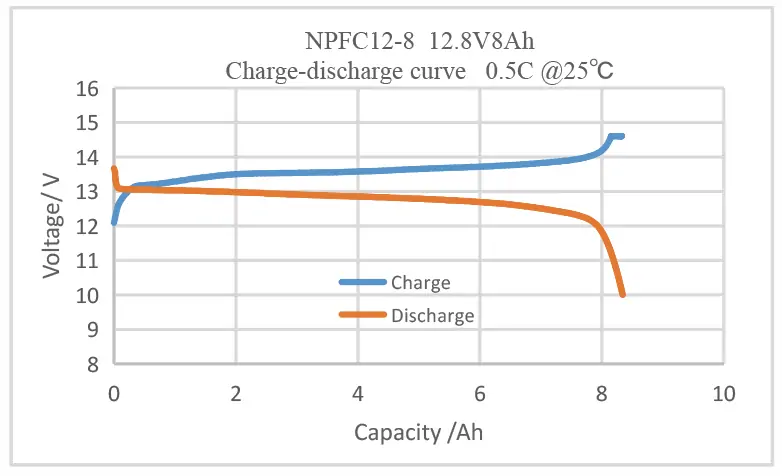

charger-discharger curve

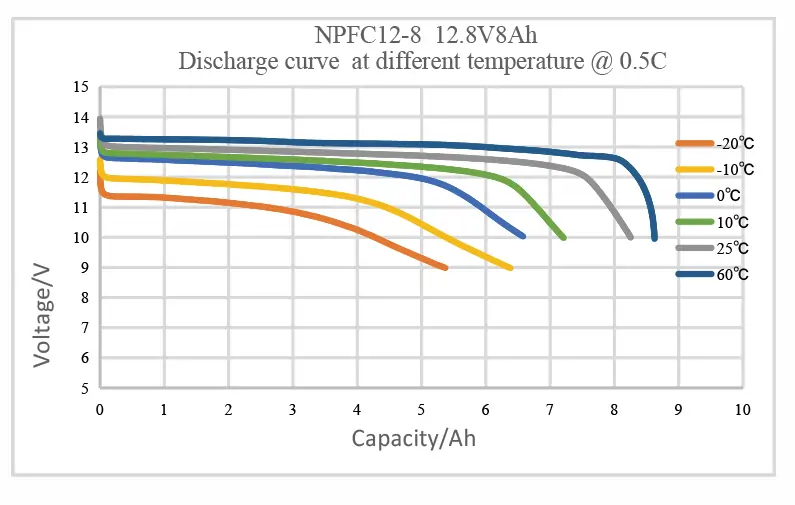

Discharge curve at different temperature
