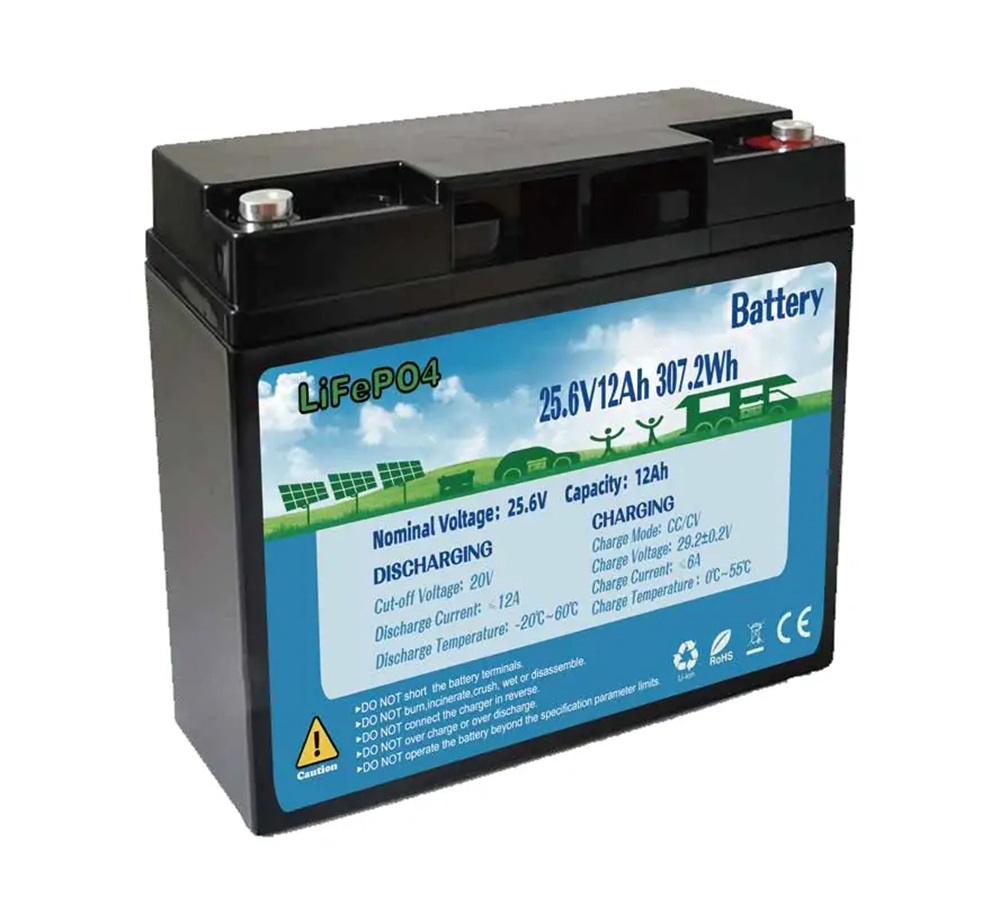

24V/25.6V 12Ah Lithium LiFePO4 Battery Pack

24V/25.6V 12Ah LiFePO4 Battery Pack with features of Longer Life, Lighter Weight, Super Safety for Solar Light, toy, and Energy Storage

24V/25.6V 12Ah Lithium LiFePO4 Battery Pack

24V/25.6V 12Ah Lithium LiFePO4 Battery Pack24V/25.6V 12Ah Lithium LiFePO4 Battery Pack


Features

1. Longer Life

More than 2000 cycles at Lab test conditions, and longer serving time ranges help vendors to extend the product serving life and help final users to reduce the battery replacement costs.


2. Lighter Weight

It is equivalent to 40% of the weight of the lead-acid battery, which is convenient for handling, taking, and placing.


3. uper Safety

The olivine structure of lithium iron phosphate material is eliminated fundamentally the risk of explosion or combustion due to high-temperature impact, overcharged, or short circuit situations.  Besides, BMS protection ensures safe and efficient operation.


Parameters



Item

Parameter

Nominal Voltage

25.6V

Nominal Capacity

12Ah

Min Capacity

11.5Ah

Energy

307.2Wh

Internal Resistance (AC)

≤50mΩ

Self-discharge Rate

≤3%/Month

Cycle Life (100%DOD)

≥2,000 cycles

Charge Voltage

29.2±0.2V

Charge Mode

CC/CV

Charge Current

3A

Max. Charge Current

6A

Continues Discharge Current

12A

Max. Pulse Current

30A(≤50mS)

Discharge Cut-off Voltage

20V

Charge Temperature

0℃-55℃

Discharge Temperature

-20℃-60℃

Storage Temperature

-20℃-45℃

IP Class

IP65

Cell

2670-4Ah-3.2V

Configuration

8S 3P

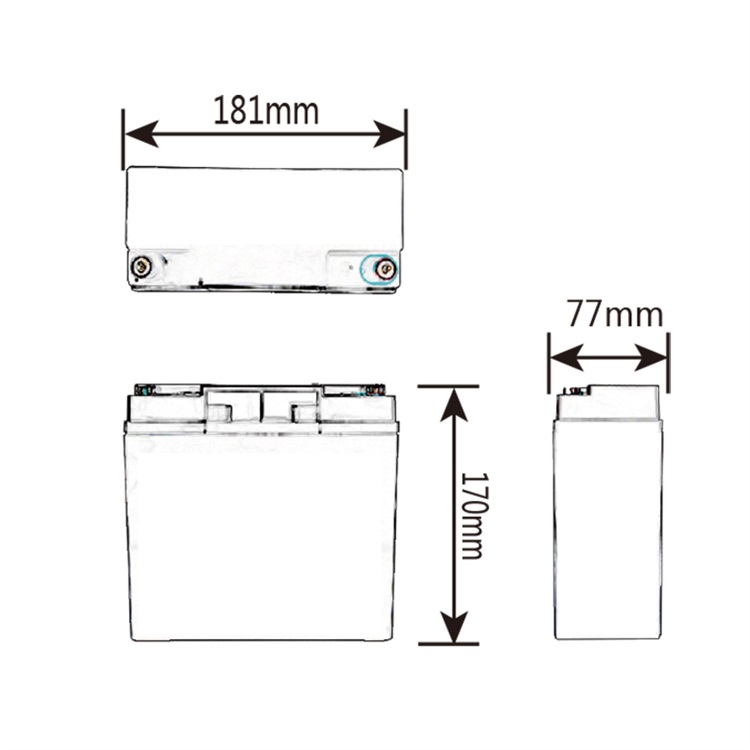

Dimension(L*W*H)

181*77*170mm

Material of case

ABS plastic

Weight

About 3.0Kg

Color

Black or other

Terminal

M5

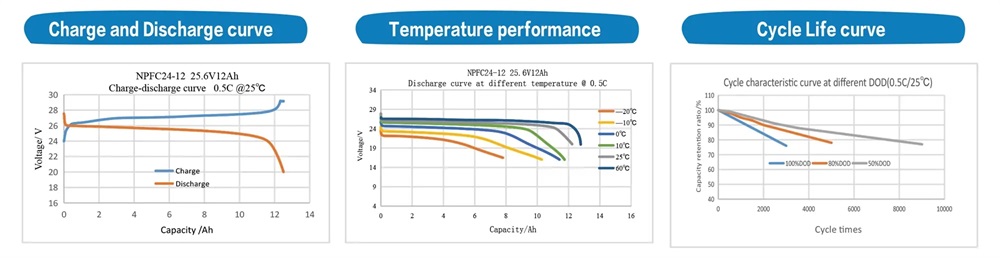

details curve
