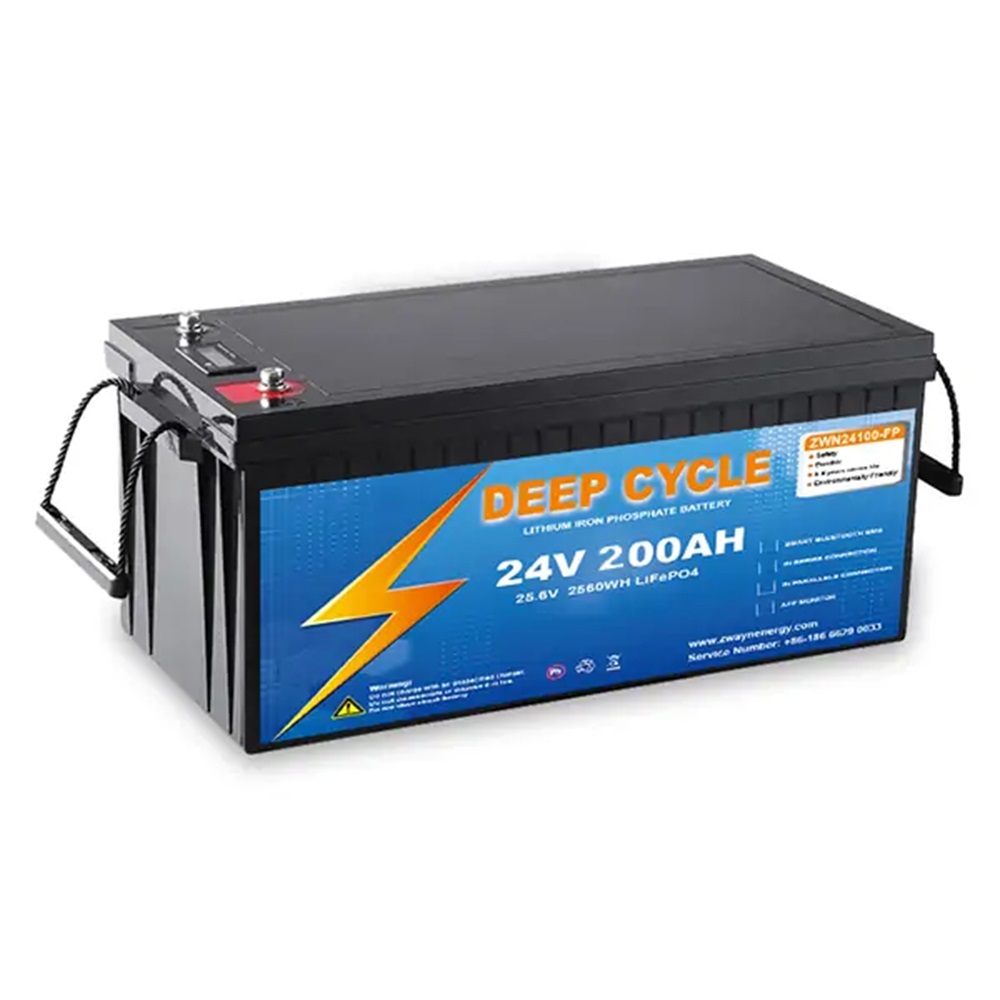

Lifepo4 24V 200Ah Lithium Battery Pack

24V 200Ah Lithium LiFePO4 Battery Pack For Lead-acid battery Replaced, use quality brand new grade a lifepo4 cells, has a rated power of 5.12kwh

Features


● Light, powerful, and offering a very long viewing time, this Lithium-ion battery is particularly suitable for cyclic use, when batteries are frequently charged and discharged.

● Built-in BMS. 100% of the capacity is available for your needs, without voltage drop!

● Lithium batteries (Lithium Iron Phosphate) offer many advantages over lead batteries.

● They have a much faster charging capacity, which allows you to use even the smallest amount of sunlight without being limited by the internal resistance of the battery.

● A lead battery, depending on its capacity will be limited in charging power.

● With lithium, you will charge with the maximum of what the controller can give.

● Unbeatable also when discharging, they easily withstand very fast discharges.

● Comparing the price per ampere-hour available (with lithium you have a very high depth of discharge) we can see that the price per Ah available is just a little bit more expensive than lead batteries.

● Lithium batteries have many advantages.

● High number of charge/discharge cycles :

● Service life at 80% depth of discharge (DoD) ≥3000

● Service life at 50% depth of discharge (DoD) LiFePO4 battery ≥ 4500


Specifications


Model

24200FP

Nominal Voltage

25.6V

Nominal Capacity

200Ah

Battery Cell Type

Prismatic 200Ah

Configuration

8S2P

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

DC Resistance

≤10mΩ

Full Charge Voltage

29.2V

Discharge Cut-off Voltage

20V

Operating Temperature Range

Charge: 0~55℃ Discharge: -20~60℃

Dimension

550*443*200mm

Weight

48kg

Terminal Type

Screw terminal

Cover Sealing Type

Screw/gel sealing optional

IP Class

IP65

Cycle Life

2000times @100%DOD, 25℃ 1C/1C

3000times @80%DOD, 25℃ 1C/1C

5000times @50%DOD, 25℃ 1C/1C

LCD Screen Display

Optional (Show voltage, Power)

Bluetooth

Optional (Bluetooth with mobile App )

Series and Parallels Function

Available to make in series and parallel to get 48V

Heating Function

Optional
