24V 8S BMS 80A-250A For Lithium LiFePO4 Battery BMS

24V 8S BMS 80A-250A For Lithium LiFePO4 Battery BMS (Battery Management System)

Advantages:

Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan. IC itself has power balancing function. The circuit is simple and reliable.

Strong load ability, constant discharge current 80A 100A 120A 150A 200A 250A, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.

Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.

Extreme low power consumption. The consumption of the whole device is less than 50uA.

PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

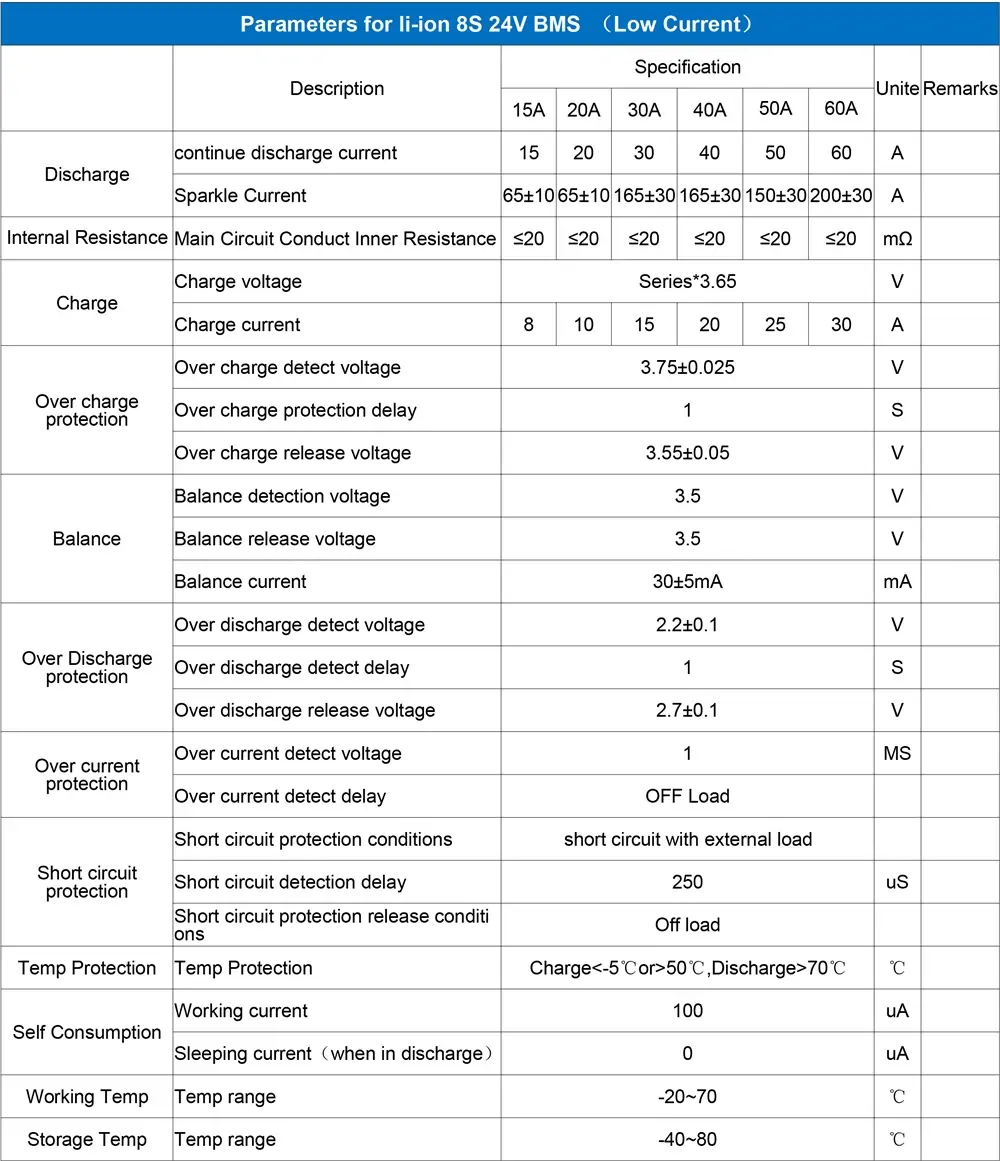

Parameters for li-ion 8S 24V BMS (Low Current)

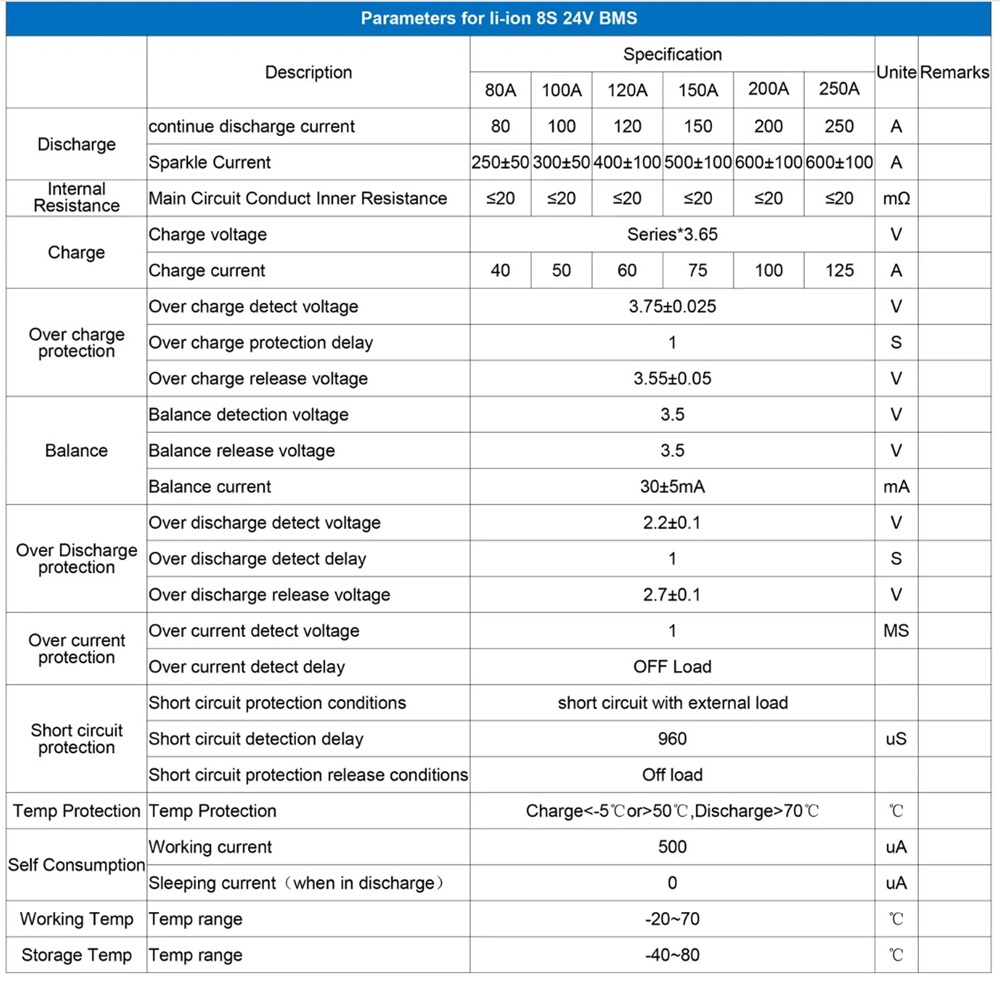

Parameters for li-ion 8S 24V BMS (80A-250A)
