3S~32S 10A-60A Low Current Lithium Battery BMS

3S~32S 10A-60A Lithium-ion Battery Low Current BMS Ternary Lithium Battery Low Current Series

3S~32S 10A-60A Lithium-ion Battery Low Current BMS

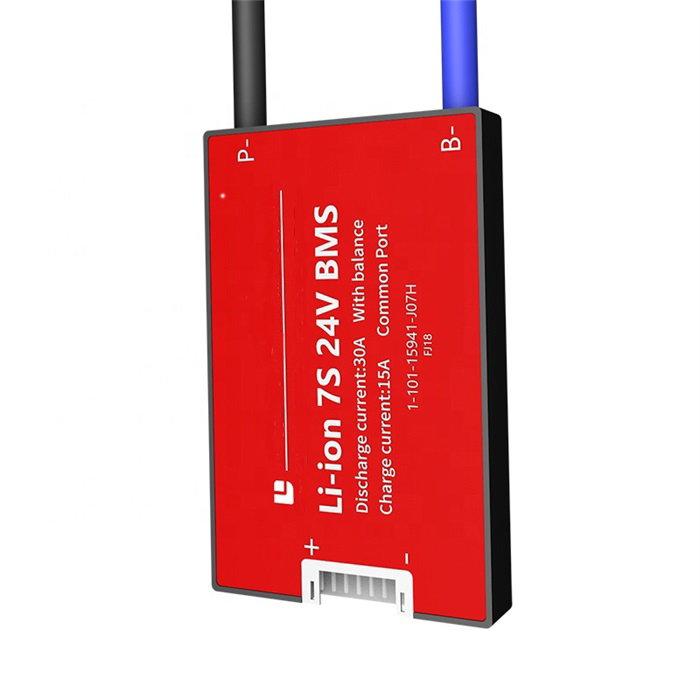

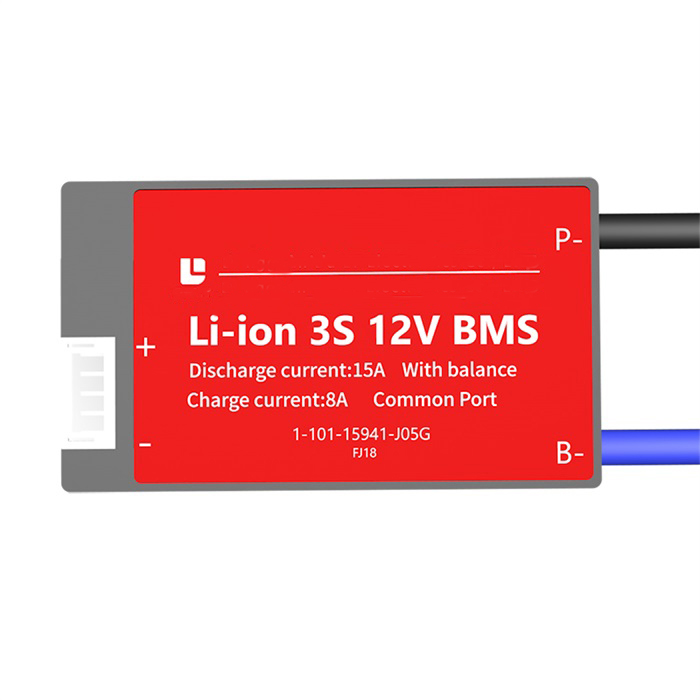

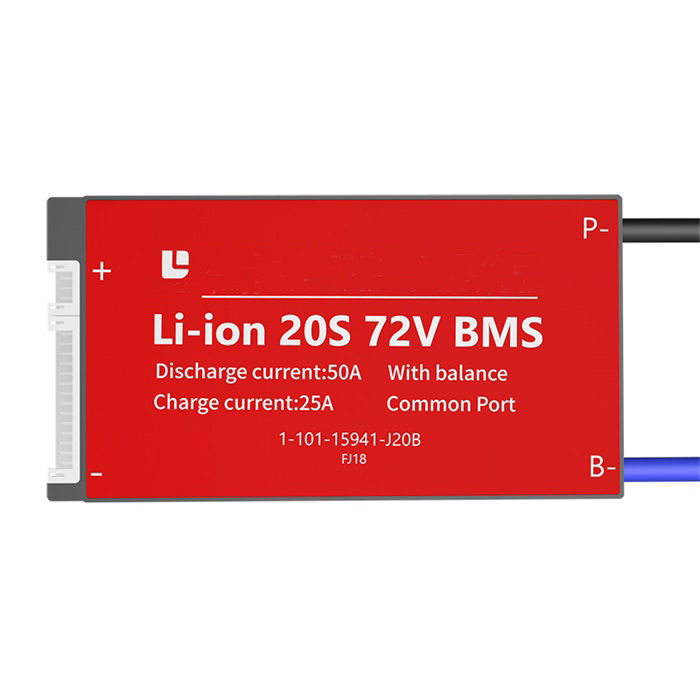

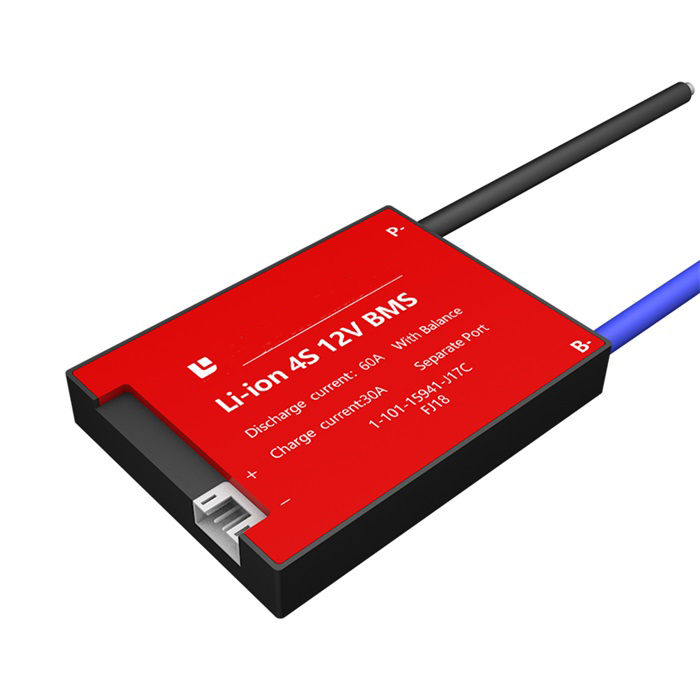

*Part of the product display, pictures for reference only

Electric Current

Lithium ion Battery BMS from 15A~60A

String Number

Lithium ion Battery BMS from 3S~24S

Demand

Daly BMS can be customized with special Specifications

Item	Description	Specifications (Lithium ion low-current)
Model	Current	15A	20A	30A	40A	50A	60A
Discharge	Continue discharge current	15A	20A	30A	40A	50A	60A
Discharge	Sparkle current	65±10A	65±10A	100±20A	165±30A	200±30A	200±30A
Inner Resistance	Main circuit conduct inner resistance	≤20mΩ	≤20mΩ	≤10mΩ	≤10mΩ	≤10mΩ	≤10mΩ
Charge	Charge voltage	Series*4.2V
Charge	Charge current	10A	10A	20A	30A	40A	50A
Over charge protection	Over charge detect voltage	4.25±0.05V
Over charge protection	Over charge protection delay	1S
Balance	Balance detect voltage	4.18V
	Balance release voltage	4.18V
	Balance current	30±5A
Over discharge protection	Over discharge detect voltage	2.7±0.1A
	Over discharge detect delay	1S
	Over discharge release voltage	3.0±0.1V
Over current protection	Over current detect delay	1MS
Short circuit protection	Short circuit protection condition	Short circuit of external load
	Short circuit protection condition	Short circuit of external load
	Short circuit detect delay	250uS
	Short circuit protection release condition	Off load
Temp Protect	Temperature-protect	Charging: <-5℃ or >50℃, discharging >70℃
Self-consumption	Working current	100uA
Self-consumption	Sleeping current (when in discharge)	20uA
Working Temp	Temp range	-20~70℃
Storage Temp	Temp range	-40~80℃
