4-192S Series Battery Management System for lithium ion battery

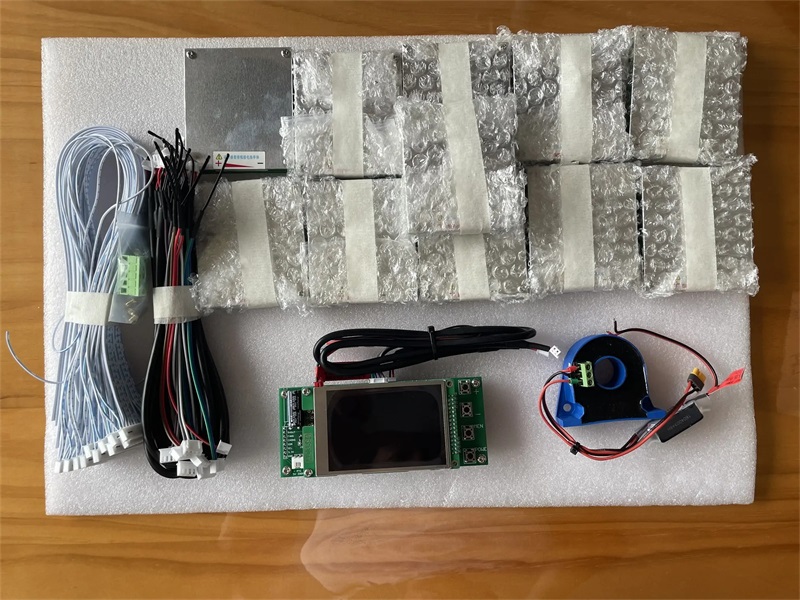

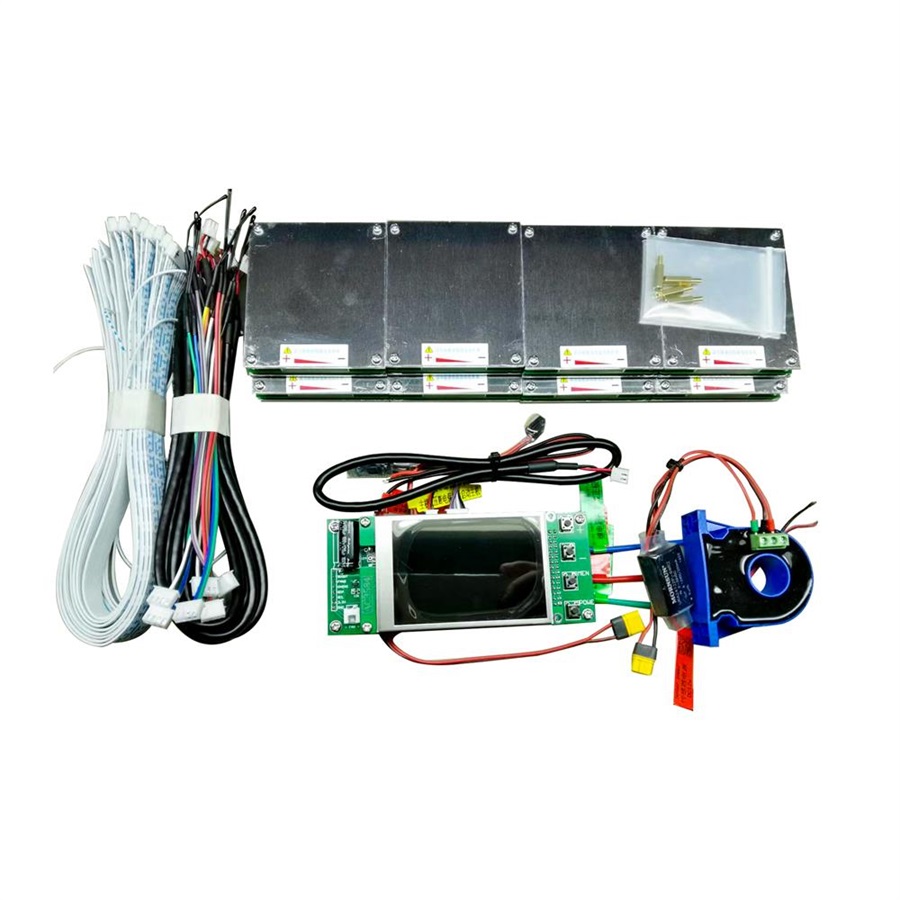

4-192S Series Battery Management System for lithium-ion battery

Performance and Parameters：

1. Real time monitoring of 4-192 series single unit voltage ， Accumulated total voltage is within 1000V. Single module management is a maximum of 12 strings and a minimum of 4 strings（Due to the fact that the power supply for module operation is taken from the battery, the total voltage of a single module must not be less than 9V. Any excess unused channels must be connected to the positive pole of the highest battery in a single module），the total input voltage of a single module shall not exceed 75V, the monitoring voltage range of a single section shall be 0-5V, and the total input voltage of the host shall not exceed 60V；

2. Real time monitoring of total voltage, charging and discharging current, power, temperature, and statistics of actual charging and discharging ampere hours, and display with a graphical progress bar. Each module is equipped with 1 temperature detection channel；

3. The system has functions such as single overcharge protection, single over discharge protection, overcurrent protection, high temperature protection, low temperature protection, differential pressure protection, and battery failure protection；

4. The host is equipped with various running lights to indicate the system running status without using the screen；

5. 3.5 inch IPS color screen display, ultra wide viewing angle, and clear working status at a glance；

6. Supports three ranges of Hall current sensors, with a default standard range of up to 400A. It has a manual calibration function for Hall current sensors, a self calibration function for the collection module, and a total measurement error of 1.2MV for individual voltage collection；

7. There are two types of relay schemes: same port and split port, with different control software. The interface type needs to be determined before procurement；

8. The acquisition module adopts a two way cascading structure, each of which can connect 1 to 8 arbitrary number of acquisition modules. The host automatically recognizes the number of acquisition modules, and the two way acquisition modules support a total of 16. The acquisition module is connected with two core CAT5 twisted pairs, with a length of up to 40 meters；

9. The power outage module of the host will enter a sleep state while releasing all relays. The power consumption of the module is only 4UA, which will not cause the loss of battery power；

10. The module has an automatic battery balancing function, which balances the voltage drop of the battery and stops when the drop is 0.001V. The balanced discharge current is 200MA；

11. The system is designed with full isolation, and the collection modules are isolated from the host. All interfaces can be hot swapped, and temperature sensors, display screens, and Bluetooth external devices that are not used can not be installed；

12. Actively dissipate heat and heat, automatically start the fan when the temperature reaches the set value, and automatically start PTC heating when the temperature drops below the set value；

13. Supports RS232 TTL communication and CAN communication, with an Android mobile app that monitors and controls the status and parameter settings of the host through Bluetooth. The app has the ability to query protection history records and can query the last protection record；

14. The same port connection method automatically controls the charging and discharging relay. In the split port connection method, the charging and discharging relay is automatically restored according to the charging and discharging recovery set value. When there is overcurrent protection, over temperature protection, battery string error, low temperature protection, and differential pressure protection, which are related to safety, the charging and discharging relay is closed at the same time. At this time, the channel must be manually opened.

Details:

Specification：

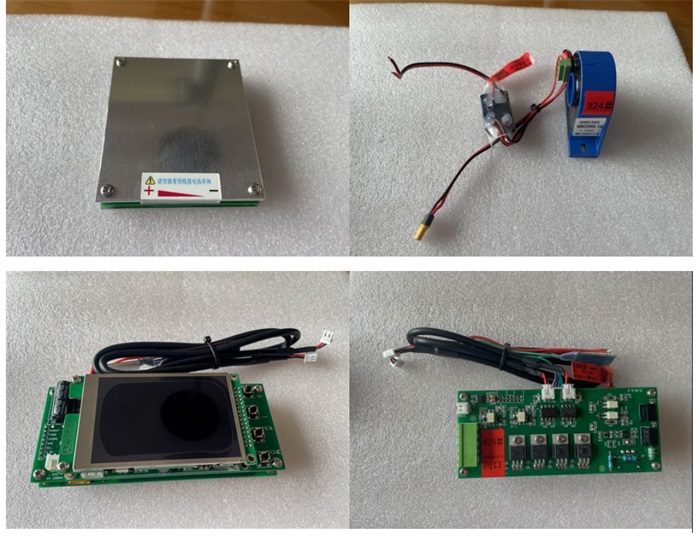

Basic interface description：

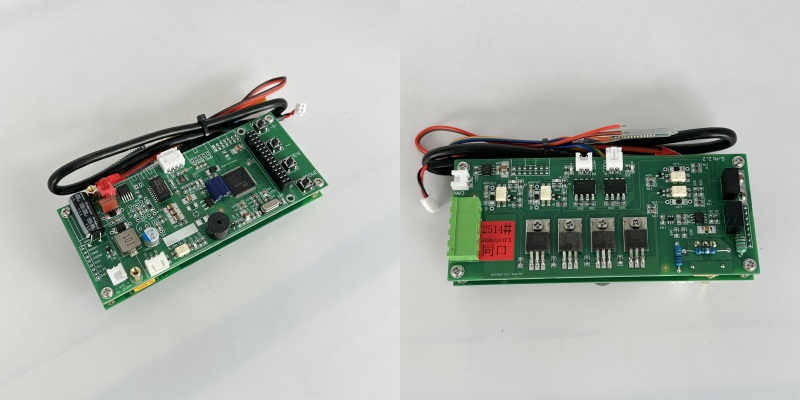

Two main boards, board size: 135X57mm； 3 layers with a thickness of 45MM；

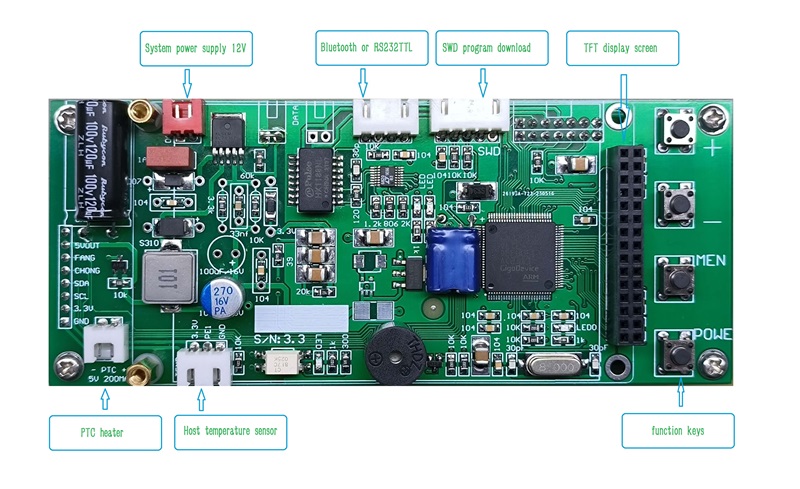

1. system control board

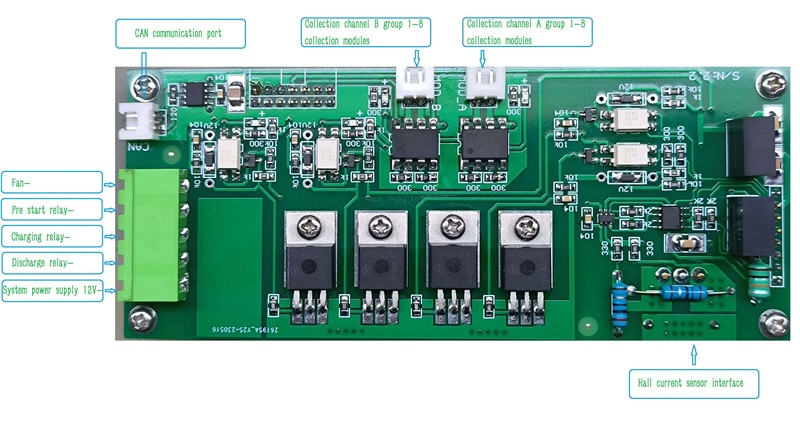

2. system power board

*Note: The host temperature sensor model DS18B20 is not included as standard in the relay scheme

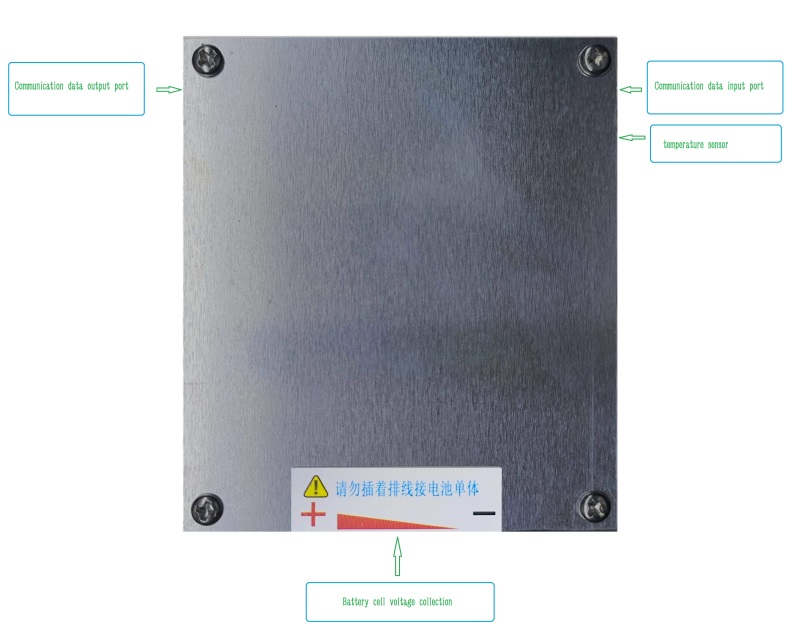

3. Acquisition module

The dimensions of the acquisition module are 82X72mm; Thickness 17MM

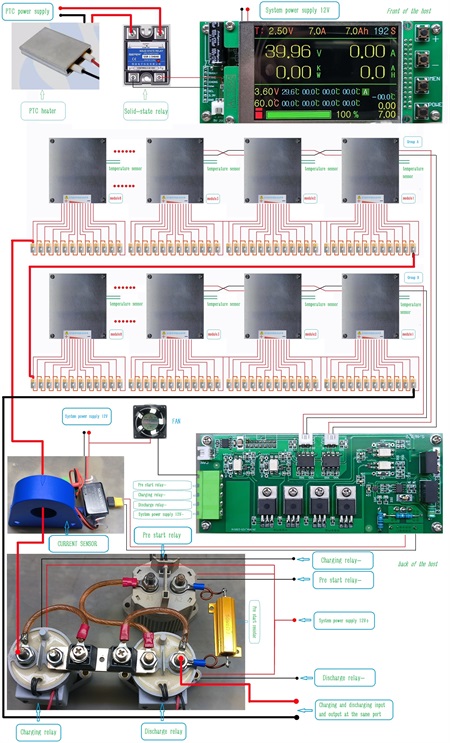

4. Wiring diagram
