Daly 8~17S R24TS Smart Active Balance Lithium NCM BMS
Maximize Your Battery Performance with Daly BMS - Advanced Battery Management System for Lithium Batteries, lifepo4 battery, LTO Battery, NCM Battery protection management system with battery asse.
- Category: Battery Management System
- Tag:
Daly 8~17S R24TS BMS active equalization function can realize the maximum continuous 1A equalization current. Transferthe high-energy single cell to the low-energy cell, or use the whole group of energy to supplement the lowest single cell. During the implementation process, the energy is redistributed through the energy storage link, so as to ensure the battery consistency to the greatest extent, improve the battery mileage and extend the battery life.
Product Features
1. Integrate the third generation active balancing function;
2. Smart Integrated and string design, compatible with 4~24 strings;
3. Integrated Bluetooth function, can use the
APP quickly and easily view and set the parameters of BMS;
4. TOLL package MOS tube with low package resistance, low parasitic inductance and low thermal resistance is adopted to meet the application scenarios of high power and high current;
5. Supports a variety of peripheral accessories to meet multiple application scenarios;
6. Supports IOT cloud platforms and remote monitoring of terminals;
7. Support PC host, quick view of history and batch set parameters;
8. The use of professional high-current wiring design and technology, withstand the impact of large current;
9. Supports over charge protection, over discharge protection, over current protection, short circuit protection;
10. With communication function, you can set parameters such as over-current, over-discharge, over-current, charge and discharge over-current, equalization, over-temperature, under-temperature, hibernation and capacity through PC or APP;
Basic Specification
Item | Specifications | Remarks |
Battery pack type | NCM, LFP, LTO | / |
Number of battery strings | NCM: 4~8S/8~17S/8~20S | / |
Cell sampling voltage range | 1.5V–4.9V | / |
Operating voltage range | >10V | / |
Balance method | Active Balance | / |
Working power consumption | ≤1.25W | Idle State |
Sleep current | 4-8S ≤25mW | Idle State |
Working temperature | -40℃ ~ 85℃ | / |
Working Light | Green: works properly | / |
Product weight | ≤660g (excluding accessories) | / |
Product size | 195.8×109.3×26mm (L×W×H) | 250A–500A |
Precharge size | □4700 □10000 □22000 ☑33000 | 33000μF parallel + 25Ω resistor |

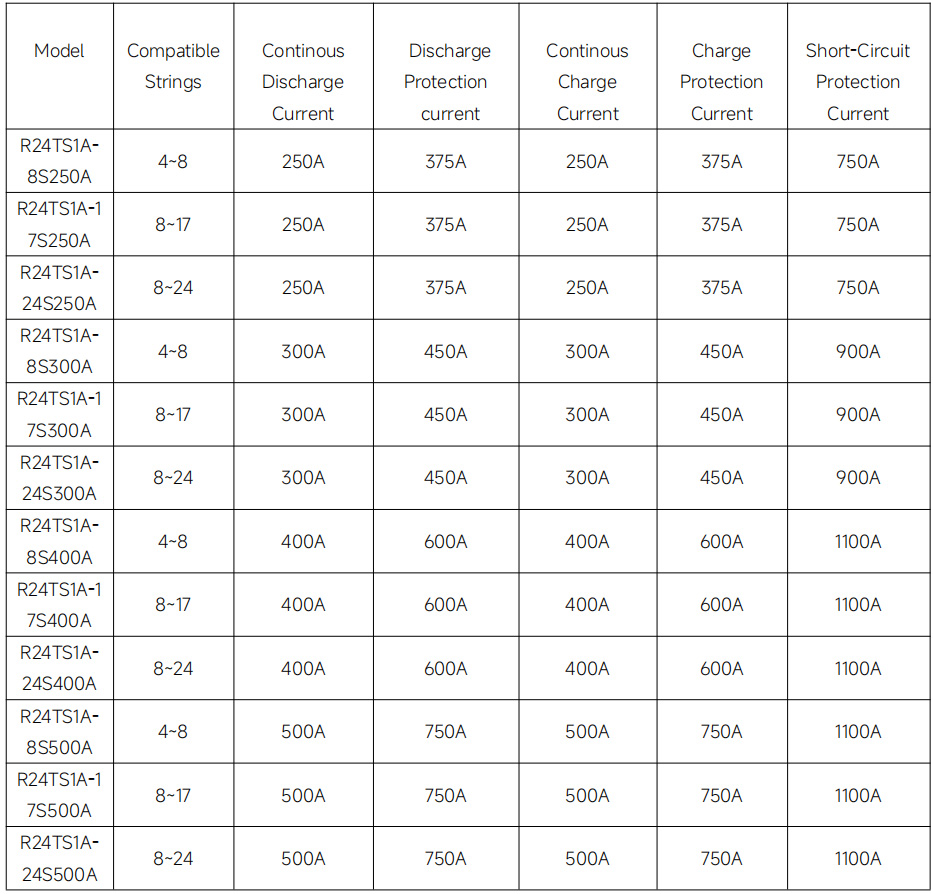

Current Parameter Correspondence Table

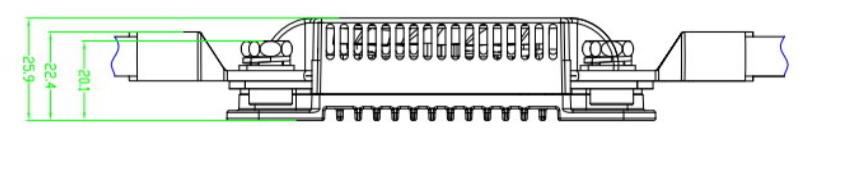

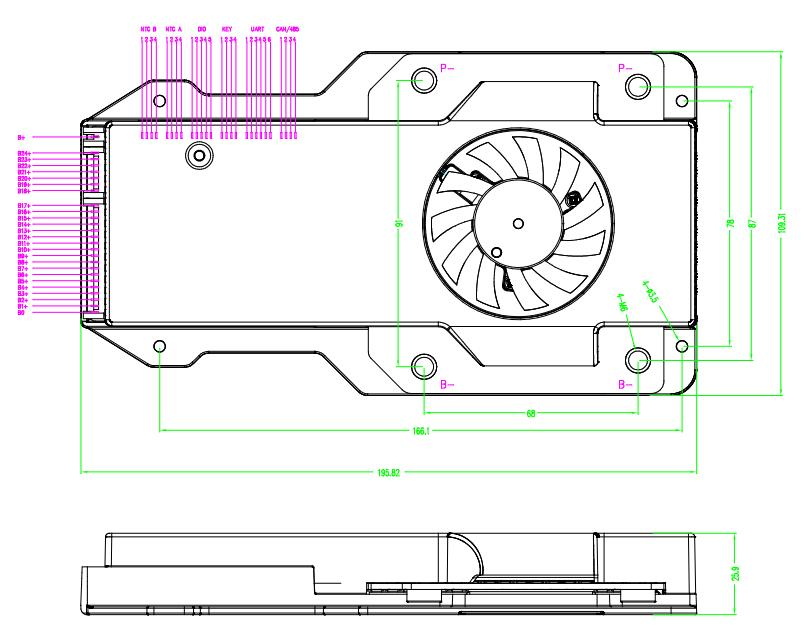

Dimensional Drawing（mm）

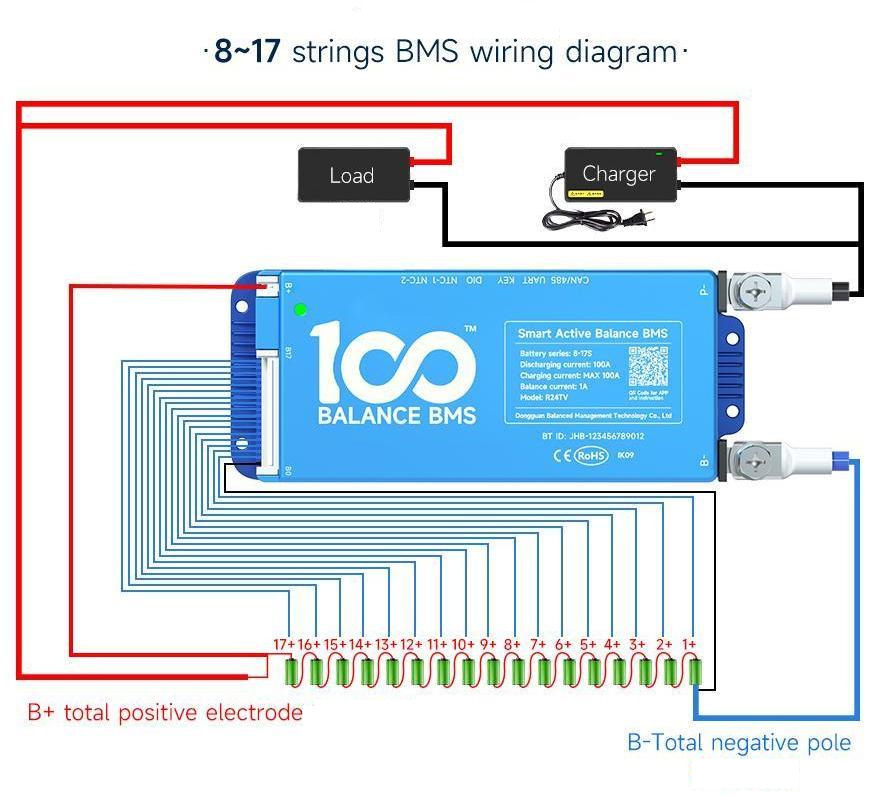

8~17 Strings BMS Wiring Diagram
Communication Description
1. UART communication: Default 100balance UART communication protocol is used to communicate with the designated host PC through a dedicated communication line. The default baud rate is 9600bps.
2. RS485 communication: Default 100balance RS485 communication protocol is used to communicate with the designated host PC through a dedicated communication line. The default baud rate is 9600bps.
3. CAN communication: Default 100balance CAN communication protocol is adopted by default, and the communication rate is 250KB/S
