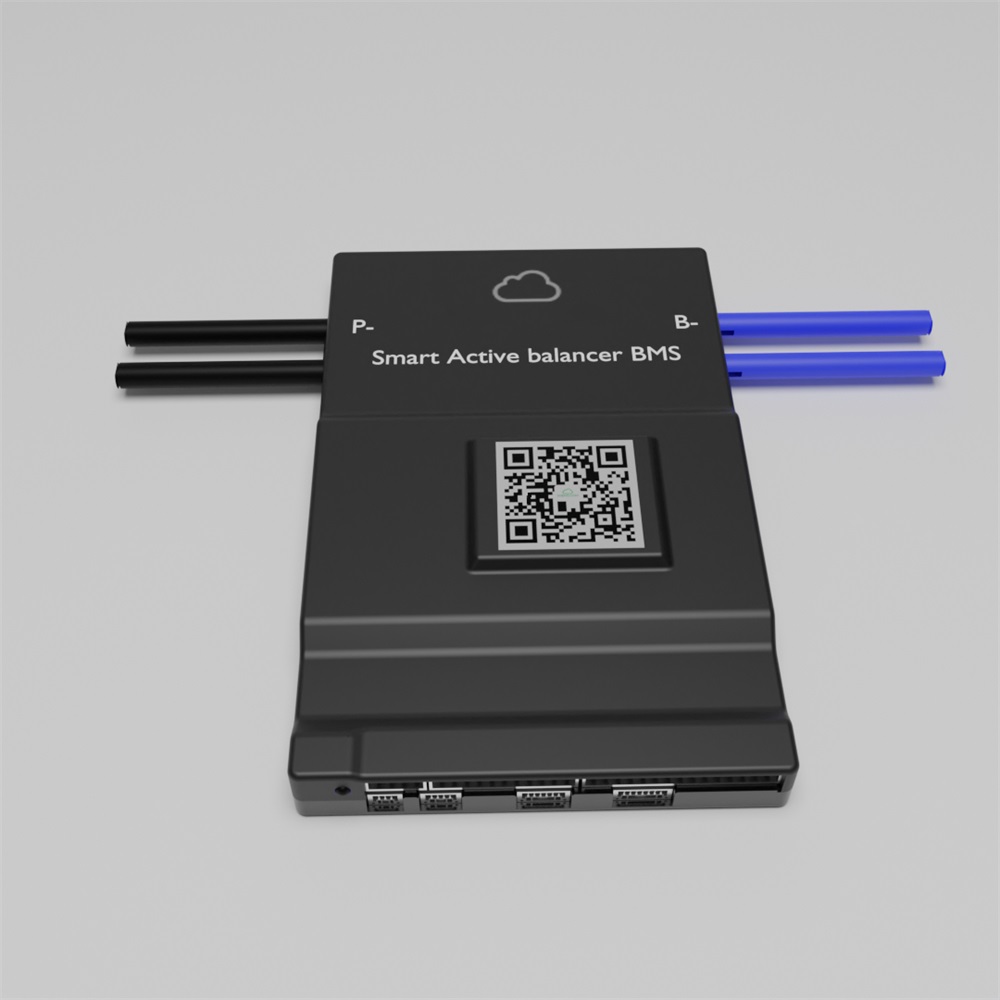

JK-BD6A20S10P Smart Active Balance BMS

JK-BD6A20S10P Smart Active Balance BMS

1.Overview

A management system designed for big capacity series lithium battery packs is called a lithium battery smart BMS. Voltage collection, active large current balancing, overcharge, overcurrent, overtemperature protection, Coulombmeter, Bluetooth connectivity, GPS remote, and other features are among its features. It is appropriate for lithium ternary, lithium iron phosphate, and other battery kinds.

Our proprietary technology is used by the BMS for active balancing. Maximum battery consistency, longer battery life, and delayed battery aging are all possible thanks to our high current active balancing technology.

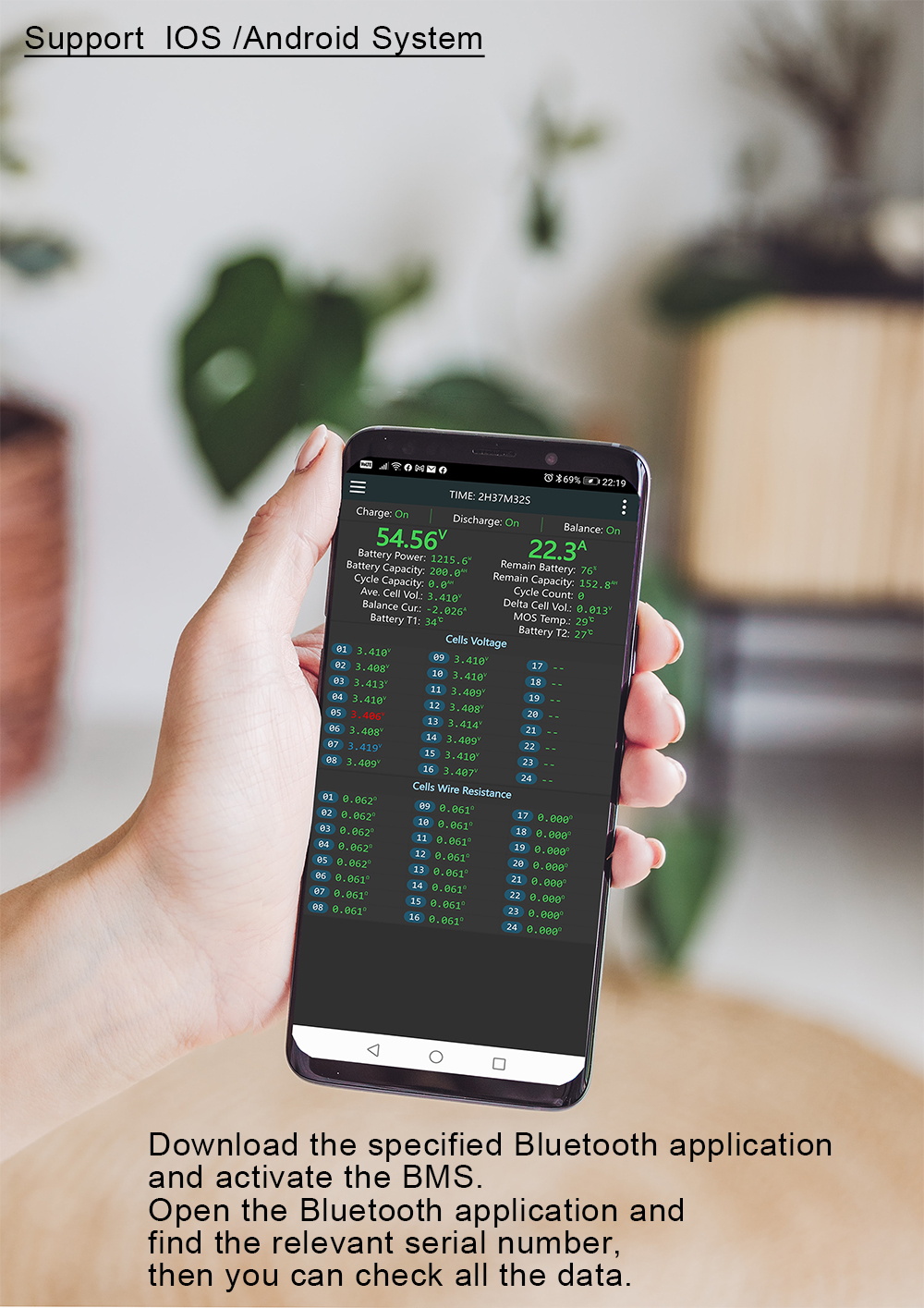

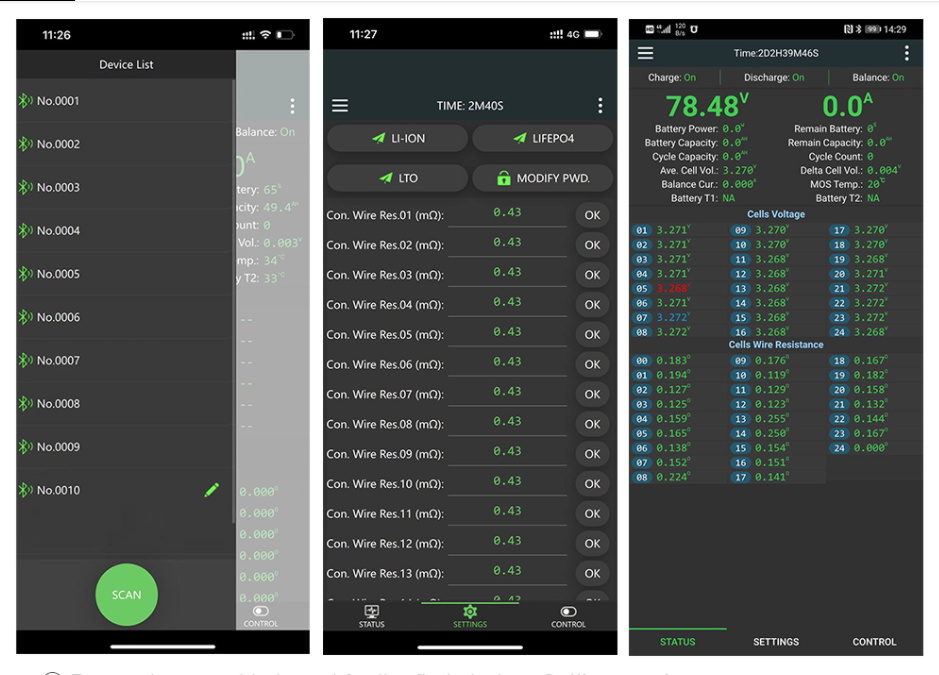

The BMS features a companion mobile APP that works with iOS and Android versions 7 and higher. Your mobile phone’s APP can establish a Bluetooth connection to the BMS in order to operate the charging and discharging switches, check the battery’s operational state, and make changes to the BMS’s operating settings. Small in size, easy to use, and packed with features, the BMS may be found in many battery PACKs for different products including solar power stations, walkers, shared cars, high-power storage, base station backup power, and tiny sightseeing automobiles.

2. Main technical parameters:

JK-BD6A20S10P

Working voltage: 20~100V

2.1 Main Specifications:

2.2 Use of environmental conditions

a) Operating temperature range: -30 ° C ~ 70 ° C;

b) Power requirements: 20~100V.

c) Power consumption: Equilibrium state 8mA@100V, unbalanced state 7mA@100V
