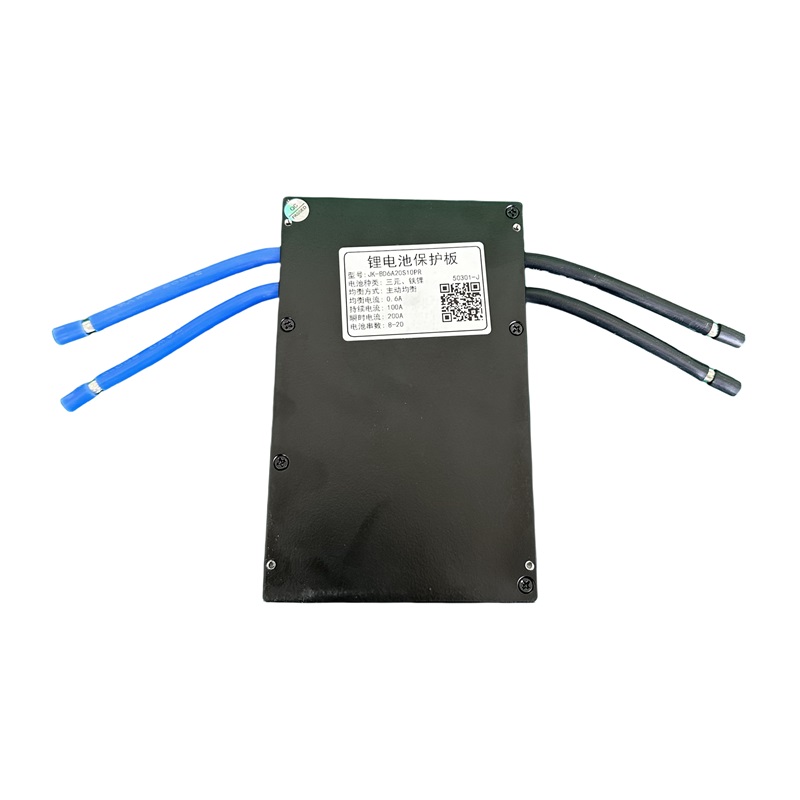

JK-BD6A20S12P Lithium Ternary and LiFePO4 Battery BMS Smart Active Balance Bms
JK-BD6A20S12P Active Balancer BMS is a cutting-edge lithium battery smart BMS designed for large capacity series lithium battery packs, such as lithium ternary and lifepo4 battery.
- Category: Battery Management System
- Tag: Battery Management System BMS
JK-BD6A20S12P Lithium Ternary and LiFePO4 Battery BMS Smart Active Balance Bms
Introduction
The BD6A20S12P Active Balancer BMS is a cutting-edge lithium battery smart BMS designed for large capacity series lithium battery packs. It is equipped with advanced features such as voltage collection, active large current balancing, overcharge, overcurrent, overtemperature protection, Coulombmeter, Bluetooth connectivity, GPS remote, and many more. This BMS is compatible with lithium ternary, lithium iron phosphate, and other battery types.
Active Balancing Technology
Our proprietary technology ensures maximum battery consistency, longer battery life, and delayed battery aging through high current active balancing. This ensures that the battery remains in excellent condition and performs optimally at all times.

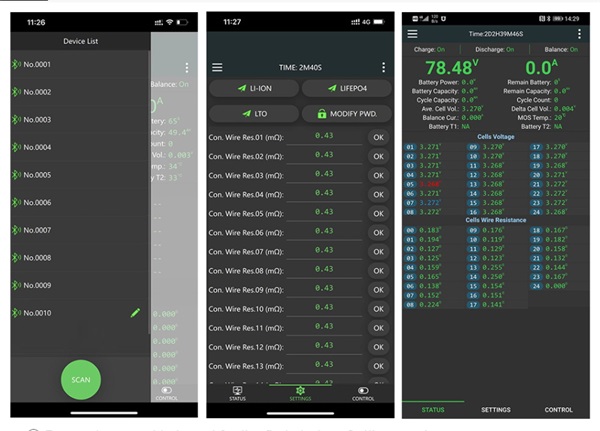

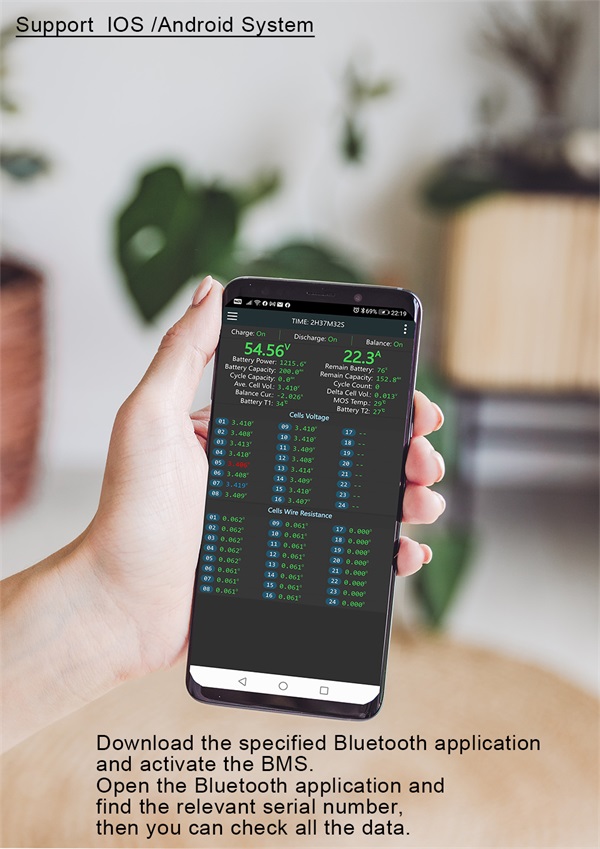

Mobile Companion App
The BMS comes with a mobile companion app that is compatible with iOS and Android versions 7 and higher. The app establishes a Bluetooth connection to the BMS, allowing users to operate the charging and discharging switches, check the battery’s operational state, and make changes to the BMS’s operating settings. It is user-friendly, small in size, and packed with features that make it an ideal choice for battery packs used in a wide variety of products, including solar power stations, walkers, shared cars, high-power storage, base station backup power, and small sightseeing automobiles.

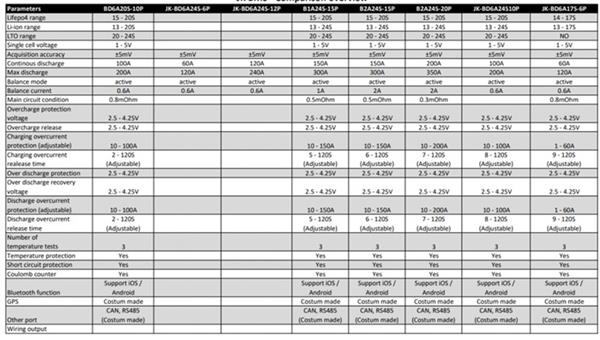

Technical Specifications
Model: JK-BD6A20S12P
Working voltage: 20~100V
Main specifications:
Li-ion | 7S~20S |
Lifepo4 | 8S-20S |
LTO | 12S~20S |
Balance way | Active Balance |
Active balance current | 0.6A |
MOSFET | 0.65mΩ |
Continuous discharge current | 120A |
Peak discharge current | 250A |
Over current protection | 10A-120A adjustable |
out cableway | same port |
single cell voltage scale | 1-5V |
Voltage accuracy | ±3mV |
Over charge protection voltage | 1.2V-4.35V adjustable |
Over charge protection release | 1.2V-4.55V adjustable |
Over current protection release time | 2S-120S adjustable |
Over discharge protection voltage | 1.2V-4.35V adjustable |
Over discharge protection release | 1.2V-4.35V adjustable |
Temp sensor quantity | 3 |
Short circuit protection | YES |
BT function | Support Android and IOS |
GPS remote control | Support |

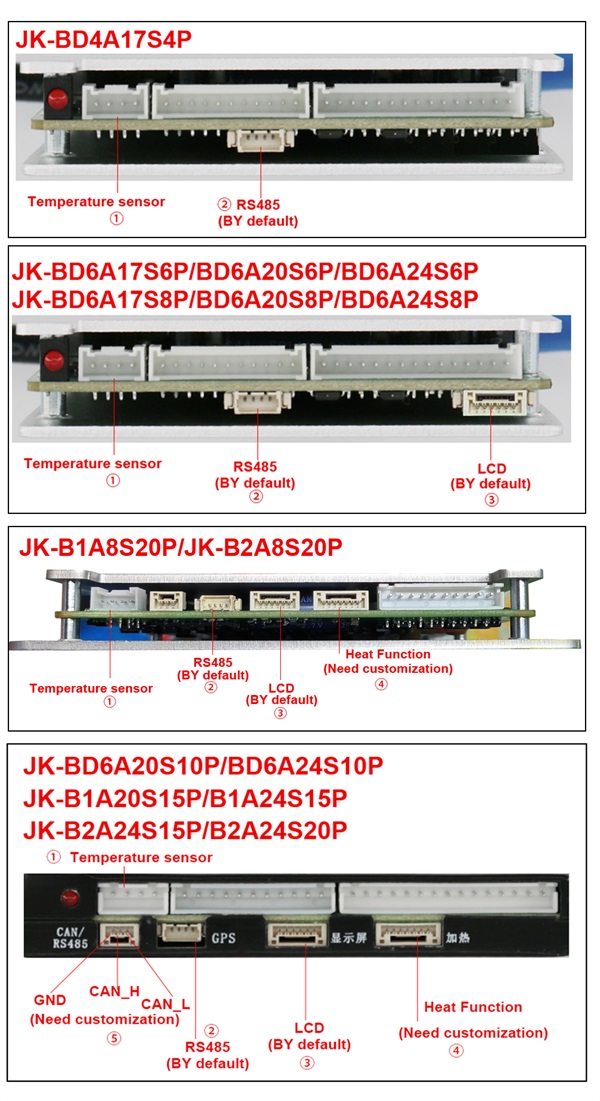

Other communication port | RS485/CAN (customize) |
Size | 162*102*20mm |
Key Benefits of BD6A20S12P Active Balancer BMS
· Advanced active balancing technology ensures maximum battery consistency, longer battery life, and delayed battery aging
· Bluetooth connectivity allows users to control the BMS from their mobile phones, making it user-friendly and easy to operate
· Compatible with a wide range of lithium battery types, including lithium ternary and lithium iron phosphate, among others
· Compact size and easy to install, making it suitable for use in a variety of products and applications
· Provides excellent protection against overcharge, overcurrent, and overtemperature, ensuring that your battery remains safe and reliable
In conclusion, the BD6A20S12P Active Balancer BMS is a must-have for anyone looking to maximize the performance and lifespan of their large capacity lithium battery packs. With advanced features, user-friendly operation, and excellent protection against overcharge, overcurrent, and overtemperature, this BMS is the ultimate battery management system.
