JK-BD6A20S6P Smart Active Balancer Li-ion/LTO/LiFePO4 Battery BMS

JK-BD6A20S6P Smart Active Balancer Li-ion/LTO/LiFePO4 Battery BMS specially designed for high-capacity tandem lithium battery packs

General

A management system designed specifically for large-capacity series lithium battery packs is the lithium battery intelligent protection board.

Backup voltage collection, big current active equalization, overcharge, over-discharge, and overtemperature protection are among the features. There are also coulomb counters, Bluetooth communication letters, GPS remote controls, and other features. applicable to ternary lithium, lithium iron phosphate, and other battery types.

The protection board can achieve this by relying on energy transfer active equalization technology with independent intellectual property rights.

2A is the maximum continuous equalization current. Using large current active equalization technology can guarantee consistent maximum power, increase battery life, and slow down battery aging.

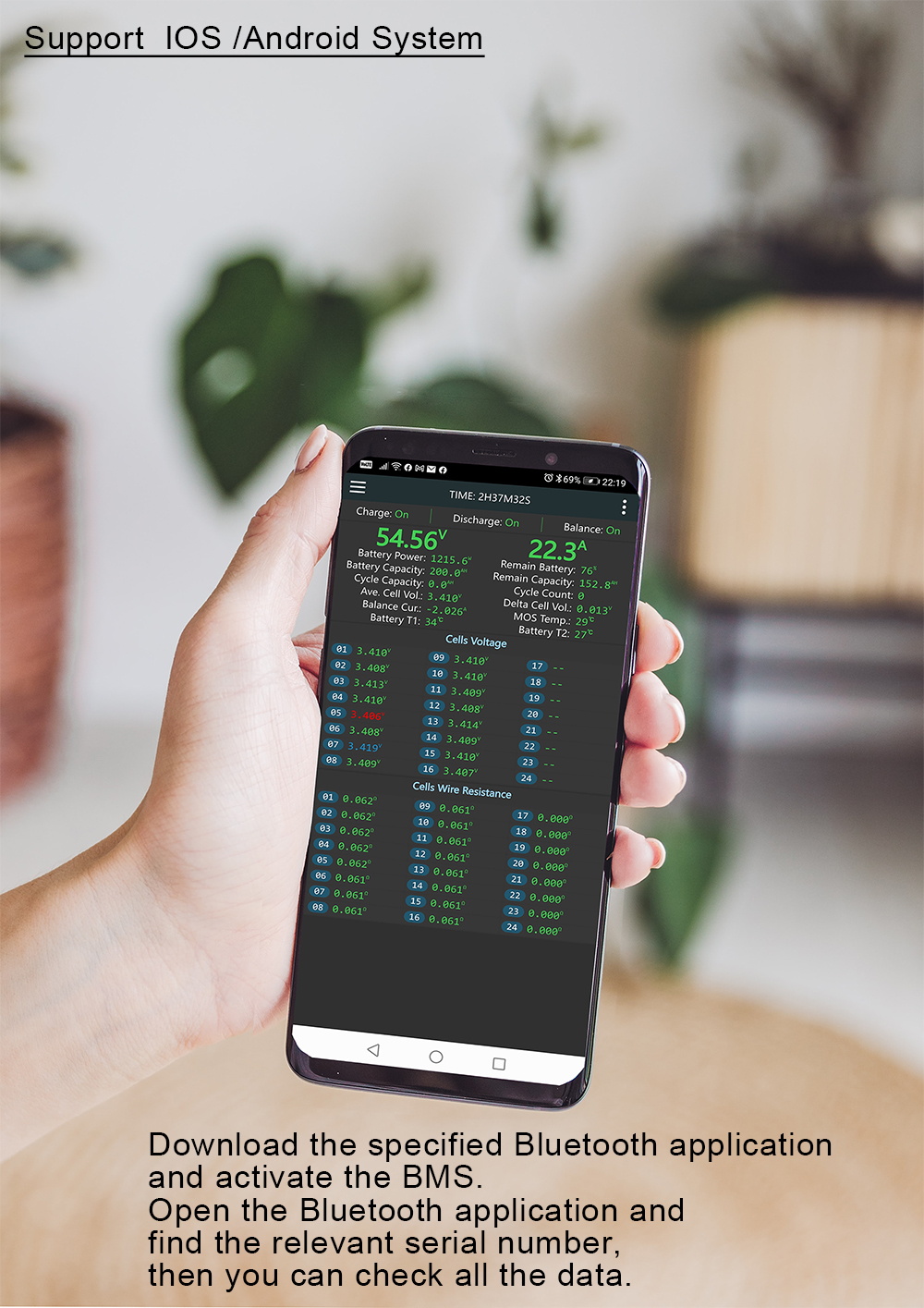

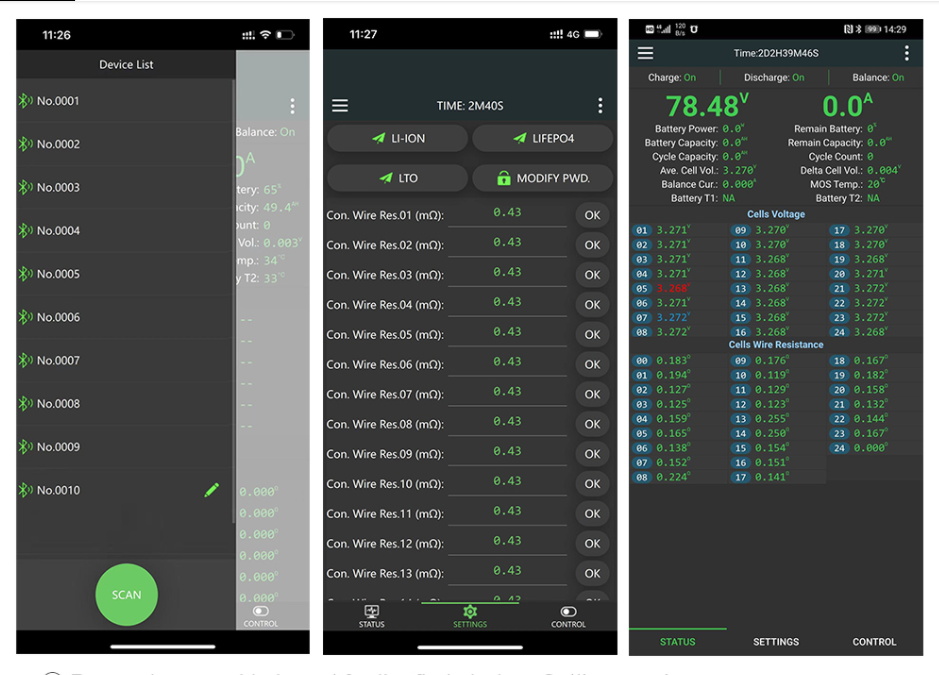

A mobile APP that supports both Android and iOS is available for the protection board. With an APP, you may connect to the protection board through Bluetooth on your phone to monitor the battery’s operational state, change the protection board’s operational parameters, manage the charge and discharge switch, and more. The protection board is compact, user-friendly, and functional. It is frequently used in battery packs for scooters, shared cars, tiny sightseeing cars, solar power stations, high-power energy storage, and base station backup power.

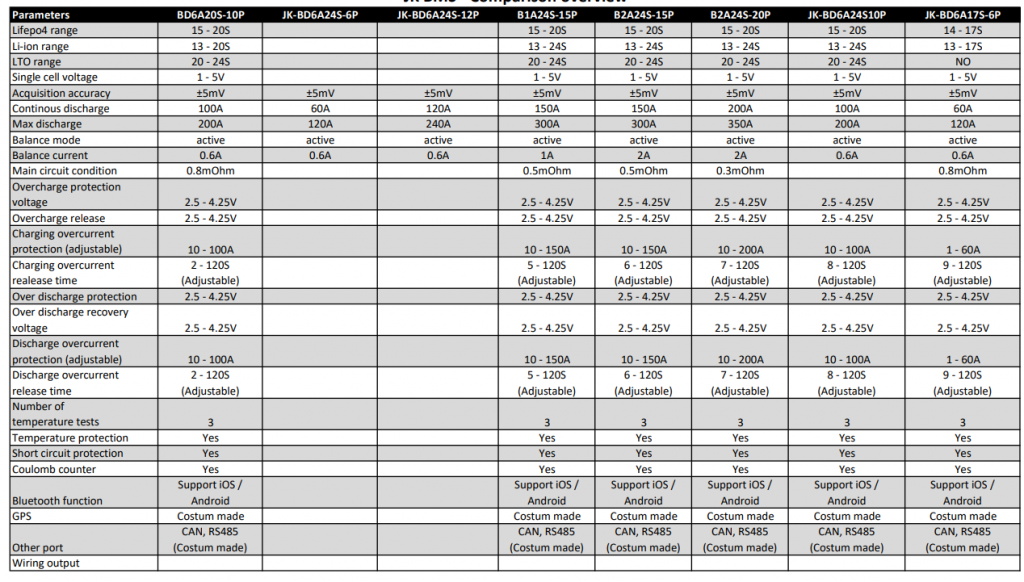

Main technical parameters

JK-BD6A20S6P

Working voltage: 20~100V


Main Specifications


Li-ion

7S~20S

Lifepo4

8S-20S

LTO

14S-20S

Balance way

Active Balance

Active balance current

0.6A

MOSFET

1.53mΩ

Continuous discharge current

60A

Peak discharge current

100A

Over current protection

10A-60A adjustable

out cableway

same port

single cell voltage scale

1-5V

Voltage accuracy

±3mV

Overcharge protection voltage

1.2V-4.35V adjustable

Overcharge protection release

1.2V-4.55V adjustable

Over-current protection release time

2S-120S adjustable

Over-discharge protection voltage

1.2V-4.35V adjustable

Over-discharge protection release

1.2V-4.35V adjustable

Temp sensor quantity

3

Short circuit protection

YES

BT function

Support Android and IOS

GPS remote control

Support

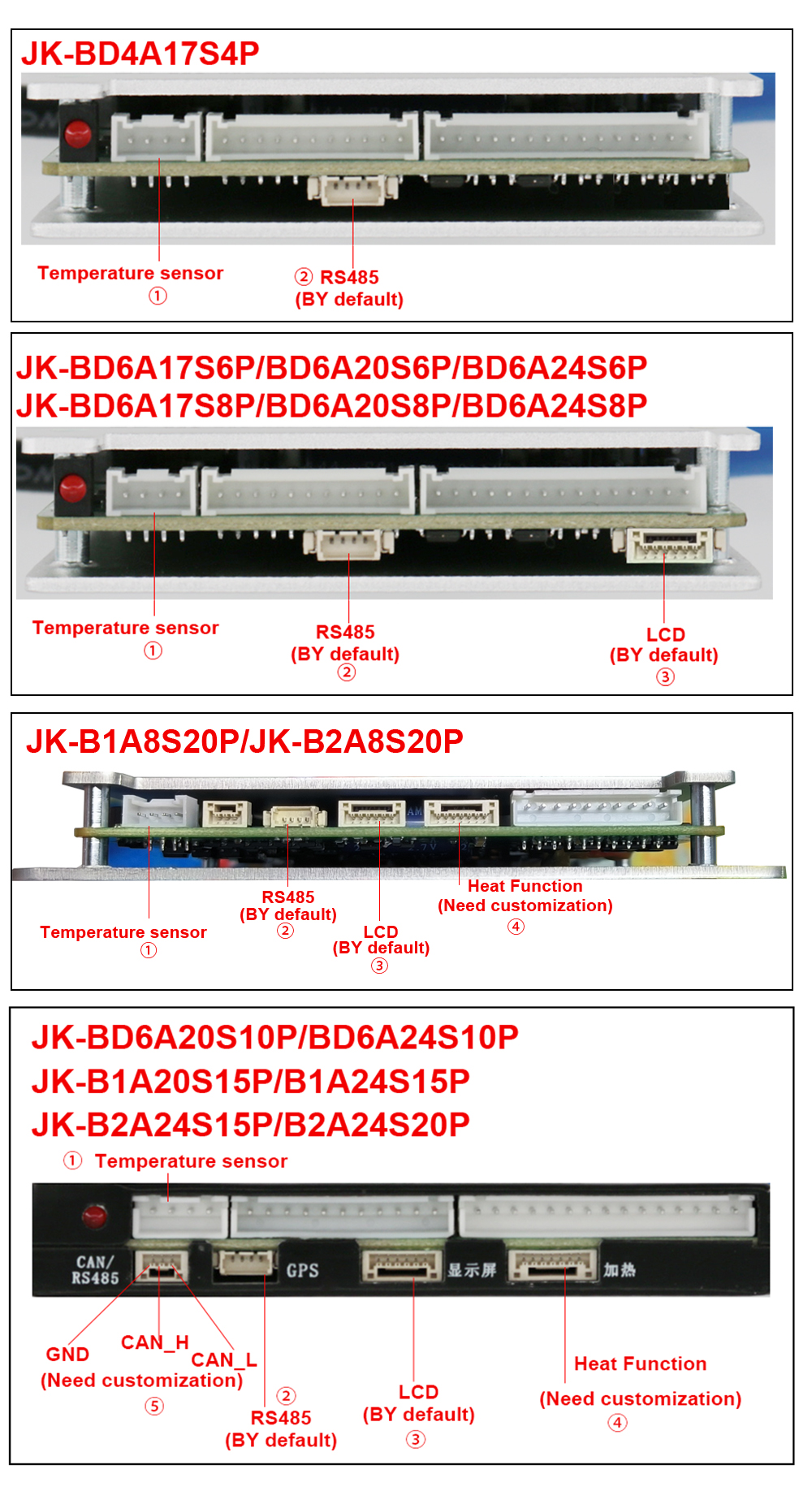

Other communication port

RS485/CAN (customize)

Size

136*83*17mm


Use of environmental conditions

a) Operating temperature range: -30 ° C ~ 70 ° C;

b) Power requirements: 20~100V.

c) Power consumption: Equilibrium state 8mA@100V, unbalanced state 7mA@100V

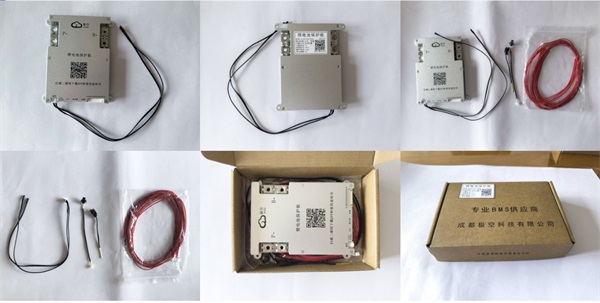

Product Show:
