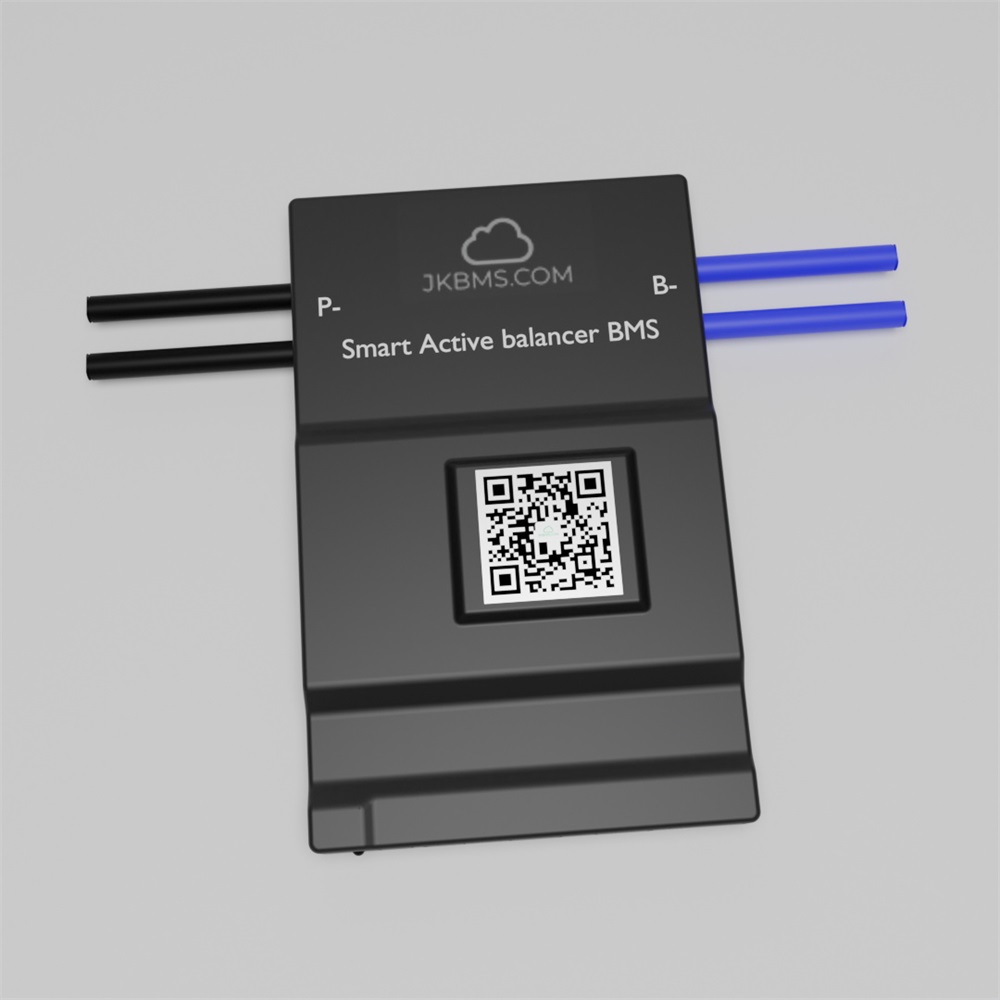

JK-BD6A24S10P Active Balancer BMS for Ternary Lithium NMC and Lifepo4 Battery
verview
When it comes to managing large capacity series lithium battery packs, the BD6A24S10P Active Balancer BMS is the ideal solution. This lithium battery smart BMS offers a range of features, including voltage collection, active large current balancing, overcharge, overcurrent, overtemperature protection, Coulombmeter, Bluetooth connectivity, GPS remote, and more. It’s suitable for use with various battery types, including lithium ternary, lithium iron phosphate, and others.
Our BMS uses proprietary technology for active balancing. This means you can enjoy maximum battery consistency, longer battery life, and delayed battery aging, thanks to our high current active balancing technology.

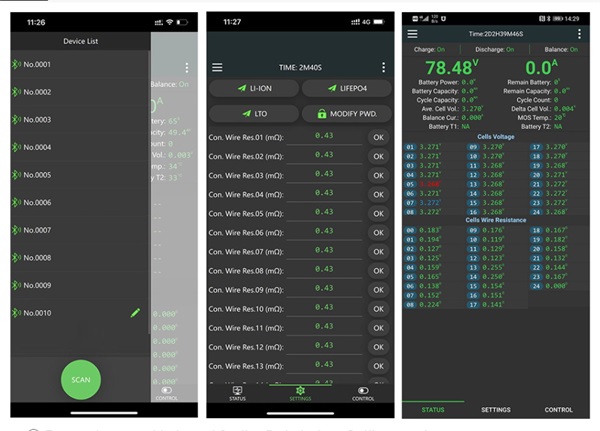

The BMS also comes with a companion mobile app that works with iOS and Android versions 7 and higher. You can establish a Bluetooth connection between your phone and the BMS, allowing you to operate the charging and discharging switches, check the battery’s operational state, and adjust the BMS’s operating settings. The BMS is small in size, easy to use, and packed with features, making it ideal for use in many battery packs for various products, including solar power stations, walkers, shared cars, high-power storage, base station backup power, and tiny sightseeing automobiles.
Key Features
Active balancing technology for maximum battery consistency and longer lifespan
Overcharge, overcurrent, and overtemperature protection for added safety
Companion mobile app for easy control and monitoring of battery packs
Suitable for use with various battery types, including lithium ternary and lithium iron phosphate
Small and easy to use

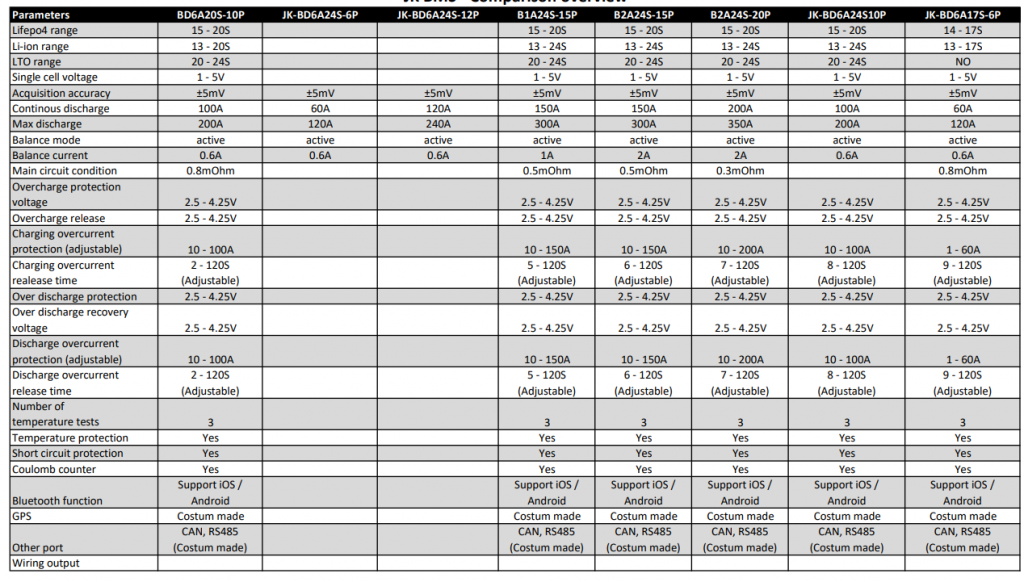

Main Technical Parameters
The JK-BD6A24S10P has a working voltage range of 20~100V, making it compatible with a wide range of devices and applications.
Li-ion | 7S~24S |
Lifepo4 | 8S-24S |
LTO | 12S~24S |
Balance way | Active Balance |
Active balance current | 0.6A |
MOSFET | 1mΩ |
Continuous discharge current | 100A |
Peak discharge current | 200A |
Over current protection | 10A-100A adjustable |
out cableway | same port |
single cell voltage scale | 1-5V |
Voltage accuracy | ±3mV |
Over charge protection voltage | 1.2V-4.35V adjustable |
Over charge protection release | 1.2V-4.55V adjustable |
Over current protection release time | 2S-120S adjustable |
Over discharge protection voltage | 1.2V-4.35V adjustable |
Over discharge protection release | 1.2V-4.35V adjustable |
Temp sensor quantity | 3 |
Short circuit protection | YES |

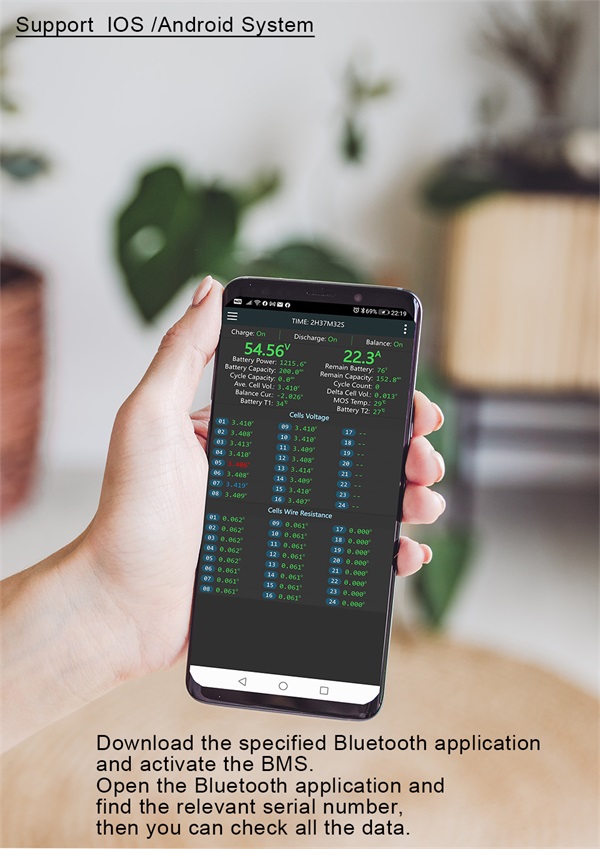

BT function | Support Android and IOS |
GPS remote control | Support |

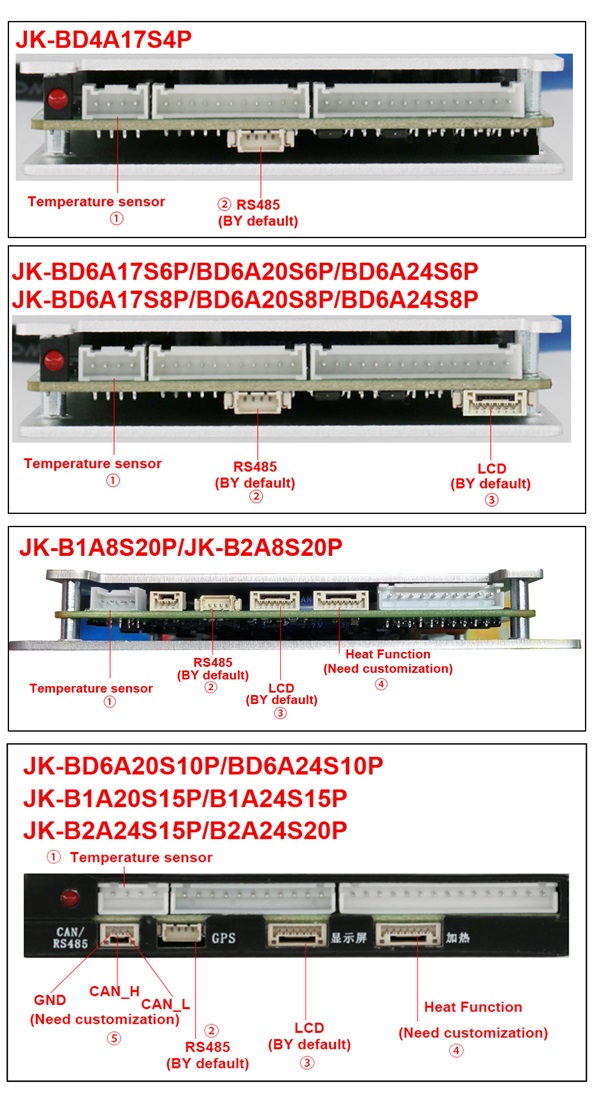

Other communication port | RS485/CAN (customize) |
Size | 162*102*20mm |
Applications
Solar power stations
Walkers
Shared cars
High-power storage
Base station backup power
Tiny sightseeing automobiles
Use of environmental conditions
a) Operating temperature range: -30 ° C ~ 70 ° C;
b) Power requirements: 20~100V.
c) Power consumption: Equilibrium state 8mA@100V, unbalanced state 7mA@100V
