Smart Lithium Ion Battery BMS(Battery Management System)
Smart Lithium Ion Battery BMS(Battery Management System) covers lithium batteries like lifepo4 battery, LTO Battery, NCM Battery protection management system
- Category: Battery Management System
- Tag: Battery Management System BMS
Smart Lithium Ion Battery BMS(Battery Management System)

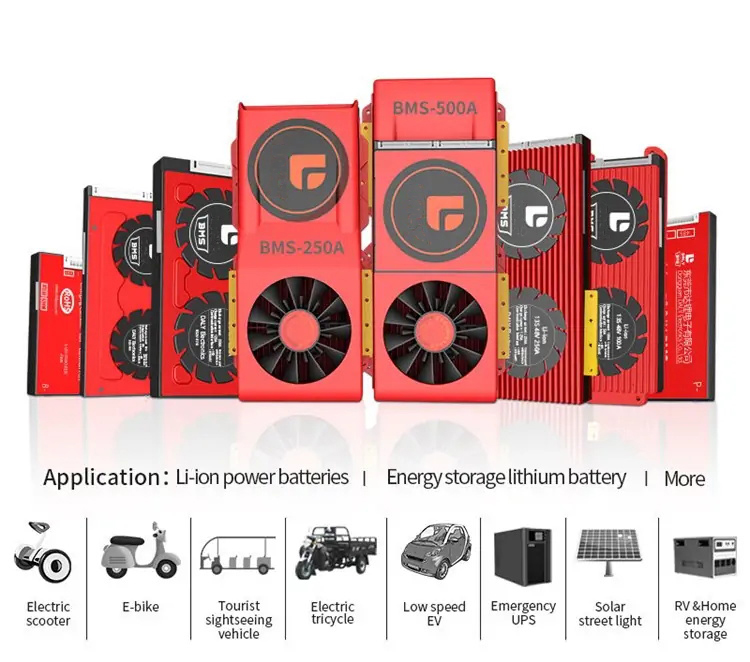

Lithium Ion Battery BMS covers lithium batteries like lifepo4 battery, LTO Battery, NCM Battery protection management system with battery assembly in series 3-35 series and working current less than 400A. The first products, water proof small red board and high current board, are widely used in various power lithium-ion power systems such as electirc bicycles. sightseeing browsers, golf carts, low-speed tram batteries and so on. Thet also serve various other industries around the world, such as: wind and solar energy storage system, household energy storage system, UPS backup power supply, automobile startup power supply, communication base station power supply, etc. Mine emergency equipment, solar street lamp and other fiedls.
Six protection Funtion of BMS
01. Charging Protection
Seiko IC effectively controls MOS to prevent battery overcharge and battery explosion
02. Discharge Protection
Prevent battery power from dying and affect the life of lithium batteries.
03. Over Current Protection
Prevent the battery from being damaged by excessive instantaneous current.
04. Short Circuit Protection
Automatic protection during abnormal short circuit to prevent battery.
05. Temperature Protection
The NTC temperature control probe is added to prevent the damage caused by the sponta-neous combustion of the battery when the temperature is too high.
06. Drop Protection
When the cable is off, then the BMS has no output.
Hardware Product Catalogue
LiFePO4 BMS, NMC BMS, Lead-acid BMS
Standard Voltage | Model | BMS Current |
12V | Li-ion 3S 12V BMS | 10A~500A option |
Li-ion 4S 12V BMS | 10A~500A option | |
LiFePO4 4S 12V BMS | 10A~500A option | |
LTO 5S 12V BMS | 10A~500A option | |
24V | Li-ion 6S 24V BMS | 15A~500A option |
Li-ion 7S 24V BMS | 15A~500A option | |
LiFePO4 8S 24V BMS | 15A~500A option | |
LTO 10S 24V BMS | 15A~500A option | |
36V | Li-ion 10S 36V BMS | 15A~500A option |
LiFePO4 12S 36V BMS | 15A~500A option | |
LTO 15S 24V BMS | 15A~500A option | |
48V | Li-ion 13S 48V BMS | 15A~500A option |
Li-ion 14S 48V BMS | 15A~500A option | |
LiFePO4 15S 48V BMS | 20A~500A option | |
LTO 20S 48V BMS | 20A~500A option | |
60V | Li-ion 16S 60V BMS | 20A~500A option |
Li-ion 17S 60V BMS | 30A~500A option | |
LiFePO4 20S 60V BMS | 30A~500A option | |
LTO 25S 60V BMS | 30A~500A option | |
72V | Li-ion 20S 72V BMS | 30A~500A option |
Li-ion 21S 72V BMS | 30A~500A option | |
LiFePO4 24S 72V BMS | 30A~500A option | |
LTO 30S 72V BMS | 30A~500A option | |
84V | Li-ion 24S 84V BMS | 30A~500A option |
86V | LiFePO4 27S 86V BMS | 60A~500A option |
100V | Li-ion 27S 100V BMS | 60A~500A option |
LiFePO4 32S 100V BMS | 60A~500A option | |
120V | Li-ion 32S 120V BMS | 60A~500A option |

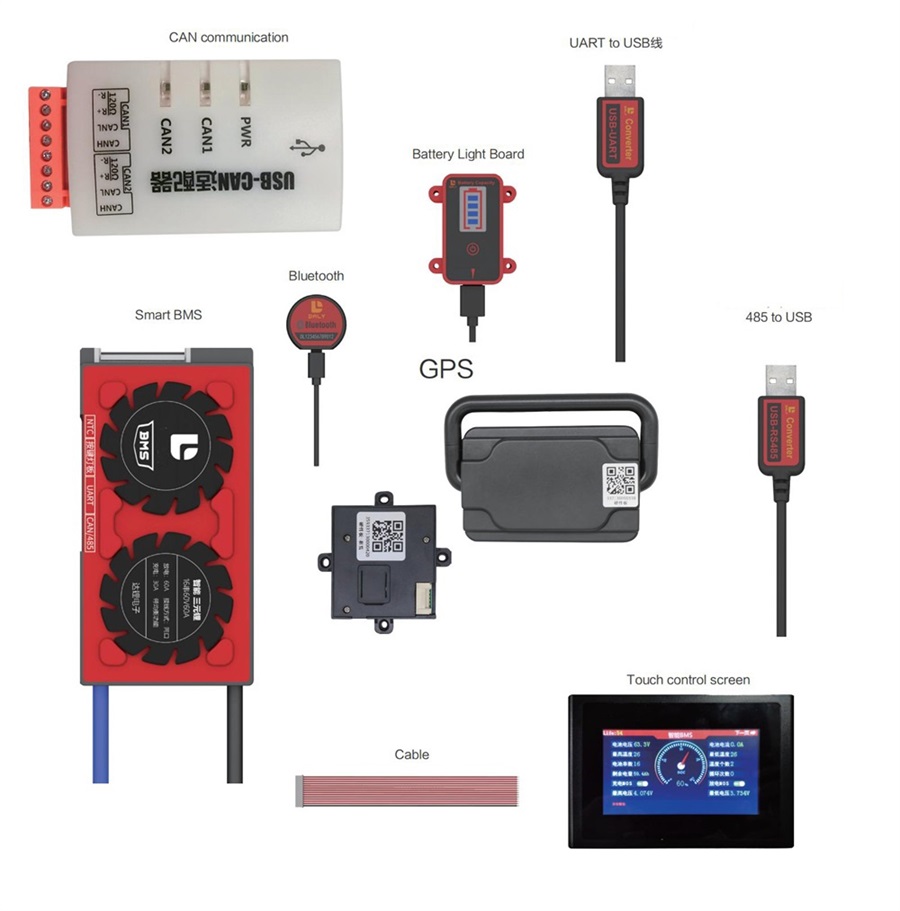

Remark: We also provide the Smart BMS an option for UART, R485, Blue-tooth, CAN, GPS communication functions

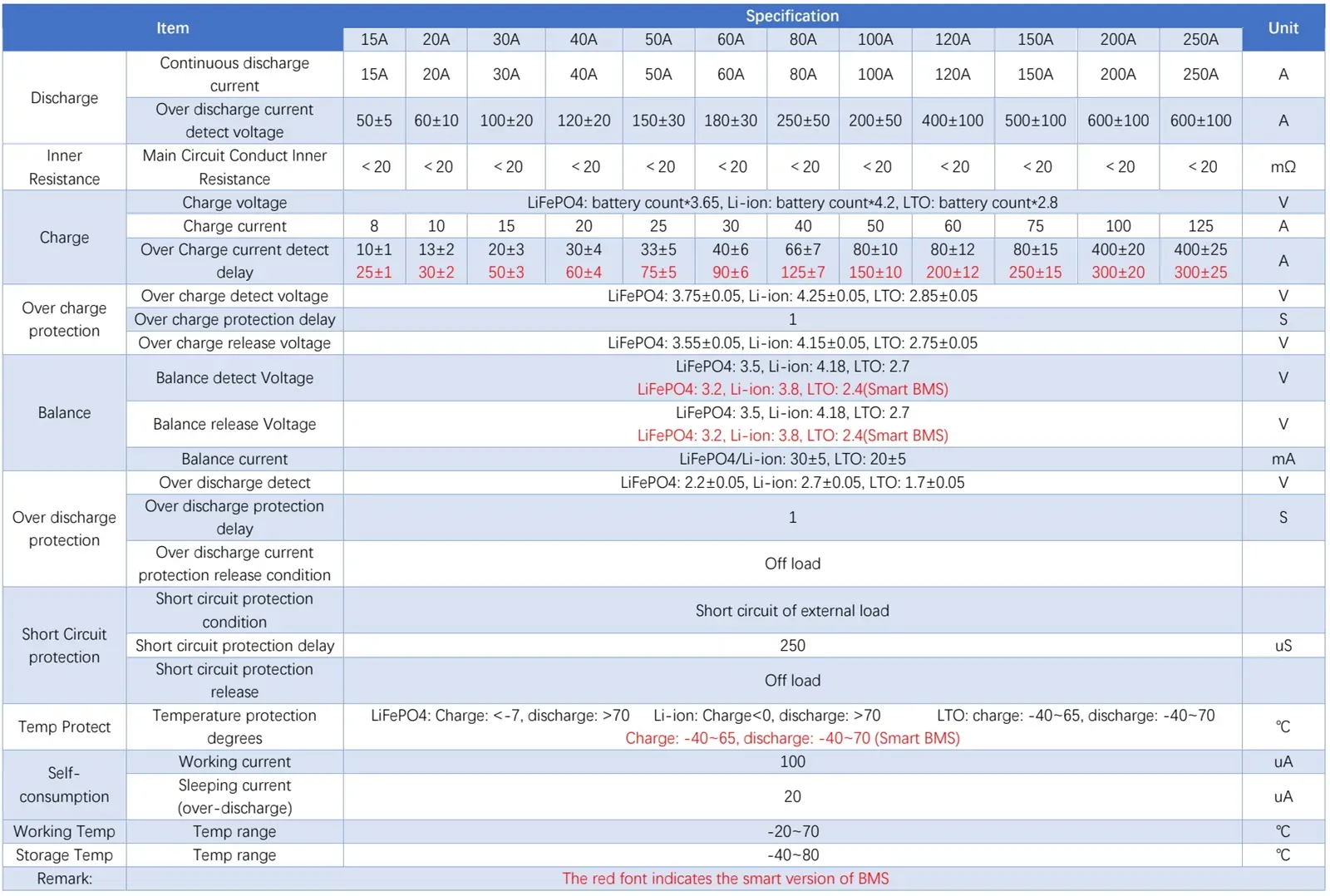

Specification of Lithium Battery BMS

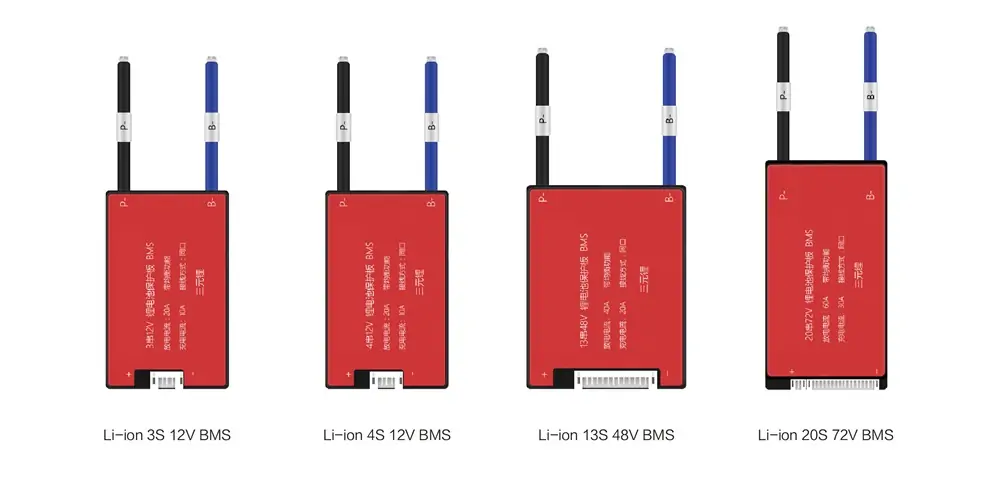

Li-ion Low Current Series(3S-20S)

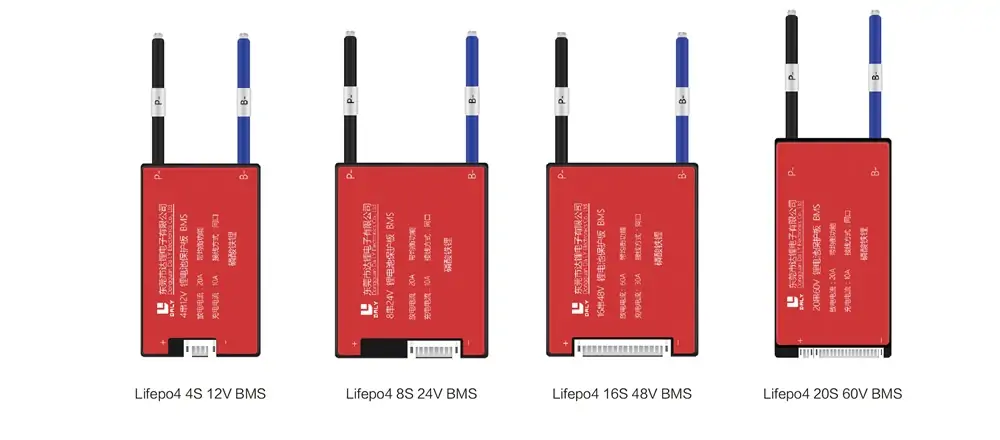

LiFePO4 Low Current Series(4S~20S)

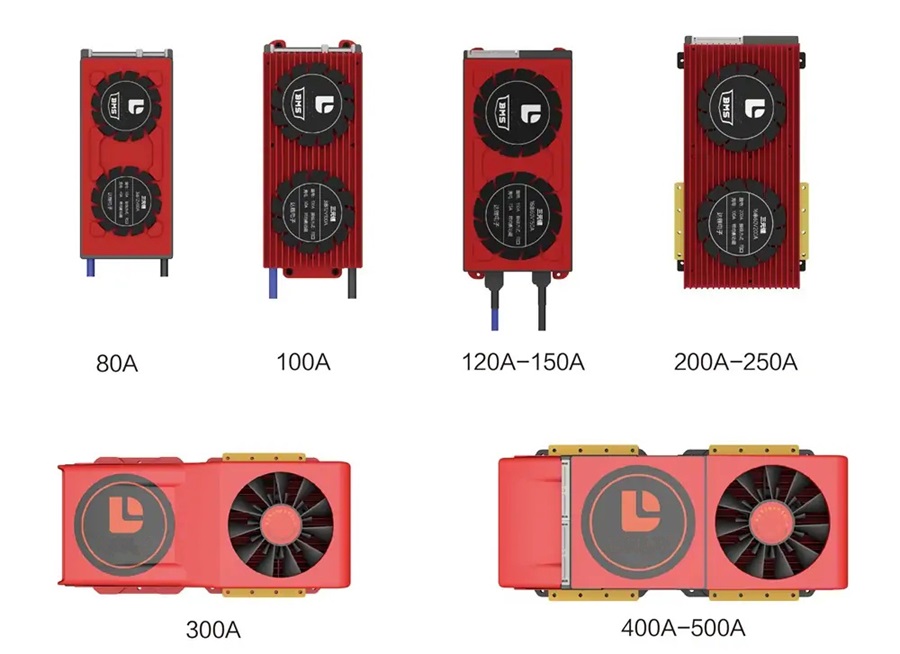

High Current Series(80A~500A)
Smart BMS(30A~500A)
Smart Software BMS for Shared Power swiching and internet of things solutions
You can order directly from our online shop here:
Aliexpress: Click here to buy
Applications

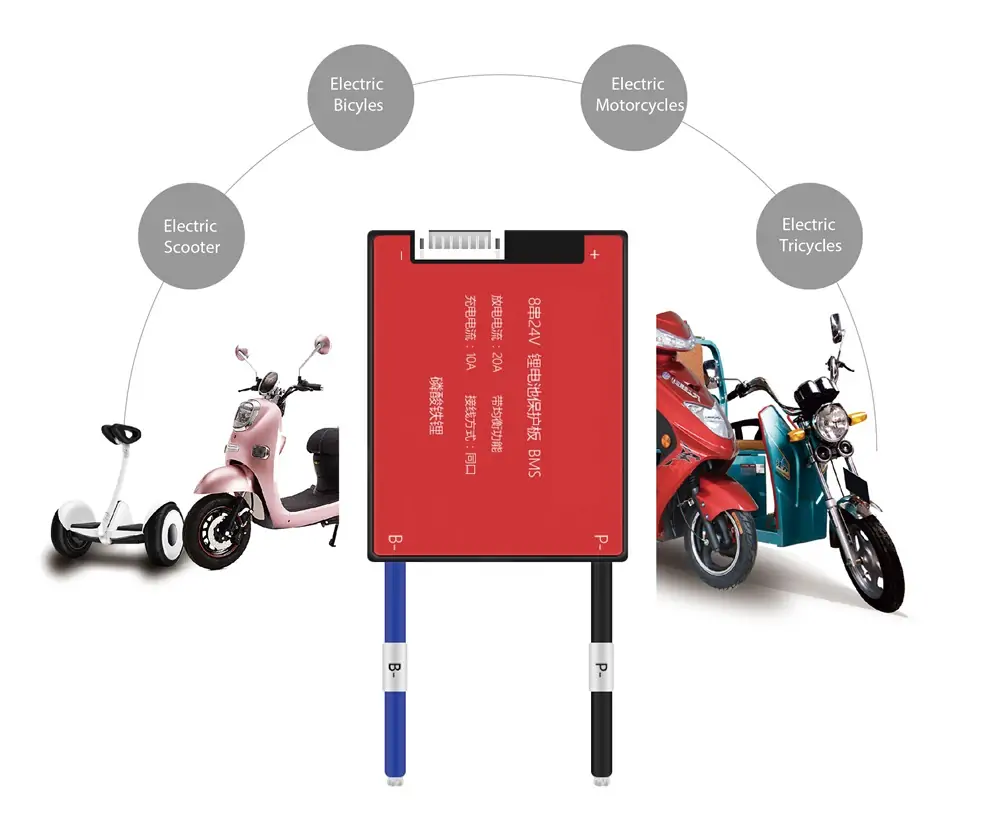

Applied to Electric scooters, bicyles, motor cycles and Tricycles

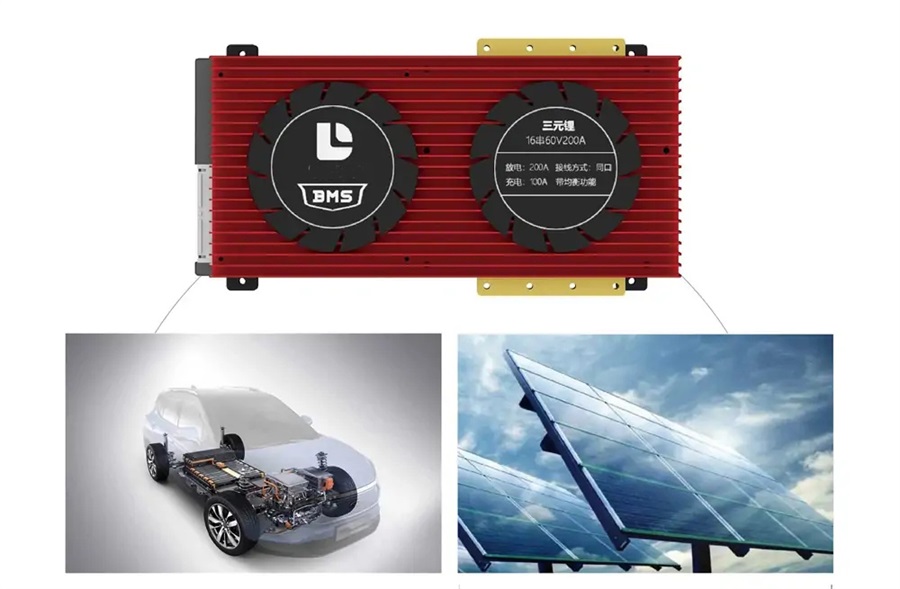

Suitable for low-speed four-wheelers, solar energy storage.
