1.5KW On Board 12V 24V 36V 48V 60V 72V LiFePO4 Battery Charger

1.5KW on board 12V 24V 36V 48V 60V 72V LiFePO4 battery charger for battery pack cycle charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, ships, communication equipment, etc.

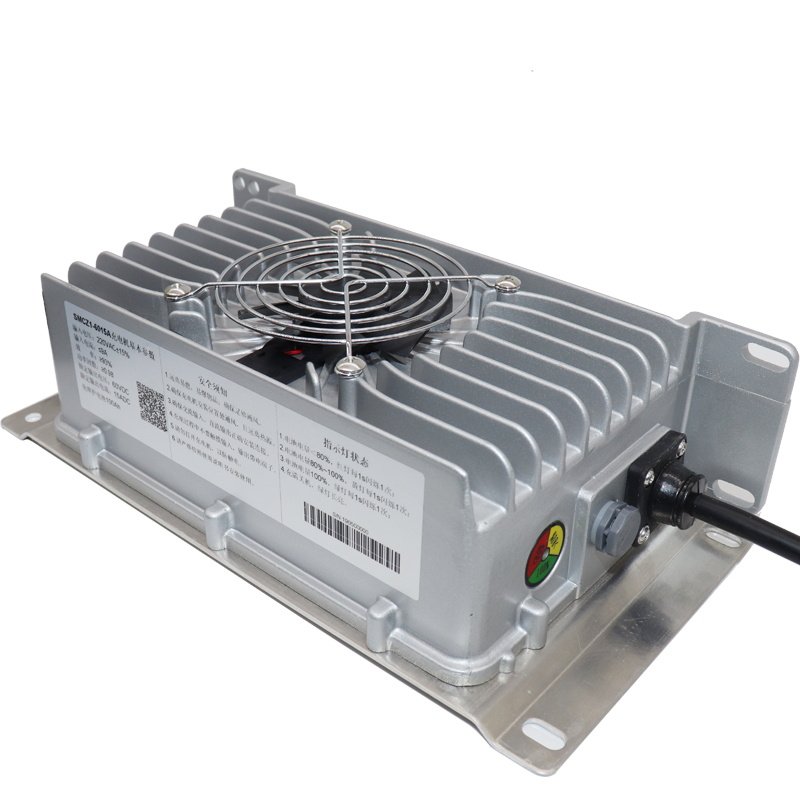

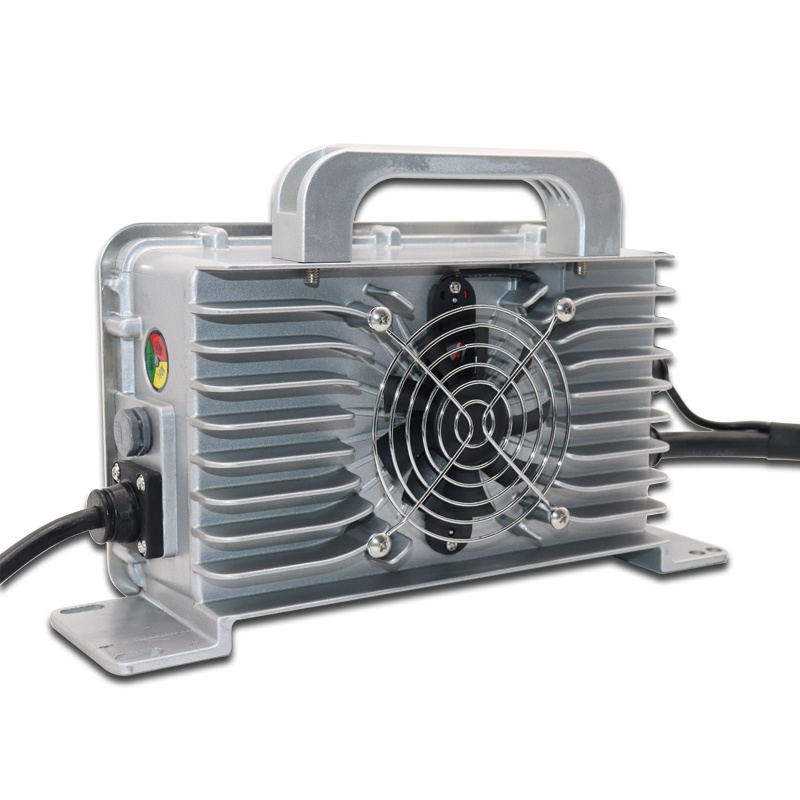

1.5KW On Board 12V 24V 36V 48V 60V 72V LiFePO4 Battery Charger

The battery charger adopts a fully closed pouring and sealing heat-conducting silica gel process, with protection grade up to IP67, good shock resistance, good heat dissipation performance, and long service life. The products are applicable to lithium batteries, LiFePO4 batteries, lead-acid batteries, nickel metal hydride batteries, etc., and can be used for battery pack cycle charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, ships, communication equipment, etc.


Product parameters


Item No.

Input Voltage

range

Output Rated

Voltage

Max output

voltage

Max output

current

SMCZ1-1225A

AC180-264V

12V

16.5V

25A

SMCZ1-2430A

AC180-264V

24V

33.0V

30A

SMCZ1-3625A

AC180-264V

36V

49.5V

25A

SMCZ1-4825A

AC180-264V

48V

66.0V

25A

SMCZ1-6020A

AC180-264V

60V

82.5V

20A

SMCZ1-7218A

AC180-264V

72V

99.0V

18A

SMCZ1-2430C

AC90-264V

24V

33.0V

30A

SMCZ1-3623C

AC90-264V

36V

49.5V

23A

SMCZ1-4818C

AC90-264V

48V

66.0V

18A

SMCZ1-6013C

AC90-264V

60V

82.5V

13A

SMCZ1-7212C

AC90-264V

72V

99.0V

12A


Product details

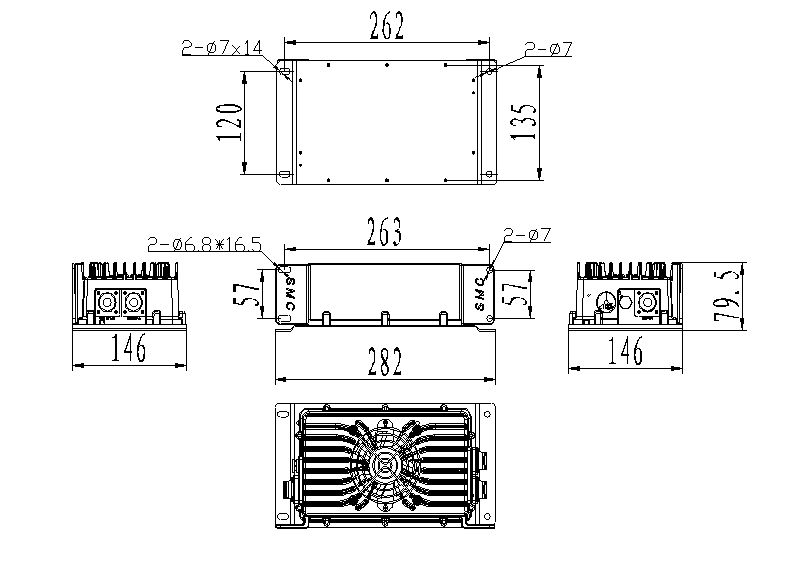

1.5KW On Board 12V 24V 36V 48V 60V 72V LiFePO4 Battery ChargerDIMENSION



Technical Parameters


Item

Parameters

AC Input Wide Voltage, Range

AC90V~264V

AC Input Frequency Range

40~70Hz

With APFC Function, Power Factor

≥0.98

Soft Switching Technology, Efficiency

≥93%

Protection Level

IP67

Operating Temperature

-40℃~60℃

Storage Temperature

-55℃~100℃

CAN Communication Function

Optional

12V3A Auxiliary Power Supply

Optional

LED Light Indicator For Charging Process

Standard

Noise

≤45dB

Overall Size

282*146*82mm

Net Weight

2.7Kg


Protection Function

1. Overheat Protection

When the internal temperature of the charger exceeds 80℃, the charging current will reduce automatically. When it exceeds 85℃, the charger shuts down for protection. When the temperature drops, the charger automatically resumes charging.

2. Short Circuit Protection

When the output shortens, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging.

3. Battery Reverse Connection Protection

When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.

4. Input low-voltage &Over-voltage Protection

If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again.

5. Full Automatic Shutdown

Automatically shut down after full charge.
