12KW Industrial Battery High Frequency Charger Forklift Battery

12KW Forklift Battery Charger 24V 400A/48V 200A/80V 120A/120V 80A Industrial Battery High Frequency Charger Forklift Battery

12KW Forklift Battery Charger

24V 400A/48V 200A/80V 120A/120V 80A Industrial Battery High Frequency Charger Forklift Battery12 kw forklift battery charger

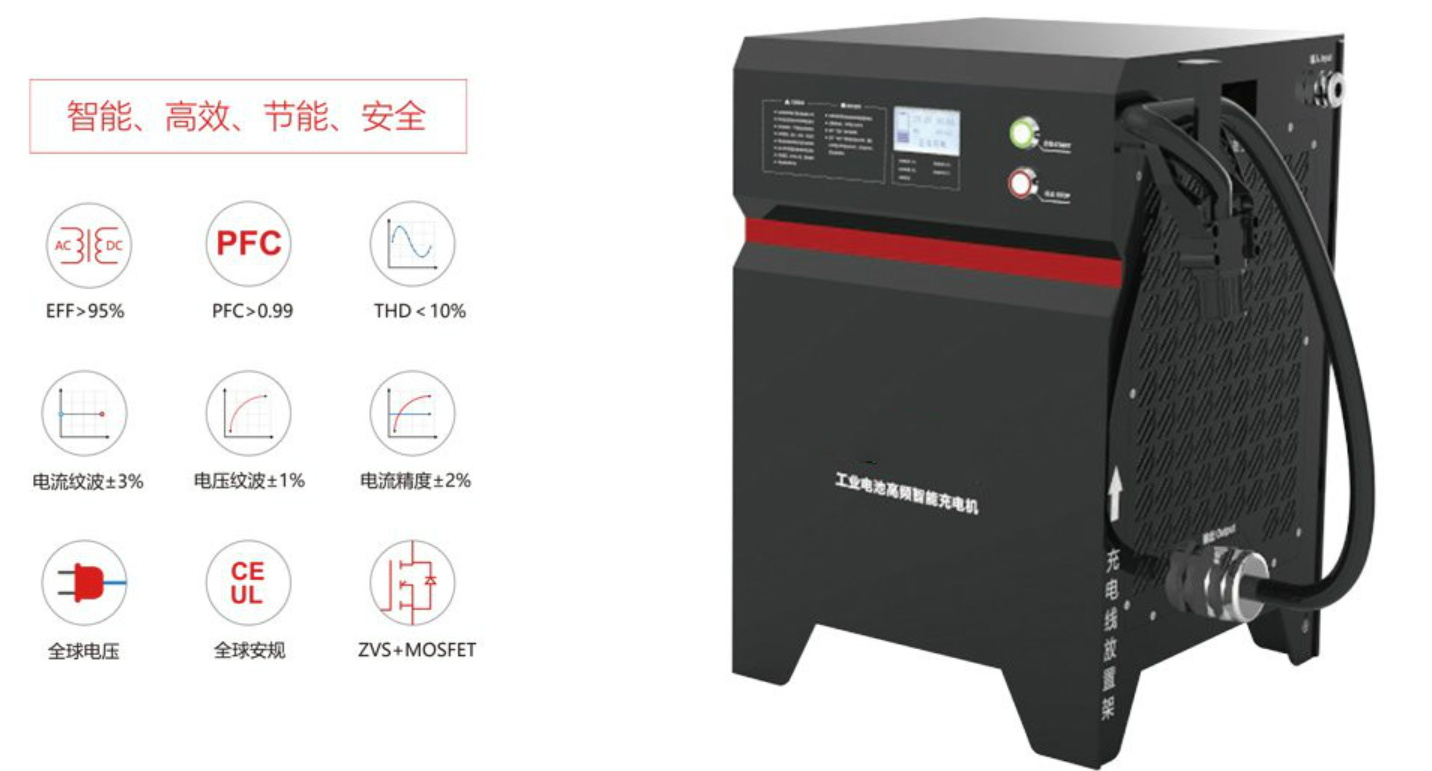

12KW Industrial battery high-frequency charger

The intelligent high-frequency charger is designed for battery charging,it is suitable for various battery cycle working charging.

It was designed by the high-frequency switch power supply technology and modular installation construction.The whole systems are consisting of PFC unit,power conversion unit,monitor unit,display unit,electrical unit,communication protection unit and charging connection parts.The charging process is fully automatic,and it realized intelligent charging management of various batteries.

Generally used in common forklift chargers, electric bicycle charging piles, shared charging piles, scan code charging piles, electric vehicle scan code charging, robot charging, new energy vehicle charging, etc.


Specification


Model

EVL6124

EVL6113

EVL6114

EVL6137

DC Voltage

24V

48V

80V

120V

Rated Current

400A

200A

120A

80A

Current Range

1-400A

1-200A

1-120A

1-80A

Range of Output Voltage

18-30V

38-60V

65-100V

92-132V

Input Voltage

380V±10%

380V±10%

380V±10%

380V±10%

Input Current

30A

Output Power

12KW

Input Mode

L1+L2+L3+PE  three-phase four wire system/

L1+L2+L3+N+PE  three-phase five wire system

Power Factor

>0.99

THD

<10%

Efficiency

>95%

Current Ripple

±3%

Current Precision

±0.5%

Voltage Precision

±0.5%

Ripple Voltage

≤±1%Vo peak-to-peak value,20Mhz bandwidth,

Charging Precision

Voltage/0.01V Current/0.1A Time/1S

BMS Power Supply

12V/24V Optional

Protection Function

OTP、OVP、OCP、Short

Connector

Anderson/International charging gun

/REMA/The customer agreement

Communication Method

RS485RS232CAN Bus

MTBF

80000H

Safety

CEUL1564,IEC61851

Display

LCD/LED

Cooling

Air Fan

Working/Storage

temperature and humidity

Working: -20℃ to 65℃  Storage:-40℃ to 85℃

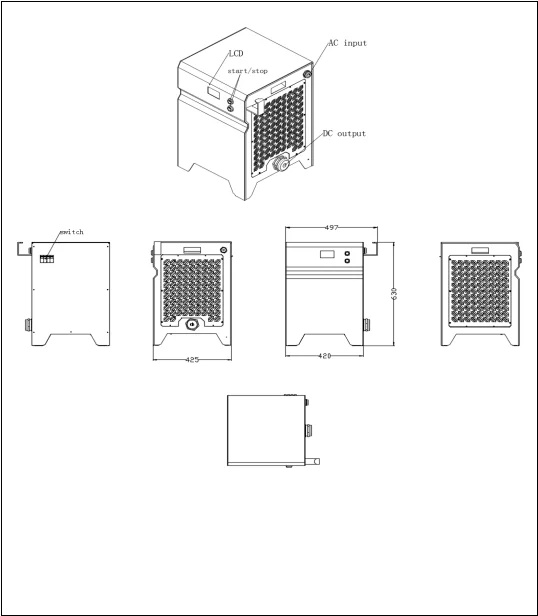

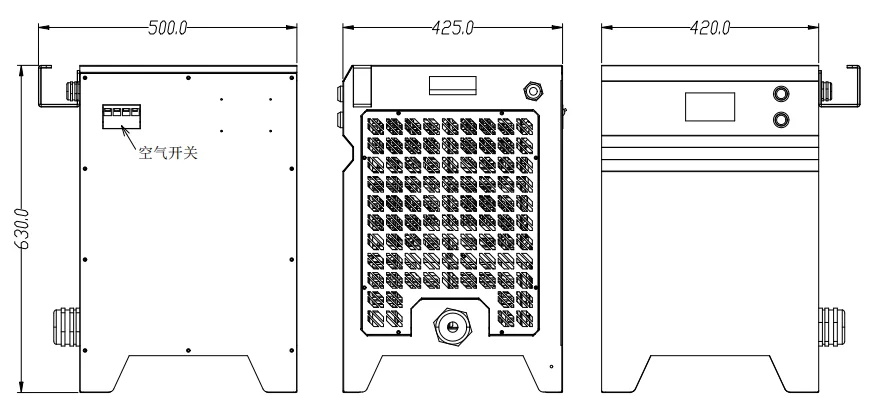

Structure Size

dimension


Accessories:

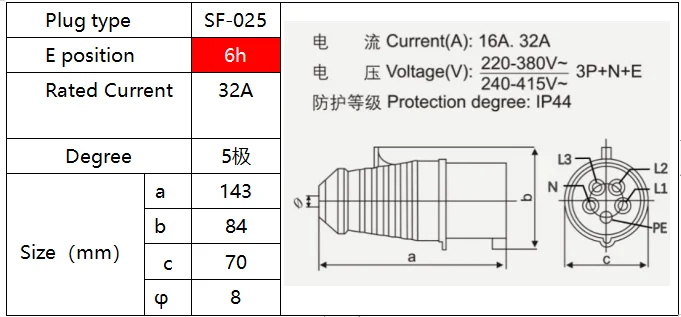

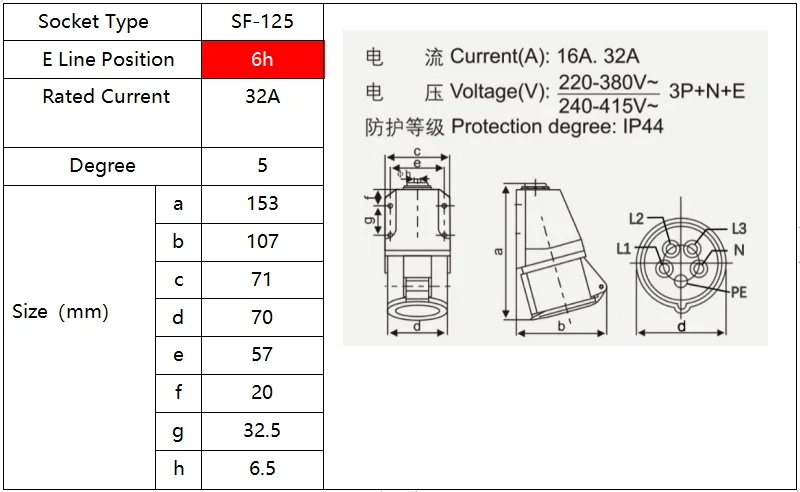

Case diagram: 16A national standard plug(For reference only)

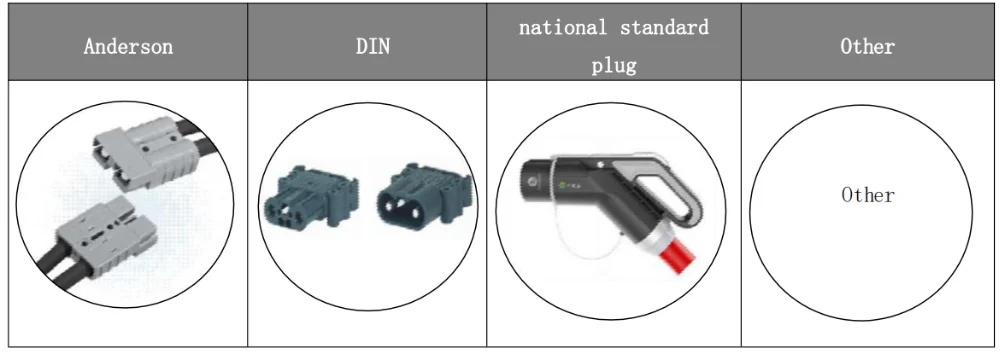

Output Cable and connector spec


Hd40e214cad5b4a0893c7d1fb5c648a4bA (1)_看图王.jpg


Packaging & Shipping

Cartons (wooden case)、Pearl cotton、Anti-static bag(For reference only, Please refer to the actual packing)
