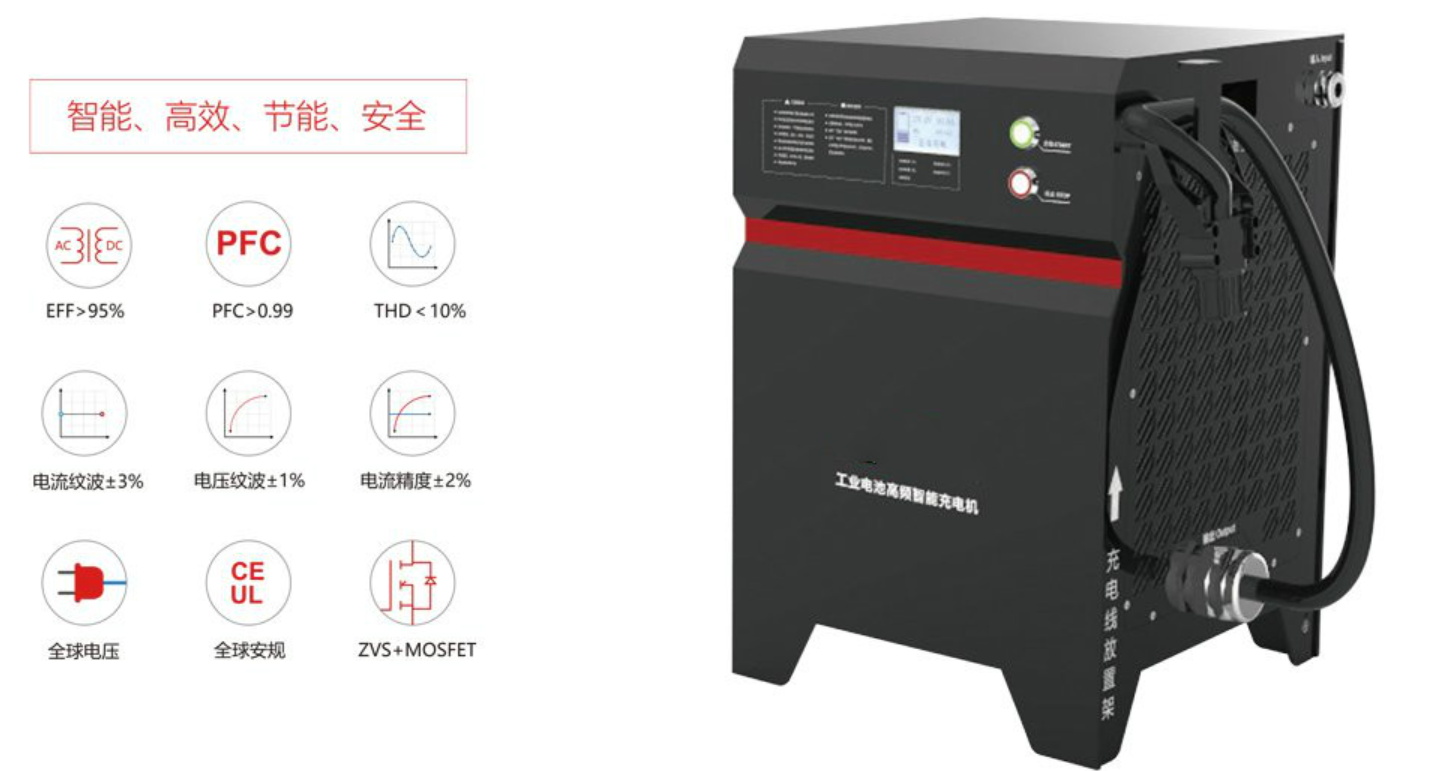

18KW Industrial High Frequency Battery Charger for Forklift
18KW 24V 600A/48V 300A/80V 180A/120V 120A Industrial battery high frequency battery charger for forklift
- Category: Charger
- Tag:
18KW 24V 600A/48V 300A/80V 180A/120V 120A Industrial battery high frequency Forklift Battery Charger
Intelligent high frequency charger is designed for battery charging,it is suitable for various batteries cycle working charging.
It designed by the high frequency switch power supply technology and modular installation construction.The whole systems are consisting of PFC unit,power conversion unit,monitor unit,display unit,electrical unit,communication protection unit and charging connection parts.The charging process is fully automatic,and it realized intelligent charging management of various batteries.
Generally used in common forklift chargers, electric bicycle charging piles, shared charging piles, scan code charging piles, electric vehicle scan code charging, robot charging, new energy vehicle charging, etc.

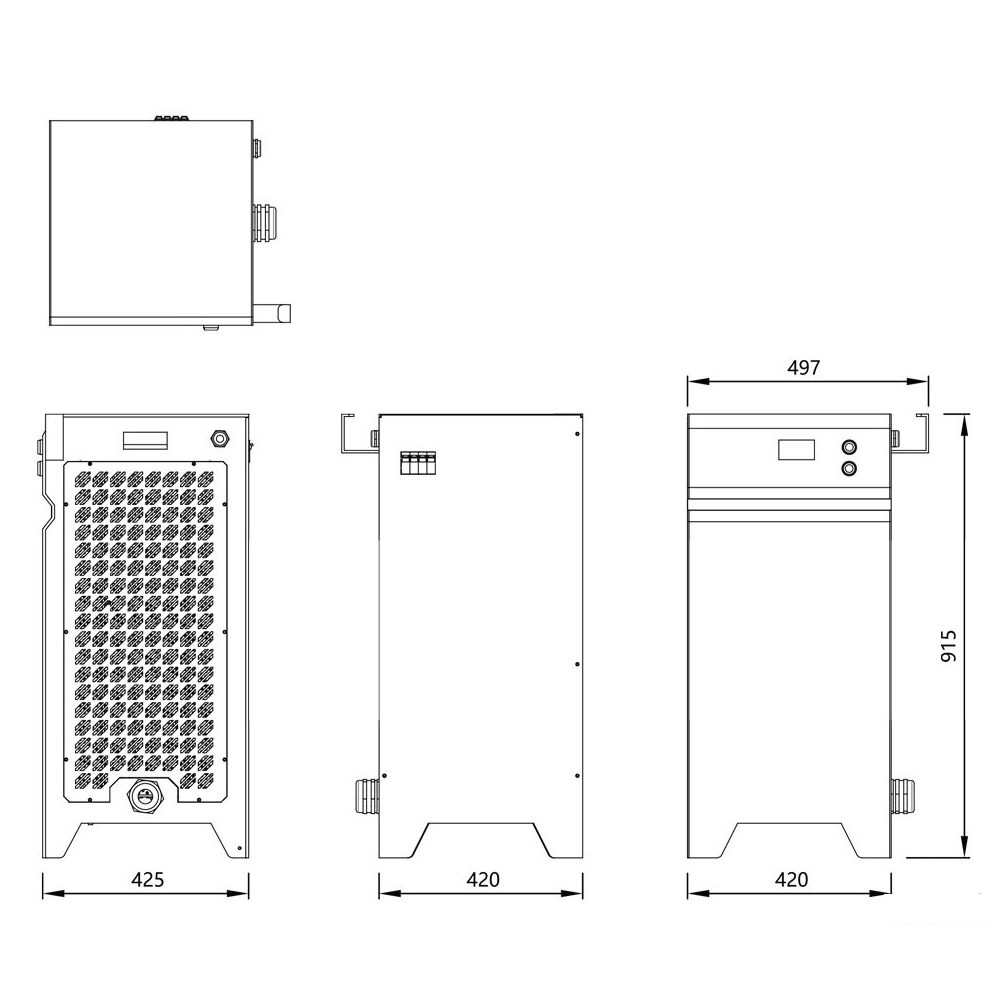

Dimension
Specifications
Model | EVL6126 | EVL6117 | EVL6118 | EVL6139 |
DC Voltage | 24V | 48V | 80V | 120V |
Rated Current | 600A | 300A | 180A | 120A |
Current Range | 1-600A | 1-300A | 1-180A | 1-120A |
Range of Output Voltage | 18-30V | 38-60V | 65-100V | 92-132V |
Input Voltage | 380V±10% | 380V±10% | 380V±10% | 380V±10% |
Input Current | 30A | |||
Output Power | 18KW | |||
Input Mode | L1+L2+L3+PE three-phase four wire system/L1+L2+L3+N+PE three-phase five wire system | |||
Power Factor | >0.99 | |||
THD | <10% | |||
Efficiency | >95% | |||
Current Ripple | ±3% | |||
Current Precision | ±0.5% | |||
Voltage Precision | ±0.5% | |||
Ripple Voltage | ≤±1%Vo peak-to-peak value,20Mhz bandwidth, | |||
Charging Precision | Voltage/0.01V Current/0.1A Time/1S | |||
BMS Power Supply | 12V/24V Optional | |||
Protection Function | OTP、OVP、OCP、Short | |||
Connector | Anderson/International charging gun/REMA/The customer agreement | |||
Communication Method | RS485、RS232、CAN Bus | |||
MTBF | 80000H | |||
Safety | CE、UL1564,IEC61851 | |||
Display | LCD/LED | |||
Cooling | Air Fan | |||
Working/Storage temperature and humidity | Working: -20℃ to 65℃ Storage:-40℃ to 85℃ | |||
