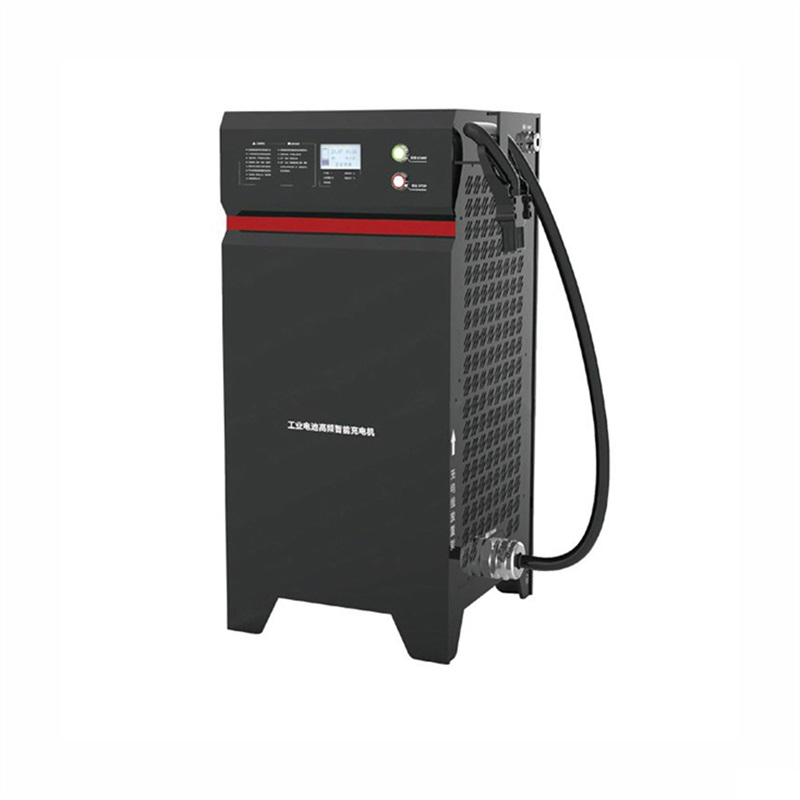

21KW 24V/48V/80V/120V Industrial High Frequency Intelligent Forklift Battery Charger
21KW 24V 700A/48V 350A/80V 210A/120V 175A Industrial High Frequency Intelligent Forklift Battery Charger
- Category: Charger
- Tag: Forklift Charger
21KW 24V/48V/80V/120V Industrial High Frequency Intelligent Forklift Battery Charger
An intelligent high-frequency charger is designed for battery charging,it is suitable for various battery cycle working charging.It was designed by high-frequency switch power supply technology and modular installation construction.
The whole system consists of a PFC unit, power conversion unit, monitor unit, display unit, electrical unit, communication protection unit and charging connection parts.The charging process is fully automatic, and it realizes intelligent charging management of various batteries. Generally used in common forklift chargers, electric bicycle charging piles, shared charging piles, scan code charging piles, electric vehicle scan code charging, robot charging, new energy vehicle charging, etc.
Specification
Model | EVL6127 | EVL6128 | EVL66119 | EVL6140 |
DC Voltage | 24V | 48V | 80V | 120V |
Rated Current | 700A | 350A | 210A | 175A |
Current Range | 1-700A | 1-350A | 1-210A | 1-175A |
Range of Output Voltage | 18-30V | 38-60V | 65-100V | 92-132V |
Input Voltage | 220V±10%/ 380V±10% | 220V±10%/ 380V±10% | 220V±10%/ 380V±10% | 220V±10%/ 380V±10% |
Input Current | 30A | |||
Output Power | 21KW | |||
Input Mode | L1+L2+L3+PE three-phase four-wire system/ L1+L2+L3+N+PE three-phase five-wire system | |||
Power Factor | >0.99 | |||
THD | <10% | |||
Efficiency | >95% | |||
Current Ripple | ±3% | |||
Current Precision | ±0.5% | |||
Voltage Precision | ±0.5% | |||
Ripple Voltage | ≤±1%Vo peak-to-peak value,20Mhz bandwidth, | |||
Charging Precision | Voltage/0.01V Current/0.1A Time/1S | |||
BMS Power Supply | 12V/24V Optional | |||
Protection Function | OTP、OVP、OCP、Short | |||
Connector | Anderson/International charging gun/ REMA/The customer agreement | |||
Communication Method | RS485、RS232、CAN Bus | |||
MTBF | 80000H | |||
Safety | CE、UL1564,IEC61851 | |||
Display | LCD/LED | |||
Cooling | Air Fan | |||
Working/Storage temperature and humidity | Working: -20℃ to 65℃ Storage:-40℃ to 85℃ | |||
