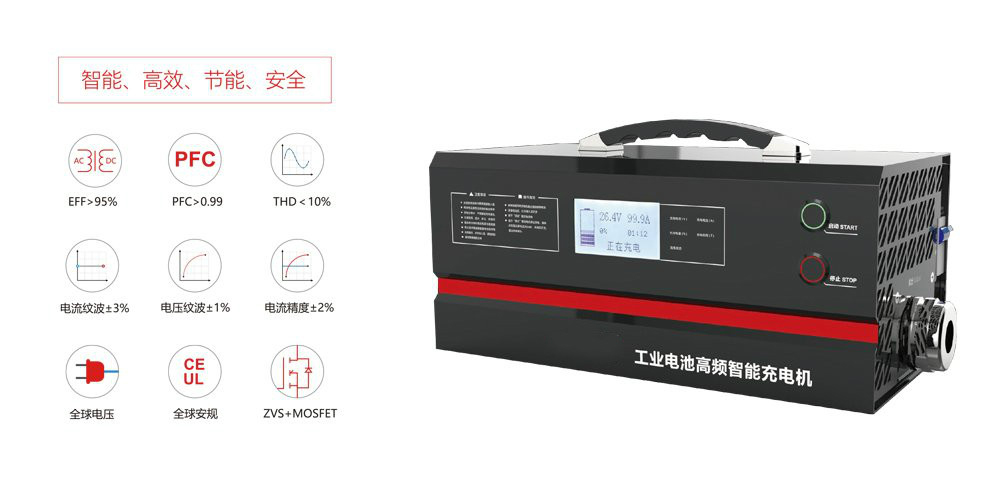

24V 100A Industrial battery high frequency charger

An intelligent high frequency charger is designed for battery charging, it is suitable for various batteries cycle working charging.

It was designed by the high frequency switch power supply technology and modular installation construction. The whole system are consisting of PFC unit,power conversion unit, monitor unit, display unit, electrical unit, communication protection unit and charging connection parts. The charging process is fully automatic,and it realized intelligent charging management of various batteries.

Generally used in common forklift chargers, electric bicycle charging piles, shared charging piles, scan code charging piles, electric vehicle scan code charging, robot charging, new energy vehicle charging, etc.


Product sell points

Modular Design & Customization: Features a modular structure for customization and easy maintenance, ideal for industrial settings.

Advanced Display & Protection: Equipped with an LCD/LED display for real-time monitoring and safeguards against short circuits, overvoltage, and more.

High Efficiency & Intelligent Charge: Boasts >95% efficiency, ensuring rapid and smart charging for forklift batteries.

Wide Input Voltage Range: Accommodates 90-264V input, adaptable for various power sources.

Multiple Output Voltages: Supports 24V, 48V, 80V, and 120V output, tailoring to diverse battery types.

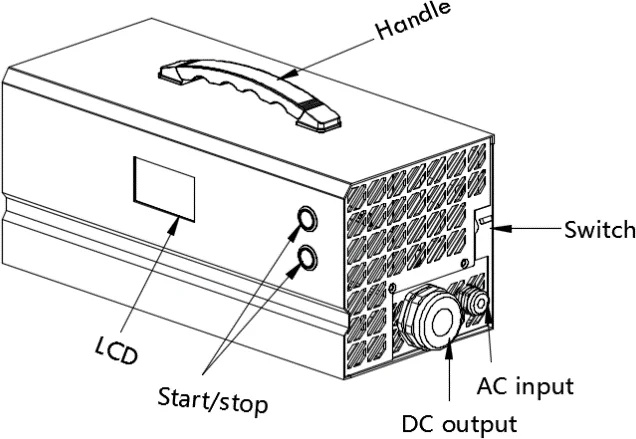

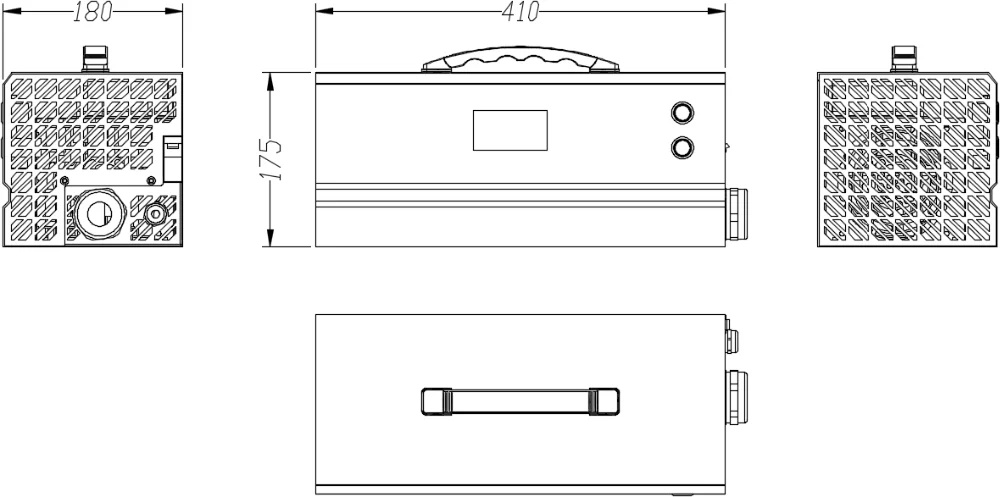

Dimension

dimension

dimension


Specification


Model

EVL6101

EVL6102

EVL6103

EVL6135

DC Voltage

24V

48V

80V

120V

Rated Current

100A

50A

30A

25A

Current Range

1-100A

1-50A

1-30A

1-25A

Range of Output

 Voltage

18-30V

38-60V

65-100V

92-132V

Input Voltage

90~264V

90~264V

90~264V

90~264V

Input Current

15A

Output Power

3KW

Input Mode

L+N+PE  single-phase

three wire system

Power Factor

>0.99

THD

<10%

Efficiency

>95%

Current Ripple

±3%

Current Precision

±0.5%

Voltage Precision

±0.5%

Ripple Voltage

≤±1%Vo peak-to-peak value,

20Mhz bandwidth,

Charging Precision

Voltage/0.01V Current/0.1A Time/1S

BMS Power Supply

12V/24V Optional

Protection Function

OTP、OVP、OCP、Short

Connector

Anderson/International charging gun/

REMA/The customer agreement

Communication

Method

RS485、RS232、CAN Bus

MTBF

80000H

Safety

CE、UL1564,IEC61851

Display

LCD/LED

Cooling

Air Fan

Working/Storage

 temperature

 and humidity

Working: -20℃ to 65℃

Storage:-40℃ to 85℃


Accessories

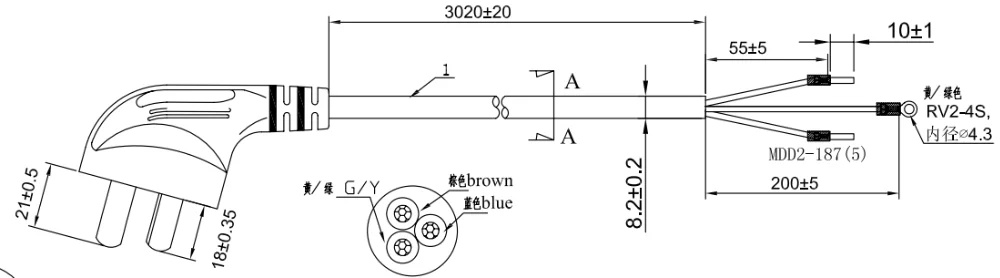

Case diagram: 16A national standard plug(For reference only)

 Accessories: Case diagram: 16A national standard plug(For reference only)

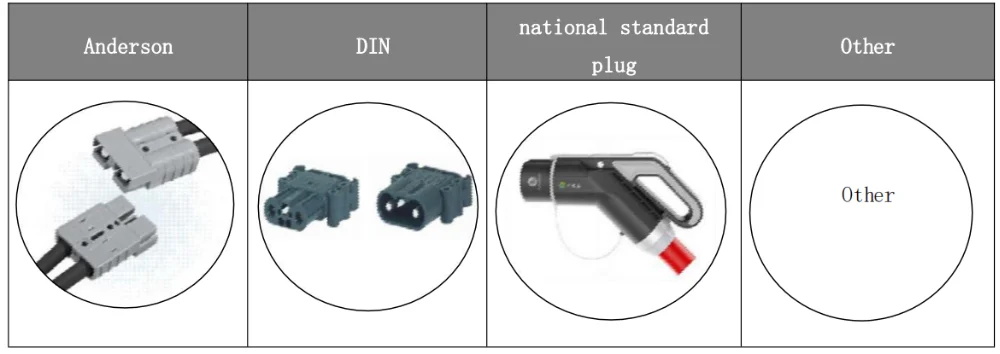

Output Cable and connector spec.

Output Cable and connector spec.

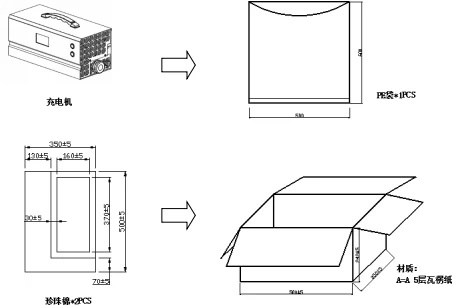

Packaging & Shipping

Cartons (wooden case)、Pearl cotton、Anti-static bag(For reference only, Please refer to the actual packing)
