24V High Frequency Lithium Ion Forklift Battery Chargers

24V High Frequency Lithium Ion Forklift Battery Chargers adopt high frequency switching technology, which has the characteristics of energy saving, easy control, wide adjustment range, small size and light structure

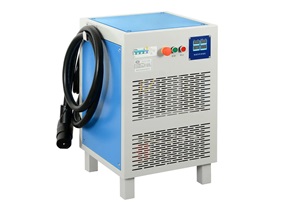

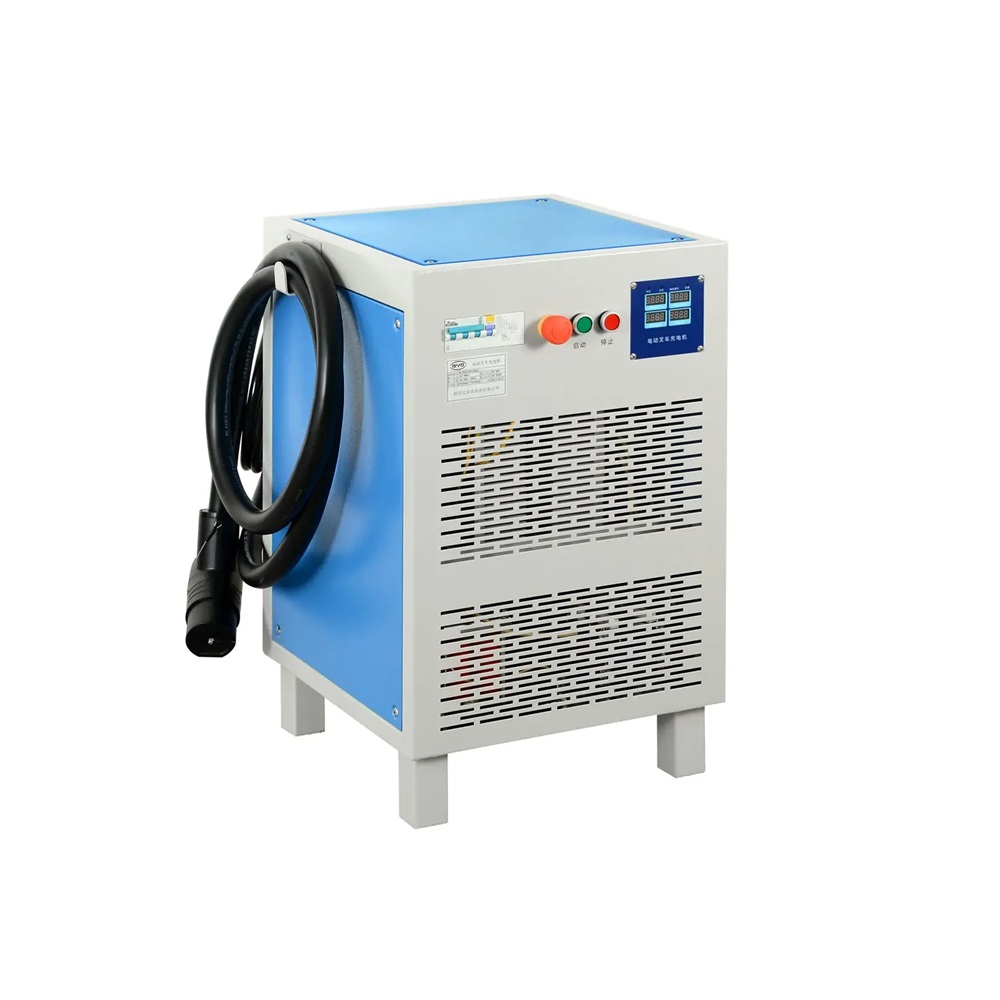

24V High Frequency Lithium Ion Forklift  Battery Chargers

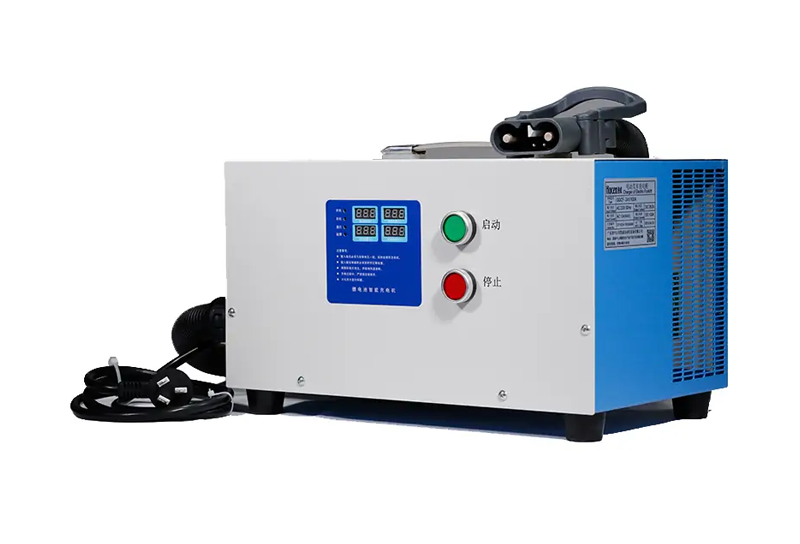

24V High Frequency Lithium Ion Forklift  Battery Chargers24V High Frequency Lithium Ion Forklift  Battery Chargers

This 24V series of high-frequency chargers boasts impressive attributes, including high conversion efficiency, stable voltage output, precise steady current regulation, advanced transient response capabilities, a smoothly contoured output current waveform, and minimal ripple. Furthermore, thanks to the utilization of high-frequency switching technology, these chargers exhibit characteristics such as energy efficiency, ease of control, wide adjustability range, compact dimensions, and lightweight construction.

Working Principle

The charger primarily consists of several key components, including a rectifying and filtering circuit, a high-frequency switching conversion circuit, a PWM control circuit, an output rectifying and filtering circuit, a reverse protection circuit, a voltage stabilization, and limiting circuit, a current stabilization and limiting circuit, a protection circuit, and a 12V auxiliary power supply circuit. Additionally, the charger is equipped with CAN-BUS communication functionality.

Specifications

Model

GGCF-B24V/200A

GGCF-B24V/100A

Size(mm)

II:480*480*775
III:410*500*505

242*237*400

Weight

II:74.2KG/ III:40KG

14KG

Power System

TN

TN

Input

AC 380V,50Hz/60Hz

AC 380V,50Hz/60Hz

Input Wire

3*4+1*2.5mm²
Three phases+ Ground
3.5m

2*2.5+1*2.5mm²
Three phases+ Ground
3.5m

Output

DC 87V(MAX), 100A

DC 28V(MAX), 100A

Power Factor

≥0.9

≥0.9

Efficiency

≥92%

≥92%

Dielectric Strength

Input - Output:2500VAC   5mA,1Min
Input - Housing:2500VAC   5mA,1Min
Output - Housing:1500VAC   5mA,1Min

Insulation Resistance

Input - Output:DC1000V>200MΩ
Input - Housing:DC1000V>50MΩ
Output - Housing:DC1000V>50MΩ

Conversion Frequency

18kHz±2kHz(three-phase full-bridge I

GBT module conversion circuit)

Ingress Protection

IP 20

Cooling system

Forced Air-cooling

Operating temperature

-10℃~45℃

Storage or portage temperature

-20℃~60℃

Humidity

10%~90℃ (No ice)

Noise

≤70dB

Operational Environment

Indoor

Altitude

below 2000m


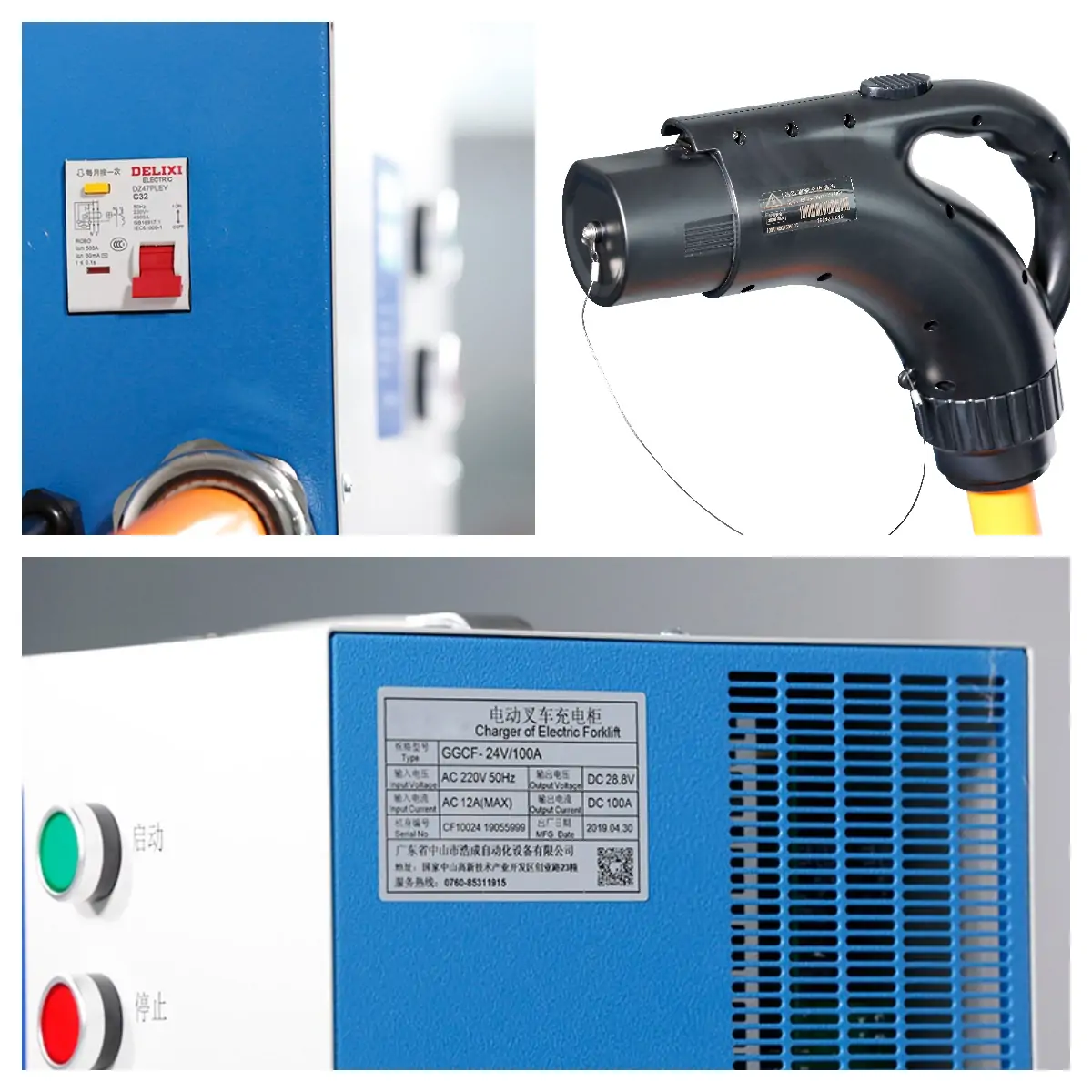

Details

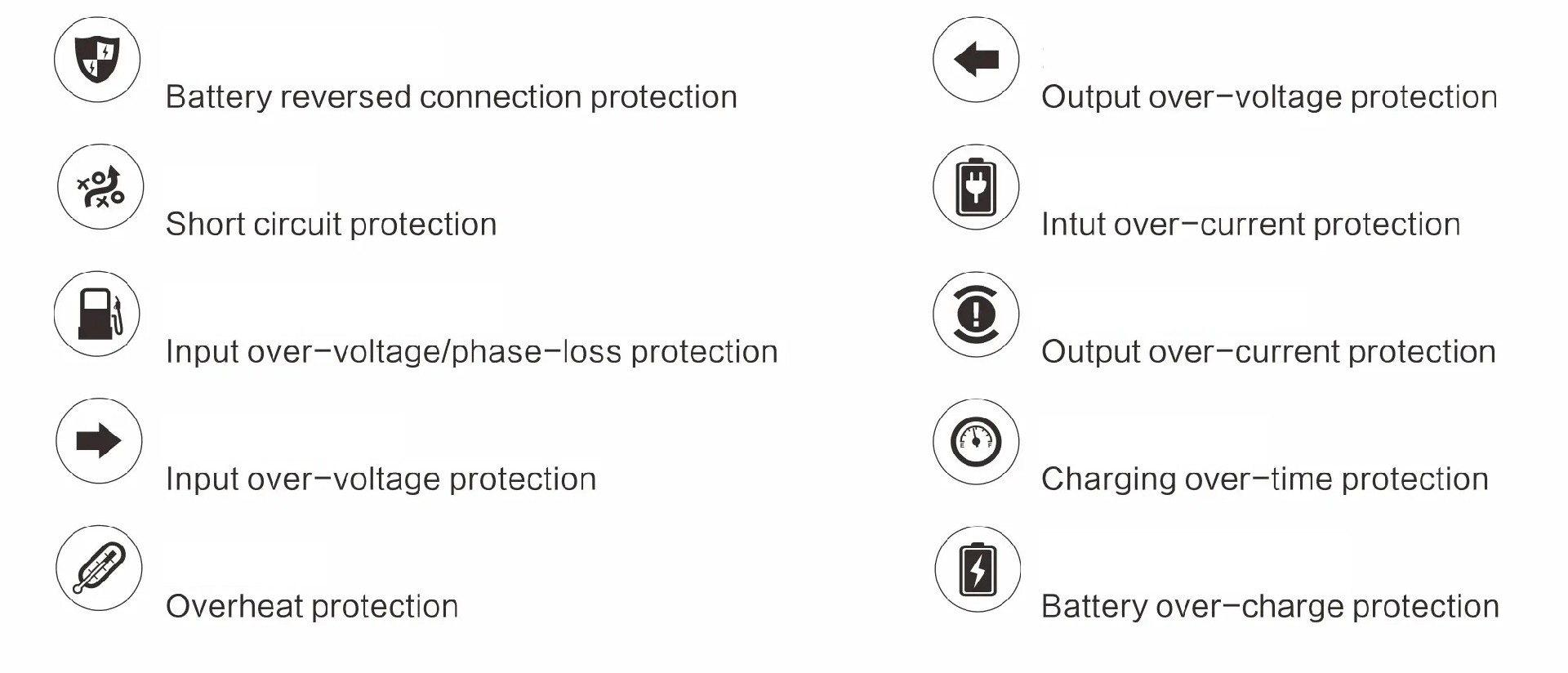

Protections
