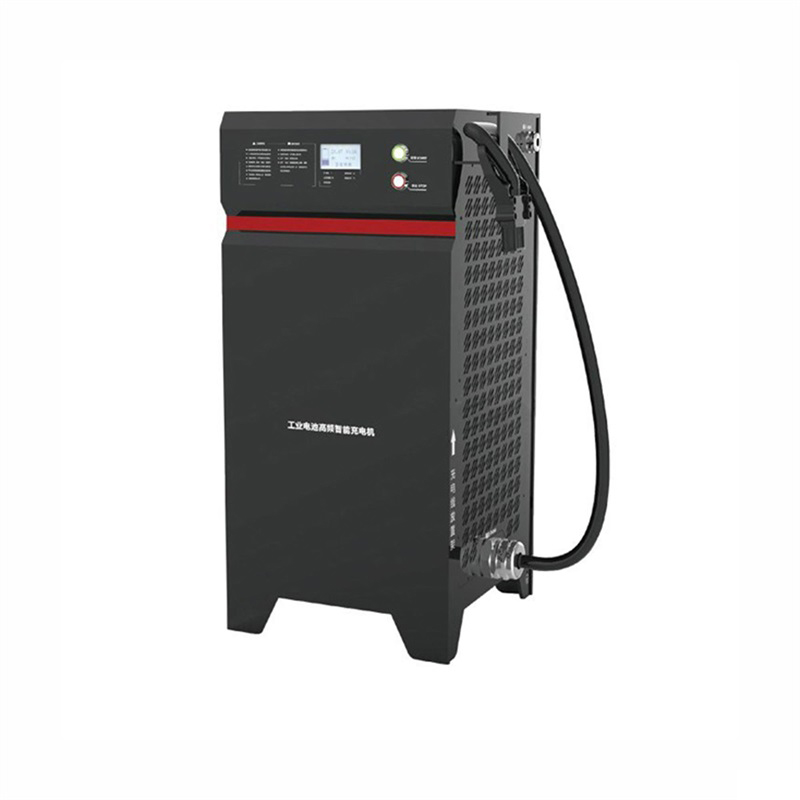

27KW 24V/48V/80V/120V High Frequency Industrial Forklift Battery Intelligent Charger
24V 900A/48V 450A/80V 270A/120V 180A 27KW high frequency industrial forklift battery intelligent charger
- Category: Charger
- Tag: Forklift Battery Charger
27KW 24V/48V/80V/120V High Frequency Industrial Forklift Battery Intelligent Charger
Intelligent, efficient, energy saving and safe
EFF>95%
Current ripple ±3%
PFC > 0.99
Voltage ripple ±1%
THD<10%
Current accuracy ±2%
Global voltage
Global safety regulations
ZVS+MOSFET
An intelligent high-frequency charger is designed for battery charging, the use of high-frequency switching power supply technology, modular installation structure design, the whole system by PFC unit, power conversion unit, monitoring unit, display unit, electrical unit, communication protection unit, charging connection part, the charging process is automatic, to achieve all kinds of battery intelligent charging management. Suitable for all kinds of battery cycle work charging, generally used in ordinary forklift charging piles, electric bicycle charging piles, shared charging piles, scanning charging piles, electric vehicle scanning charging, robot charging, new energy vehicle charging, etc.

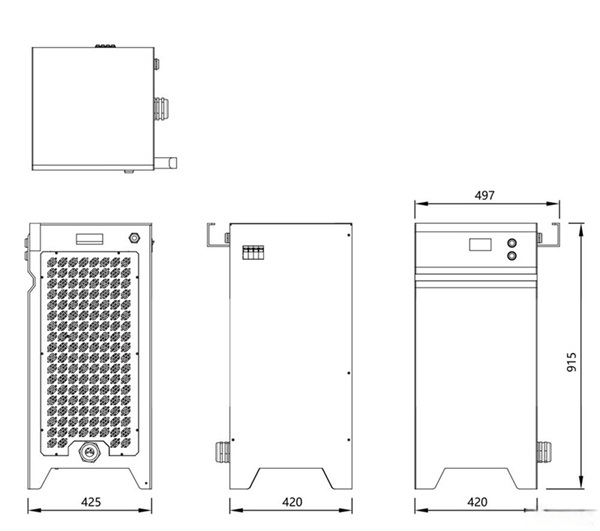

Dimension
Specifications
Model | EVL6131 | EVL6132 | EVL6121 | EVL6142 |
DC Voltage | 24V | 48V | 80V | 120V |
Rated Current | 900A | 450A | 270A | 180A |
Current Range | 1-900A | 1-4050A | 1-270A | 1-180A |
Range of Output Voltage | 18-30V | 38-60V | 65-100V | 92-132V |
Input Voltage | 220V±10%/380V±10% | 220V±10%/380V±10% | 220V±10%/380V±10% | 220V±10%/380V±10% |
Input Current | 30A | |||
Output Power | 27KW | |||
Input Mode | L1+L2+L3+PE three-phase four wire system/L1+L2+L3+N+PE three-phase five wire system | |||
Power Factor | >0.99 | |||
THD | <10% | |||
Efficiency | >95% | |||
Current Ripple | ±3% | |||
Current Precision | ±0.5% | |||
Voltage Precision | ±0.5% | |||
Ripple Voltage | ≤±1%Vo peak-to-peak value,20Mhz bandwidth, | |||
Charging Precision | Voltage/0.01V Current/0.1A Time/1S | |||
BMS Power Supply | 12V/24V Optional | |||
Protection Function | OTP、OVP、OCP、Short | |||
Connector | Anderson/International charging gun/REMA/The customer agreement | |||
Communication Method | RS485、RS232、CAN Bus | |||
MTBF | 80000H | |||
Safety | CE、UL1564,IEC61851 | |||
Display | LCD/LED | |||
Cooling | Air Fan | |||
Working/Storage temperature and humidity | Working: -20℃ to 65℃ Storage:-40℃ to 85℃ | |||
