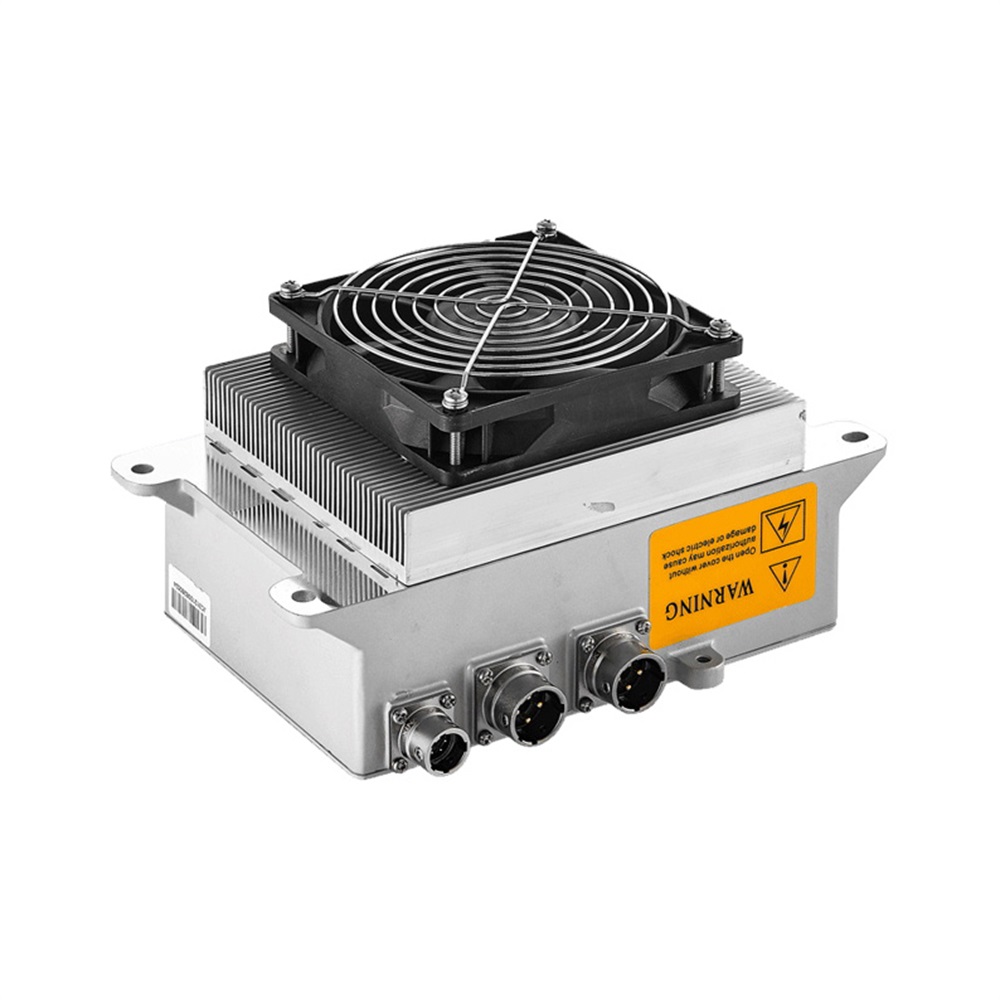

3.3KW HK-J Waterproof on Board Lithium ion LFP Battery Charger

3.3KW HK-J Waterproof on Board Lithium-ion LFP Battery Charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, etc.

3.3KW HK-J waterproof on board Lithium ion LFP battery charger

Product Features

The charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.


Parameter Specification


Basic specification

NO

Terms

7Parameter

3

Input voltage range

AC90V~264V

4

Frequency

45Hz~65Hz

5

Power factor

≥0.99

6

Efficiency at full loading

≥93%

7

Mechanical impact and

 vibration grade

QC/T 895-2011

8

IP grade

IP67

9

Operation temperature

- 40℃~85℃

10

Storage temperature

- 40℃~105℃

11

Charging control

CAN or Enable

12

Protection

Output over-voltage,

over-current, short-circuit,

polarity reverse, input low-voltage,

input over-voltage, over-temperature

13

Size

222(length) x 109(width) x 125(height)

(fan-cooled)

14

N.W.

5.2kg

15

Cooling way

Enforce Air Cooling, Liquid-cooling


Models Sheet


Nominal voltage

Max output current

Output Voltage range

Item no

Lead acid battery

Item no

Lithium battery

72V

40A

25~99V

HK-J-72-40

HK-J-H99-40

96V

32A

33~132V

HK-J-96-32

HK-J-H132-32

144V

23A

50~198V

HK-J-144-23

HK-J-H198-23

312V

10A

110~440V

HK-J-312-10

HK-J-H440-10

540V

7A

163~650V

HK-J-540-07

HK-J-H650-07
