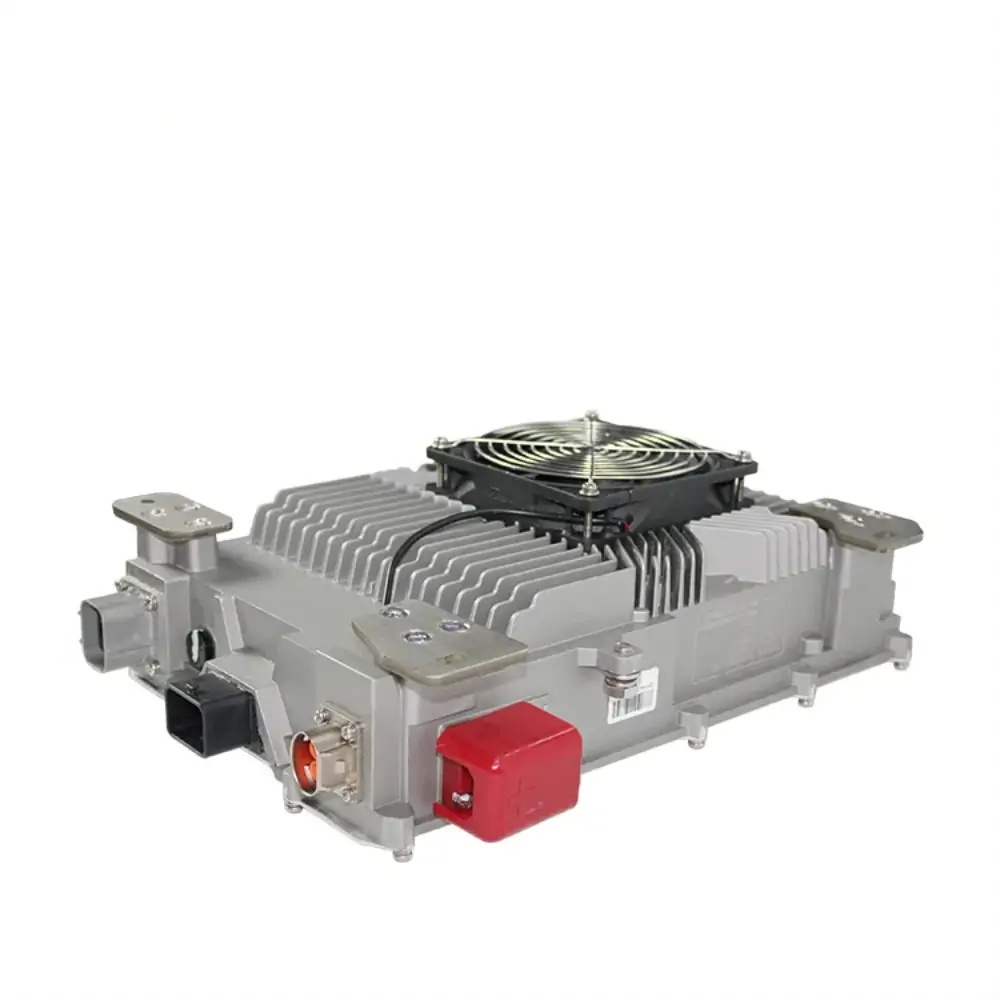

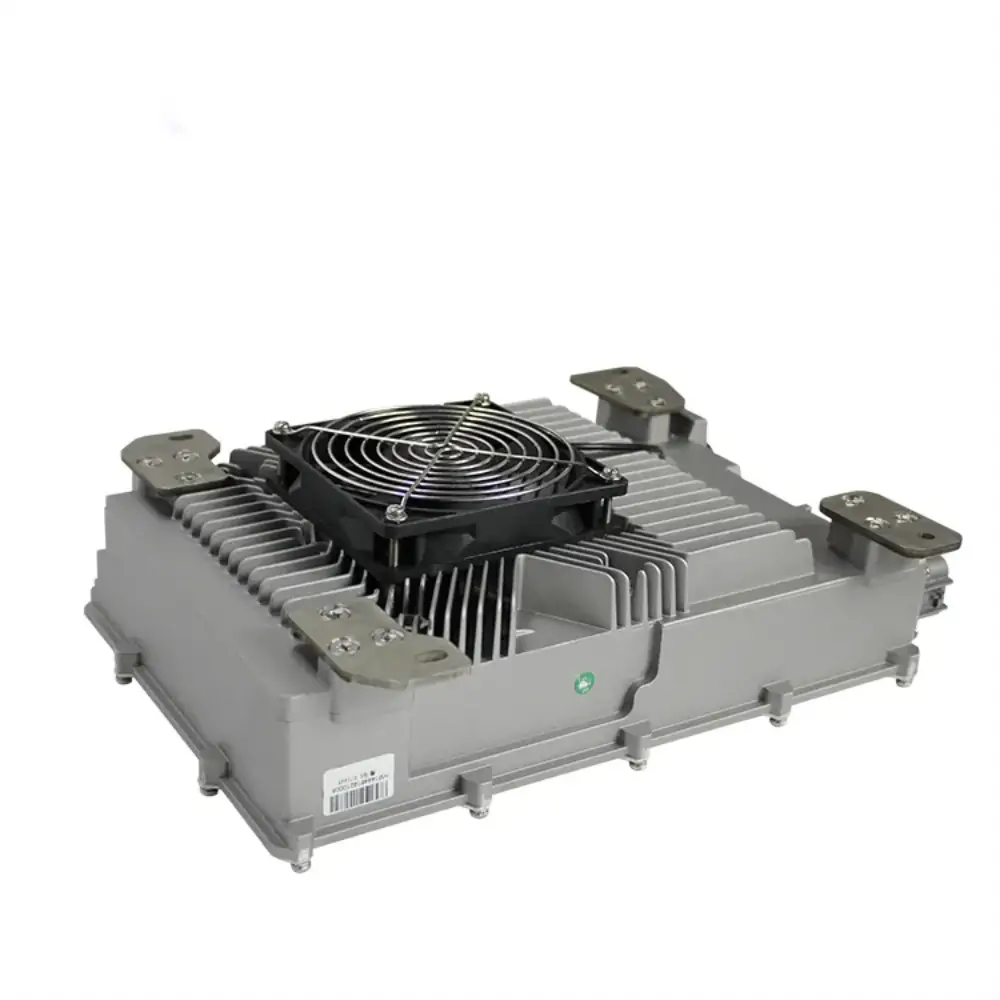

6.6KW and 1.5KWw Best DC to DC 2 in 1 EV On Board Battery Charger

6.6KW And 1.5KW Best CD-L Series On Board Battery charger CD-MF01 High-Efficiency DC to DC/OBC 2 in 1 Integrated Controller for Electric Vehicle Conversion Kit

6.6KW And 1.5KW Best CD-L Series On Board Battery charger CD-MF01 High Efficiency DCDC/OBC 2 in 1 Integrated Controller for Electric Vehicle Conversion Kit

6.6KW and 1.5KWw Best DC to DC 2 in 1 EV On Board Battery Charger6.6KW and 1.5KWw Best DC to DC 2 in 1 EV On Board Battery Charger


Basic Specifications


Charge:

Input voltage range: AC90V~264V

Frequency range:45Hz~65Hz

Power factor:≥ 0.99

Full load efficiency:≥ 93%

Mechanical shock and seismic rating: QC/T 895-2011

Ip class: IP67

Operating temperature:- 40℃~65℃

Storage temperature: - 55℃~100℃

Charge control: controlled by CAN bus

Storage temperature:-55℃~100℃

Protection function: output over-voltage, over-current, short circuit, reverse protection, input under-voltage and over-voltage protection, over-temperature protection


DC/DC

Rated power:1.5KW

Peak Power:1.8KW, 6 min

Output voltage, current:14V±1%、110A

Peak efficiency:≥95%

voltage regulation factor:1%

Frequency:≤1%

Precision of steady current:≤2%

Operating temperature:- 40℃~60℃

Storage temperature: - 40℃~105℃

Control: CAN bus, CBUS EN Control Bus Enable

Protection function: output over-voltage, over-current, short circuit, reverse protection, input under-voltage and over-voltage protection,

Dimension: 370(L) x 230(W) x 110(H) (forced air cooling)


6.6kw and 1.5kw Best DC to DC 2 in 1 EV On Board Battery Charger


6.6kw and 1.5kw Best DC to DC 2 in 1 EV On Board Battery Charger

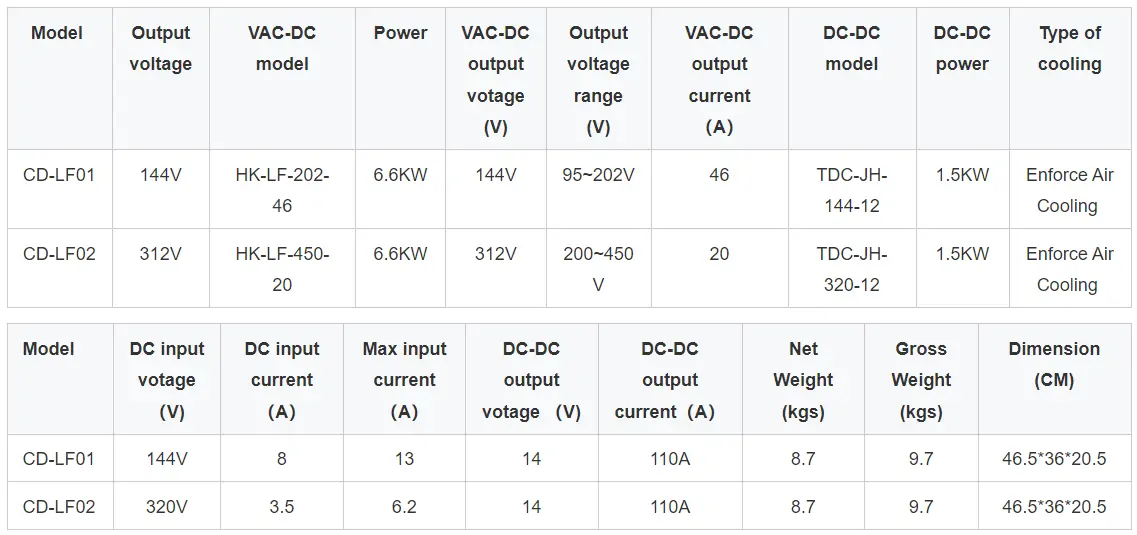

Model Number

CD-LF01

Brand Name

TC charger

Charger/DC Power

6.6KW+1.5KW

VAC-DC output voltage (V)

144V

Output voltage range

95~202V

VAC-DC output current(A)

46

VAC-DC/DC-DC model

HK-LW-202-46/TDC-JH-144-12

DC input voltage(V)

144V

DC input current(A)

8

Max input current(A)

13

DC-DC output voltage (V)

14

DC-DC output current(A)

110A



specification

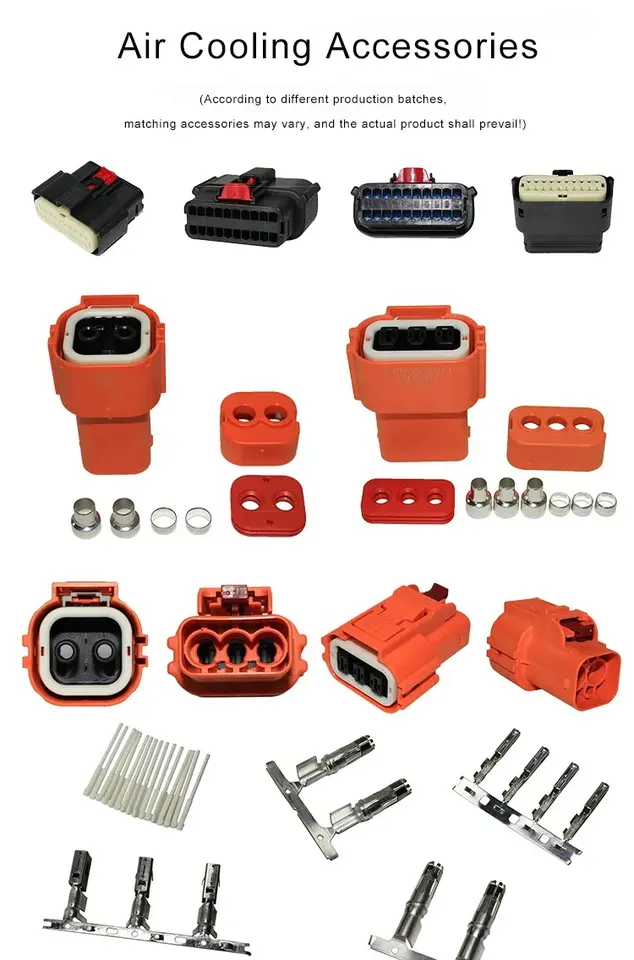

Air Cooling Accessories
