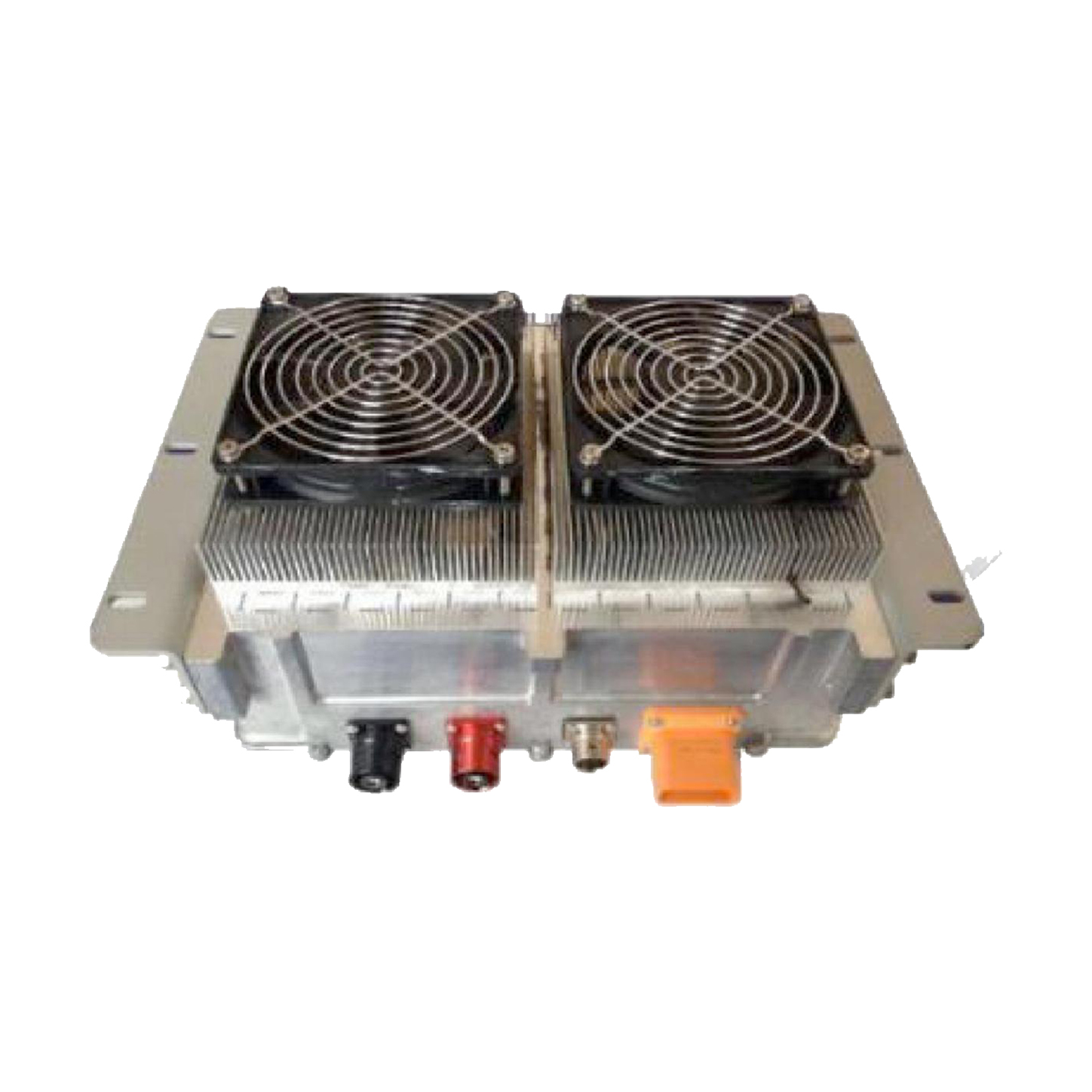

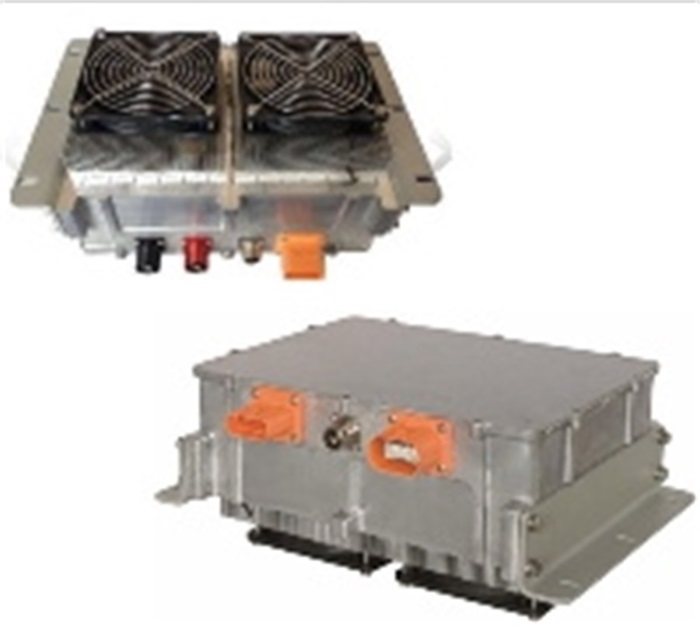

6.6KW on board Battery Charger for LFP Lithium Ion Battery Charger

6.6KW on board Battery Charger for LFP Lithium Ion Battery Charger

6.6KW on board Battery Charger for LFP Lithium Ion Battery Charger

Main Feature

Fully Sealed,Enforce air Cooling(Module Optional)

Reliable working under -35℃- +85℃

Internal temperature sensor

Shut off inside temperature over 90°C

IP67 Protection Level

Working well in immersion shortly



HK-J series 6.6KW LiFePO4 On board battery Battery Charger was specially designed, by EnergyX for supplying the electricity for electric vehicle’s power battery, on the basis of the national standards for the charger. LiFePO4 Charger has the advantages of not only only high efficiency, small size, high stability, long lifespan, but also high protection grade, and high reliability and complete protection function, etc. It’s definitely an ideal charging power supply for f electric vehicles.

6.6Kw LiFePO4 Charger has a built-in heat-sensing device and can automatically recover through thermal protection. Fully sealed potting process and up to IP67 protection level ensures no causing trouble in any complex environment.


Specifications


DC Output Voltage

Range

Max Output

Current

Lead Acid Battery

Charger Model

Lithium Battery

Charger Model

48V80A

18-68VDC

80A

HK-J-48-80

HK-J-H66-80

72V80A

25-99VDC

80A

HK-J-72-80

HK-J-H99-80

96V64A

34-132VDC

64A

HK-J-96-64

HK-J-H132-64

144V46A

50-198VDC

46A

HK-J-144-46

HK-J-H198-46

312V20A

110-440VDC

20A

HK-J-312-20

HK-J-H440-20

540V12A

170-650VDC

12A

HK-J-540-12

HK-J-H650-12


Items

Data

AC Input Range

AC 90~265V

Frequency

45-65Hz

Input Current

≤32A

Power Factor

≥0.99 Half loading

Efficiency

≥93% Full loading

Standby Consumption

≤10W

Output Mode

CV / CC

Output Voltage

6600W@220VAC;3300W@ 220VAC

CV Accuracy

±1%


Protection Feature


Input Over-voltage

 Protection

AC285±5V






Input Under-voltage

Protection

AC85±5V





Output Over-voltage

 Protection

Stop the output when exceeds + 1%

of the maximum output voltage





Output Under-voltage

 Protection

Stop the output when below -5%

of the minimum output voltage





Output Over-current

 Protection

Stop the output when exceeds + 1%

 of the maximum output current

Protection

Over-temperature

 Protection

Power down from 85 ℃

and shut off at 90℃


Short-circuit Protection

Stop Output


Battery Reverse Connect

Fuse Burned-out


Protection




Ground Protection

≤100mΩ





CAN communication

Protection

Automatically stop the output

 when CAN communication fails





Power-off Protection

YES


Safety and others


Withstand Voltage

Input to Output:2000VAC≤10mA

Input to Ground:2000VAC≤12mA

Output to Ground:

2000VAC≤10mA,all 1min

Insulation Resistance

Input, output,

signal terminal to casing≥10MΩ

Testing Voltage 1000VDC

Electromagnetic Immunity

GB/T 18487.3-2001(11.3.1)

Electromagnetic Abusive

GB/T 18487.3-2001(11.3.2)

Harmonic Current

GB 17625.1 – 2003(6.7.1.1)

Inrush Starting Current

≤24A

Current-rise Time

≤5S,Overshoot≤5%

Close Response time

100% to10%≤50mS,100% to 0%≤200mS

Anti-Vibration

10-25Hz Amplitude1.2mm,

25-500Hz 30m/s2,8hrs per direction

Noise

≤60dB (A Class)
