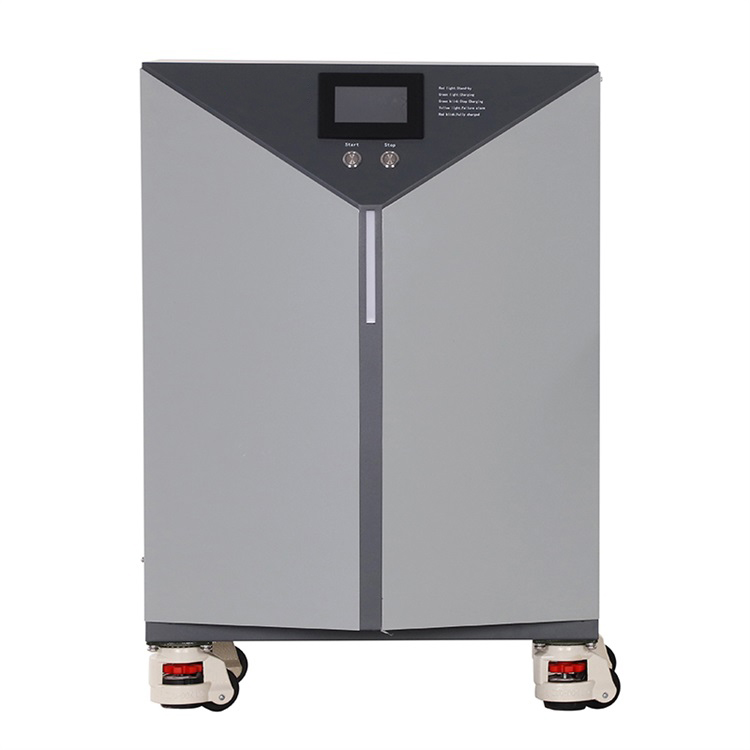

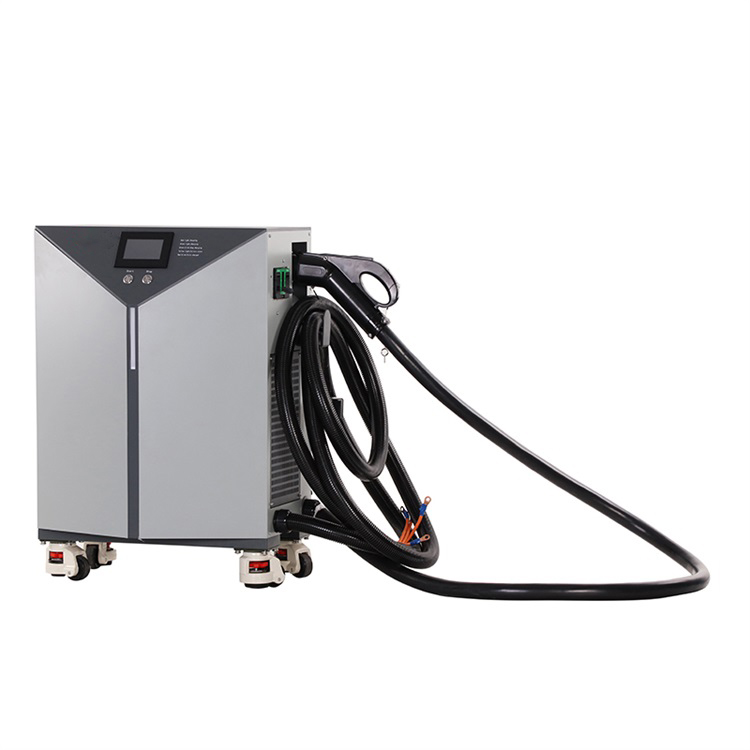

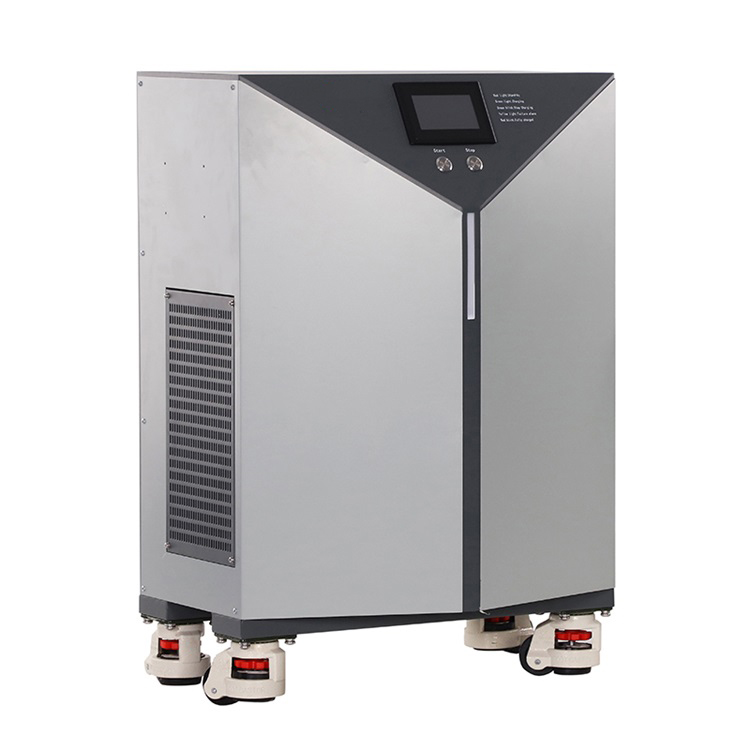

The high-frequency charger series utilizes the advanced LLC topology, offering exceptional benefits such as portability, compact size, and remarkable conversion efficiency. This charger operates with a 3-phase 380VAC input voltage and employs efficient forced air cooling. Moreover, it is equipped with an array of protective features, including safeguards against input overvoltage, Undervoltage, output overvoltage, undervoltage, overcurrent, output short circuit, and fan failure protection.

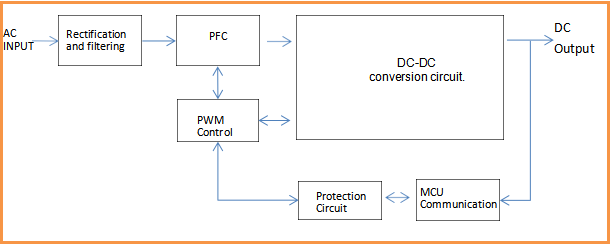

*Topology architecture diagram of the charging module

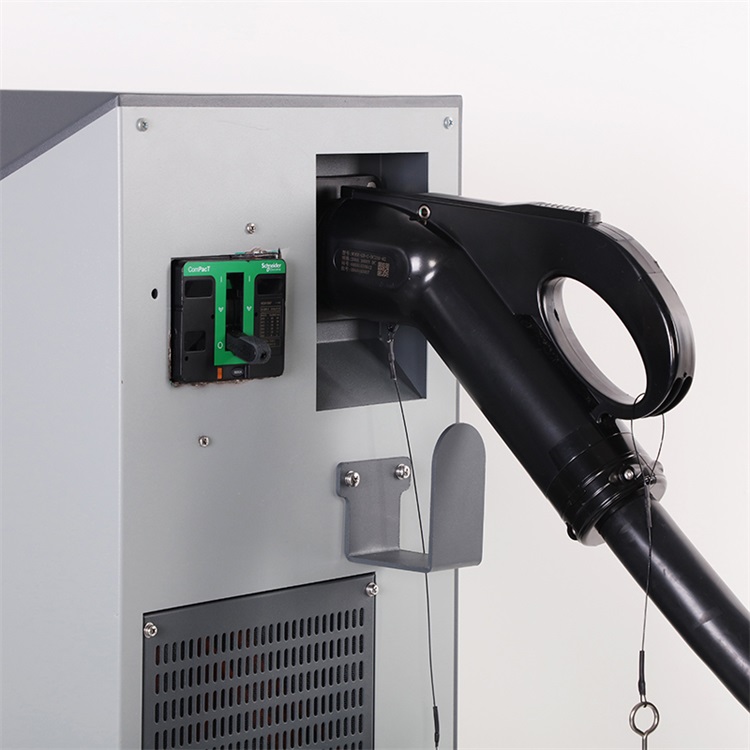

Model | 60K700V |
Rated Input Voltage Range | 3P380VAC/480VAC |
Rated input frequency | 50/60Hz |
Input power | ≤63.2KVA |
Maximum input current | 113A |
Maximum conversion efficiency | ≥95% |
Rated output voltage | 700V |
Rated output current | 200A |
Rated output power | 60KW |
Output and input plug specifications | Follow customer requirement |
Communication | CAN BUS |
Auxiliary power output voltage | 12V |
Auxiliary power output current | 3A |
Cooling method | Forced air cooling. |
Operating temperature | |
Relative humidity | 10%-90% non-condensing. |
Protection level | IP20 |
Noise. | ≤55dB |
Altitude | Below 2000m. |
Weight | 60KG(for reference only, please refer to actual measurement |
