6kw Industrial Battery High Frequency Forklift Battery Charger For Sale
24V 200A/48V 100A/80V 60A/120V 40A 6kw Industrial battery high frequency forklift battery charger for sale
- Category: Charger
- Tag: Forklift Battery Charger
6kw Industrial battery high-frequency Forklift Battery Charger For Sale
24V 200A/48V 100A/80V 60A/120V 40A Industrial battery high frequency charger
Intelligent high frequency charger is designed for battery charging,it is suitable for various batteries cycle working charging.
It designed by the high frequency switch power supply technology and modular installation construction.The whole systems are consisting of PFC unit,power conversion unit,monitor unit,display unit,electrical unit,communication protection unit and charging connection parts.The charging process is fully automatic,and it realized intelligent charging management of various batteries.
Generally used in common forklift chargers, electric bicycle charging piles, shared charging piles, scan code charging piles, electric vehicle scan code charging, robot charging, new energy vehicle charging, etc.
specifications
Model | EVL6107 | EVL6108 | EVL6109 | EVL6123 |
DC Voltage | 24V | 48V | 80V | 120V |
Rated Current | 200A | 100A | 60A | 40A |
Current Range | 1-200A | 1-100A | 1-60A | 1-40A |
Range of Output Voltage | 18-30V | 38-60V | 65-100V | 92-132V |
Input Voltage | 220V±10%/ 380V±10% | 220V±10%/ 380V±10% | 220V±10%/ 380V±10% | 220V±10%/ 380V±10% |
Input Current | 30A | |||
Output Power | 6KW | |||
Input Mode | L1+L2+L3+PE three-phase four wire system/ L1+L2+L3+N+PE three-phase five wire system | |||
Power Factor | >0.99 | |||
THD | <10% | |||
Efficiency | >95% | |||
Current Ripple | ±3% | |||
Current Precision | ±0.5% | |||
Voltage Precision | ±0.5% | |||
Ripple Voltage | ≤±1%Vo peak-to-peak value,20Mhz bandwidth, | |||
Charging Precision | Voltage/0.01V Current/0.1A Time/1S | |||
BMS Power Supply | 12V/24V Optional | |||
Protection Function | OTP、OVP、OCP、Short | |||
Connector | Anderson/International charging gun/ REMA/The customer agreement | |||
Communication Method | RS485、RS232、CAN Bus | |||
MTBF | 80000H | |||
Safety | CE、UL1564,IEC61851 | |||
Display | LCD/LED | |||
Cooling | Air Fan | |||
Working/Storage temperature and humidity | Working: -20℃ to 65℃ Storage:-40℃ to 85℃ | |||

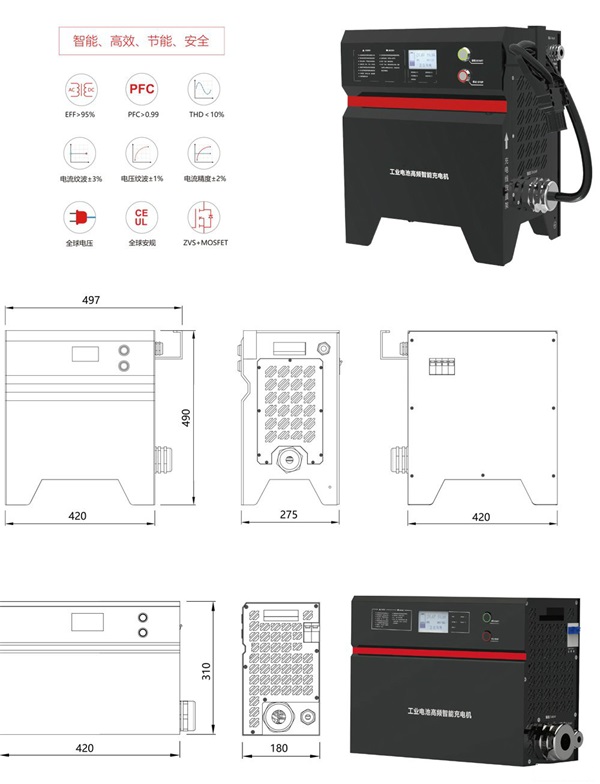

Dimension and details
