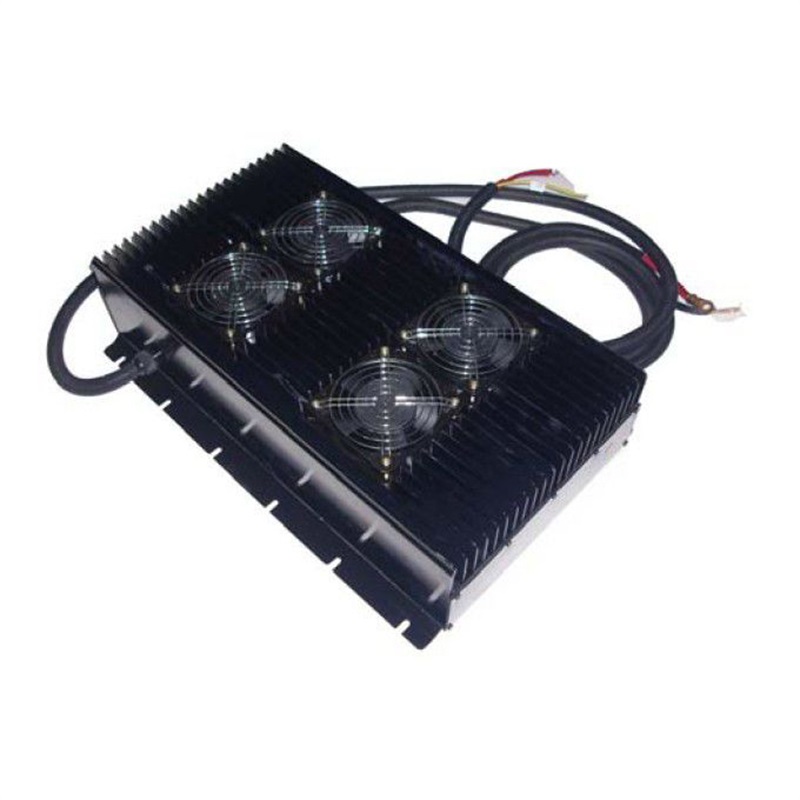

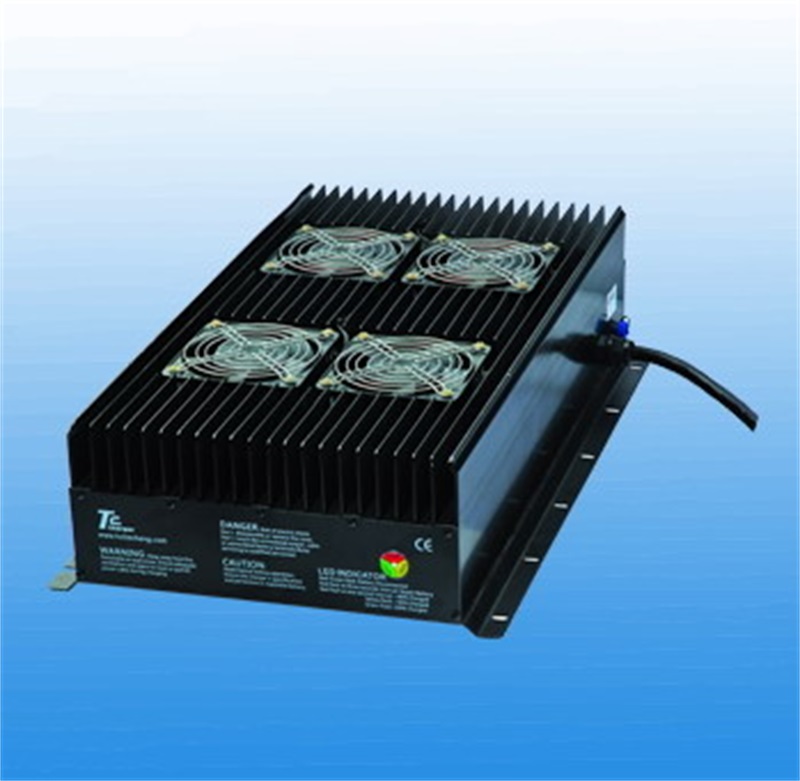

6KW TC Series PFC Charger for LiFePO4/Lithium/LiMn2O4
6000W TC Series PFC Charger for LiFePO4/Lithium/LiMn2O4
- Category: Charger
- Tag: 6kw tc charger obc
60KW TC Series PFC Charger for LiFePO4/Lithium/LiMn2O4
Suitable for LiFePO4, LiMn2O4 and other lithium batteries. It has the characteristics of light weight, small size, stable performance, high efficiency, safety and reliability, and can automatically switch between floating charge and balanced charge, and also has protection functions such as reverse connection, output short circuit and overload.
Protection Features
1. Thermal Self-Protection: When the internal temperature of the charger exceeds 75℃, the charging current will reduce automatically. If exceeds 85℃, the charger will shut down protectively. When the internal temperature drops, it will resume charging automatically.
2. Short-circuit Protection: When the charger encounters
Specifications
Lithium Battery Charger | Output Max Volt | Output Max Current |
TCCH-H66-105 | 66V | 105A |
TCCH-H83-90 | 82.6V | 90A |
TCCH-H96-75 | 96.2V | 75A |
TCCH-H112-63 | 112V | 63A |
TCCH-H130-54 | 130V | 54A |
TCCH-H145-48 | 144.7V | 48A |
TCCH-H168-45 | 168V | 45A |
TCCH-H192-36 | 192V | 36A |
TCCH-H208-33 | 208V | 33A |
TCCH-H234-30 | 233.3V | 30A |
TCCH-H243-27 | 243V | 27A |
TCCH-H258-27 | 258V | 27A |
TCCH-H290-24 | 289.5V | 24A |
TCCH-H337-21A6 | 337V | 21.6A |
TCCH-H389-18 | 389V | 18A |
TCCH-H417-16A5 | 417V | 16.5A |
Advantages
1. Internal integrated PFC, no pollution to electric network, avoid shocking on from heavy current.
2. Wide input voltage range AC85V~AC265V available for worldwide requirements, convenient for electric-network fluctuation and vehicles exportation.
3. High with 93% above efficiency while only about 80% efficiency the traditional chargers can meet.
4. Intelligent temperature compensation function in the charging process, preventing the damage to battery caused by charge-off or charge due, greatly extending the lifespan of the battery.
5. Fully-sealed and water-proof, protection class IP46. Shock resistance treatment made inside makes vibration-proof level up to SAEJ1378 that can fully meet the standard of automobile appliance usage.
6. Available for various kinds batteries like lead-acid, LiFePO4, lithium battery etc., Flexible and programmable of the charging mode. Equipped with Enable Control(Automatic Control) or CAN communication interface to realize real-time communication with BMS for options.
Application
6000W TC series PFC Chargers are widely used in electric vehicles such as forklifts, golf carts, electric trucks, electric touring vehicles, electric yachts, cleaning machines, or battery charging cycles for uninterruptible power supplies (UPS), solar energy, wind turbines, and railway power communication systems.
We have hundreds of TC chargers in our warehouse in Hong Kong, and we also have distributors in Germany to serve the European market. There are 1.5kw tc charger, 2kw tc charger, 3kw tc charger, 4kw tc charger, 6kw tc charger, 8kw tc charger.
