8KW TC HF/PFC On Board Lithium Battery Charger

The 8KW TC HF/PFC On Board Lithium Battery Charge is applicable for various lithium batteries like LiFePO4, LiMn2O4 etc

8KW TC HF/PFC On Board Lithium Battery Charger

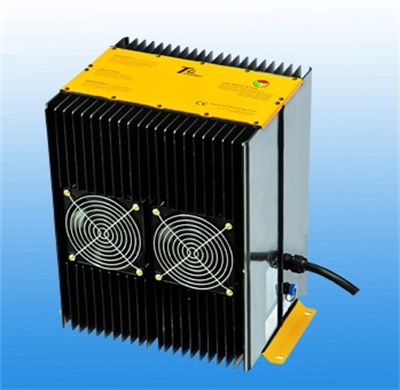

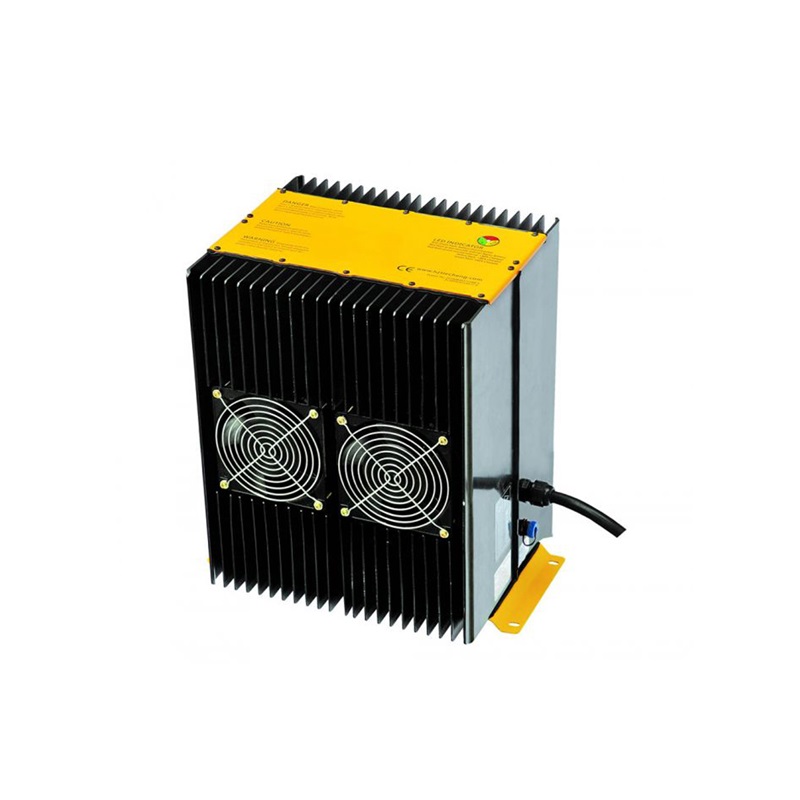

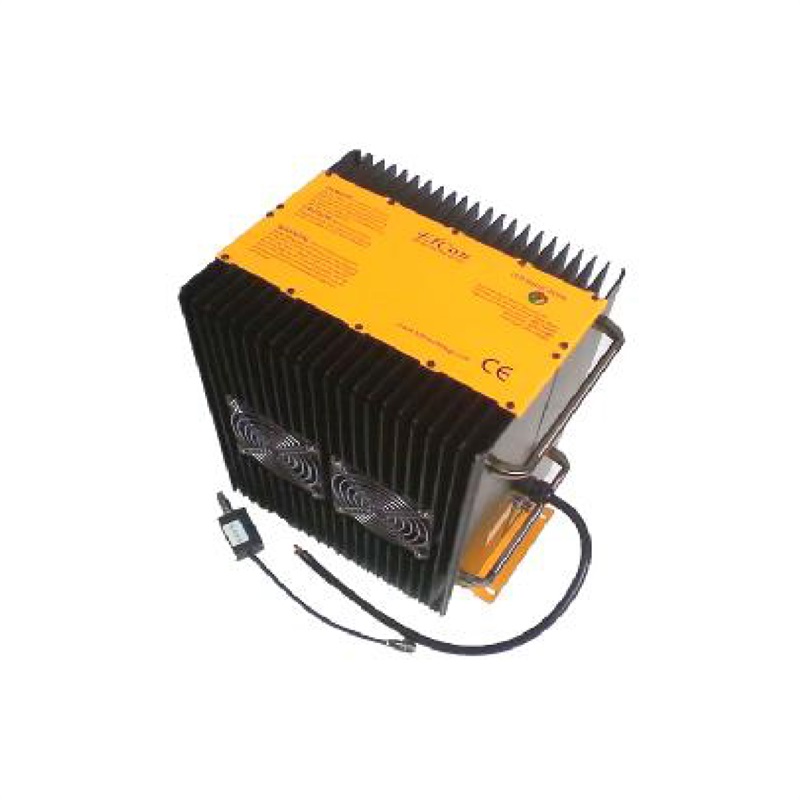

8kw On Board battery charger

The 8KW TC HF/PFC On Board Lithium Battery Charge is applicable for various lithium batteries like LiFePO4, LiMn2O4 etc., It features light weight, small volume, stable performance, high efficiency and reliable security etc., It can be switched automatically between the floating and balancing charging and also has the protection functions of reverse connection, output short-circuit and overload and so on.


Specifications


Lithium Battery Charger

Vout Max

Iout Max

TCCH-H66-140

66V

140A

TCCH-H83-120

83V

120A

TCCH-H96-100

96V

100A

TCCH-H112-84

112V

84A

TCCH-H130-72

130V

72A

TCCH-H145-64

145V

64A

TCCH-H168-60

168V

60A

TCCH-H192-48

192V

48A

TCCH-H208-44

208V

44A

TCCH-H234-40

234V

40A

TCCH-H243-36

243V

36A

TCCH-H258-36

258V

36A

TCCH-H290-32

290V

32A

TCCH-H337-29

337V

29A

TCCH-H389-24

389V

24A

TCCH-H417-22

417V

22A


Details and dimension

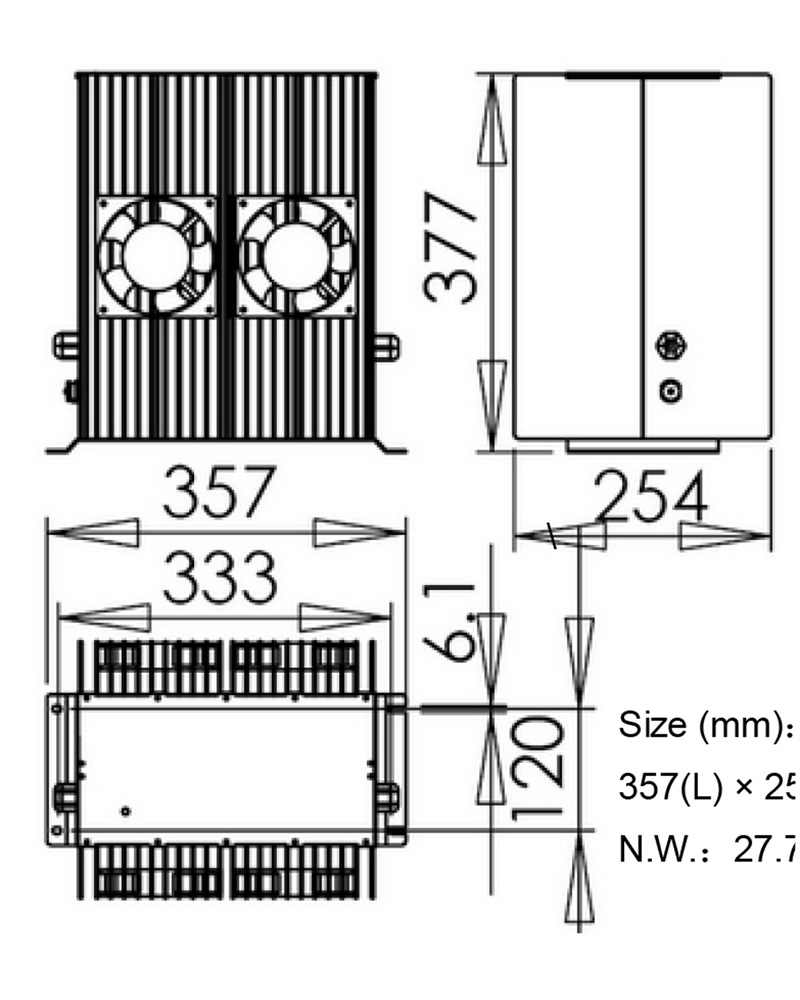

elcon_8kw_charger.jpg8KW Lithium(LiFePO4) type Elcon TC Charger  dimension


Technical Target


Item

Specifications

AC input Wide Voltage, Range

AC85V~265V

AC Input Frequency Range

45~65Hz

AC Power Factor

≥0.98

Full Load Efficiency

≥93.0%

Mechanical Shock &

Vibration Resistance Level

Conformance to

SAEJ1378 Standard

Environmental Enclosure

IP46

Operating Temperature

-40℃~+55℃ (-104℉~+131℉)

Storage Temperature

-40℃~+100℃

(-104℉~+212℉)

Charging Control

Via CAN bus or ENABLE


Protection Features

1. Thermal Self-Protection: When the internal temperature of the charger exceeds 75℃, the charging current will reduce automatically. If it exceeds 85℃, the charger will shutdown protectively. When the internal temperature drops, it will resume charging automatically.

2. Short-circuit Protection: When the charger encounters an unexpected short-circuit, it will automatically stop output. When a fault is removed, the charger will restart in 10 seconds.

3. Reverse Connection Protection: When the battery is polarity reversed, the charger will cut off the connection between the internal circuit and the battery, and refuse to start. It can avoid any destruction.

4. Input Low-voltage & Over-voltage Protection: When the AC input Voltage is lower than 85V or higher than 265V, the charger will shutdown protectively and automatically resume working with the voltage is normal again.

Applications

The charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.
