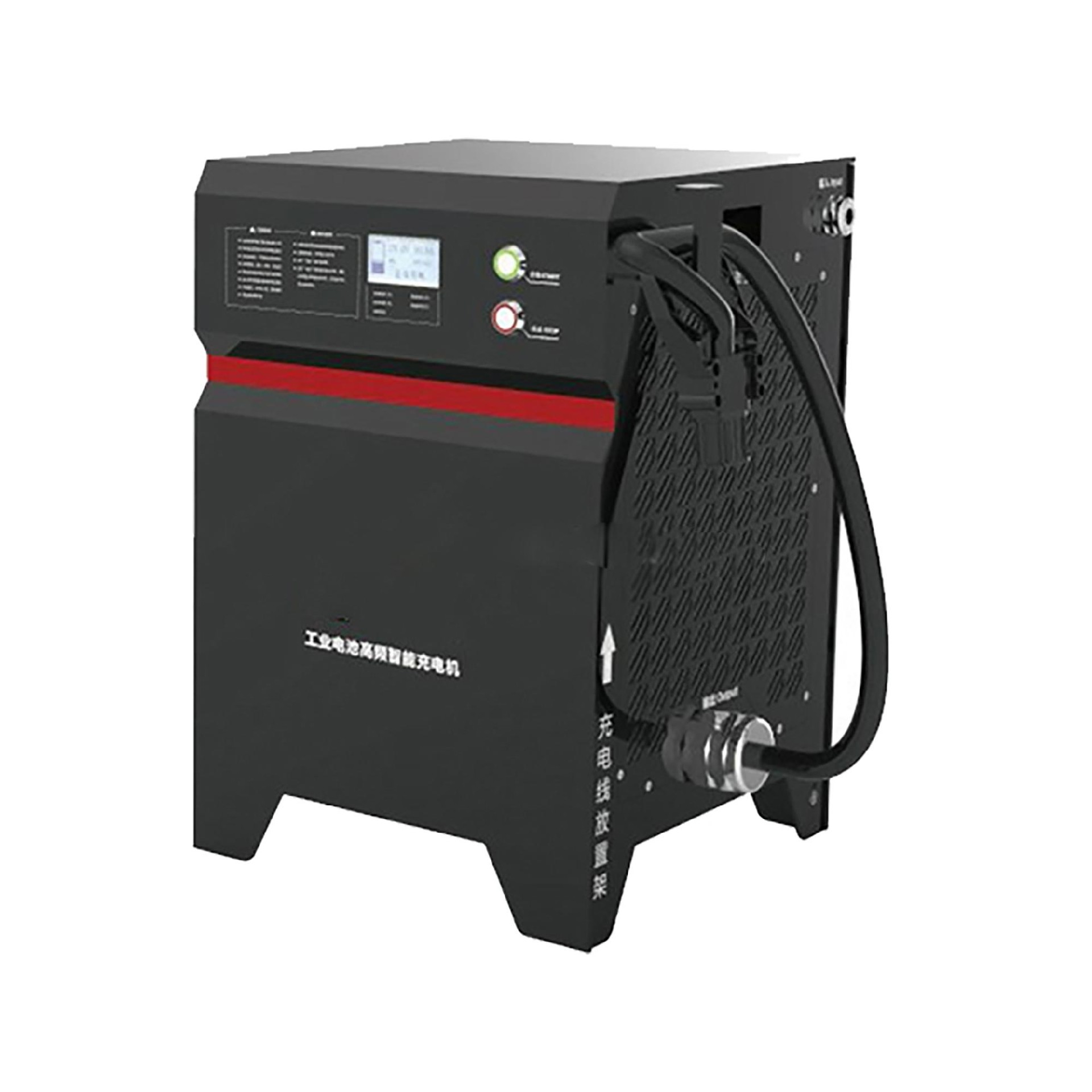

9KW Industrial Battery High Quality High Frequency Rechargeable Forklift Battery Charger
9KW Industrial battery High-quality rechargeable forklift charger designed to meet the rigorous requirements of heavy-duty environments to power your operations
- Category: Charger
- Tag: Forklift Battery Charger
9KW Industrial Battery High-quality High-Frequency Rechargeable Forklift Battery Charger
24V 300A/48V 150A/80V 90A/120V 60A Industrial battery high frequency charger
An intelligent high-frequency charger is designed for battery charging, it is suitable for various battery cycle working charging. It was designed using high-frequency switch power supply technology and modular installation construction. The whole system consists of a PFC unit, power conversion unit, monitor unit, display unit, electrical unit, communication protection unit, and charging connection parts. The charging process is fully automatic, and it realizes intelligent charging management of various batteries.
At the heart of industrial operations, you need a charger that is as reliable and robust as the machine. 9KW Industrial battery High-quality rechargeable forklift charger designed to meet the rigorous requirements of heavy-duty environments to power your operations.
Features of 9KW industrial charger
High-power charging: With an output power of 9KW, our chargers are able to quickly replenish the energy of industrial batteries, ensuring minimum downtime and maximum productivity.
Premium construction: Our chargers are made of high-quality materials that are durable and can withstand the wear and tear of industrial use while providing consistent performance.
Safety first: Our chargers are equipped with several safety features, including overcharge protection and short circuit prevention, to ensure battery life and safe operation.
Efficiency: Our advanced charging technology optimizes energy use, reduces operating costs and minimizes environmental impact.
Versatility: Compatible with a wide range of industrial battery types, our chargers are a versatile solution for a variety of applications throughout your plant.
User-friendly: Intuitive controls and clear indicators make it easy for operators to manage the charging process, reducing the possibility of errors.
Specifications
Model | EVL6110 | EVL6111 | EVL6112 | EVL6136 |
DC Voltage | 24V | 48V | 80V | 120V |
Rated Current | 300A | 150A | 90A | 60A |
Current Range | 1-300A | 1-150A | 1-90A | 1-60A |
Range of Output Voltage | 18-30V | 38-60V | 65-100V | 92-132V |
Input Voltage | 220V±10%/ 380V±10% | 220V±10%/ 380V±10% | 220V±10%/ 380V±10% | 220V±10%/ 380V±10% |
Input Current | 30A | |||
Output Power | 9KW | |||
Input Mode | L1+L2+L3+PE three-phase four wire system/ L1+L2+L3+N+PE three-phase five wire system | |||
Power Factor | >0.99 | |||
THD | <10% | |||
Efficiency | >95% | |||
Current Ripple | ±3% | |||
Current Precision | ±0.5% | |||
Voltage Precision | ±0.5% | |||
Ripple Voltage | ≤±1%Vo peak-to-peak value,20Mhz bandwidth, | |||
Charging Precision | Voltage/0.01V Current/0.1A Time/1S | |||
BMS Power Supply | 12V/24V Optional | |||
Protection Function | OTP、OVP、OCP、Short | |||

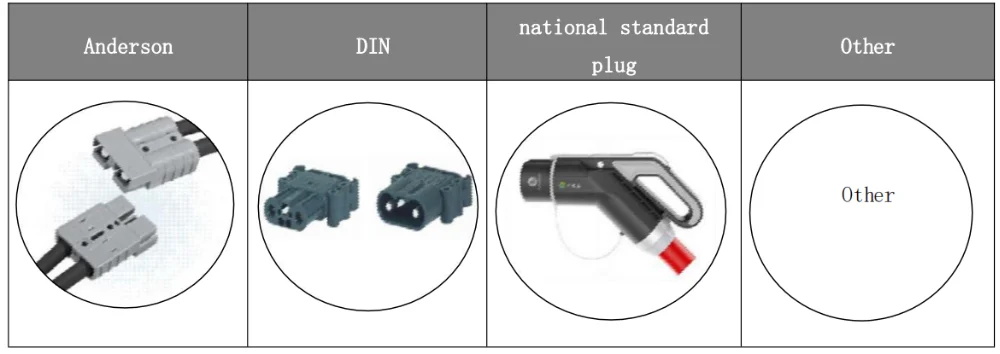

Connector | Anderson/International charging gun/ REMA/The customer agreement | |||
Communication Method | RS485、RS232、CAN Bus | |||
MTBF | 80000H | |||
Safety | CE、UL1564,IEC61851 | |||
Display | LCD/LED | |||
Cooling | Air Fan | |||
Working/Storage temperature and humidity | Working: -20℃ to 65℃ Storage:-40℃ to 85℃ | |||

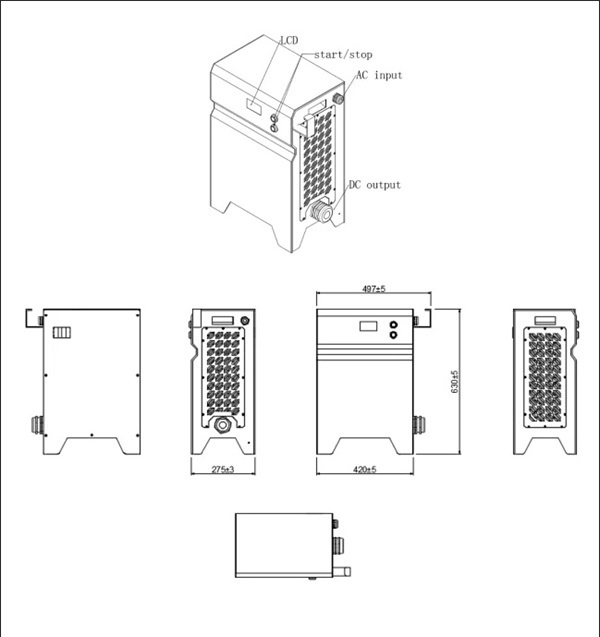

Dimensions
Accessories
Case diagram: 16A national standard plug(For reference only)

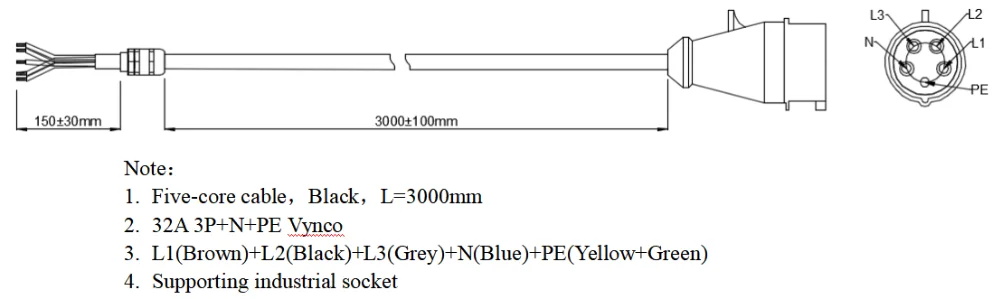

Output Cable and connector spec

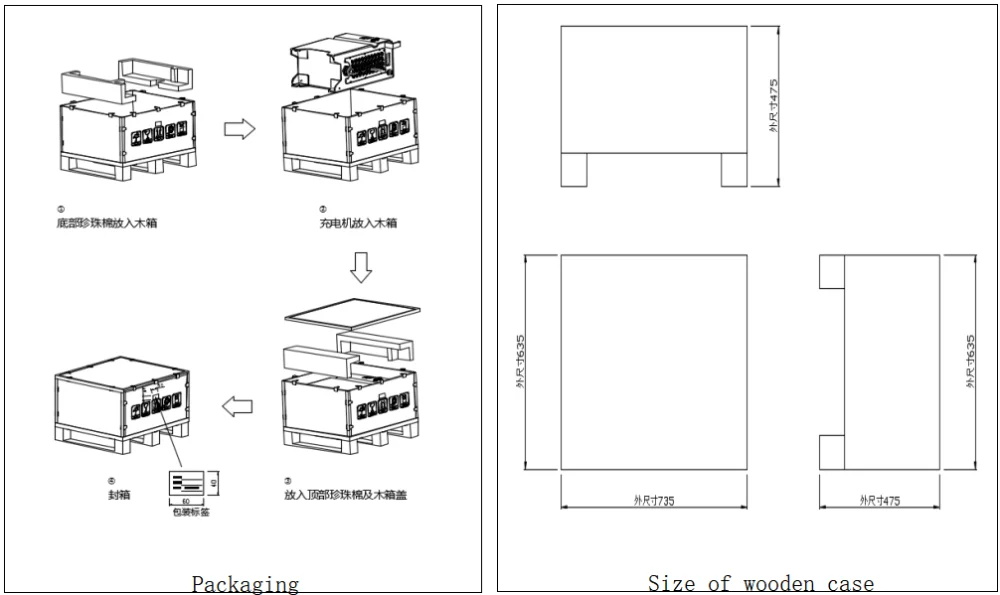

Packaging & Shipping
Cartons (wooden case)、Pearl cotton、Anti-static bag（For reference only, Please refer to the actual packing）
Application
Generally used in common forklift chargers, electric bicycle charging piles, shared charging piles, scan code charging piles, electric vehicle scan code charging, robot charging, new energy vehicle charging, etc.
