1.8KW/3.3KW/6.6KW AC to DC (OBC) On Board LiFePO4 Battery Charger

On Board Battery Charger (OBC Charger)An on board battery charger is used in an electric vehicle (EV) or hybrid electric vehicle (HEV) to charge the traction battery.

On Board Battery Charger (OBC Charger)

An on board battery charger is used in an electric vehicle (EV) or hybrid electric vehicle (HEV) to charge the traction battery. The On-Board charger system described in the material below converts the AC input from the grid to a DC input which charges the battery.

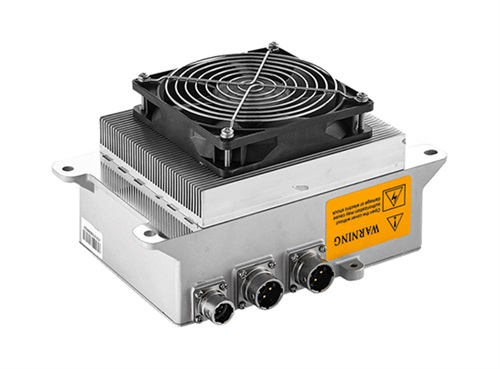

1.8KW/3.3KW/6.6KW AV to DC (OBC) On Board LiFePO4 Battery Charger

1.8KW/3.3KW/6.6KW AV to DC (OBC) On Board LiFePO4 Battery Charger1.8KW/3.3KW/6.6KW AV to DC (OBC) On Board LiFePO4 Battery Charger

Product Description:

CAN bus communication system is adopted to charge the power battery of ev safely and automatically.The On Board Battery Charger dynamically adjusts the charging current or voltage based on information from the battery management system (BMS).Charger can receive a variety of charging parameters, and has the automatic wake up function, real-time report charger related information and status.

The OBC Charger can also control the maximum input current, with stable charging, high conversion efficiency, a variety of protection functions, safe and reliable, strong seismic capacity and other characteristics. The products are suitable for lead-acid batteries, lithium batteries, nickel-hydrogen batteries,etc.They are used for cycle charging of battery packs of electric vehicles,motorcycles, sightseeing vehicles, forklifts, logistics vehicles,golf carts,patrol cars,ships,communication equipment,etc.


Product Features:

1. High power density, small size, light weight; TheCP and CC signals are also compatible

2. High safety: Short circuit Protection, Reverse connect protection, Overheating protection, Input protection,  no-load protection, Input under voltage protection, etc,

3. Long lifespan, high efficiency: with CAN communication intelligent alarm and PFC power Factor Correction control and guide to connect with the charging pile.remote detection, programmed, and fault inquiry

4. With cooling system: air cooling and liquid cooling.


HK-H/J Series Models Sheet


KW

Models

Rated Voltage

Output Current

1.8KW

HK-H-H66-25

48V

25A

HK-H-H99-25

72V

25A

HK-H-H132-16

96V

16A

3.3KW

HK-J-H66-40

48V

40A

HK-J-H99-40

72V

40A

HK-J-H132-32

96V

32A

HK-J-H198-23

144V

23A

HK-J-H440-10

312V

10A

HK-J-H650-6

540V

6A

6.6KW

HK-J-H99-80

72V

40A

HK-J-H132-64

96V

32A

HK-J-H198-46

144V

23A

HK-J-H440-20

312V

20A

HK-J-H650-12

540V

6A


Electrical Performance:

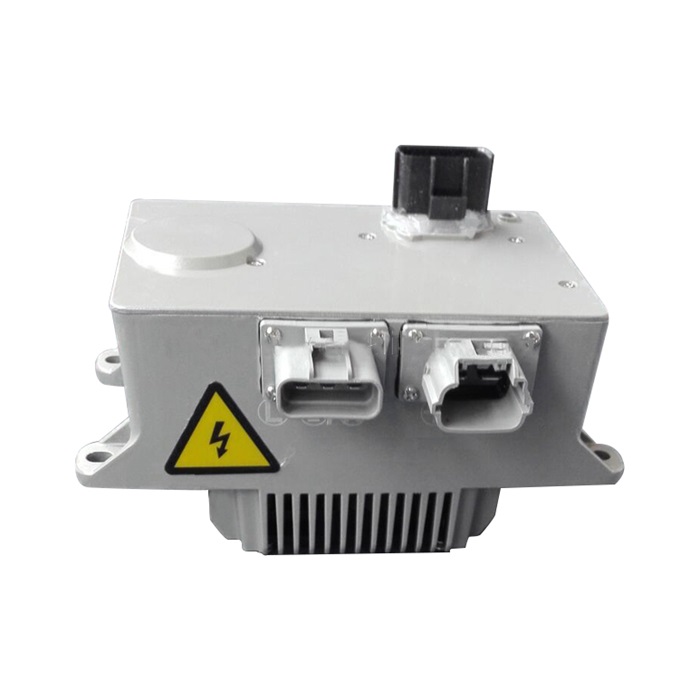

1.8KW On Board Battery Charger for EV

1.8KW On Board Battery Charger for EV


Input

Frequency

45-65Hz

Stand-by Consumption

≤5W

Main Output

Output Mode

CV / CC

Output Power

1800W@220VAC

700W@110VAC

CV Accuracy

±1%

CC Accuracy

±2%

Ripple Voltage

Coefficient

5%

Communication Function

CAN Communication

Yes

Baud Rate

125Kbps,

250Kbps,500Kbps

Terminal Resistance

N/A

12V Output

Load Capacity of 200 mA,

 Output controllable

12V5A (Optional Output Function)

Low Voltage Output

Output Mode

Constant Voltage

Output Voltage

13.8V

Rated Current

5A

CV Accuracy

±2%

Maximum Current

5.5A±0.5A

Output Power

≥62.5W

Ripple Voltage

 Coefficient

1%

Property

Input over-voltage protection,

Input under-voltage protection,

Output Over-current protection,

Output under-voltage protection,

Output over-voltage protection,

Over-temperature protection,

Output short circuit protection

CAN Communication

Optional

IP Grade

IP67

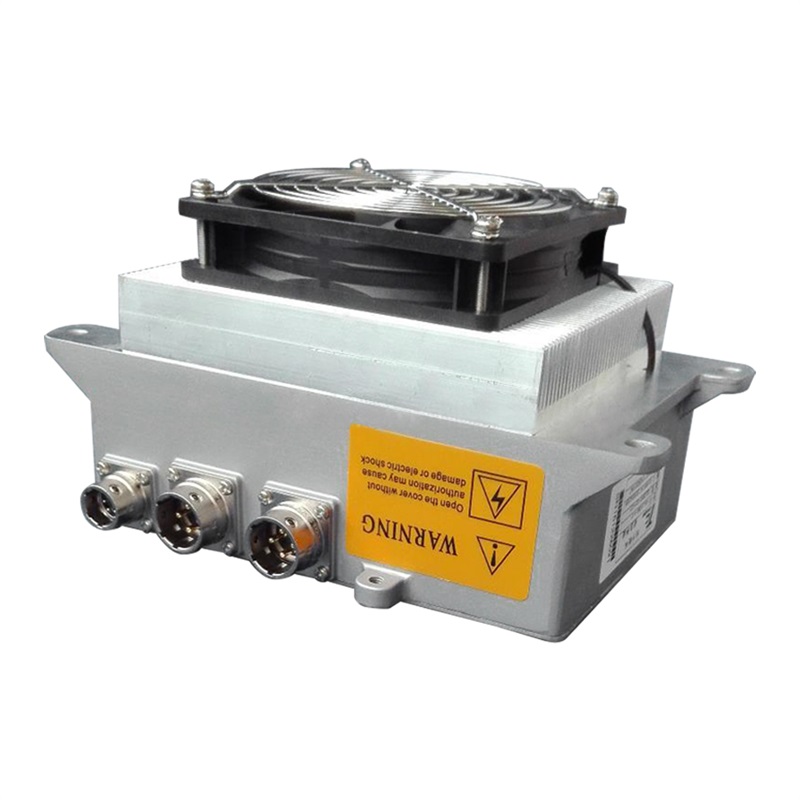

3.3KW On Board Battery Charger/OBC Charger

3.3KW On Board Battery Charger/OBC Charger


Item

Data

Input

Product Name

3.3kw LiFePO4 charger

AC Input Range

AC 90~265V

Frequency

45-65Hz

Input current

≤16A

power factor

≥0.99 Half loading

Efficiency

≥93 Full loading

Dimension

148x98x27(mm)


standby consumption

≤10W

Main Output

Output mode

CV/CC

Output Voltage

3300W@220VAC;1600W@110VAC

CV Accuracy

±1%

CC Accuracy

±2%

Work environment

reletive temp 5%~95% nocondensation

Working temperature

-35℃~+85℃

Storage temperature

-55℃~+100℃

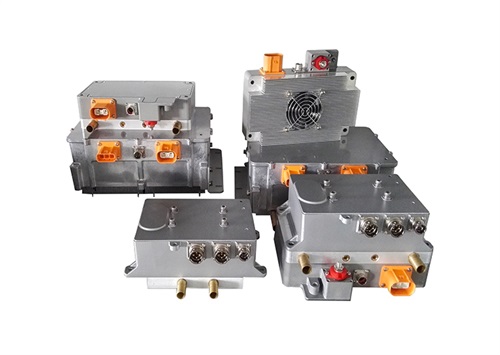

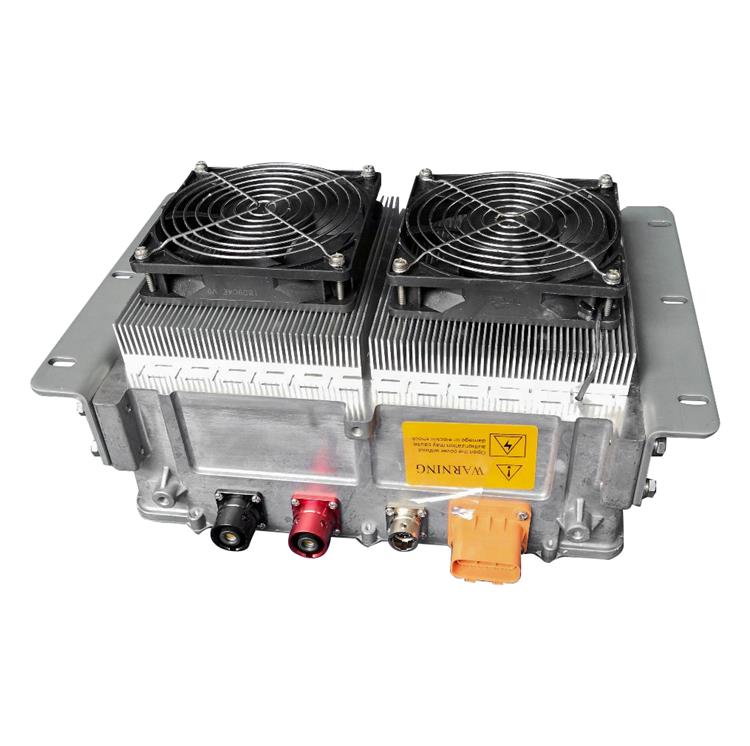

6.6KW On Board Battery Charger/OBC Charger

6.6KW On Board Battery Charger/OBC Charger



Items

Data

Input

AC Input Range

AC 90~256V

Frequency

45-65Hz

Input Current

≤32A

Power Factor

≥0.99 Half loading

Efficiency

≥93% Full loading

Standby Consumption

≤10W

Main Output

Output Mode

CV/CC

Output Voltage

6600W@220VAC;3300W@220VAC

CC Accuracy

±1%

Ripple Voltage Coefficient

5%

Communication Function

CAN Communication

Yes

Terminal Resistance

N/A

Low Voltage Output

Output Mode

CV

Output Voltage

13.8V/27.6V

CV Accuracy

±1%

Nominal Current

5A

Max Current

5.5A±0.5A

CC Accuracy

±2%

Ripple Voltage Coefficient

1%

CAN Communication

CAN Communication

Optional

Baud Rate

125Kbps 250Kbps 500Kbps

Terminal Resistance

NO

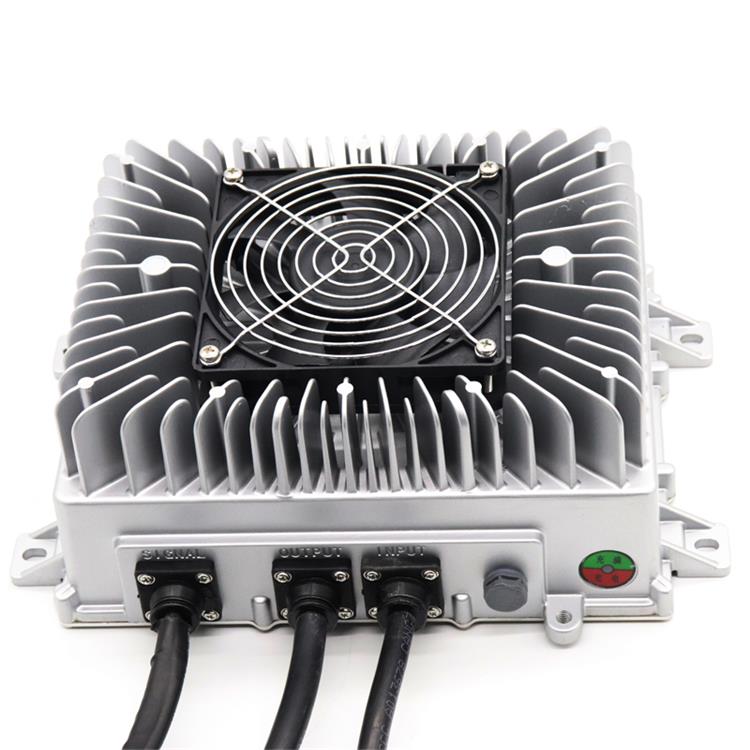

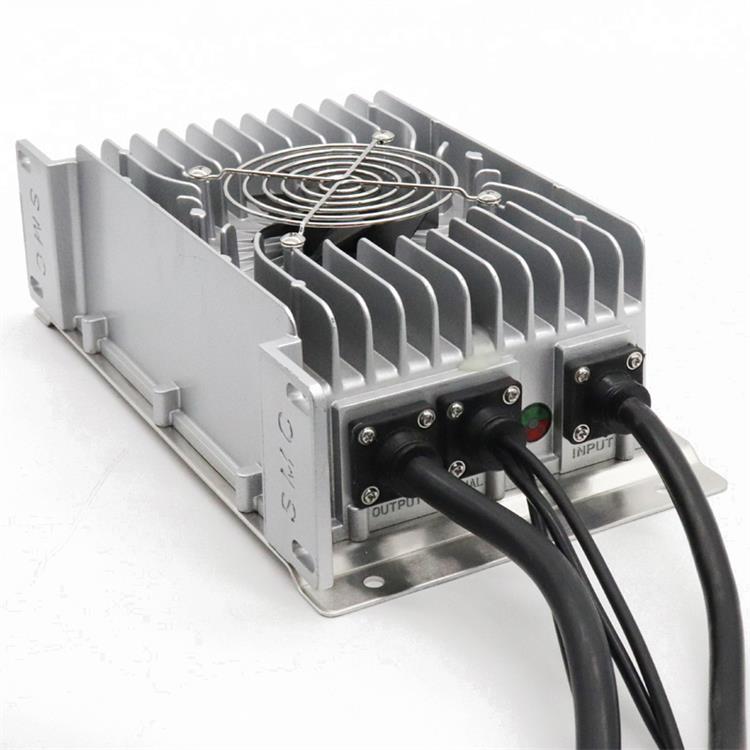

Summit Fully Sealed Battery Charger


SMCZ1 1.5KW FULLY SEALED On Board Battery Charger

Summit Fully Sealed Battery Charger SMCZ1 1.5KW FULLY SEALED On Board Battery Charger



Models

Input Voltage Range

Rated Output
Voltage

Max Output Current

SMCZ1-1225A

AC180~264V

12V

25A

SMCZ1-2430A

AC180~264V

24V

30A

SMCZ1-3625A

AC180~264V

36V

25A

SMCZ1-4825A

AC180~264V

48V

25A

SMCZ1-6020A

AC180~264V

60V

20A

SMCZ1-7218A

AC180~264V

72V

18A

SMCZ1-2430C

AC90~264V

24V

30A

SMCZ1-3625C

AC90~264V

36V

25A

SMCZ1-4820C

AC90~264V

48V

20A

SMCZ1-6015C

AC90~264V

60V

15A

SMCZ1-7215C

AC90~264V

72V

15A

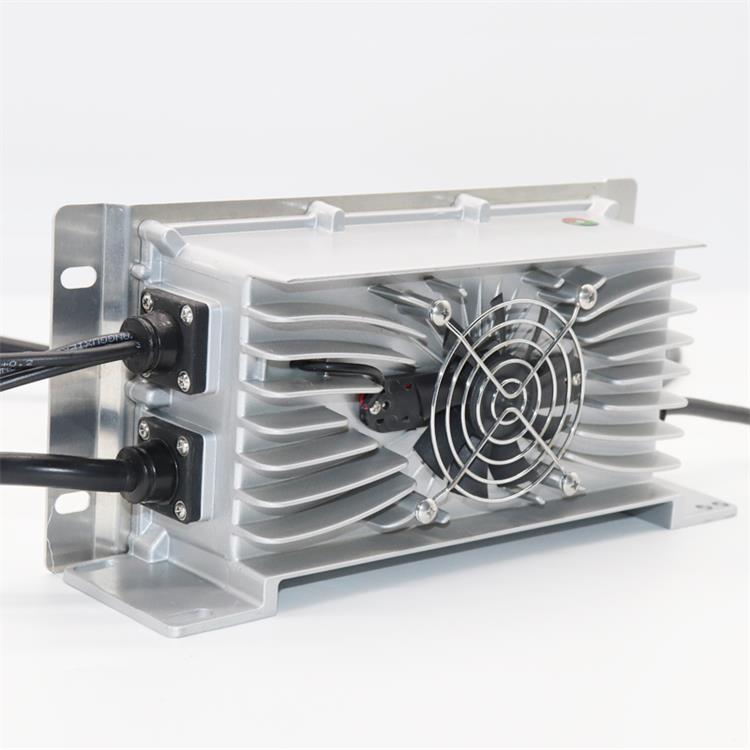

SMCZ2 2KW FULLY SEALED ON BOARD CHARGER

SMCZ2 2KW FULLY SEALED ON BOARD CHARGER


Models

Input Voltage Range

Rated Output Voltage

Max Output Current

SMCZ2-2445A

AC180~264V

24V

45A

SMCZ2-4835A

AC180~264V

48V

35A

SMCZ2-6030A

AC180~264V

60V

30A

SMCZ2-7225A

AC180~264V

72V

25A

SMCZ2-4825C

AC90~264V

48V

25A

SMCZ2-6020C

AC90~264V

60V

20A

SMCZ2-7218C

AC90~264V

72V

18A


SMHCX3 3.3KW FULLY SEALED ON BOARD CHARGER

SMHCX3 3.3KW FULLY SEALED ON BOARD CHARGER


Models

Input Voltage Range

Rated Output Voltage

Max Output Current

SMHC3-4845A

AC90~264V

48V

45A

SMHC3-7240A

AC90~264V

72V

40A

SMHC3-8440A

AC90~264V

84V

40A

SMHC3-9632A

AC90~264V

96V

32A

SMHC3-14423A

AC90~264V

144V

23A

SMHC3-31210A

AC90~264V

312V

10A

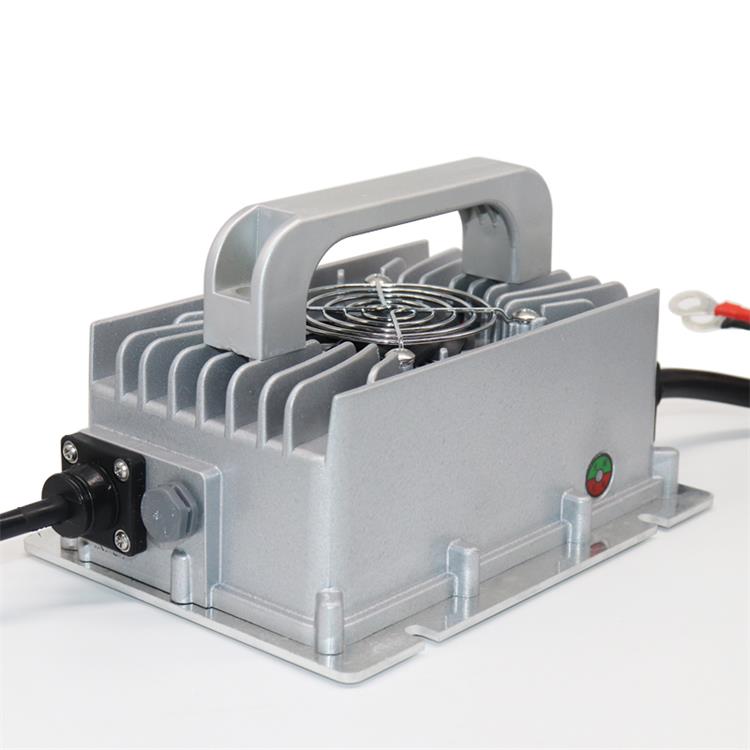

SMCZ6 1.4KW FULLY SEALED ON BOARD CHARGER

SMCZ6 1.4KW FULLY SEALED ON BOARD CHARGER


Models

Input Voltage Range

Rated Output Voltage

Max Output Current

SMCZ6-6015A

AC180V~260V

60V

15A

SMCZ6-7215A

AC180V~260V

72V

15A

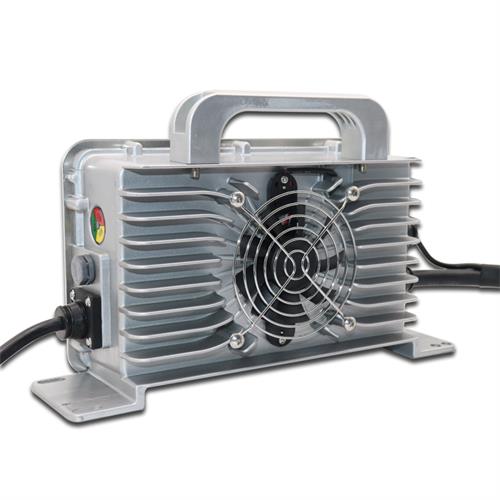

SMCZ7 800W FULLY SEALED ON BOARD CHARGER

SMCZ7 800W FULLY SEALED ON BOARD CHARGER


Models

Input Voltage Range

Rated Output Voltage

Max Output Current

SMCZ7-2415A

AC180V~260V

24V

15A

SMCZ7-4815A

AC180V~260V

48V

15A

SMCZ7-6012A

AC180V~260V

60V

12A

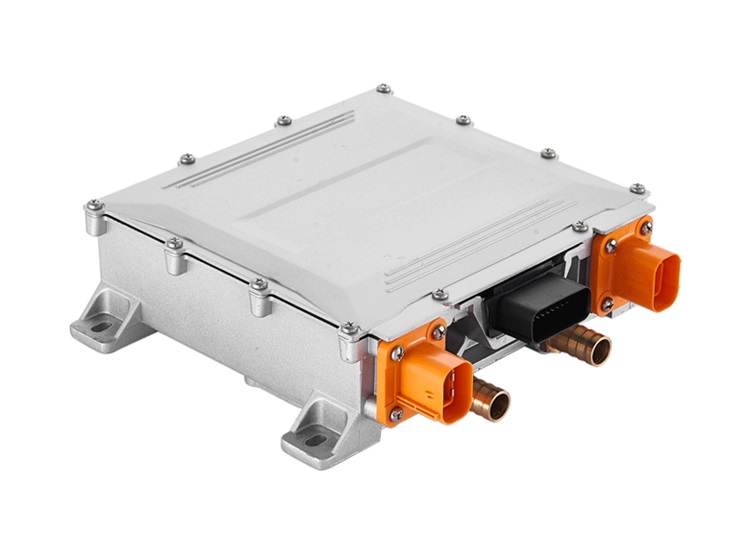

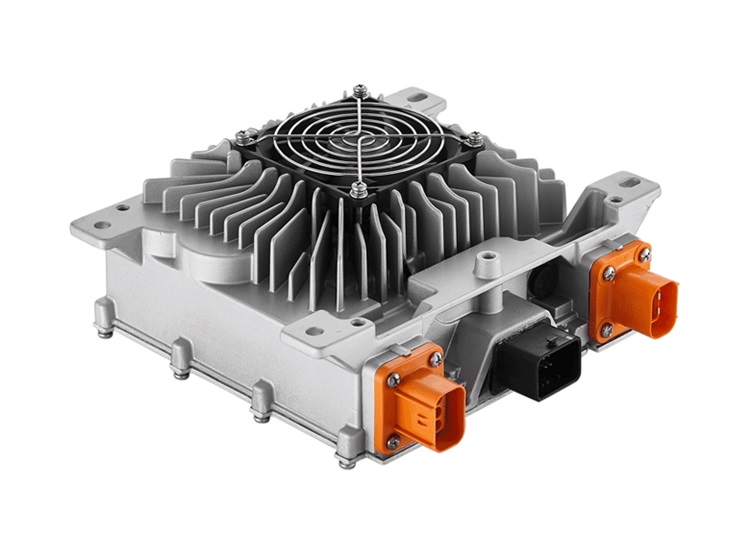

HK-M 3.3KW On Board Battery Charger

HK-M 3.3KW On Board Battery ChargerHK-M 3.3KW On Board Battery Charger

Basic Specification:

Input voltage range:AC90V~264V

Frequency:45Hz~65Hz

Power factor:≥0.99

Efficiency at full-loading :≥93%

Mechanical impact and vibration grade:QC/T 895-2011

Protection grade:IP67

Operation temperature:- 40℃~85℃

Storage temperature:- 40℃~105℃

Charging control: CAN or Enable

Size:198(length) x 244(width) x 95(height)(fan-cooled)

Protection:Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature

Cooling way: Enforce Air Cooling, liquid-cooling


Model

Cooling way

Nominal Voltage

Charger Hardware

Power

HK-MW-72-40

Liquid Cooling

72V

72V/40A

3K3W

HK-MW-84-40

Liquid Cooling

84V

84V/40A

3K3W

HK-MW-108-32

Liquid Cooling

108V

HD554_3K3W161V32A_P4_M

3K3W

HK-MW-144-23

Liquid Cooling

144V

HD556_3K3W215V23A_P4_M

3K3W

HK-MW-216-14

Liquid Cooling

216V

216V/14A

3K3W

HK-MW-312-10

Liquid Cooling

312V

HD557_3K3W450V10A_P4_M

3K3W

HK-MW-540-07

Liquid Cooling

540V

HD558_3K3W700V7A_P4_M

3K3W

HK-MF-72-40

Enforce Air Cooling

72V

72V/40A

3K3W

HK-MF-84-40

Enforce Air Cooling

84V

84V/40A

3K3W

HK-MF-108-32

Enforce Air Cooling

108V

HD554_3K3W161V32A_P4_M

3K3W

HK-MF-144-23

Enforce Air Cooling

144V

HD556_3K3W215V23A_P4_M

3K3W

HK-MF-216-14

Enforce Air Cooling

216V

216V/14A

3K3W

HK-MF-312-10

Enforce Air Cooling

312V

HD557_3K3W450V10A_P4_M

3K3W

HK-MF-540-07

Enforce Air Cooling

540V

HD558_3K3W700V7A_P4_M

3K3W

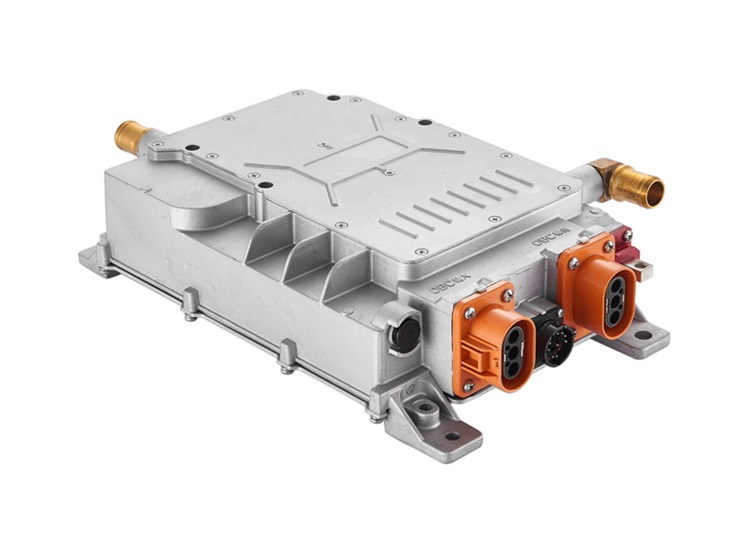

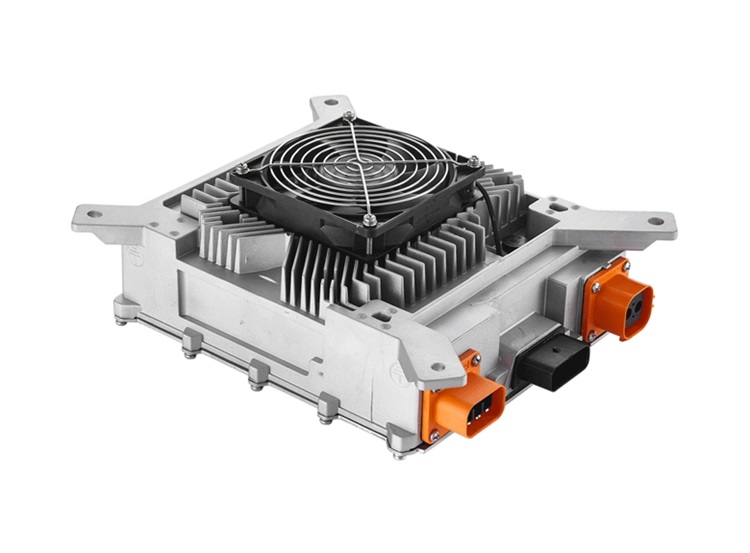

HK-L 6.6KW On Board Battery Charger

HK-L 6.6KW On Board Battery ChargerHK-L 6.6KW On Board Battery Charger


Basic Specification

Input voltage range:AC90V~264V
Frequency:45Hz~65Hz
Power factor:≥0.99
Efficiency at full-loading :≥93%
Mechanical impact and vibration grade:QC/T 895-2011
Protection grade:IP67
Operation temperature:- 40℃~85℃
Storage temperature:- 40℃~105℃
Charging control: CAN or Enable
Size:270(length) x 230(width) x 110(height) (fan-cooled)
Cooling way:Enforce Air Cooling,Liquid-cooling



Model

Cooling way

Nominal Voltage

Output voltage/current

Power

HK-LW-108-60

Liquid Cooling

108V

177V/60A

6K6W

HK-LW-144-46

Liquid Cooling

144V

202V/46A

6K6W

HK-LW-216-28

Liquid Cooling

216V

290V/28A

6K6W

HK-LW-312-20

Liquid Cooling

312V

450V/20A

6K6W

HK-LW-540-14

Liquid Cooling

540V

680V/14A

6K6W

HK-LF-108-60

Enforce Air Cooling

108V

177V/60A

6K6W

HK-LF-144-46

Enforce Air Cooling

144V

202V/46A

6K6W

HK-LF-216-28

Enforce Air Cooling

216V

290V/28A

6K6W

HK-LF-312-20

Enforce Air Cooling

312V

450V/20A

6K6W

HK-LF-540-14

Enforce Air Cooling

540V

680V/14A

6K6W
