HK-L Series 4th Generation 6.6kw Charge On Board Battery EV Charger

TC 6.6KW HK-L Series On Board battery EV Charger_OBC

The HK-L series is a product specifically designed to replenish energy for electric vehicle power batteries. This product not only boasts advantages such as high efficiency, compact size, high stability, and long lifespan, but also features a high protection level, strong reliability, and comprehensive protective functions. It stands as an ideal power source for charging electric vehicles. The charging unit incorporates built-in thermal sensing components, offering overheat protection with automatic recovery. With a fully sealed and encapsulated process, achieving a protection rating of up to IP67, it can operate reliably in any complex environment without the risk of malfunctions occurring.

Basic Specification

Input voltage range: AC90V~264V

Frequency:45Hz~65Hz

Power factor:≥0.99

Efficiency at full-loading :≥93%

Mechanical impact and vibration grade: QC/T 895-2011

Protection grade: IP67

Operation temperature:- 40℃~85℃

Storage temperature:- 40℃~105℃

Charging control: CAN or Enable

Size:270(length) x 230(width) x 110(height) (fan-cooled)

Cooling way: Enforce Air Cooling, Liquid-cooling

Main features:

· Support UDS diagnosis CAN wake-up function

· The fully sealed process can work reliably under the conditions of -40℃-+85℃

· Built-in temperature sensor to shut down output under hazardous operating conditions (internal 90°C)

· Protection class IP67 Can work safely under short-term water immersion conditions

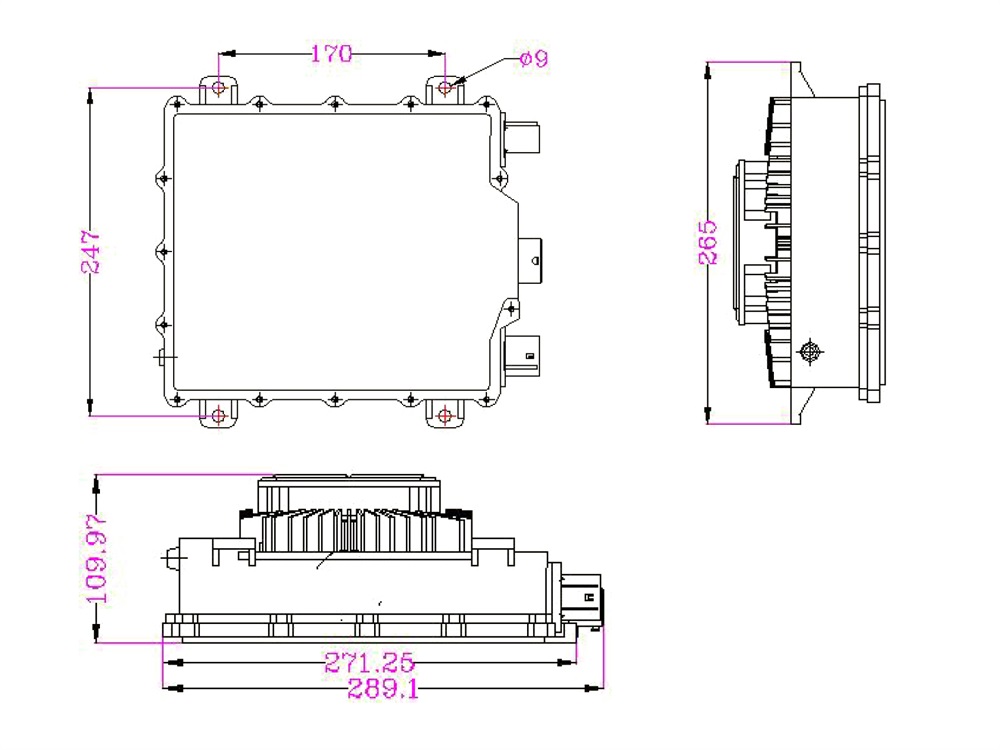

dimensions


Model

Cooling way

Nominal Voltage

Output voltage range

Output voltage/current

Power

HK-LW-108-60

Liquid Cooling

108V

45~177V

177V/60A

6K6W

HK-LW-144-46

Liquid Cooling

144V

50~202V

202V/46A

6K6W

HK-LW-216-28

Liquid Cooling

216V

70~290V

290V/28A

6K6W

HK-LW-312-20

Liquid Cooling

312V

110~450V

450V/20A

6K6W

HK-LW-540-14

Liquid Cooling

540V

170~680V

680V/14A

6K6W

HK-LF-108-60

Enforce Air Cooling

108V

45~177V

177V/60A

6K6W

HK-LF-144-46

Enforce Air Cooling

144V

50~202V

202V/46A

6K6W

HK-LF-216-28

Enforce Air Cooling

216V

70~290V

290V/28A

6K6W

HK-LF-312-20

Enforce Air Cooling

312V

110~450V

450V/20A

6K6W

HK-LF-540-14

Enforce Air Cooling

540V

170~680V

680V/14A

6K6W

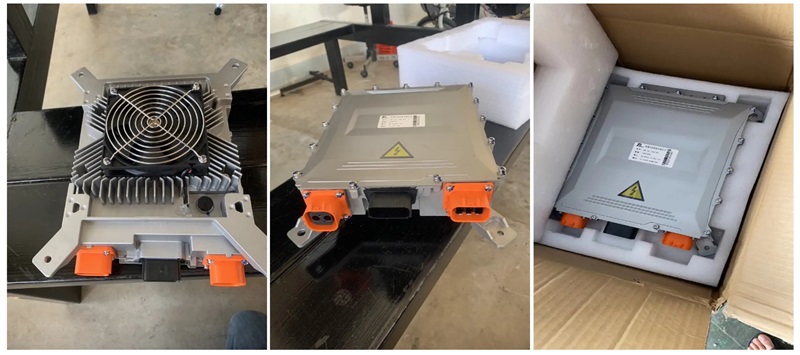

Shipments of TC HK-L 6.6KW On Board Charger:

Shipments of TC HK-L 6.6KW On Board Charger
