4KW TC charger

TC charger is applicable for various lithium batteries like LiFePO4 battery, LiMn2O4 battery, etc.  TC charger features light weight, small volume, stable performance, high efficiency, reliable security, etc. The TC charger can be switched automatically between the floating and balancing charging and also has the protection functions of reverse connection, output short-circuit and overload, and so on.

4kw TC charger is widely used for battery-charging cycles in electric vehicles such as electric forklifts, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo, and electric communication system on the railway, etc.

We have hundreds of TC charger in our warehouse in Hong Kong, and we also have dealers in Germany for the European market. There are 1.5kw tc charger, 2kw tc charger, 3kw tc charger, 4kw tc charger, 6kw tc charger, and 8kw tc charger.


Protection Features

1.  Thermal Self-Protection: When the internal temperature of the charger exceeds 75℃, the charging current will reduce

automatically.  If it exceeds 85℃, the charger will shut down protectively.  When the internal temperature drops, it will resume

charging automatically.

2.  Short-circuit Protection: When the charger encounters unexpected short-circuit, it will automatically stop to output.  When fault

removes, the charger will re-start in 10 seconds.

3.  Reverse Connection Protection: When the battery is polarity reversed, the charger will cut off the connection between the

internal circuit and the battery, and refuses to start.  It can avoid any destroy.

4.  Input Low-voltage & Over-voltage Protection: When the AC input Voltage is lower than 85V or higher than 265V, the charger will

shut down protectively and automatically resume working with the voltage is normal again.

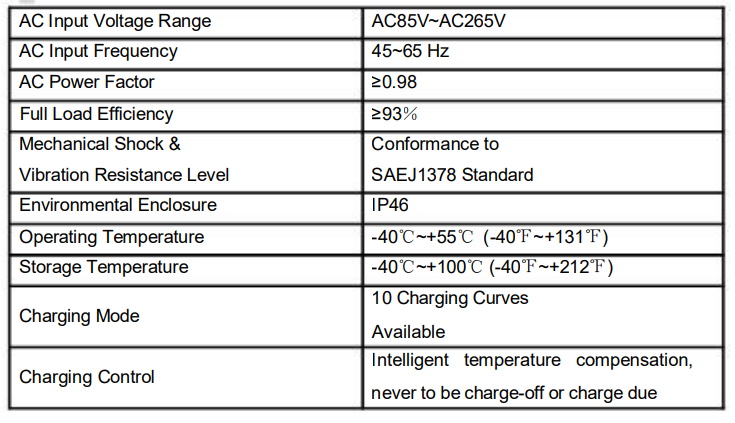

Specification

specifications


Lithium Battery Charger

Output Max Volt

Output Max Current

TCCH-H66-70

66V

70A

TCCH-H83-60

82.6V

60A

TCCH-H96-50

96.2V

50A

TCCH-H112-42

112V

42A

TCCH-H130-36

130V

36A

TCCH-H145-32

144.7V

32A

TCCH-H168-30

168V

30A

TCCH-H192-24

192V

24A

TCCH-H208-22

208V

22A

TCCH-H234-20

233.3V

20A

TCCH-H243-18

243V

18A

TCCH-H258-18

258V

18A

TCCH-H290-16

289.5V

16A

TCCH-H337-14A4

337V

14.4A

TCCH-H389-12

389V

12A

TCCH-H417-11

417V

11A

Charging Curve

The charging curve is custom build to your battery set.

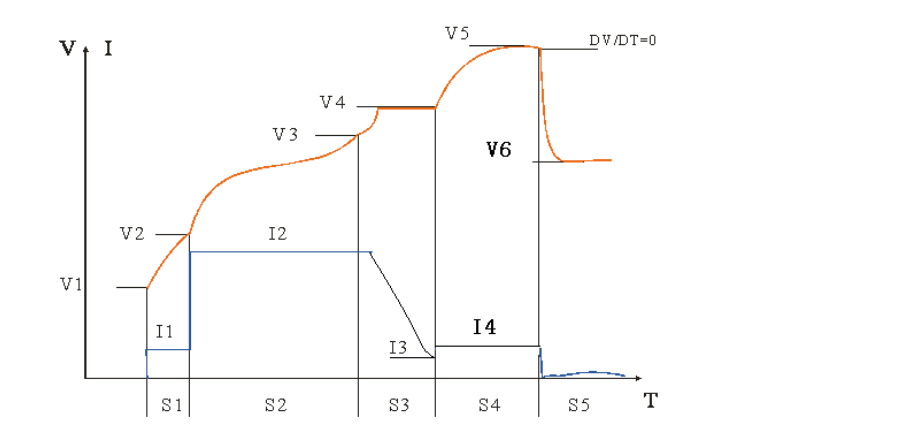

a.Typical charge curve for flooded 6v Lead Acid Trojan batteries (under temperature of 25℃)


The charging curve is custom build to your battery set.

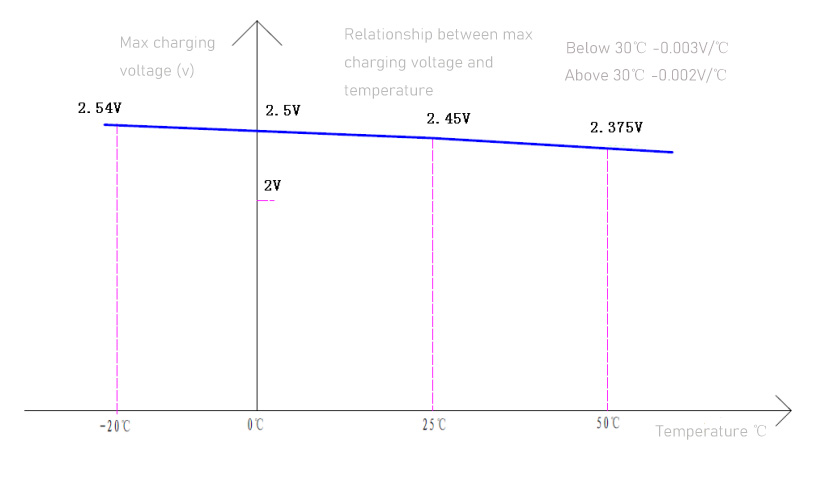

b.Temperature compensation curve (single cell)

Temperature compensation curve (single cell)

Applications

This series of charging machine is widely used for electric vehicles, cars, golf carts, electric tour buses, electric cruise boats, electric cleaning equipment and UPS uninterruptible power supply, solar power generation, wind power generation and electric communication railway system, etc.
