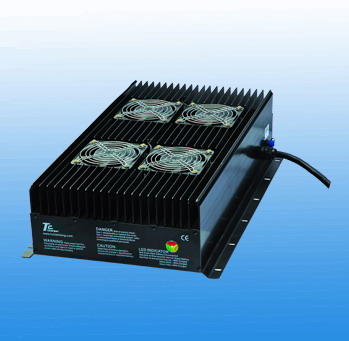

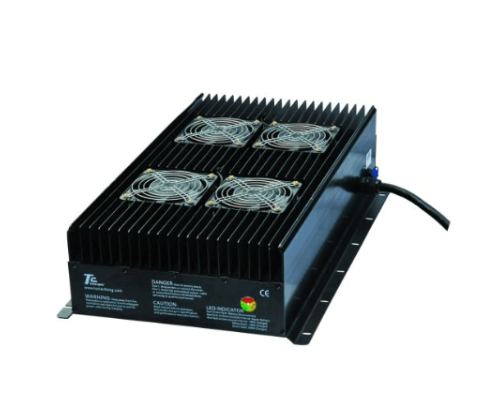

6KW Lithium Battery Charger
TC charger is applicable for various lithium batteries like LiFePO4, LiMn2O4 etc. TC charger features light weight, small volume, stable performance, high efficiency and reliable security etc., TC charger can be switched automatically between the floating and balancing charging and also has the protection functions of reverse connection, output short-circuit and overload and so on.64kw TC charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.
We have hundreds of TC chargers in our warehouse in Hong Kong, and we also have dealer in Germany for the European market. There are 1.5kw tc charger, 2kw tc charger, 3kw tc charger, 4kw tc charger,6kw tc charger, and 8kw tc charger.
Specifications
Lithium Battery Charger | Output Max Volt | Output Max Current |
TCCH-H66-105 | 66V | 105A |
TCCH-H83-90 | 82.6V | 90A |
TCCH-H96-75 | 96.2V | 75A |
TCCH-H112-63 | 112V | 63A |
TCCH-H130-54 | 130V | 54A |
TCCH-H145-48 | 144.7V | 48A |
TCCH-H168-45 | 168V | 45A |
TCCH-H192-36 | 192V | 36A |
TCCH-H208-33 | 208V | 33A |
TCCH-H234-30 | 233.3V | 30A |
TCCH-H243-27 | 243V | 27A |
TCCH-H258-27 | 258V | 27A |
TCCH-H290-24 | 289.5V | 24A |
TCCH-H337-21A6 | 337V | 21.6A |
TCCH-H389-18 | 389V | 18A |
TCCH-H417-16A5 | 417V | 16.5A |
Protection Features
1. Thermal Self-Protection: When the internal temperature of the charger exceeds 75℃, the charging current will reduce
automatically. If it exceeds 85℃, the charger will shut down protectively. When the internal temperature drops, it will resume
charging automatically.
2. Short-circuit Protection: When the charger encounters unexpected short-circuit, it will automatically stop to output. When fault
removes, the charger will re-start in 10 seconds.
3. Reverse Connection Protection: When the battery is polarity reversed, the charger will cut off the connection between the
internal circuit and the battery, and refuses to start. It can avoid any destroy.
4. Input Low-voltage & Over-voltage Protection: When the AC input Voltage is lower than 85V or higher than 265V, the charger will
shut down protectively and automatically resume working with the voltage is normal again.
Applications
This series of charging machine is widely used for electric vehicles, cars, golf carts, electric tour buses, electric cruise boats, electric cleaning equipment and UPS uninterruptible power supply, solar power generation, wind power generation and electric communication railway system, etc.
