TC HF/PFC 8KW Lithium Battery Charger

TC Charger,Elcon Charger,PFC Charger at reasonable price and shipping globally--8KW TC Charger

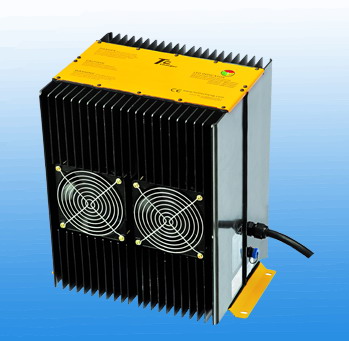

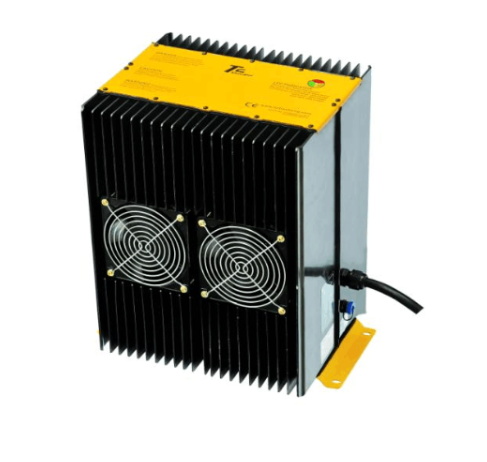

8KW Lithium Battery Charger

TC charger is applicable for various lithium batteries like LiFePO4, LiMn2O4 etc.  TC charger features light weight, small volume, stable performance, high efficiency and reliable security etc., TC charger can be switched automatically between the floating and balancing charging and also has the protection functions of reverse connection, output short-circuit and overload and so on.

8KW TC charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc. We have hundreds of TC charger in our warehouse in Hongkong, and we have also dealer in Germany for European market.There are 1.5kw tc charger, 2kw tc charger, 3kw tc charger, 4kw tc charger, 6kw tc charger, 8kw tc charger. Best charger for lithium battery pack

Specifications



Lithium Battery Charger

Output Max Volt

Output Max Current

TCCH-H66-140

66V

140A

TCCH-H83-120

82.6V

120A

TCCH-H96-100

96.2V

100A

TCCH-H112-84

112V

84A

TCCH-H130-72

130V

72A

TCCH-H145-64

144.7V

64A

TCCH-H168-60

168V

60A

TCCH-H192-48

192V

48A

TCCH-H208-44

208V

44A

TCCH-H234-40

233.3V

40A

TCCH-H243-36

243V

36A

TCCH-H258-36

258V

36A

TCCH-H290-32

289.5V

32A

TCCH-H337-28A8

337V

28.8A

TCCH-H389-24

389V

24A

TCCH-H442-22

442v

22A




8kw charger8kw charger


Protection Features

1.  Thermal Self-Protection: When the internal temperature of the charger exceeds 75℃, the charging current will reduce

automatically.  If it exceeds 85℃, the charger will shut down protectively.  When the internal temperature drops, it will resume

charging automatically.

2.  Short-circuit Protection: When the charger encounters unexpected short-circuit, it will automatically stop to output.  When fault

removes, the charger will re-start in 10 seconds.

3.  Reverse Connection Protection: When the battery is polarity reversed, the charger will cut off the connection between the

internal circuit and the battery, and refuses to start.  It can avoid any destroy.

4.  Input Low-voltage & Over-voltage Protection: When the AC input Voltage is lower than 85V or higher than 265V, the charger will

shut down protectively and automatically resume working with the voltage is normal again.


Applications

This series of charging machine is widely used for electric vehicles, cars, golf carts, electric tour buses, electric cruise boats, electric cleaning equipment and UPS uninterruptible power supply, solar power generation, wind power generation and electric communication railway system, etc.
