Customized 51.2V 229KWH LiFePO4 Battery Energy Storage System For Power Supply

We recently provided a design solution for a 51.2V 229KWH battery energy storage system for a new customer from the United States.

Description of the customer's application:

1. Application scenario: Light commercial application power supply; Site is on Time of Use utility billing. One scenario is to charge battery from utility at off-peak rates and then use battery power at partial peak and peak times if solar is not enough.

2. Energy: Daily energy usage may be as high as 220kWh, and it is hoped that the battery can supply power for one day.

3. Inverter: Using a 12kW LuxPower split-phase inverter (1ph 110V, Split phase 220V, 3ph 220V). The customer requires flexibility in inverter configuration. Using 51.2V inverters can get different outputs through different configurations.

4. Voltage: The battery voltage must be set to 51.2V.

5. Load power: The peak load is 10KW. At 51.2V, the peak current is about 195.3A.

Based on customer needs, we provide customers with the following battery solution.

Solution:

-The battery system is built with 3.2V 280Ah EVE LiFePO4 battery cells.

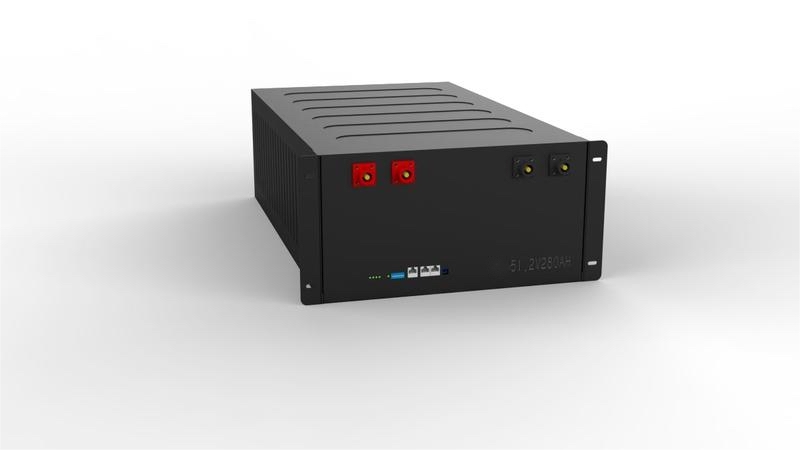

-Each 51.2V 280Ah LiFePO4 battery pack is composed of 2 of 25.6V280Ah modules in series and equipped with a 16S 200A BMS.

-Using 16pcs 51.2V 280Ah battery packs in parallel to get a 51.2V 229.376KWH battery system.

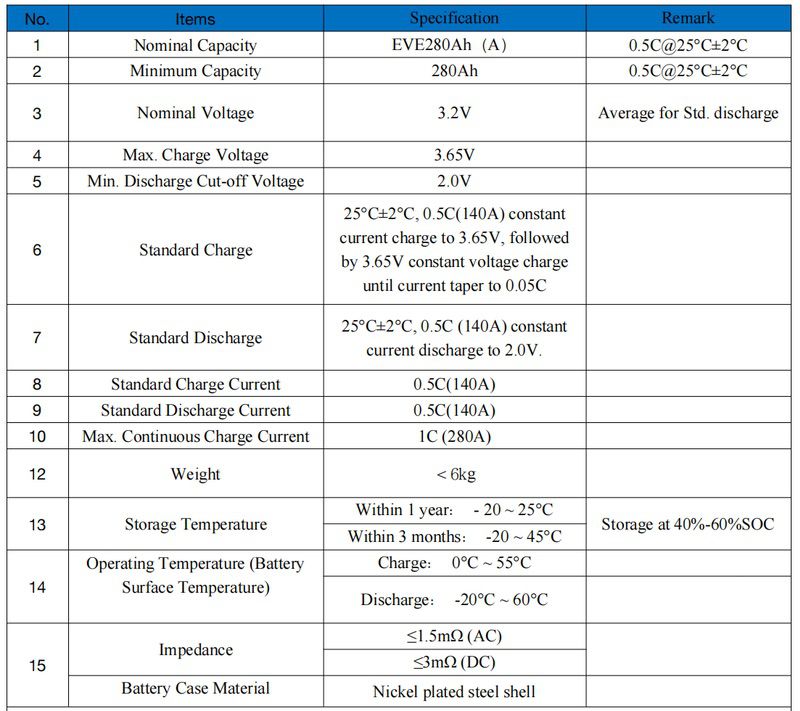

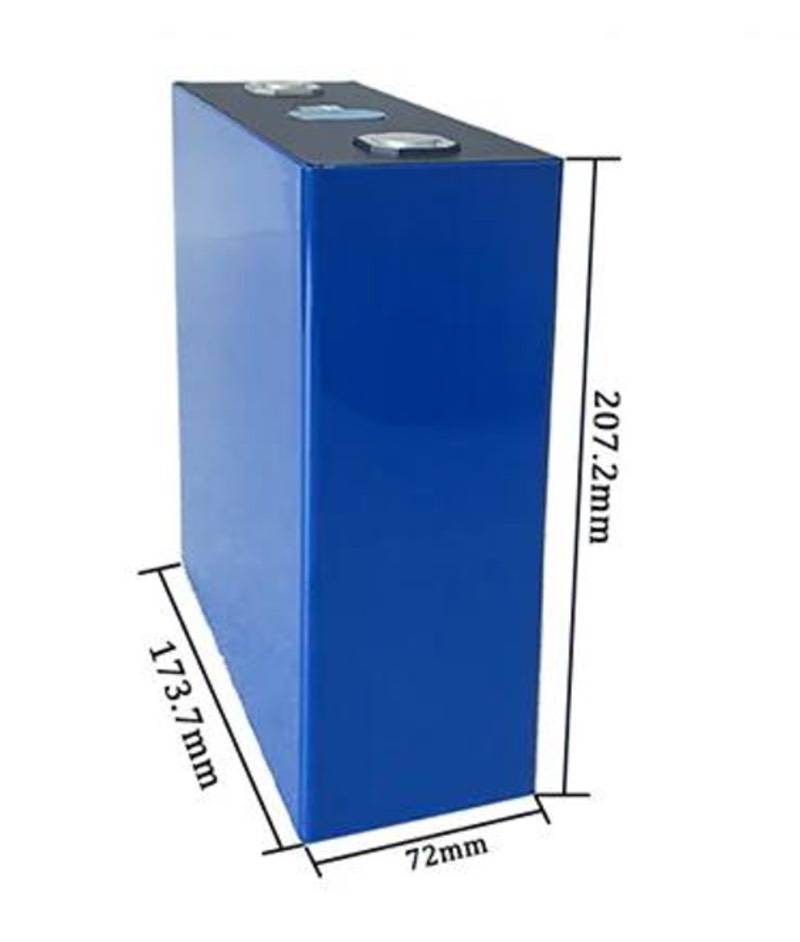

Cell drawing and specification:

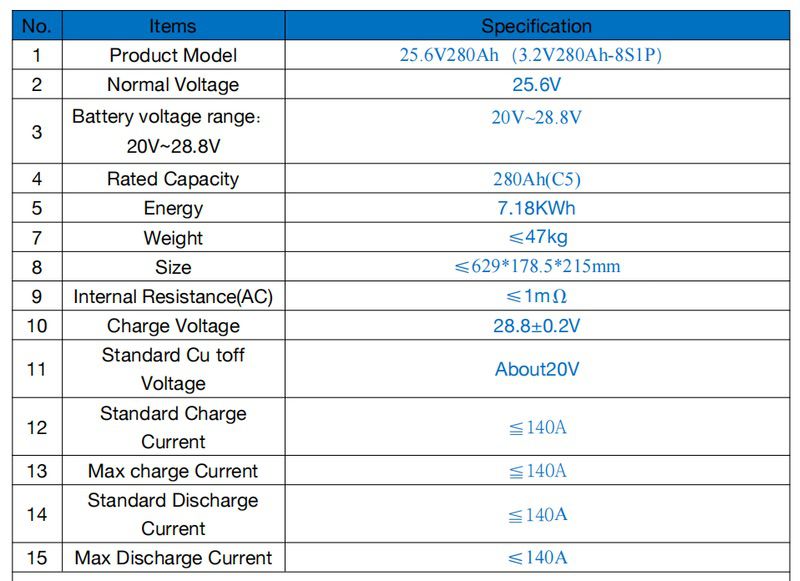

Product Specification:

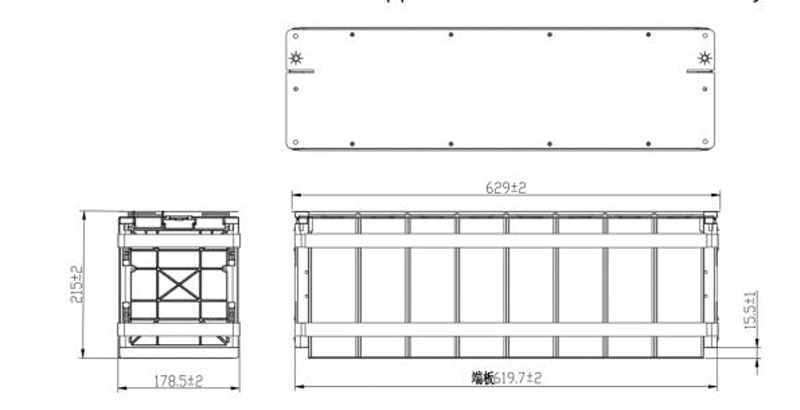

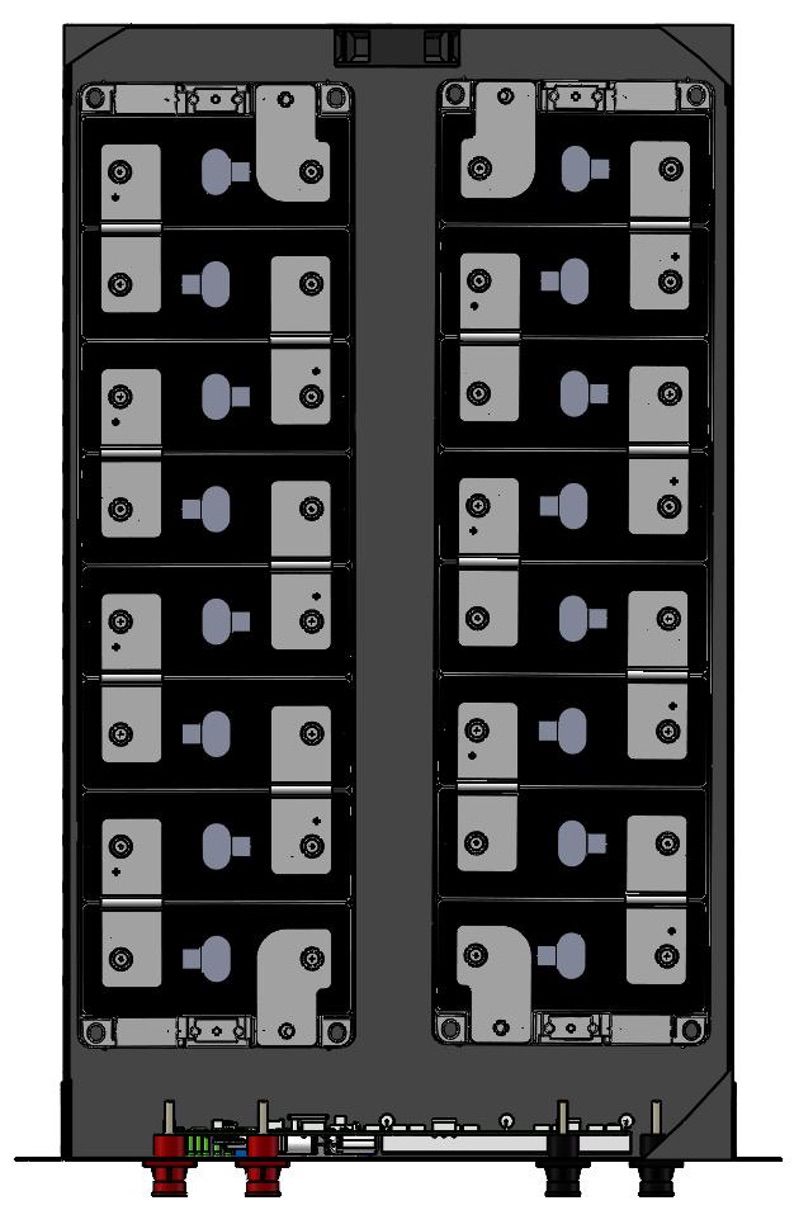

Product Drawing:

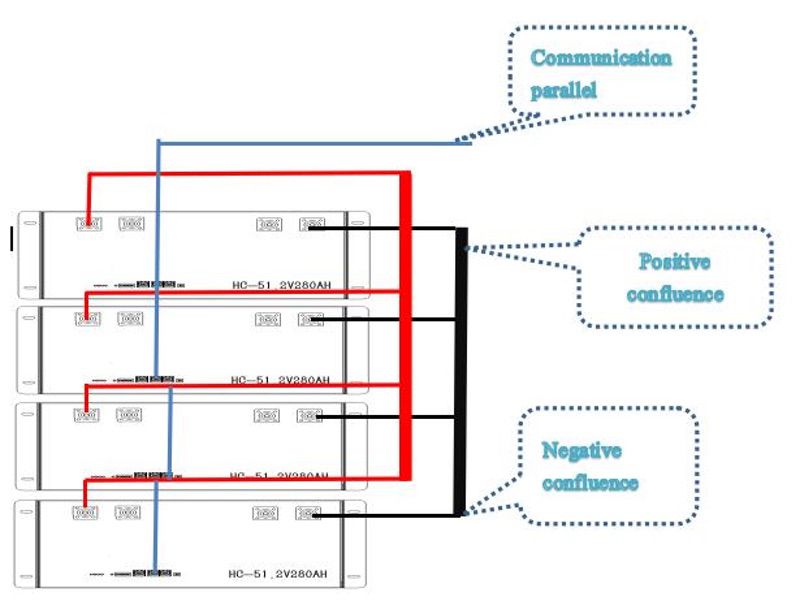

Parallel connection:

The maximum parallel connection is 16
