Customized for 25.6V 100AH lithium batteries for boats

This 24v lithium marine battery 25.6V 100AH battery pack customized by the customer is intended for use on boats.

The customer's requirements for the battery pack are as follows:

1. 25.6V 100AH

2. Metal casing

3. Dimensions of 445 * 190 * 212 mm

4. Maximum discharge current of 3C, continuous discharge current of 1C

5. Charging current less than 50A

The maximum power required by the system is 1.2kW.

Based on the customer's requirements, we have provided the following design scheme:

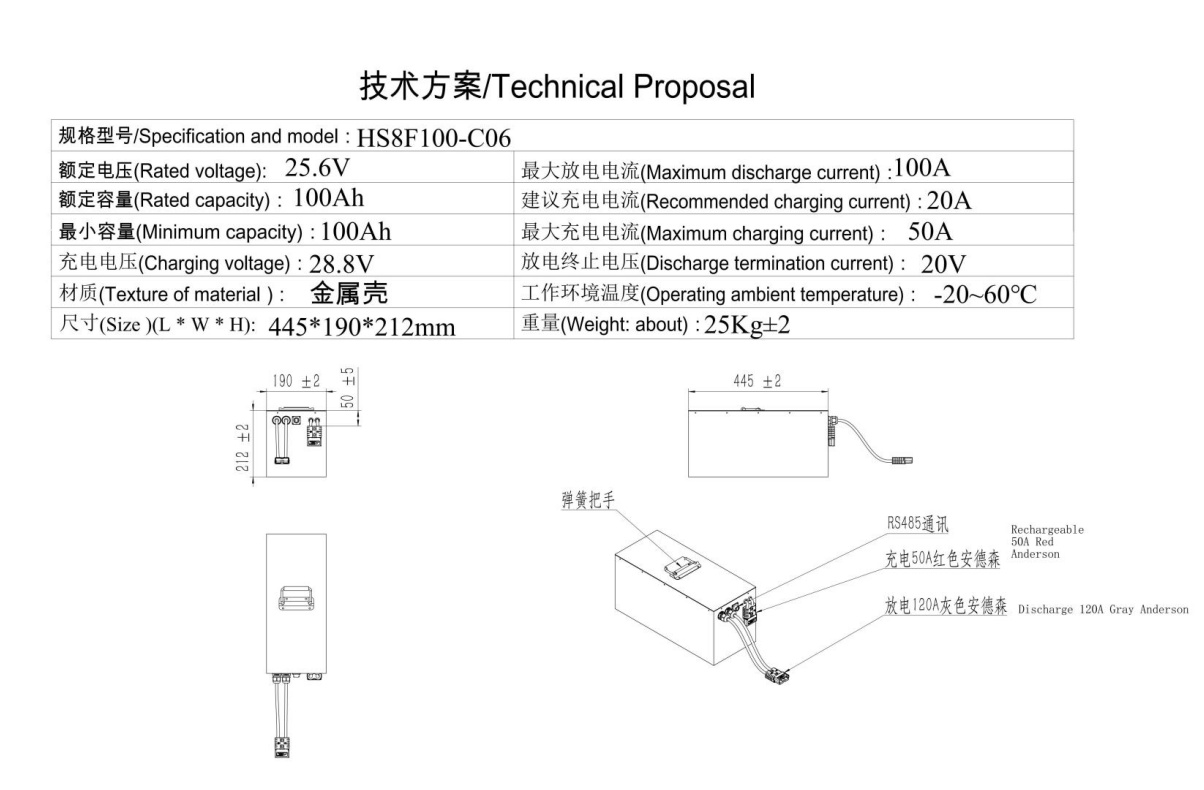

This is the battery pack we produced according to the drawing：

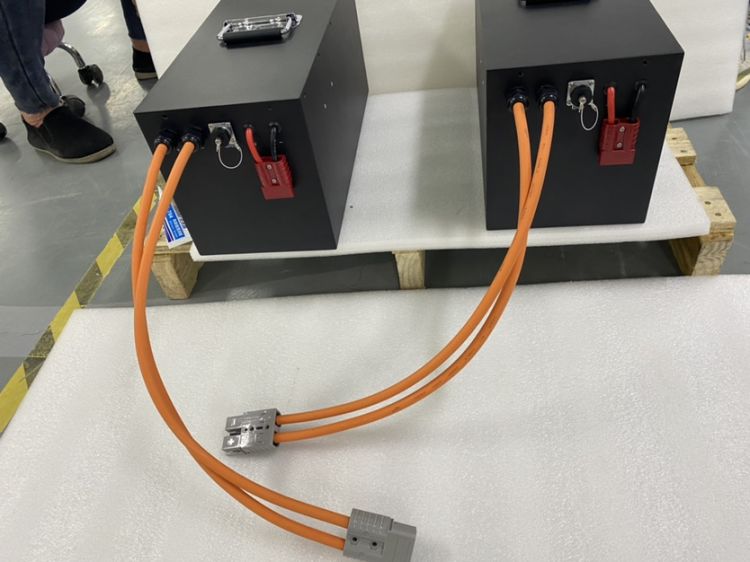

Here is the detailed technical description of the 25.6V 100AH battery pack.
