51.2V/5.12kwh/100Ah lifepo4 deep cycle lithium storage batteries for household solar power
51.2V/5.12kwh/100Ah lifepo4 deep cycle lithium storage batteries for household solar power with16 LiFePO4 battery cells and BMS.
- Category: Energy storage system
- Tag: Energy storage system

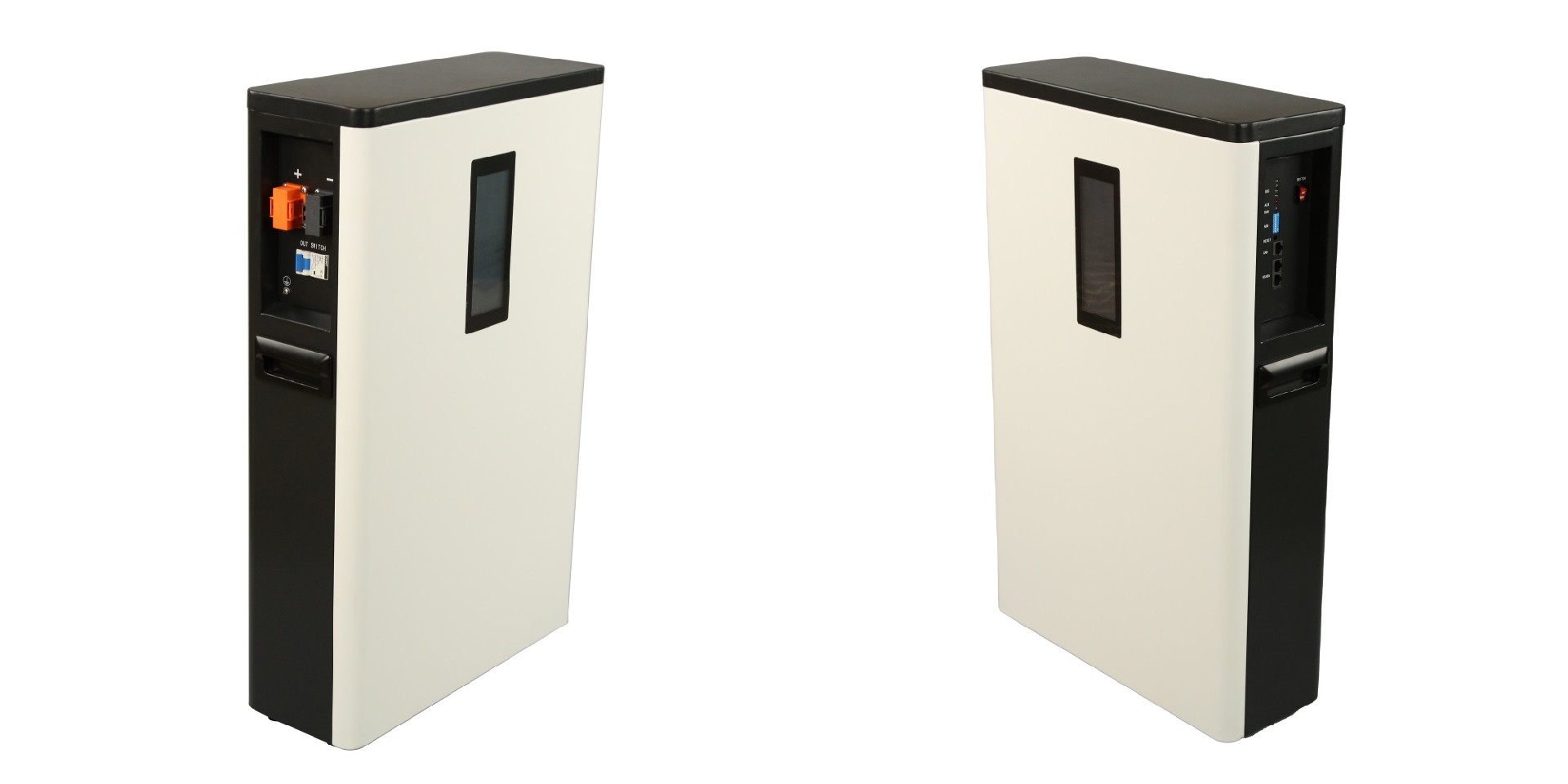

51.2V/5.12kwh/100Ah lifepo4 deep cycle lithium storage batteries (include display screen) for household solar power
Safe and reliable household battery pack solution
It includes 16 LiFePO4 battery cells and BMS. Capacity can be increased by parallel connection.Support ground-mounted and wall-mounted installation way.

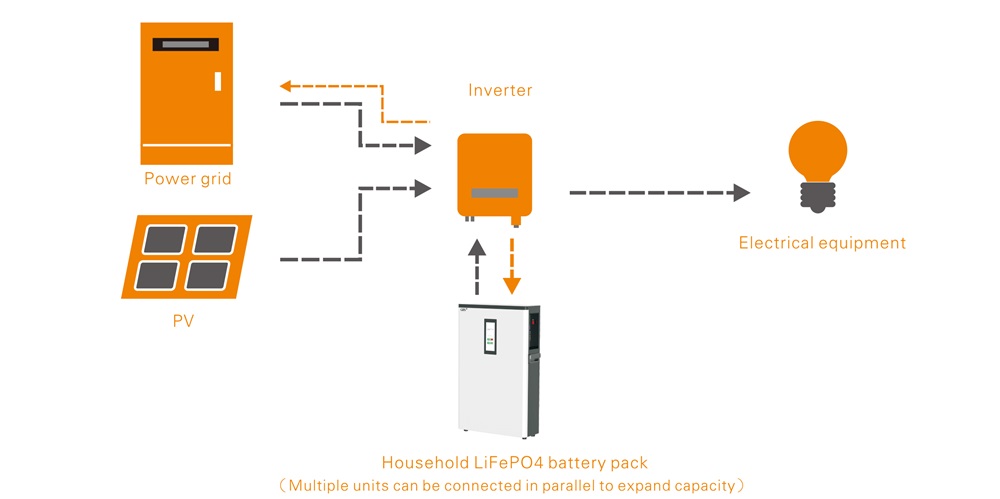

Charge: grid or solar energy
Discharge: grid or solar energy
Specifications
Model | GBSFP51100LV-1 |
Rated voltage | 51.2V |
Nominal capacity | 100Ah |
Energy | 5.12KWh |
Discharge Current | 0~100A |
Discharging protection voltage | 43.2V |
Charge Current | 0~100A |
Balancing charging voltage | 56.8V |
Float charging voltage | 54.4V |
Size W*D*H | 460*170*740mm |
Weight | 52Kg |
Charging temperature | 0~65℃ |
Discharging temperature | -20~65℃ |
Relative humidity | 5%~95% |
Protection function | overcharge, over-discharge, short circuit, over load, high tempt, low tempt, etc. |
Self discharge@25℃ | ＜5% after 90-day storage |
Matching inverter power | ≤5KW |
Installation | Wall-mounted type, ground type |
Display | yes |
