100KW/215Kwh LF280k Liquid Cooling Battery Rack for Utility ESS
100KW/215Kwh 768V 280Ah LF280k LiFePO4 Liquid Cooling Battery Rack for Renewable energy storage/Peak-valley Shifting/ Voltage &frequency regulation etc
- Category: Energy storage system
This 768V 280Ah 215kwh battery rack consists of 5 sets of BP-48-153.6/280-L Liquid cooling battery packs in series, each pack 1P48S
DataSheet: 768V 280Ah 100KW/215Kwh Liquid cooling battery rack for ESS
The Battery Cell
This battery system adopts LF280K cells that have obtained multiple certifications, such as UL1973, IEC62619, GB/T36276, etc.

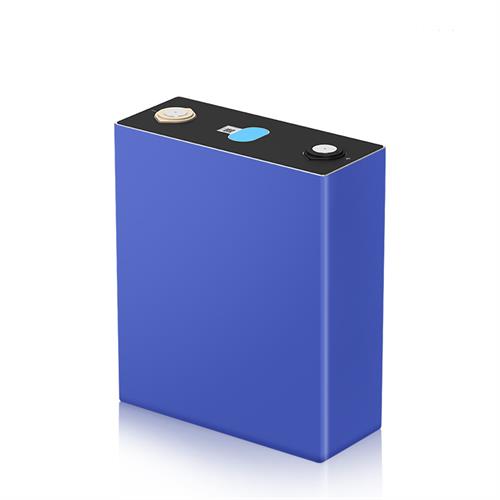

*Cell appearance drawing
The specification of LF280K Battery cells
Items | Specification | Remark |
Cell type | LFP | |
Cell model | LF280K | |
Rated capacity | 280Ah | 0.5 C, 25℃±2℃, 2.5 V ~ 3.65 V |
Rated voltage | 3.2V | 0.5 C, 2.5 V ~ 3.65 V |
The cut-off voltage of the charge | 3.65 V | 0.5C |
The cut-off voltage of the discharge | 2.5 V（T >0℃） 2.0 V（T ≤0℃） | |
Standard charging | 140A | 0.5 C |
Standard discharge | 140A | 0.5 C |
AC internal resistance | ≤0.25mΩ | AC, 1 kHz, 40% SOC |
Cell weight | 5420 g±300 g | |
Dimension (W*D*H)/mm | 72.0±1.0 mm*173.7±0.5 mm*207.2±0.5 mm （based on the latest version） | |
Operating temperature | Charge: 0~60℃ | |
Discharge: -30~60℃ | ||
Operating humidity | 3 months: 0~35℃ | |
1 month: -20~45℃ |
The Battery Pack
The battery pack is the smallest removable energy storage unit in the battery system, its product model is BP-48-153.6/280-L, which is configured by four 1P12S battery modules, acquisition wires, BMU, safety valve, fuse, cold plate, MSD, and other components.

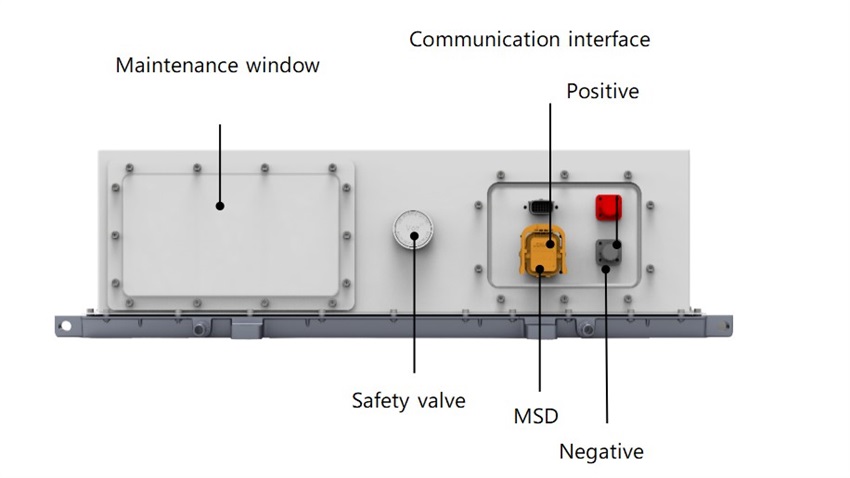

*The external interface of BP-48-153.6/280-L
The specification of BP-48-153.6/280-L
Items | Specification | Remark |
Configuration | 1P48S | |
Rated energy | 43KWh | 0.5P @25±3℃ |
Rated voltage | 153.6V | |
Voltage range | 134.4V~172.8V | Single cell: 2.8V~3.6V |
The cut-off current of the discharge | 180A | End of CP discharge |
Operating temperature | Charge: 0℃～55℃ | |
Discharge: -20℃～55℃ | ||
Dimension | W858×D1067×H240mm | Tolerance: ±3mm |
Weight | 300kg±8kg |

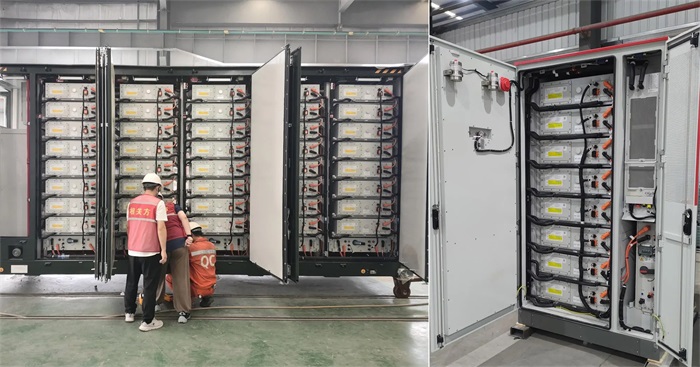

The Battery Rack

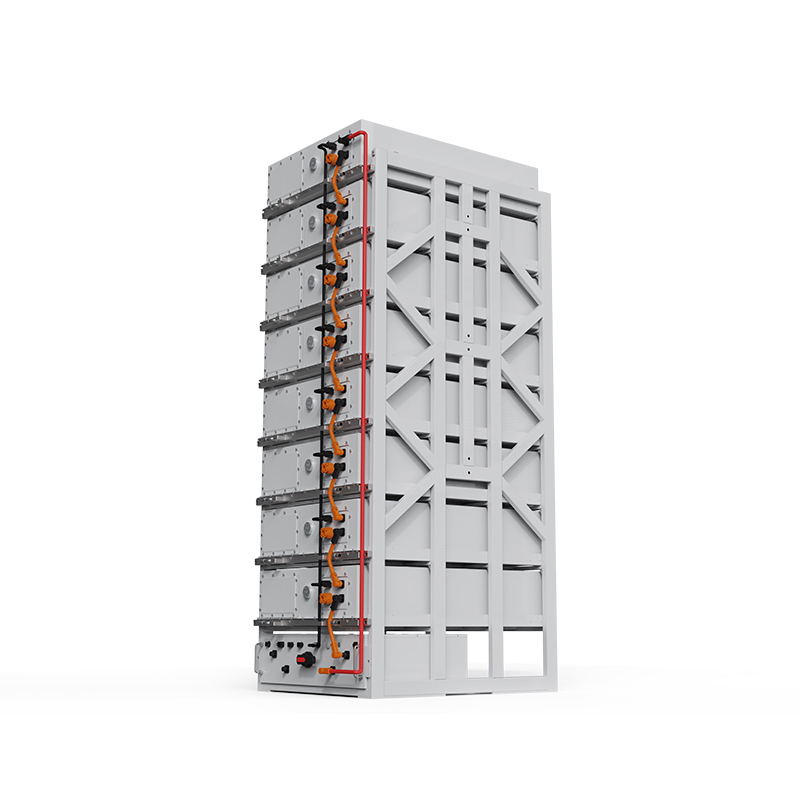

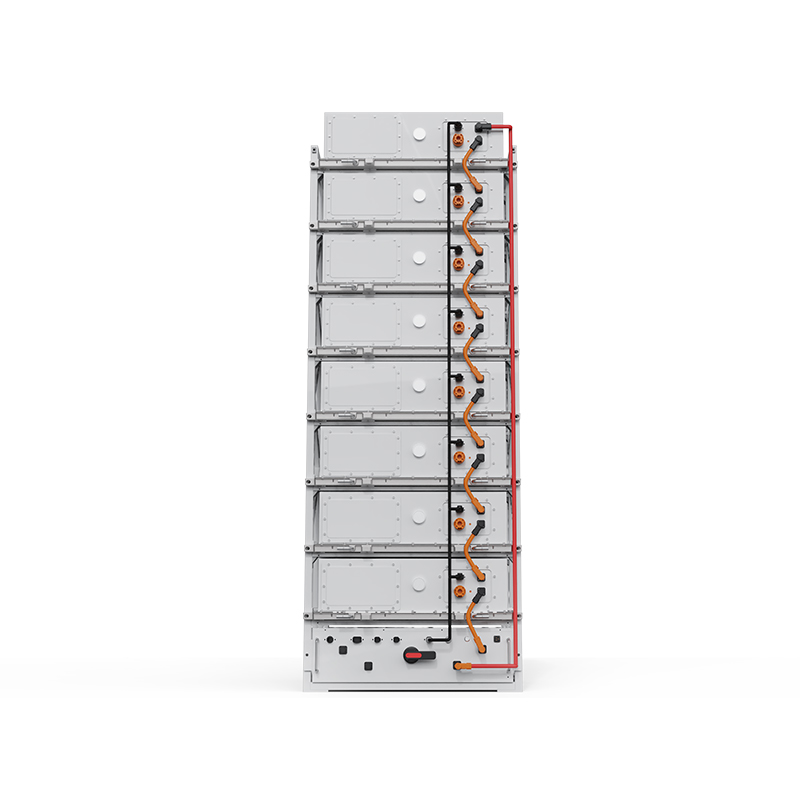

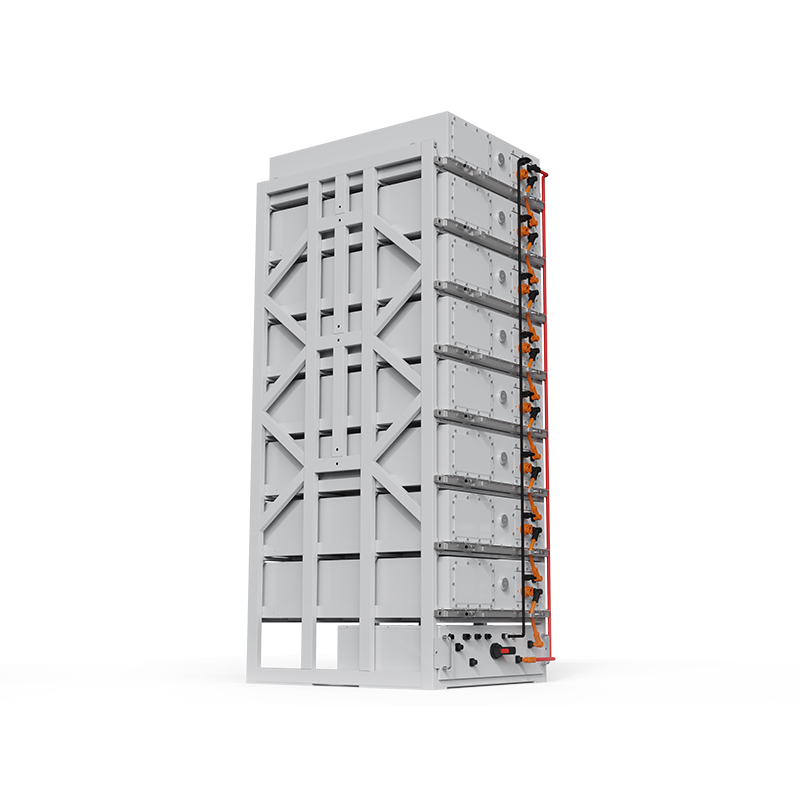

This liquid cooling battery rack is composed of and 5 battery packs (1P48S) and 1 battery rack switch gear unit configured together in series. The battery packs and battery rack switch gear unit are vertically arranged and installed, where the battery rack switch gear unit is installed on the bottom.
The specification of the battery rack
Items | Specification | Remark | |
Configuration | 1P240S | 5 battery packs in series | |
Rated energy | 215kWh | 0.5P @25±3℃ | |
Usable energy | 206.4kWh(96%*nominal energy) | 25℃, 0.5C, 100%DOD | |
Rated voltage | 768V | / | |
Voltage range | 600V~876V | Cell voltage: 2.8V~3.6V | |
Standard charge power/current | 100kW/140A | / | |
Standard discharge power/current | 100kW/140A | / | |
Cut-off current of discharge | 180A | End of CP charge | |
Operating temperature | Charge | 0℃~55℃ | / |
Discharge | -20℃~55℃ | / | |
Recommended operating environment temperature | 20℃~30℃ | / | |
Self-discharge rate/month | ≤3%/month | 25℃, 40%SOC | |
Thermal management | Liquid cooling | ||
Communication | CAN2.0 | ||
Auxiliary power supply | 220Vac, 50Hz | 220VAC power supply for PDU | |
Auxiliary power | ≤80W | Liquid cooling power not included | |
Wiring method | Quick plug | ||
Dimension | 862*1074*2374mm | W*D*H Tolerance: ±5mm | |
Weight | About 1800kg | ||
IP rating | IP54 | ||
Storage temperature | 6 months | 0℃-35℃ | |
1 month | -20℃-45℃ | ||
Storage humidity | ＜75% RH, no condensation | ||
Warranty | 2 Years | ||
Recommended operating humidity | 10%~70%RH, no condensation | ||
Application altitude | ≤4000m | Above 2000m | |
