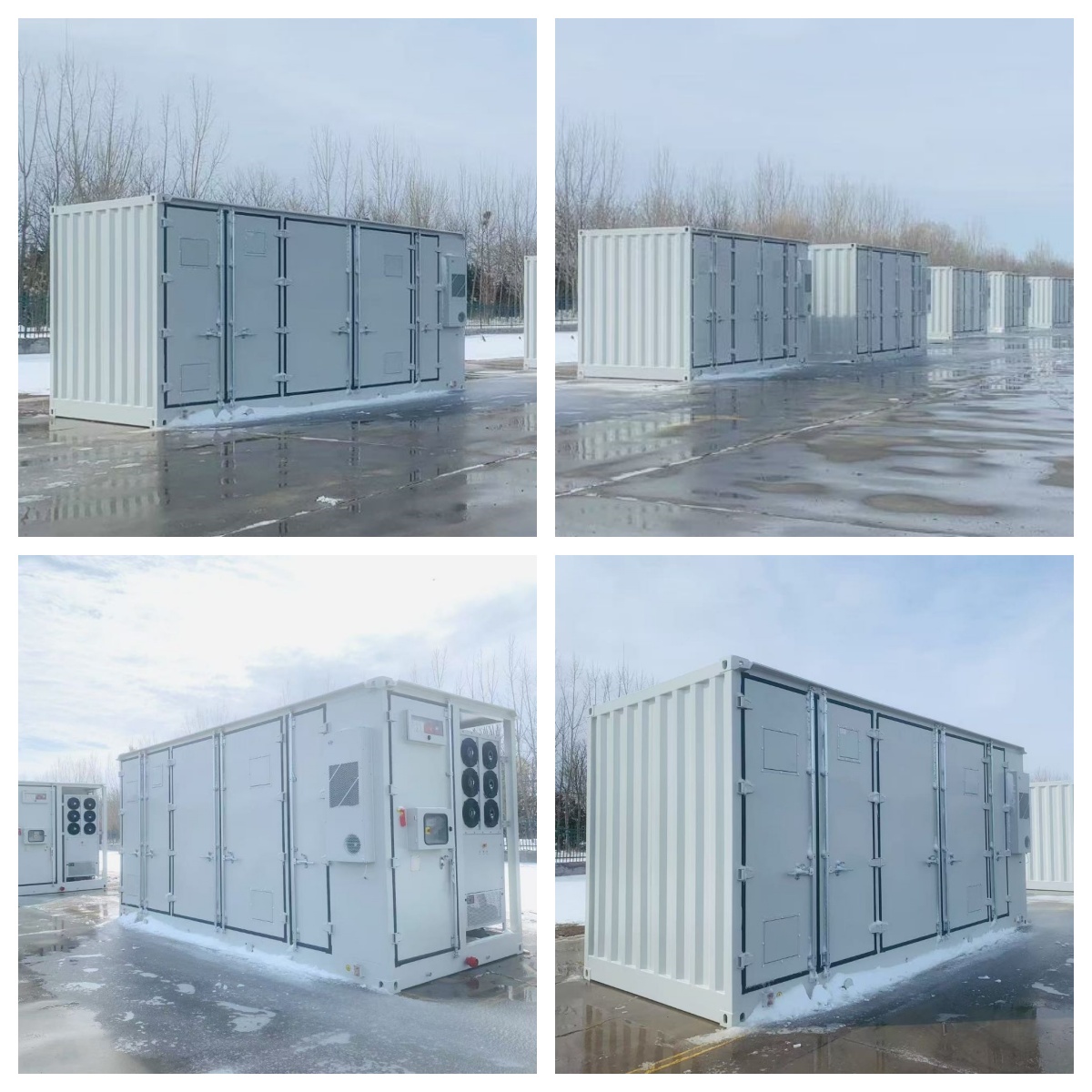

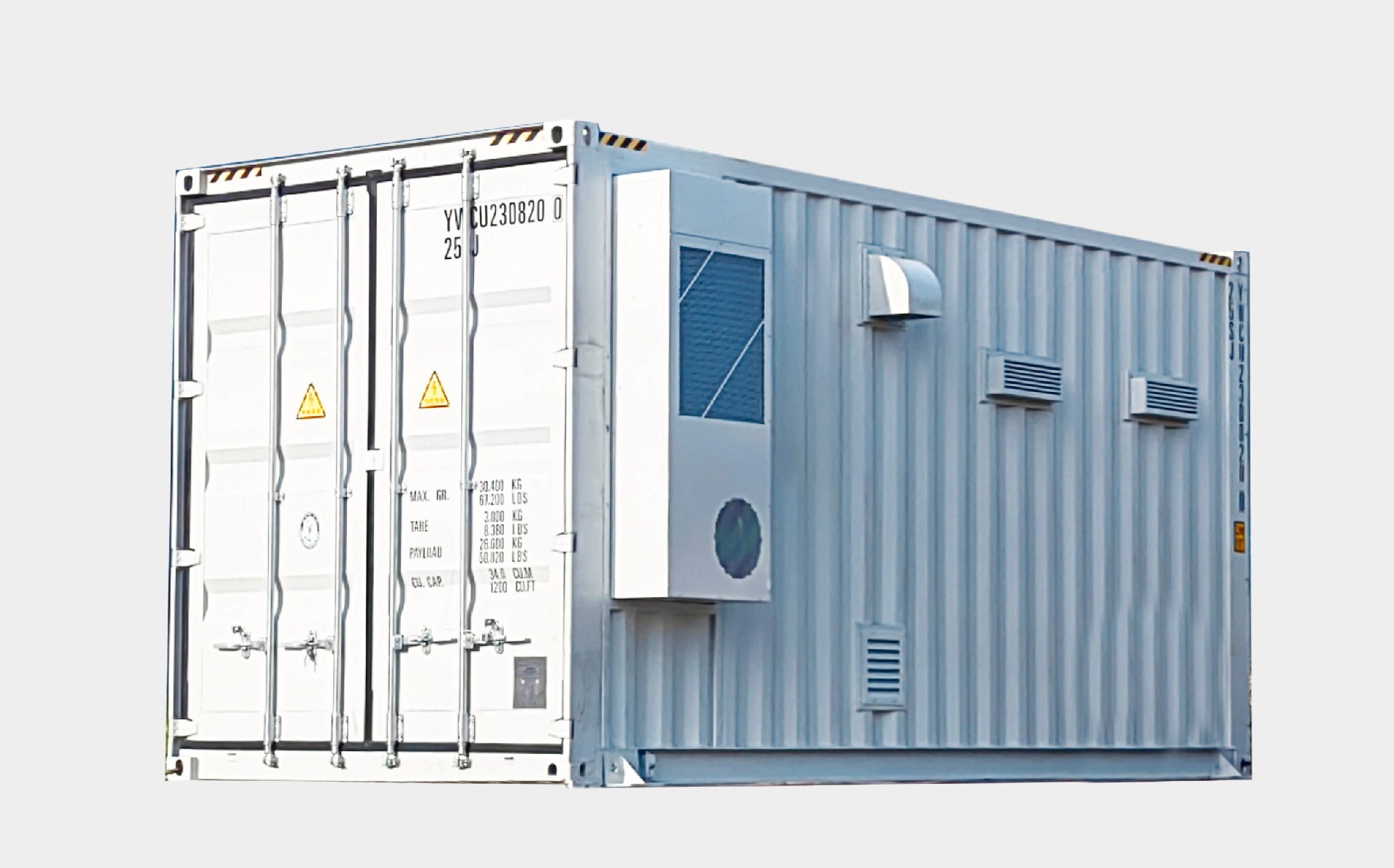

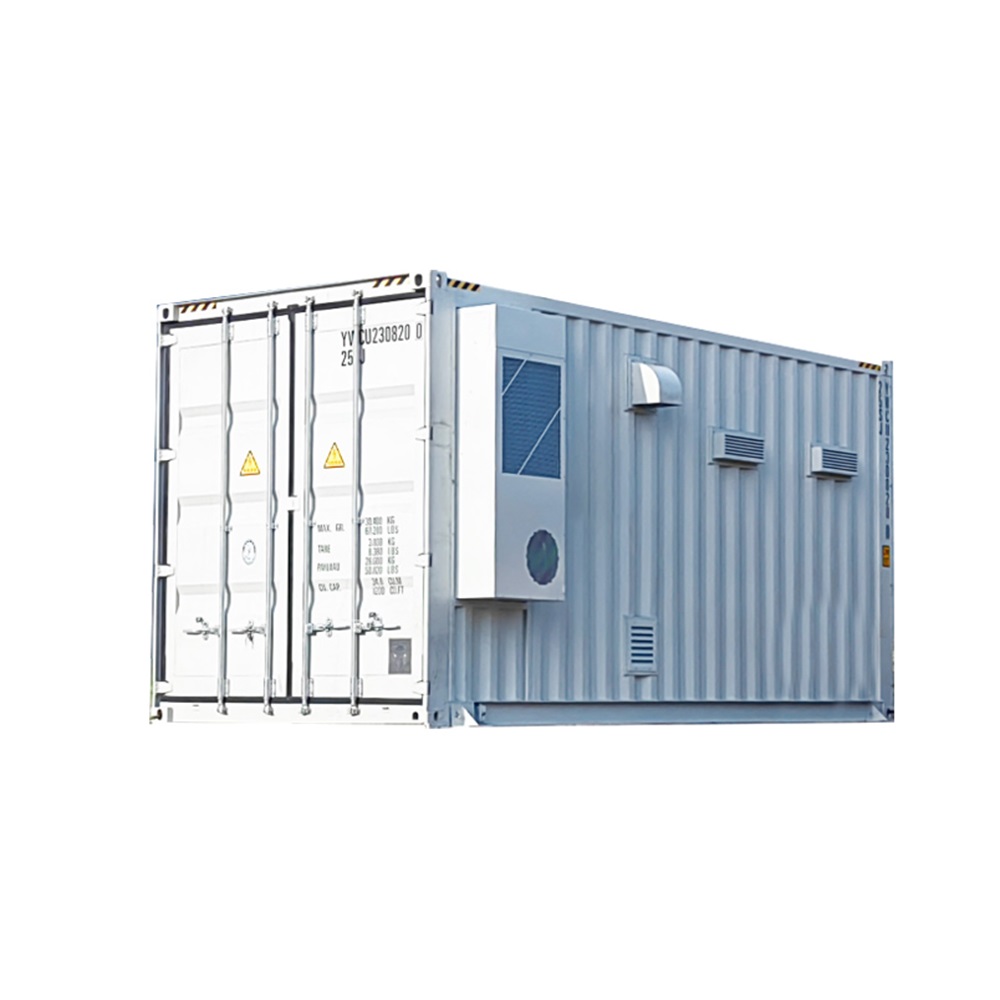

1075.2kWh/2236.416kWh Centralized Energy Storage Integrated Container System

1075.2kWh/2236.416kWh centralized energy storage integrated system: efficient integration, efficient conversion, and high precision intelligence.

Feature

Efficient integration

1. The system is highly integrated, integrating a battery system, AC system, temperature control system, fire control system, data monitoring system, etc.

2. The integrated container energy storage system is convenient in design and transportation, simple in construction, and low in installation cost


High precision intelligence

1. Meet the smart grid design specifications

2. Integrate the local controller to achieve unified scheduling and management, and the single-machine system can independently cut peaks and fill valleys

3. Have PQ, VF, SVG, and other functions to support the independent operation of the Micro smart grid

4.0utdoor design, protection level IP54


High-efficiency conversion

1. Intelligent temperature control system, improve system efficiency and battery cycle life

2. With a two-way converter, charging with constant current, constant voltage, and constant power mode



Centralized/energy storage integrated system



Specification



Parameter

Specification

Product Model

PLPF01400C0-0768R0A

PLPF1680C0-1331R2A

Cell Type

3.2V/280Ah

Cell Life

26000@ 95%DOD,80%EOL

Capacity

1075.2kwh

2236.416kWh

Rated Voltage

600-876V

1040-1497.6V

AC Parameter

Rated Output Power

500kw

500kw

AC Output Power

722A

1450A

Rated Network Voltage

400v

400v

 Network Voltage Range

±15%

Rated Network Frequency

50Hz/60Hz

Network Frequency Range

±2.5HZ

AC Off-Grid Voltage

400V

Range of AC Voltage

±10%

AC Off-Grid Frequency

50Hz/60Hz

System Parameter

Dimension (W X H X D)

6058 x 2896X 2438mm

12192x2896x2438mm

Humidity Range

0~95%

Operating Temperature Range

- 30~ 60℃

Converter Cooling Mode

Temperature-controlled forced air cooling
