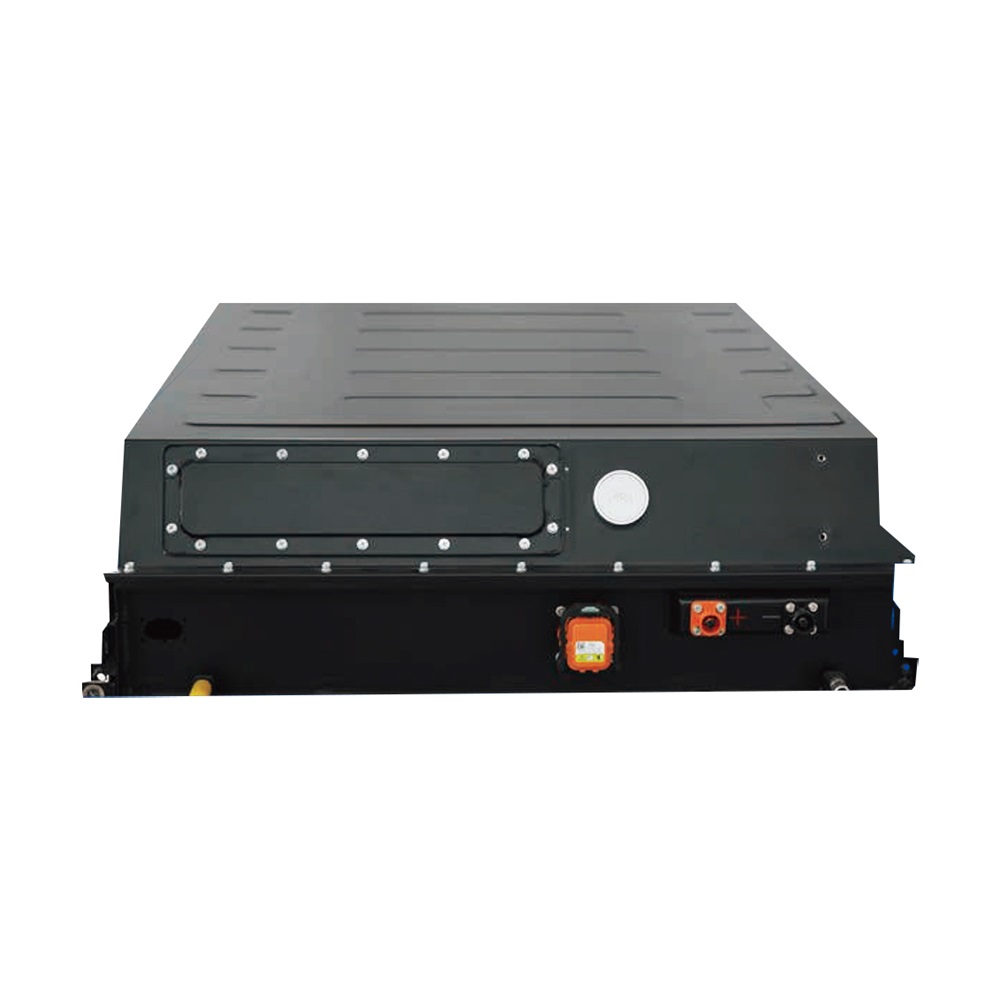

1P48S/1P52S/1P104S Liquid cooling Energy Storage System Plug-In Box

1P48S/1P52S/1P104S Liquid cooling Energy Storage System Plug-In Box have common characteristics: high energy efficiency, flexible system expansion, stable discharge, etc., suitable for industrial and commercial energy storage

Feature

1. Energy efficiency >94%@0.5P at room temperature

2. Standard module, flexible system expansion

3. Small internal resistance, stable discharge

Liquid cooling plug-in box ESS

Specification


Parameter

Specification

Model Number

280-1P48S

280-1P52S

280-1P104S

Combination Mode

1P48S

1P52S



Nominal Voltage

153.6V

166.4V

332.8V

Operating Voltage

129.6V(min)

175.2V(max)

140.4V(min)

189.8V(max)

280.8V(min)

379.6V(max)

Rated Energy

43.008kwh

46.592kwh

93.184kwh

Weight

325±5kg

340±5kg

655±5kg

Dimension

1050*810*251mm

1145*810*251mm

2232.6*810*245mm

Energy Density

>132Wh/kg

> 137wh/kg

>137Wh/kg

Rated Capacity

280Ah

280Ah

280Ah

Cycle Life

6000

6000

6000

Maximum Continuous Charging Current

140A

140A

140A

Maximum Continuous Discharge Current

140A

140A

140A

Operating Ambient Temperature

Charge: 0~55°C

Discharge: -20~55°C

Charge: 0~55°C

Discharge: -20~55°C

Charge: 0~55°C

Discharge: -20~55°C

Charge at Shipment (SOC)

30%±5%

30%±5%

30%±5%
