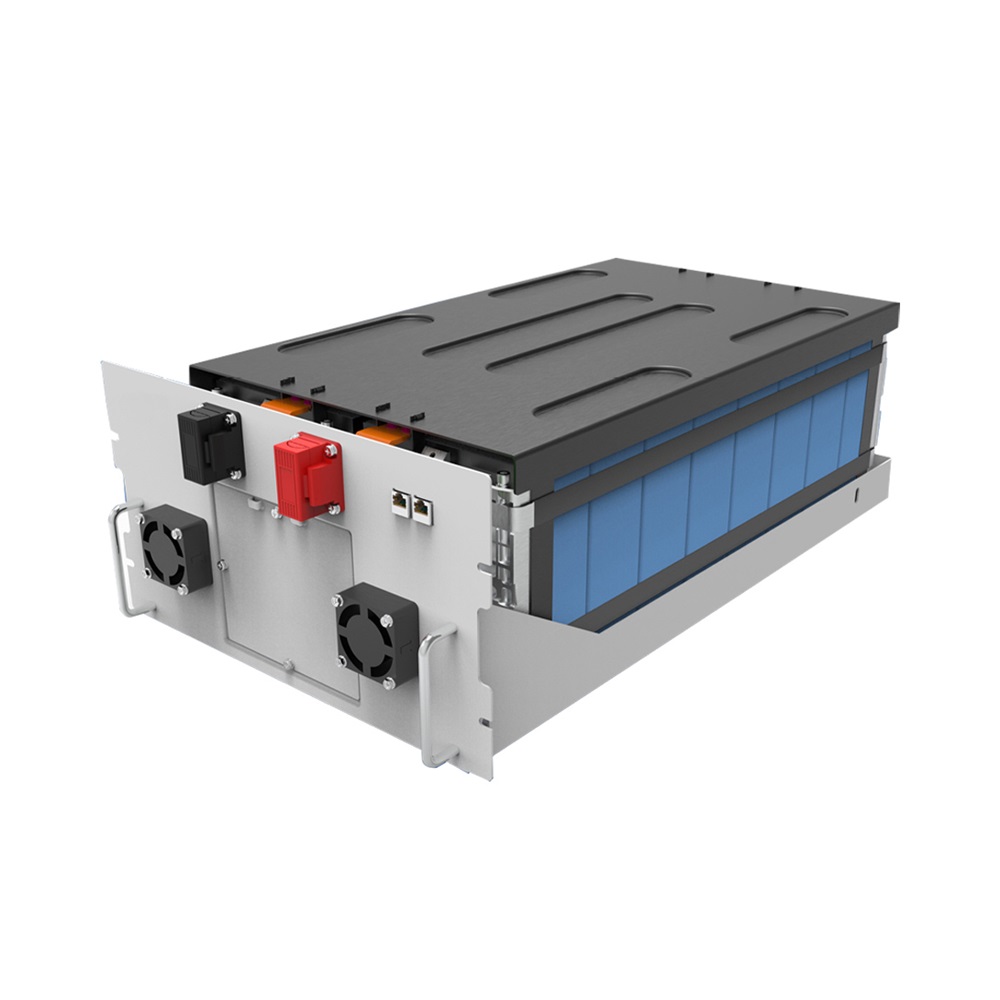

1P16S 51.2V Air cooled Energy Storage System Plug-In Box

1P16S 51.2V Air-cooled Energy Storage System Plug-In Box: high energy efficiency, flexible expansion, stable discharge, light weight.

Air cooled plug-in box ESS

Feature

1.Energy efficiency >94%@0.5P at room temperature

2. Standard module, flexible system expansion

3.68 Small internal resistance, stable discharge

4. The gauge is compact and lightweight



Specification


Parameter

Specification

Model Number

220-1P16S-Airc

280-1P16S-AirC

Combination Mode

1P16S

1P16S

Nominal Voltage

51.2V

51.2V

Operating Voltage

43.2V(min);

58.4V(max)

43.2V(min);

58.4V(max)

Rated Energy

11.264kWh

14.336kWh

Weight

88±2kg

100±2kg

Dimension

492*620*230mm

435*743*238mm

Energy Density

>128Wh/kg

>140wh/kg

Rated Capacity

220Ah

280Ah

Cycle Life

6000

6000

Maximum Continuous Charging Current

110A/0.5C

140A/0.5C

Maximum Continuous Discharge Current

110A/0.5C

140A/0.5C

Self-Discharge Rate

<3%/month

<3%/month

Operating Ambient Temperature

Charge: 0~55°C

Discharge: -20~55°C

Charge: 0~55°C

Discharge: -20~55°C

Charge at Shipment (SOC)

30%±5%

30%±5%
