20ft LFP BESS Standard Liquid-cooling Container Series
20ft LFP BESS Standard Liquid-cooling Container Series WIth High Volume High Density：20ft 66.4V/332.8V 5MWh and 20ft 1331.2V 280Ah 3.72MWh
- Category: Energy storage system
- Tag: lifepo4 battery

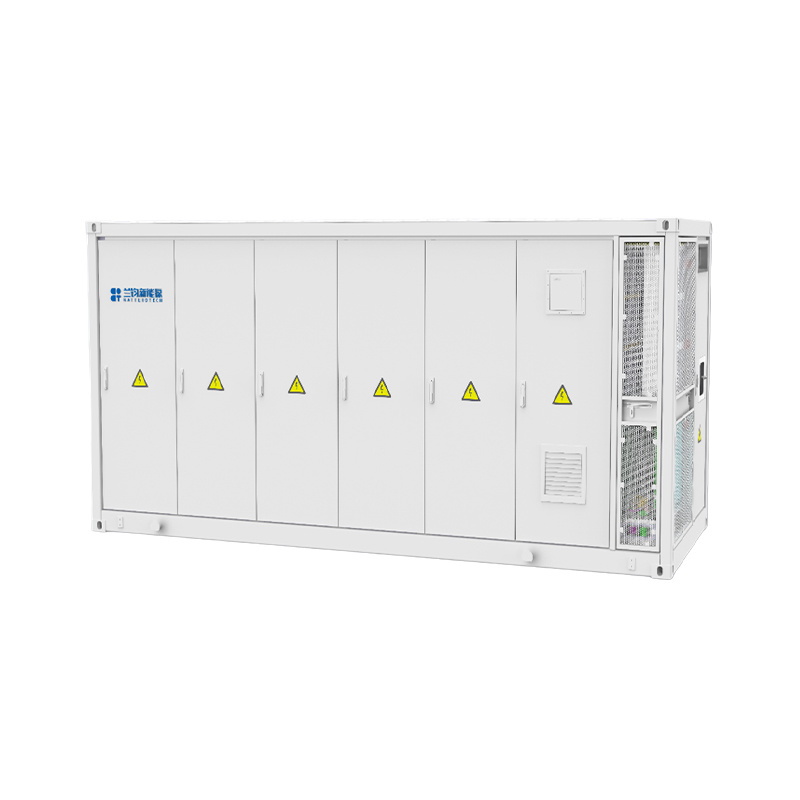

20ft 66.4V/332.8V 5MWh
Feature
1. High energy density: With 314Ah cells, more energy can be stored in the same volume space, improving compactness and portability.
2. Long design life: The system design life is up to 20 years, extending the customer revenue cycle and improving the stable rate of return.
3. High energy efficiency output: Up to 95% energy efficiency on the DC system side, reducing energy loss and waste, and reducing operating costs.
4. High safety: meet the national standard, European standard and American standard design requirements, with active safety warning and passive safety protection, using PACK-machine multiple fire safety design.
5. Modular design: Key components are modular, the overall compact, equipment and site investment costs are reduced by 15%-20% compared with the previous generation of products.
6. Intelligent operation and maintenance: Support mobile app one-click operation, remote fault diagnosis and start and stop, reduce operation and maintenance costs.
Specifications
Items | BTL-PF-BCE-372 | |
PACK parameters | Rated voltage Rated capacity Rated energy Class of protection Configuration Cooling system Weight Dimensions | 166.4V 280Ah 46.5kwh IP67 1P52S Liquid-cooling 330±5kg L1170*W790*H242mm |
System parameters | DC rated voltage DC rated capacity Dimension Weight | 1331.2V 3.72MWh L6058*W2500*H2896mm 35T |
Class of protection | IP55 | |
Maximum working altitude | 4000m （reduced more than 2000m ） | |
Cooling mode | Liquid-cooling | |
Fire protection system | Rerfluorohexanone + combustible gas detection+exhaust air + explosion-proof valve (Water fire extinguishing optional) | |
System communication interface | CAN/RS485/Ethernet | |
Items | BTL-PF-BCE-372 | |
PACK parameters | Rated voltage Rated capacity Rated energy Class of protection Configuration Cooling system Weight Dimensions | 166.4V 280Ah 46.5kwh IP67 1P52S Liquid-cooling 330±5kg L1170*W790*H242mm |
System parameters | DC rated voltage DC rated capacity Dimension Weight | 1331.2V 3.72MWh L6058*W2500*H2896mm 35T |
Class of protection | IP55 | |

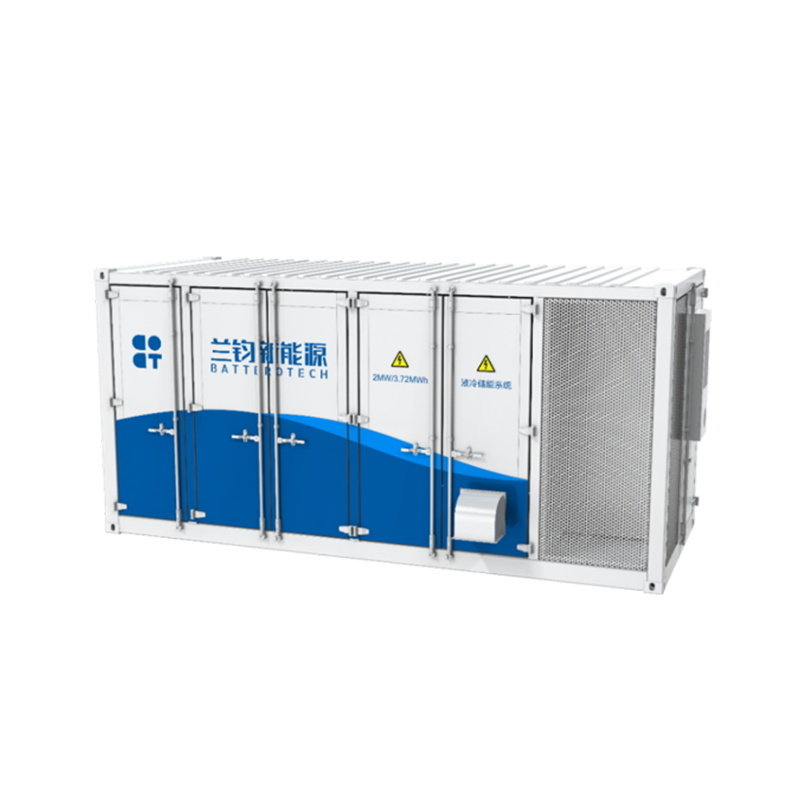

20ft 1331.2V 280Ah 3.72MWh
Characteristics
●Ultra fast charge：Capacity of fast-charging in 6 min @ high voltage, comparable to refueling.
●Application across a wide temperature range：Working at -40℃-60℃, no break down in cold weather.
Specifications
Parameter | Specification |
Nominal voltage | 1331.2V |
Nominal capacity | 280Ah |
Nominal energy | 3.72mWh |
Voltage range | 1040~1497.6V |
Charge and discharge ratio | 0.5P/0.5P |
Group mode | 10P416S |
Cooling system | Liquid-cooling |
Dimension | L6058*W2500*H2896mm |
Application field | ESS |
Applications
1. Industrial and commercial energy storage: It is used to cut peak and fill valley, and reduce electricity costs by using the difference between peak and valley electricity prices; It can be used as emergency power supply to ensure the operation of production equipment in the event of power failure. It can also participate in demand-side response to provide auxiliary services for the power grid to obtain benefits.
2. Power grid energy storage: realize the peak and frequency regulation of the power grid and balance the power grid load; Help renewable energy to connect to the grid, solve its intermittency and instability problems, and improve consumption efficiency.
3. Microgrid and virtual power plant: as a stable power supply in the microgrid, to ensure the stable operation of the microgrid; In the virtual power plant, it participates in power market trading and power grid operation scheduling to improve the flexibility and reliability of the power grid.
