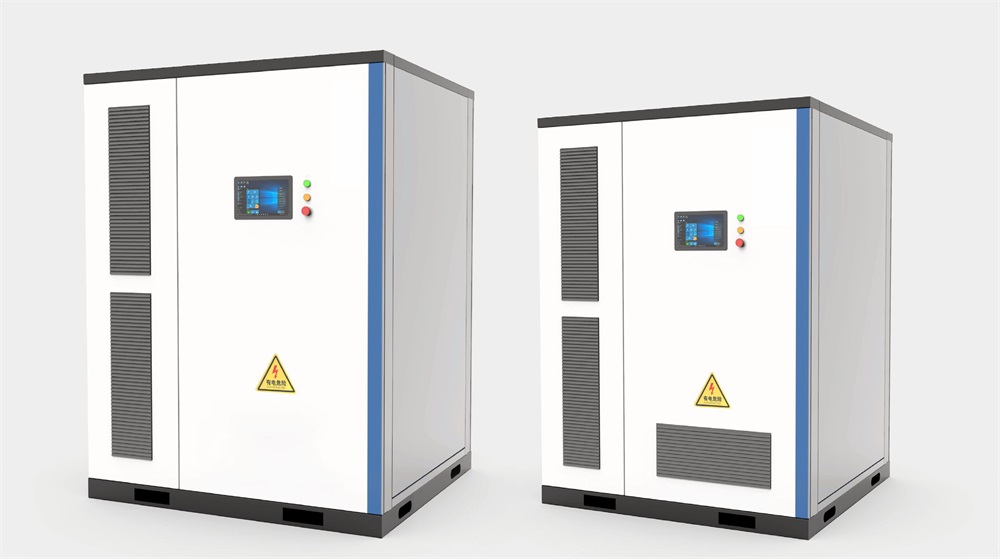

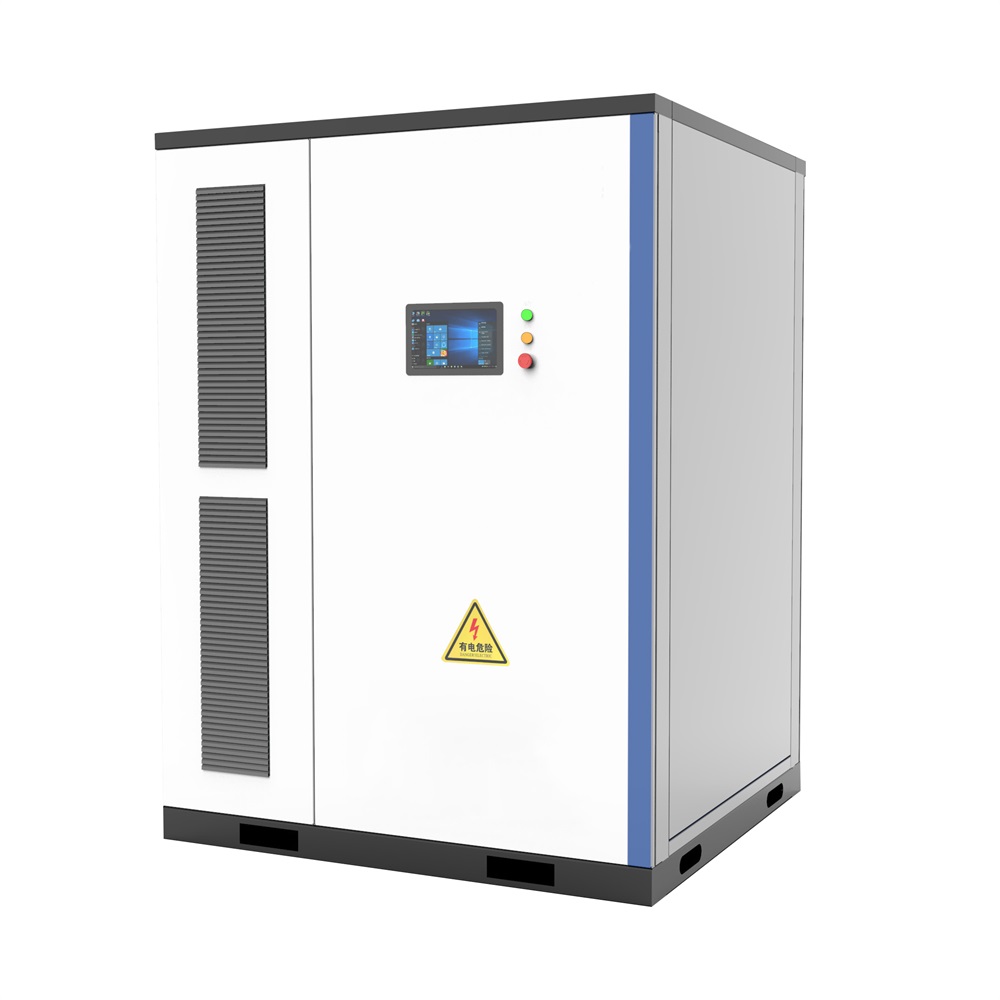

215.04kwh/372.736kwh Distributed Energy Storage Integrated Container System

215.04kwh/372.736kwh distributed energy storage integrated system has the characteristics of high efficiency, intelligence, reliability and friendliness.

Distributed energy storage integrated system


Feature


High-efficiency conversion

1. Intelligent temperature control system, improve system efficiency and battery cycle life

2. Two-way converter, charging with constant current, constant voltage, constant power mode

3. Reduce the parallel mismatch loss between battery clusters

4. Avoid the system risk caused by intercluster circulation


High precision intelligence

1. Meet the smart grid design specifications

2. Electrical isolation, with off-grid function, power grid adaptability

3. Cloud technology, remote maintenance and monitoring

4. Built-in management system, a variety of operation mode selection, support microgrid independent operation function, improve revenue


Flexible and simple

1. AC side PCS adopts modular design, convenient installation and maintenance

2. Support multiple PCS AC parallel operation, more flexible configuration scheme

3. Integrated transport, simple site construction

4. Data interaction and visualization



Specification


Parameter

Specification

Product Model

PLPFO280C0-0768 ROA

PLPFO280C0-1331R2A

Cell Type

3.2V/280Ah

Capacity

215.04kwh

372.736kwh

 Rated Voltage

768V

1331.2V

Operating Voltage

600~876V

1123.2~1497.6V

Grid-connected output parameters

Rated Output Power

100kw

200kw

Maximum Output Power

110KVA

220kVA

Maximum Output Current

158A

184A

AC Rated Voltage

400V

690v

Off-network output parameters

Rated Output Power

100kw

200kw

Maximum Output Power

110kVA

220kVA

Maximum output current

158A

184A

AC Rated Voltage

400V

690v

System parameter

Dimension

2100 x 2500 x 1100mm

2300 x 2500 x 1400mm

Weight

2.65T

4.5T

Operating Temperature Range

-30~ 60℃

Humidity Range

0~95%
