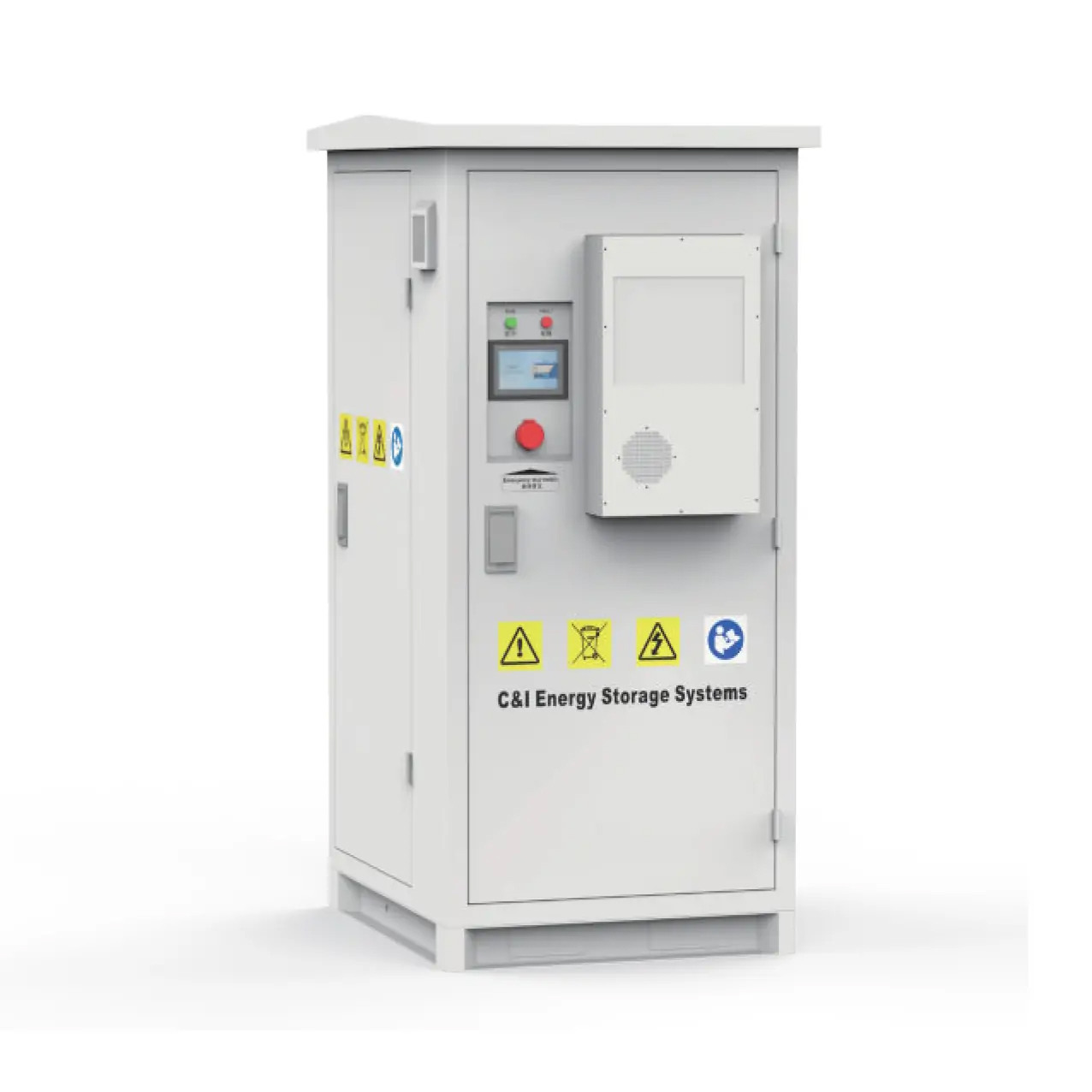

30KW/90KWH Commercial & Industrial ESS – Outdoor Cabinet

Looking for a versatile outdoor energy storage solution? Check out our 30 kW/90 kWh cabinet! Perfect for demand regulation, peak shifting, and C& I energy s

The outdoor energy storage cabinet, with the standard configuration of 30 kW/90 kWh, is composed of a battery cabinet and an electrical cabinet. It can apply to demand regulation peak shifting C&I energy storage, etc. The split design concept allows flexible installation and maintenance, and the modular design concept is easy to integrate and extend. The battery cabinet matches various mainstream PCS.


details



Features

· High charge/discharge efficiency

· Advanced thermal management system

· LiFePO4 battery compatible with reliability and energy density

· Modular design, quick delivery

· Small footprint, flexible installation, easy maintenance, expansion to MW-level system



Applications

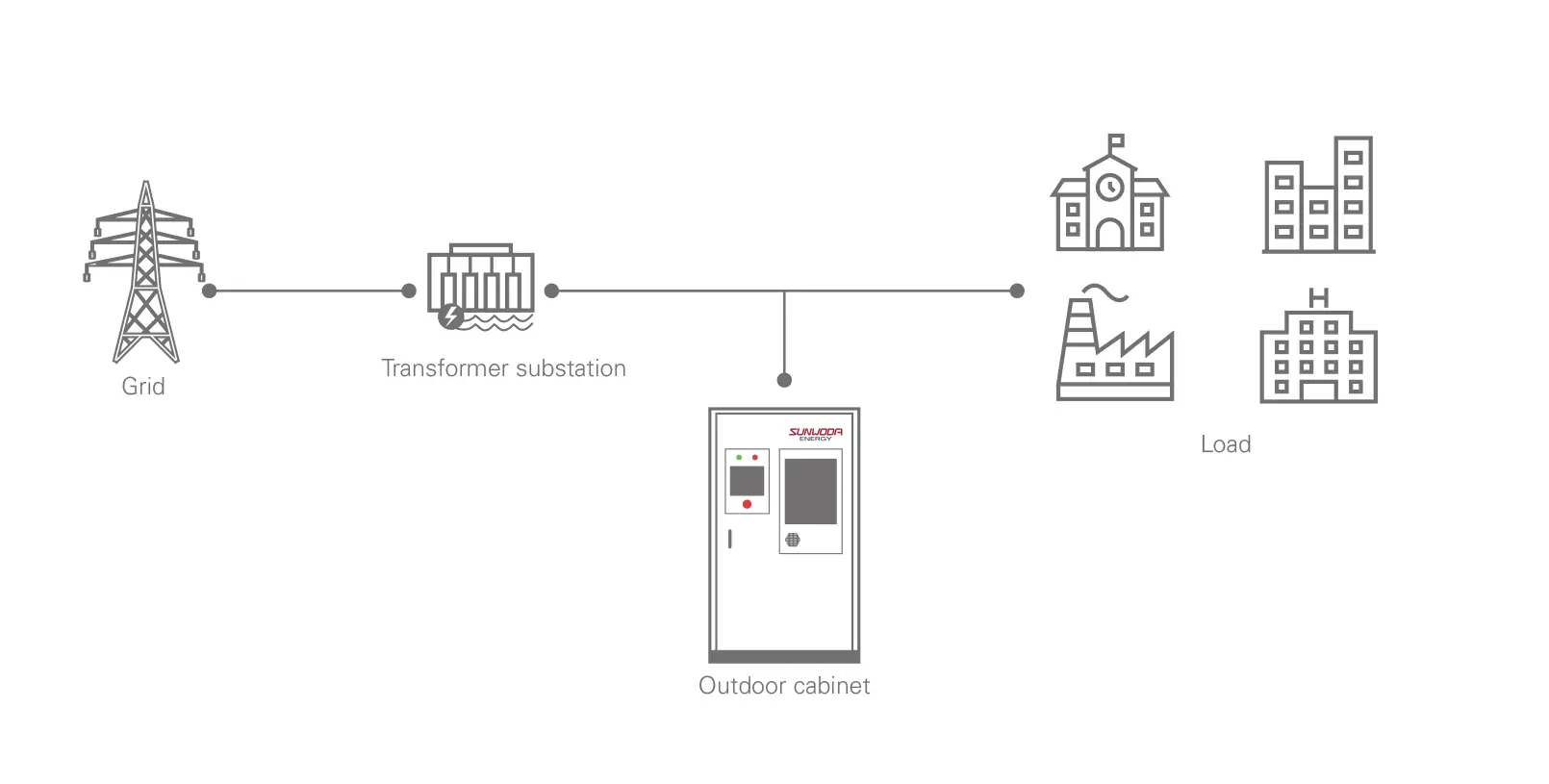

Small-scale renewable energy power generation, user-side response, integrated energy management for C&I park


Specifications

Item

Parameter

Rated capacity

81.9kWh

Rated power

30kW

Rated voltage

380/480V

Voltage range

Un(1±5%)

Rated frequency

50/60Hz

Adjustable power factor

0.8~0.8

Operating mode

Grid/Off-grid

Communication interfaces

RS485/Ethernet/4G

Communication protocol

Modbus/IEC104/MQTT/OPC UA

Protection degree

IP55

Altitude

≤2000m

Max. efficiency

86%

Allowable relative humidity range

5~95%non-condensing

Cycle life

≥4000(25℃,0.5C charge/discharge,

 90%DOD,EOL≥80%)

Operating ambient temperature range

-20~45℃

Weight

1300kg

Dimensions

2300*1000*1200mm

Certification

UL1973/UL9540/IEC62619/UN38.3
