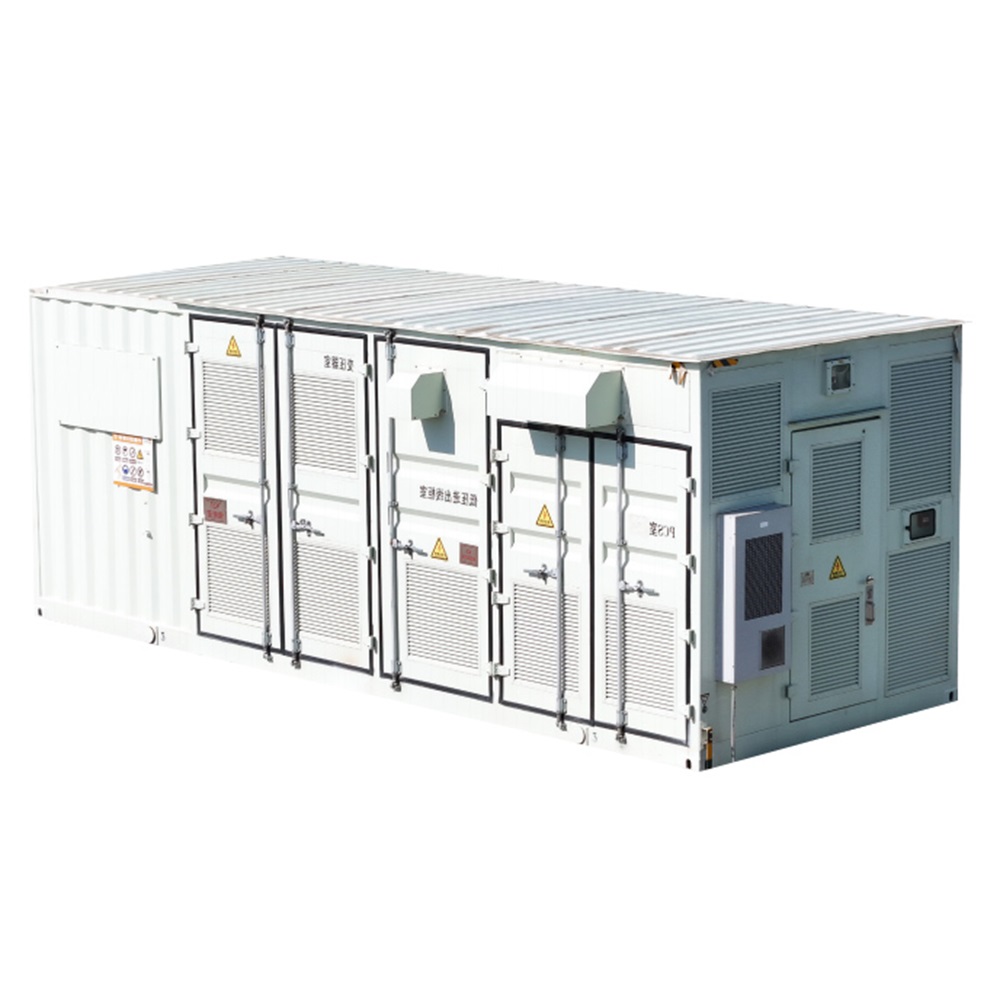

6.7MWh/5MWh/3.35MWh battery storage container-Large energy storage integrated system

6.7MWh/5MWh/3.35MWh battery storage container-Large energy storage integrated system: efficient integration, efficient conversion, and high precision intelligence.

Feature

Efficient integration

1. High system integration, integrated battery system, AC system, temperature control system, fire system data monitoring system, etc.

2. Integrated container energy storage system design, convenient transportation, simple construction, low installation cost


High precision intelligence

1. Meet the smart grid design specifications

2. Integrate the local controller to achieve unified scheduling and management, and the single-machine system can independently cut peaks and fill valleys.

3. The country has PQ, VF, SVG, and other functions, supporting the independent operation function of the microgrid

4. Outdoor design, protection level IP54


High-efficiency conversion

1. Intelligent temperature control system, improve system efficiency and battery cycle life

2. With a two-way converter, charging with constant current, constant voltage, and constant power mode



Large energy storage integrated system



Specification


Parameter

Specification

Product model

PLSF0280C0-6709R0A

PLSF0280C0-5017ROA

PLSF0280C0-3354R0A

Rated power

6.7MWh

5MWh

3.35MWh

Rated voltage

1331.2V

1331 2V

1331.2V

Dimensions (W * D "H)

12*2.8*2.9m

14.6*2.8*2.9

6*2.6*2.9

weight

70T

56T

39T

Ambient temperature

-22~55℃

-22~55°℃

-22~55℃C

Communication interface

RS485/CAN/Ethernet

RS485/CAN/Ethernet

RS485/CAN/Ethernet

Cooling mode

Liquid cooling

Air cooling

Liquid cooling
